TECHNIROUTER 5/2x16

Distribution of 2 satellites to 2 times 16 participants

Colour silver/yellow

€159.00*

incl. VAT.

32 subscribers on two cables
SCR protocol according to EN50494 and EN50607
2 orbital positions – for operation with a Quattro or Wideband LNB
Integrable into a multiswitch distribution
Automatische Verstärkungsregelung (AGC)
SCR level adjustable

TECHNIROUTER 5/2x16, Instruction manual, Power supply

With the TECHNIROUTER 5/2x16, you can build a single-cable converter distribution system and supply up to 32 subscribers with the complete television program lineup from up to two satellites (e.g., Astra 19.2° E and Eutelsat 13° E) as well as the terrestrial signal via two cables. Existing cable infrastructure in residential buildings can be used without laying new cables. If more than 32 subscriber connections are required, additional TECHNIROUTER 5/2x16 units can be cascaded at the trunk line outputs. The system utilizes digital SCR (Satellite Channel Routing) technology according to EN50494/EN50607, allowing for unrestricted access to all receiving devices. Multi-tuner devices (PVRs) can also be fully operated without the need to lay new antenna cables. Atmospheric attenuation losses, which lead to fluctuations in the received satellite signal level, are compensated for by the TECHNIROUTER 5/2x16 using a built-in automatic gain control (AGC).

Which LNB is required?
For operation with one orbital position, use Quattro LNBs (Quattro-Switch LNBs are not suitable).
By using two WIDEBAND LNBs, two orbital positions can be distributed without restriction.

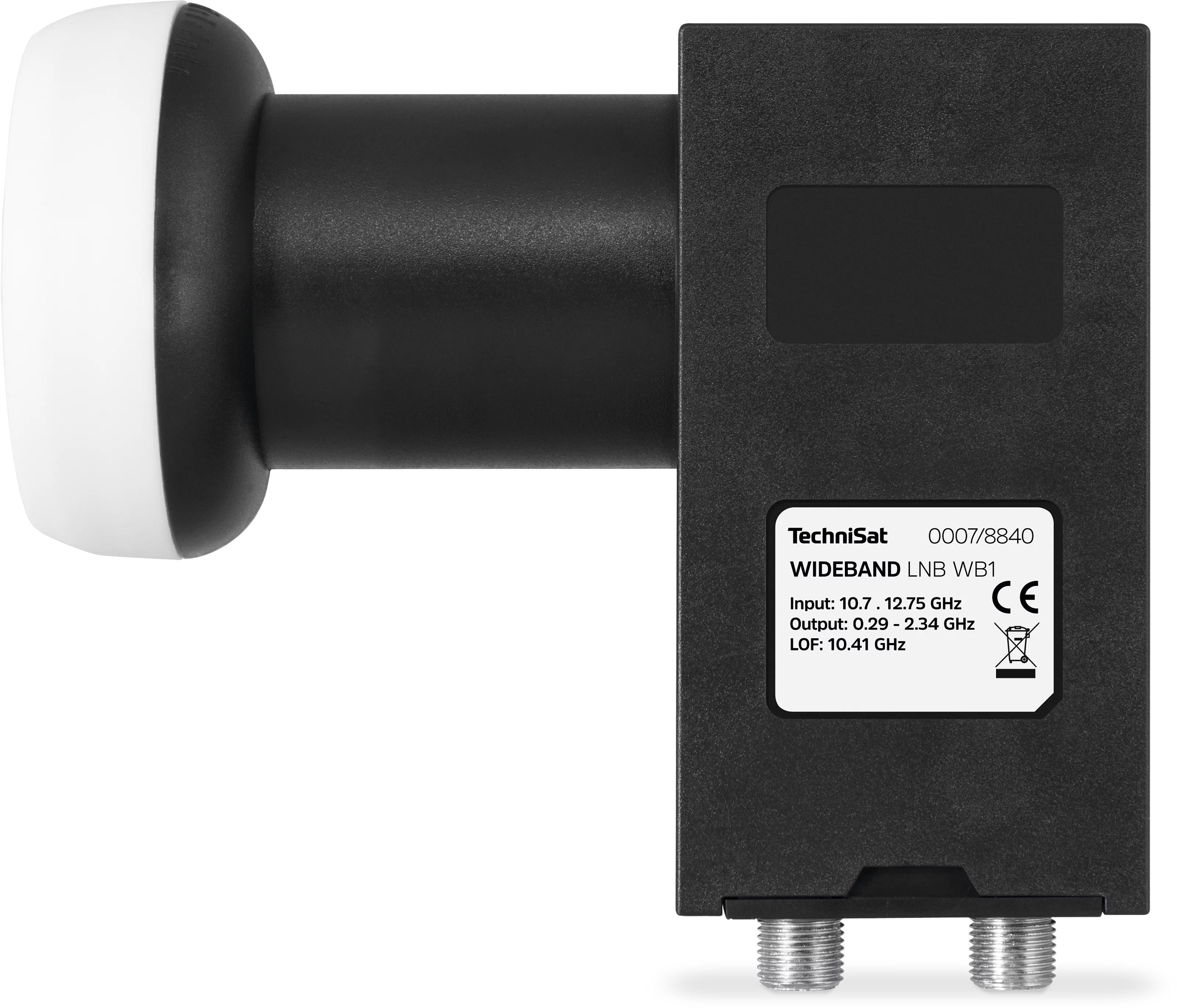

Use WIDEBAND LNBs with a LOF of 10.41 GHz.

Technical Datasheet ( HTML / PDF )

html

Product Information
EAN	4019588332874
Colour	silver/yellow
Item no.	0003/3287
Weight (Box)	890 g
Weight	690 g
Device (W x H x D)	11,8 x 8,5 x 4,2 cm
Box	25,5 x 13,5 x 5,5 cm

Filter-Navigation
Number participants	32

LNB control
Current consumption	max. 500 mA

Ambient operating conditions
Ambient temperature	-25 ... 45 °C
Humidity	10 ... 75 %

Amplification
Sat	0 ... 30 dB AGC-gesteuert
Terrestrial	-15 dB bezogen auf Eingang
Return path	-7 dB

Decoupling
Trunks	≥ 30 dB

General characteristics
Top features	32 participants on two cables
Top features	SCR protocol according to EN 50494 & EN50607
Top features	2 orbit positions - for quattro or wideband LNB operation
Top features	Can be integrated into a multi-switch distribution
Top features	Automatic gain control (AGC)
Top features	SCR level adjustable

Power supply
Nominal voltage	230 V
Frequency	50 Hz
Mains adapter	external DC 12 V / 2,0 A
Power consumption	max. 310 mA @13 V (16 User-Bänder)

Reception range
Terrestrial	5 ... 790 MHz
Sat	290 ... 2.340 MHz

Single-cable output
Output frequency	5 ... 2.150 MHz
Number of output channels	2x 16
Frequency of the output channels	1210, 1420, 1680, 2040, 985, 1050, 1115, 1275, 1340, 1485, 1550, 1615, 1745, 1810, 1875, 1940 MHz
Frequency SAT	950 ... 2.150 MHz
Frequency DVB-T	5 ... 790 MHz
Output level	≤ 80 ... 90 typ.
