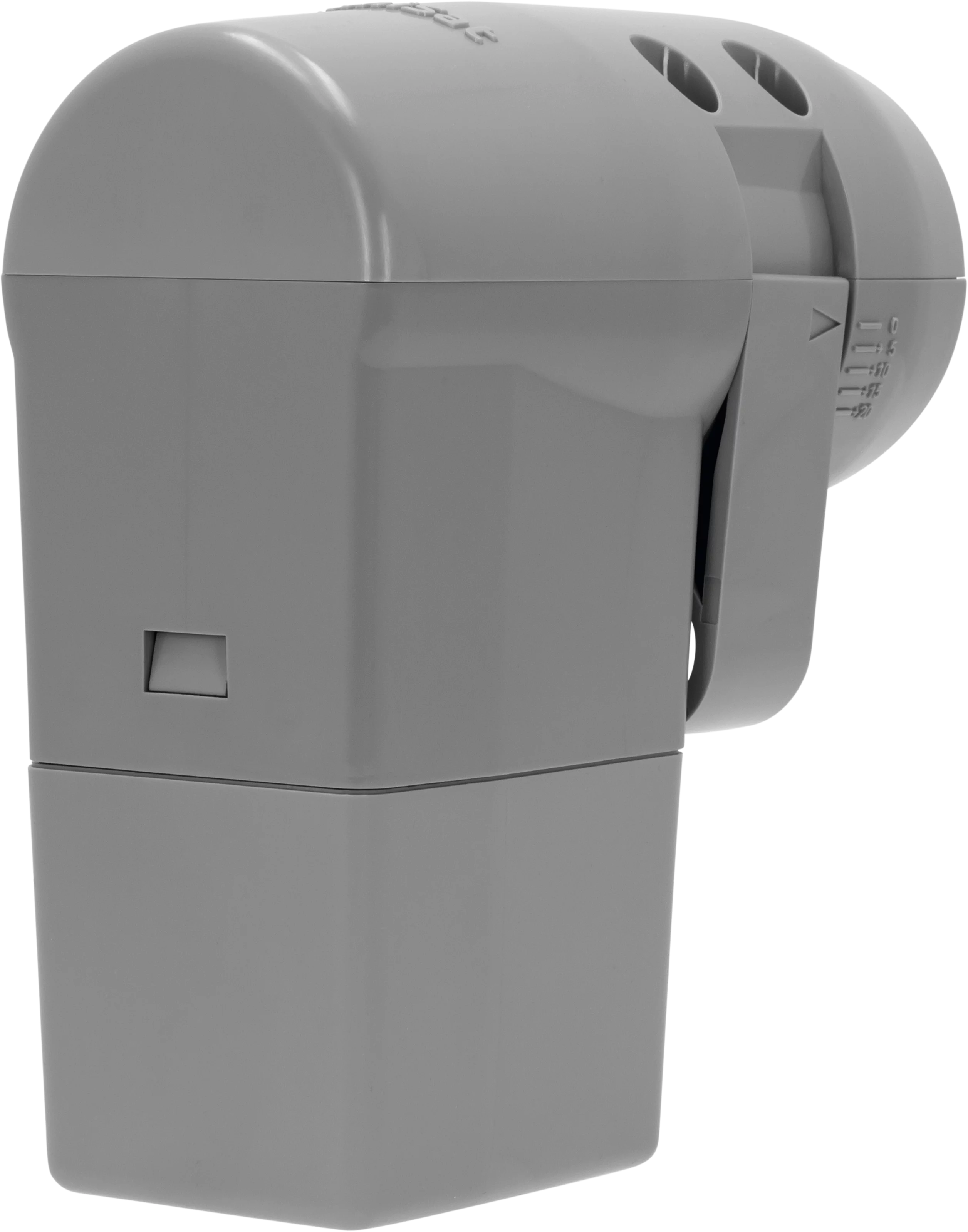

UNYSAT Universal Quattro-LNB grey
€99.00*
UNYSAT Universal Quattro-LNB
Digital LNB for multi-switch distribution
€99.00*
incl. VAT.

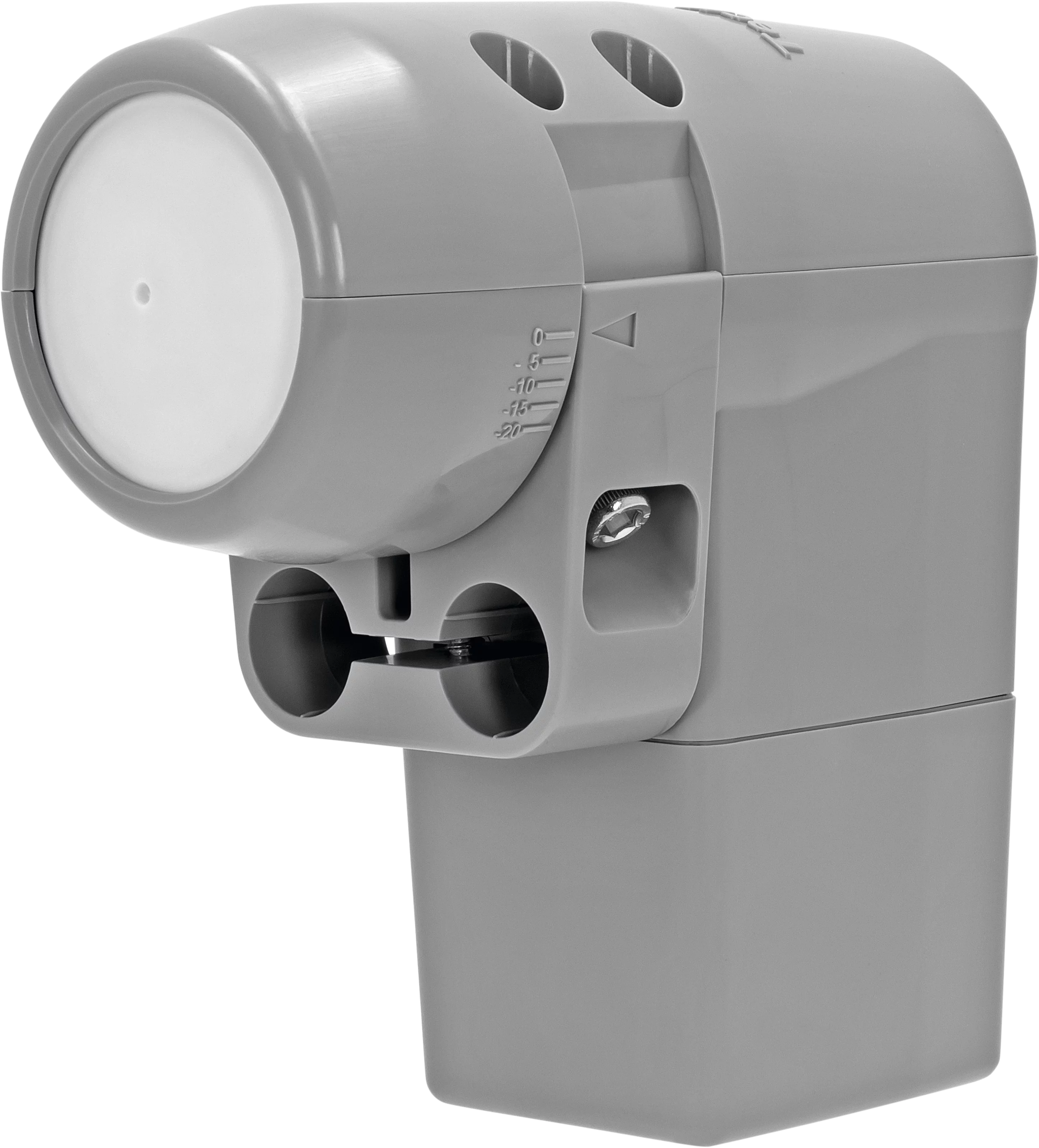

- The UNYSAT Universal Quattro LNB fits AZ/EL mounts of SATMAN satellite dishes and is used for processing TV, radio, and multimedia services broadcast via satellite
- Satellite reception for many: The Quattro LNB can only supply many users (receivers/TVs) with satellite signal in combination with a multiswitch, allowing independent program selection

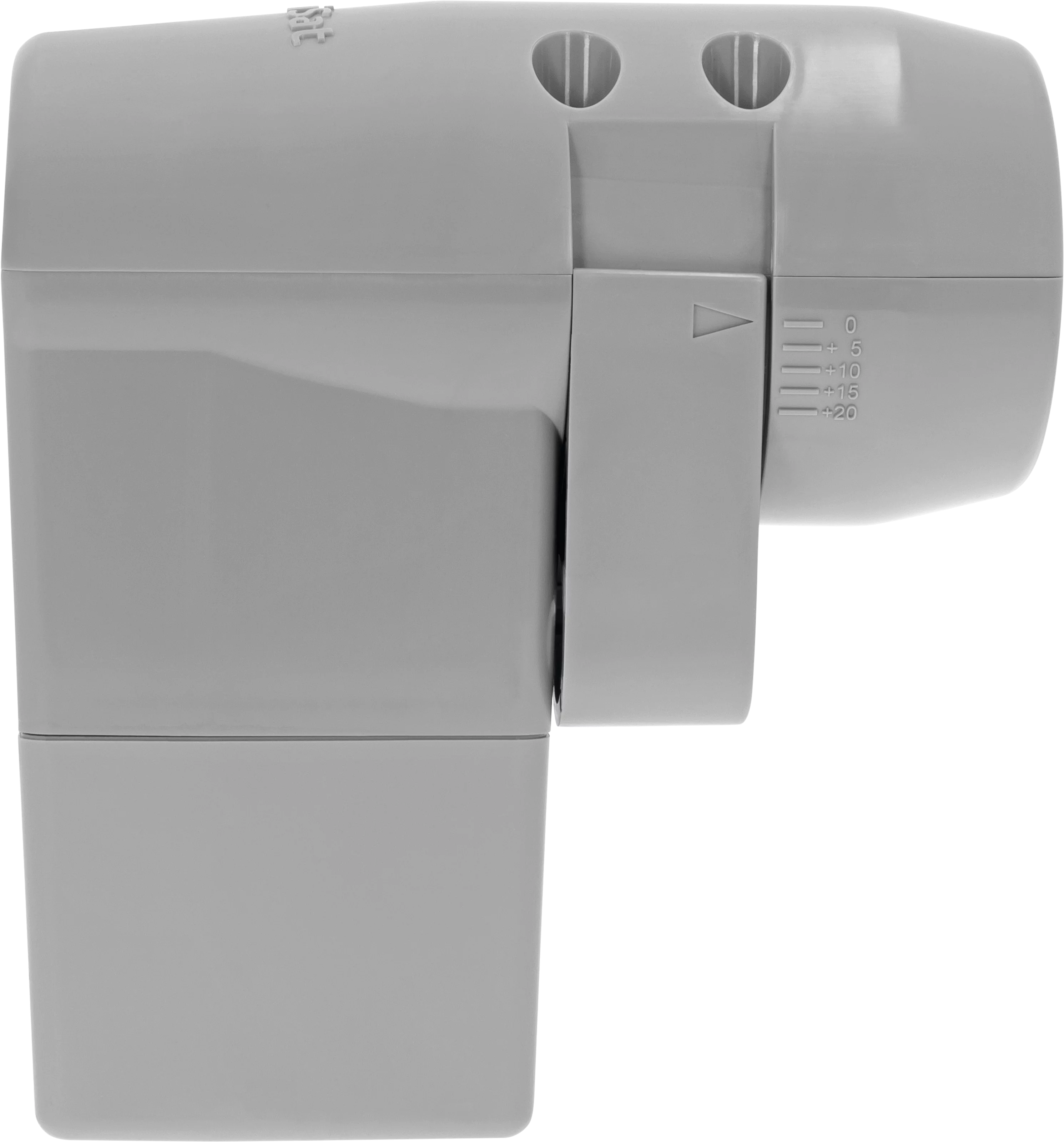

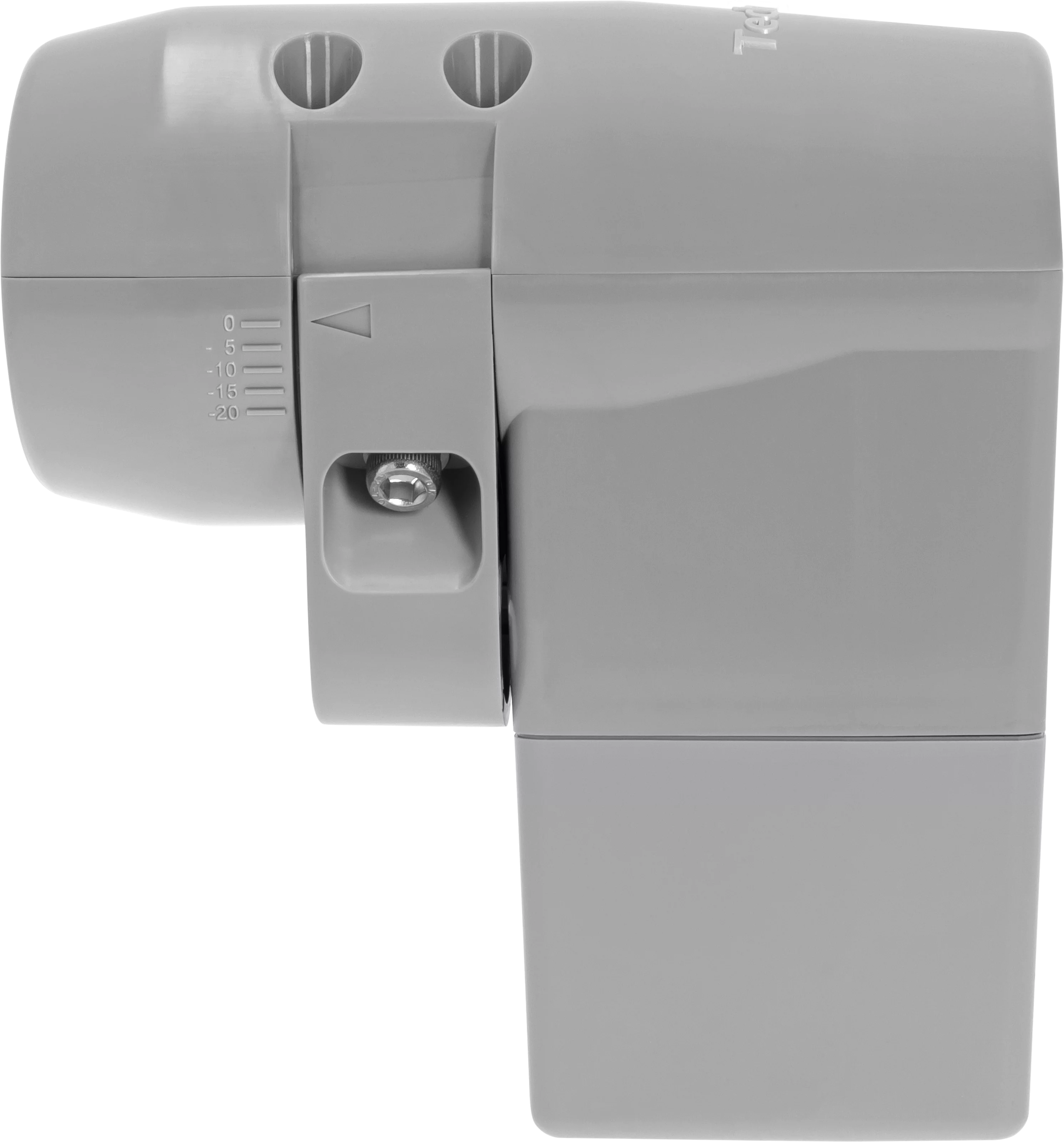

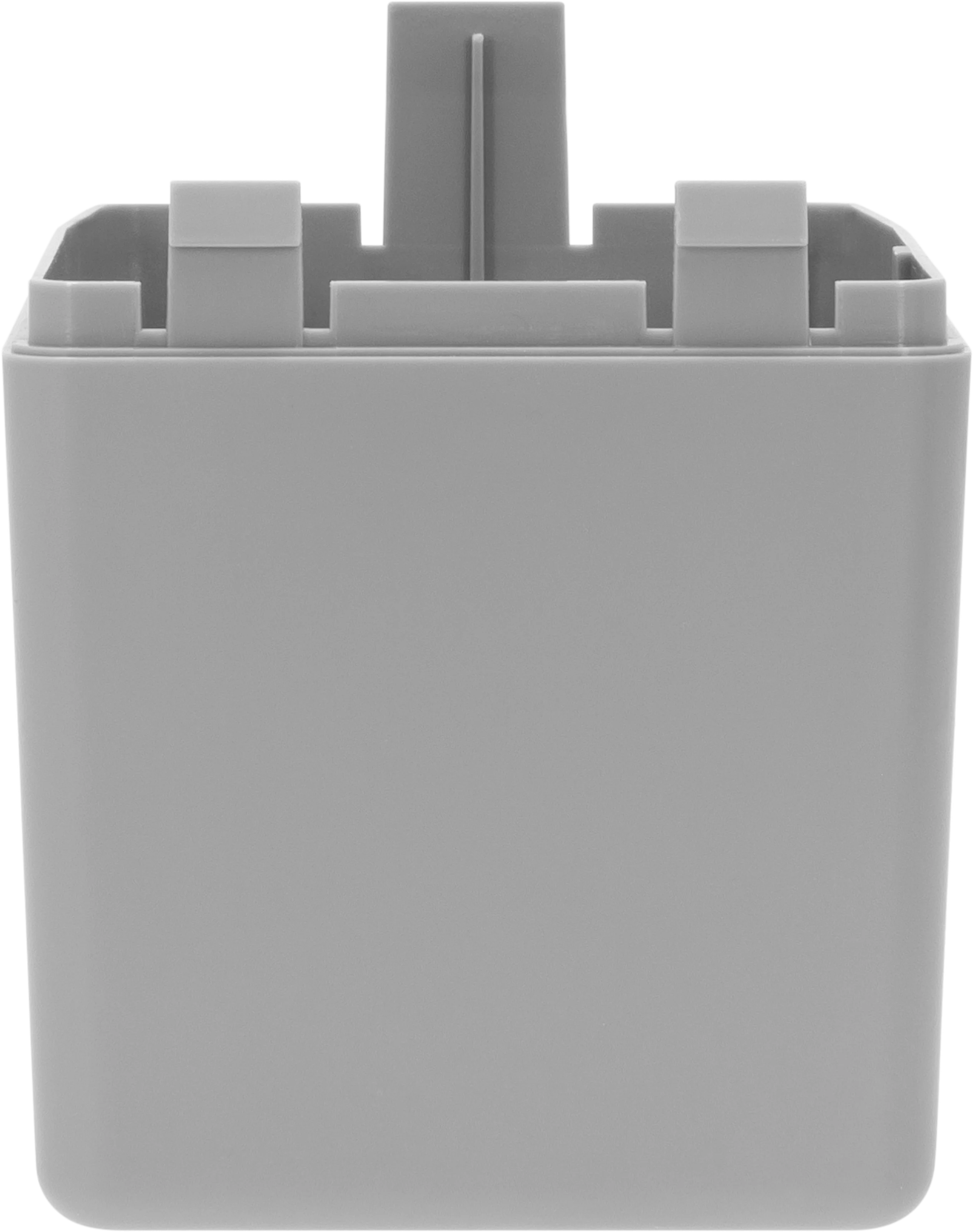

- UV-resistant, hail-proof housing with generous cross-polarization adjustment up to 15 degrees, extendable cover with embossed polarization markings to simplify installation
- Easy and fast installation without bracket, LNB with the latest and most advanced CHIP technology for long service life, stable oscillator frequencies, and high isolation, LTE interference-proof
- Scope of delivery: TechniSat UNYSAT Universal Quattro LNB, for multi-user systems (can only be used in combination with an optional multiswitch), installation manual
Universal-Quattro-LNB
The UNYSAT Universal Quattro LNB fits on all AZ / EL holders of the SATMAN antenna dishes and is used to implement TV, radio and multimedia offers that are broadcast via satellite.

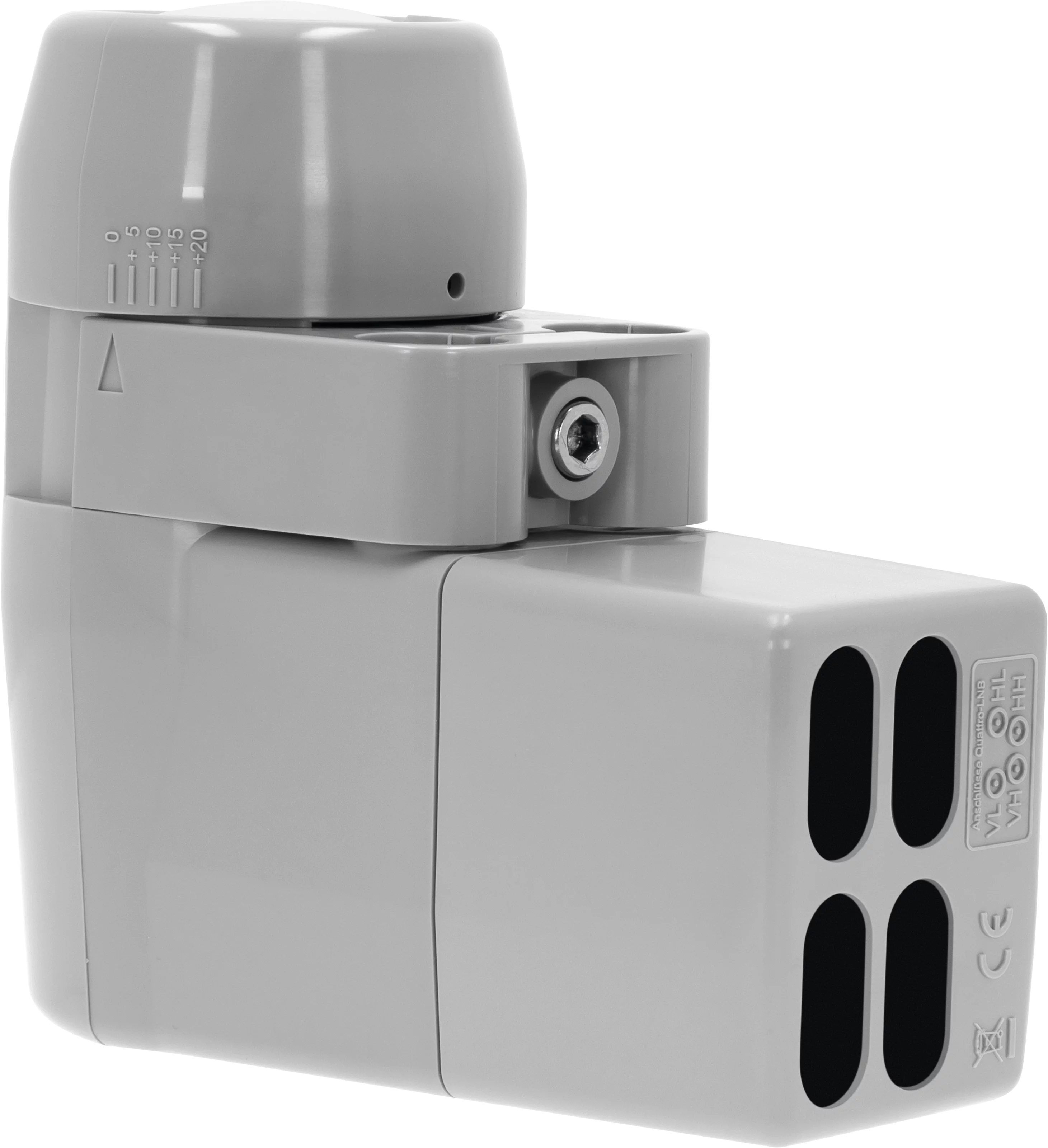

This LNB has four outputs and is specially designed for use in multi-subscriber systems in which distribution takes place via multi-switches or TECHNIROUTER. A satellite receiver or smart TV cannot be connected directly.
Due to its design, the UNYSAT Universal Quattro LNB is protected against interference from LTE mobile radio.
This LNB has four outputs and is specially designed for use in multi-subscriber systems in which distribution takes place via multi-switches or TECHNIROUTER. A satellite receiver or smart TV cannot be connected directly.
Due to its design, the UNYSAT Universal Quattro LNB is protected against interference from LTE mobile radio.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588108806 |
| Colour | grey |
| Item no. | 0010/8880 |
| Weight (Box) | 420 g |
| Weight | 420 g |
| Device (W x H x D) | 13,5 x 14,5 x 6 cm |
| Box | 15 x 17 x 7,5 cm |
| sonstiges | |
|---|---|
| bf_filter_number_satellites | 1 |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,6 GHz |
| Accuracy | ± 1 MHz |
| Temperature drift | ± 2,5 MHz |
| Phase noise | -85 @10kHz |
| LNB control | |
|---|---|
| Band switch | 22 kHz |
| Vertical | 11,5 ... 14,5 V |
| Horizontal | 16 ... 19 V |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -40 ... 70 °C |
| Humidity | 10 ... 95 % |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Noise figure | typ. 0,75 dB |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| LNB voltage supply | 11,5 ... 19 V |
| Power consumption | 200 mA |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Technical data | |
|---|---|
| Outputs | 4 |
| Feed reception | For SATMAN |
| Skew | -20 ... 20 ° |
| Impedance | 75 Ω |

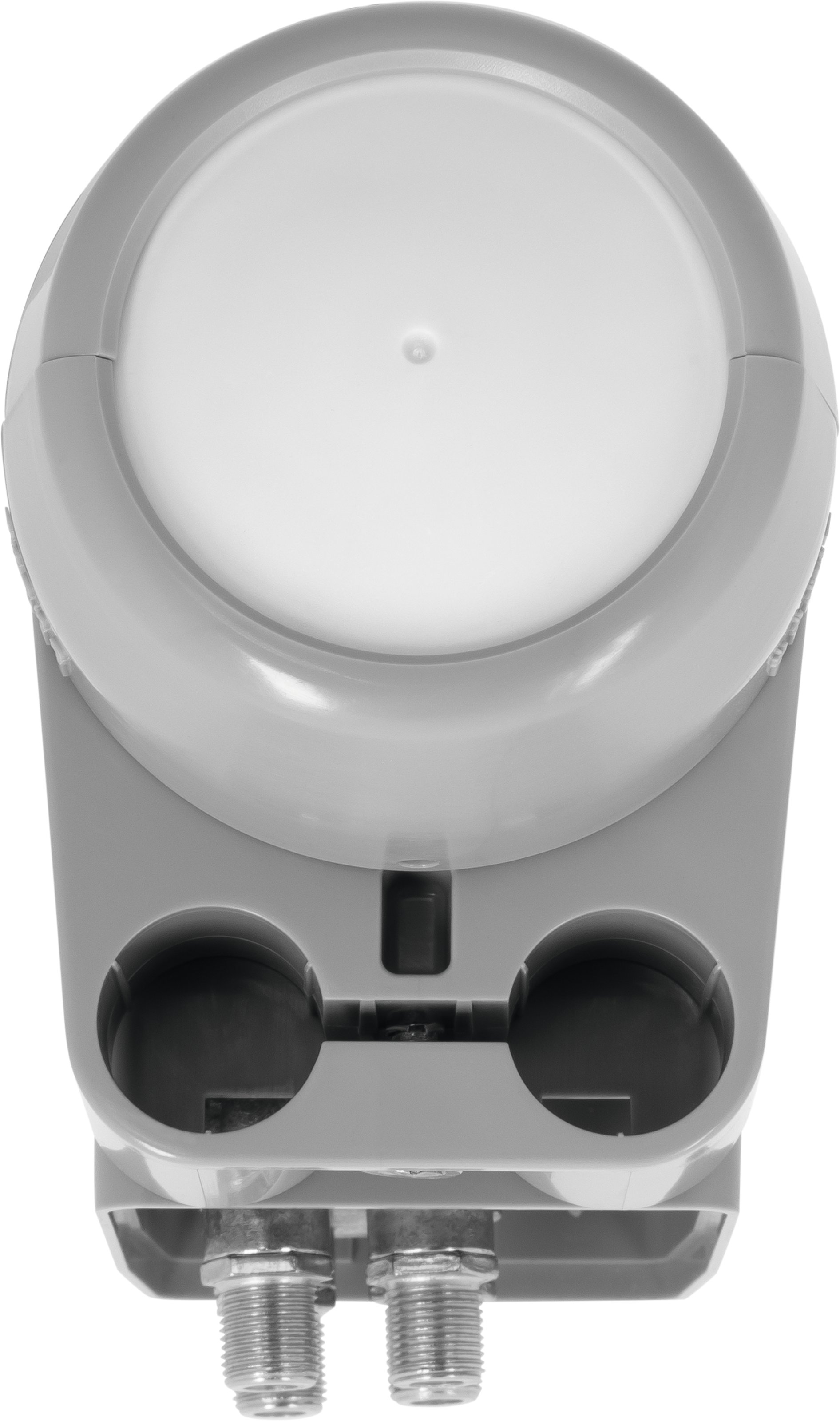

| Connector type | F female |
| Amplification | 60 ... 67 dB |
