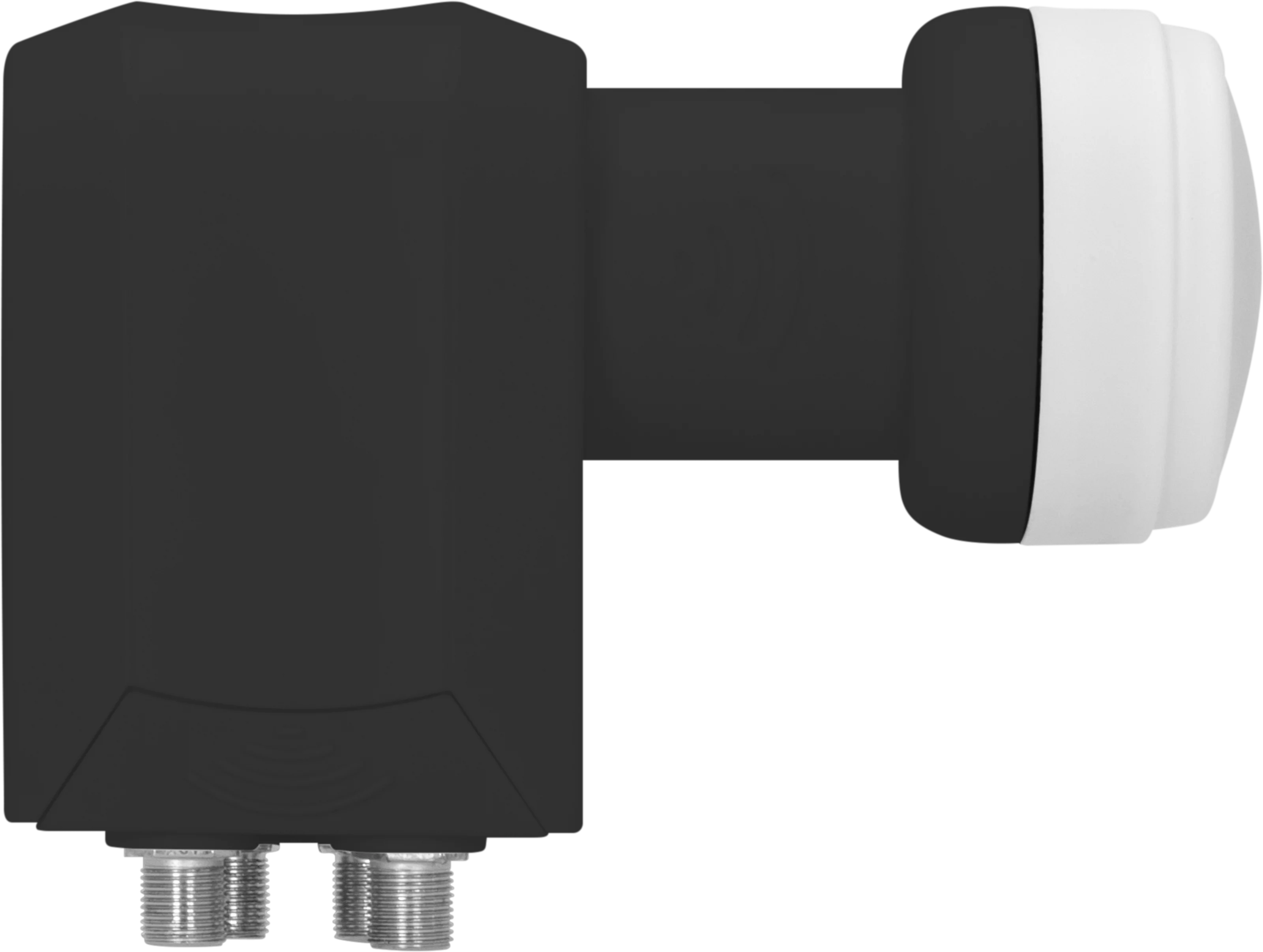

Universal-Quattro-LNB black
€35.00*

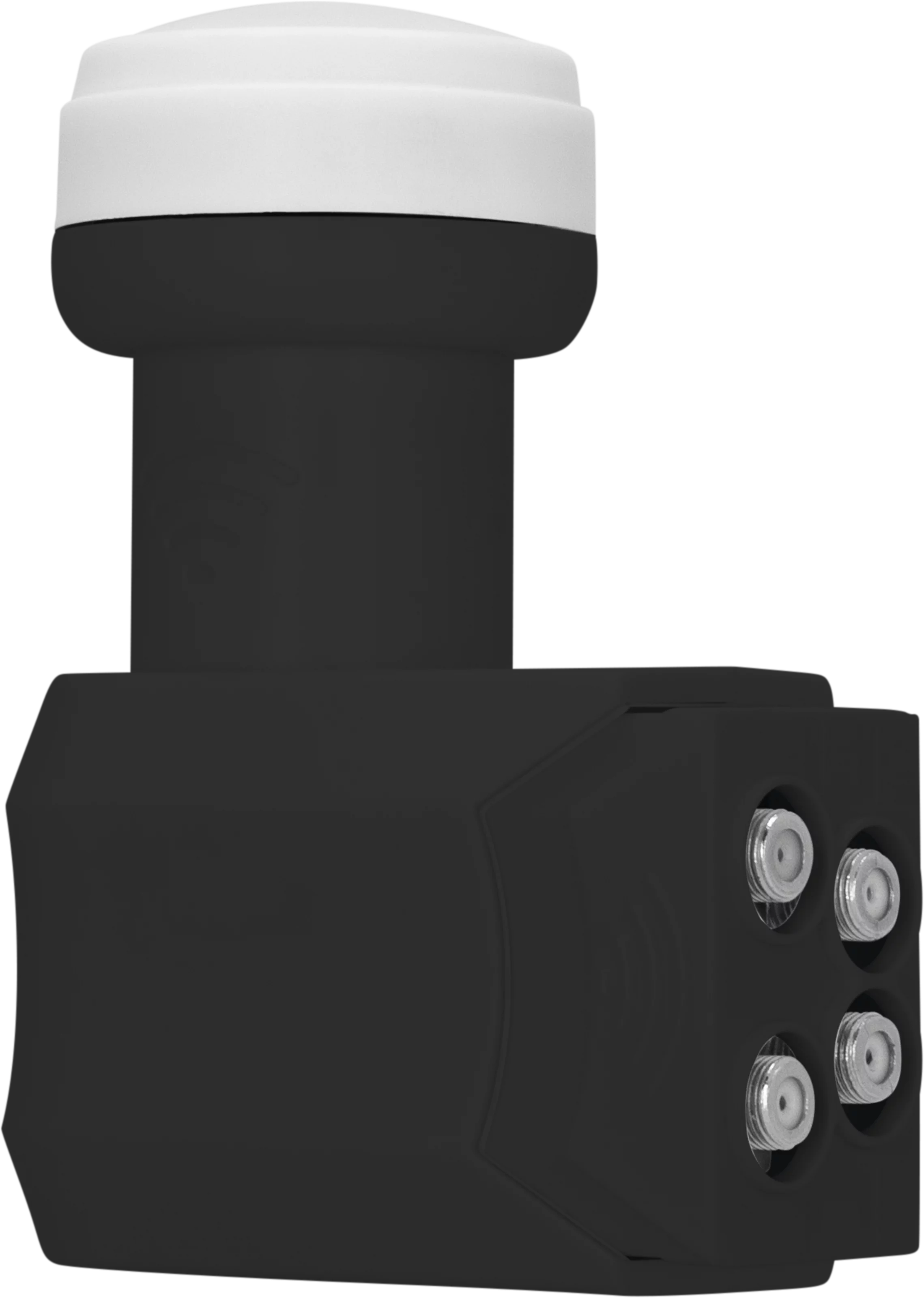

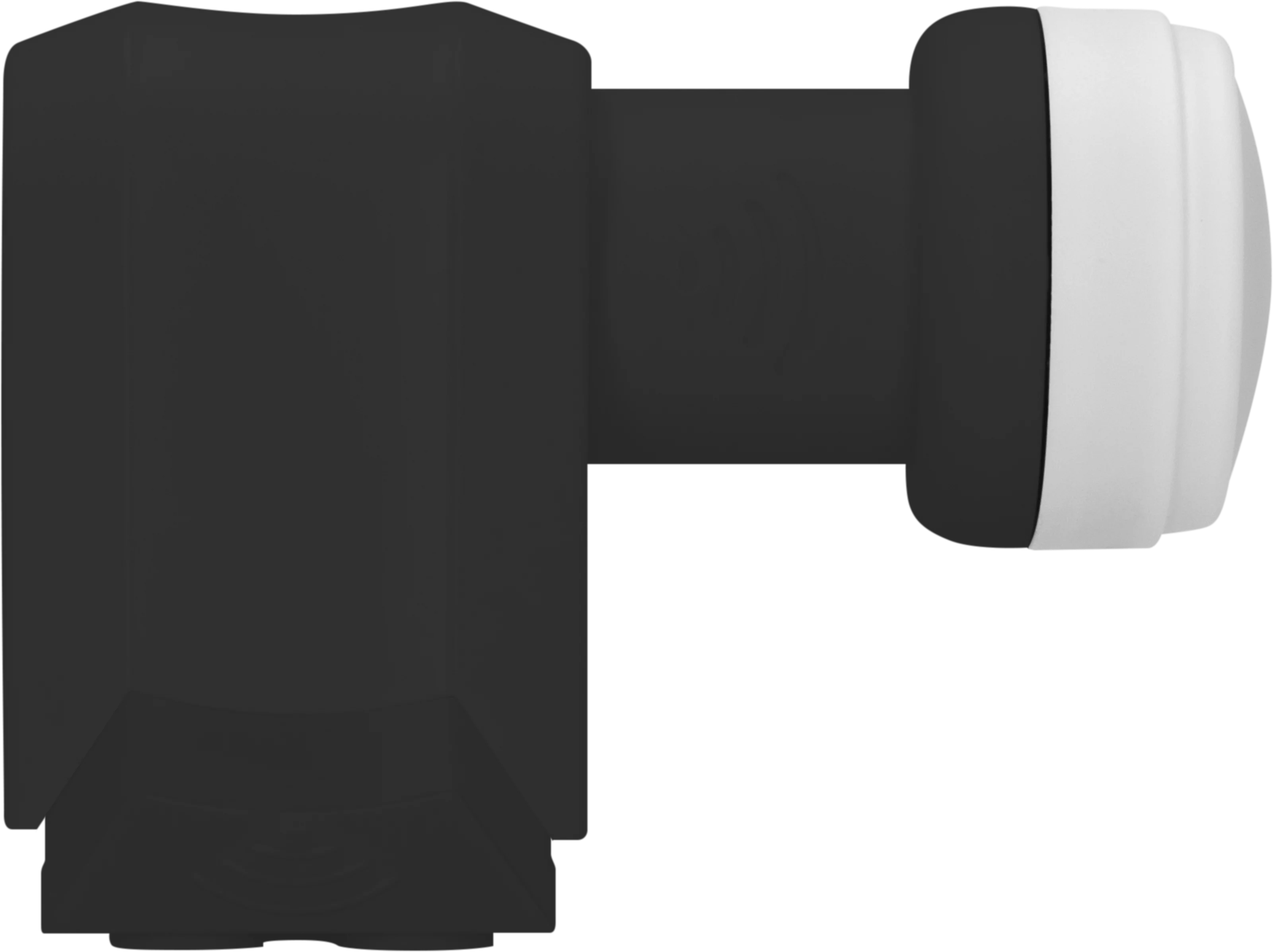

Universal-Quattro-LNB
Digital LNB for multi-switch distribution
€35.00*
incl. VAT.
- For multiswitches & unlimited participants: 4-output LNB for supplying multiswitches, ideal for receiving Astra, Eutelsat, Hotbird, Türksat, or any other satellite
- Latest technology: Advanced design ensures excellent digital picture and sound quality for a razor-sharp TV experience in Full HD, 3D, UHD, 4K, 8K / Very low power consumption (200 mA), noise figure 0.75 dB
- Mobile signal shielding – LTE interference protection: The construction, LNB housing, and filters provide protection against interference (e.g., LTE, UMTS, GSM, DECT) / Signal amplification 60–67 dB.
- Universally usable: The LNB is suitable for all common 40 mm feed holders (satellite dishes), and it can be quickly and easily replaced and installed
- Weatherproof: The stylish design features a retractable plug cover for the F-connectors, resistant to heat and cold, a weather-resistant housing made of high-quality plastic – UV resistant
Universal-Quattro-LNB
This LNB enables the reception of all TV, radio, and multimedia services broadcast via satellite. It is suitable for all satellite dishes with a 40 mm feedhorn. The Quattro LNB has four outputs and is specifically designed for use in multi-user systems where distribution is handled via a multiswitch or TECHNIROUTER. A satellite receiver or smart TV cannot be connected directly. Due to its design, the universal Quattro LNB is protected against interference from LTE mobile networks.
| Product Information | |
|---|---|
| EAN | 4019588083806 |
| Colour | black |
| Item no. | 0000/8380 |
| Weight (Box) | 232 g |
| Weight | 198 g |
| Device (W x H x D) | 5,4 x 10,1 x 13,3 cm |
| Box | 10,6 x 13,8 x 6,1 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,6 GHz |
| Accuracy | ± 1 MHz |
| Temperature drift | ± 2,5 MHz |
| Phase noise | -85 @10kHz |
| Filter-Navigation | |
|---|---|
| Number participants | many (multi-switch required) |
| Number satellites | 1 |
| LNB control | |
|---|---|
| Vertical | 11,5 ... 14,5 V |
| Horizontal | 16 ... 19 V |
| Band switch | 22 kHz |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -40 ... 70 °C |
| Humidity | 10 ... 95 % |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Noise figure | typ. 0,75 dB |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| LNB voltage supply | 11,5 ... 19 V |
| Power consumption | 200 mA |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Technical data | |
|---|---|
| Amplification | 60 ... 67 dB |
| Feed reception | 40 mm |
| Connector type | F female |
| Impedance | 75 Ω |
| Outputs | 4 |
