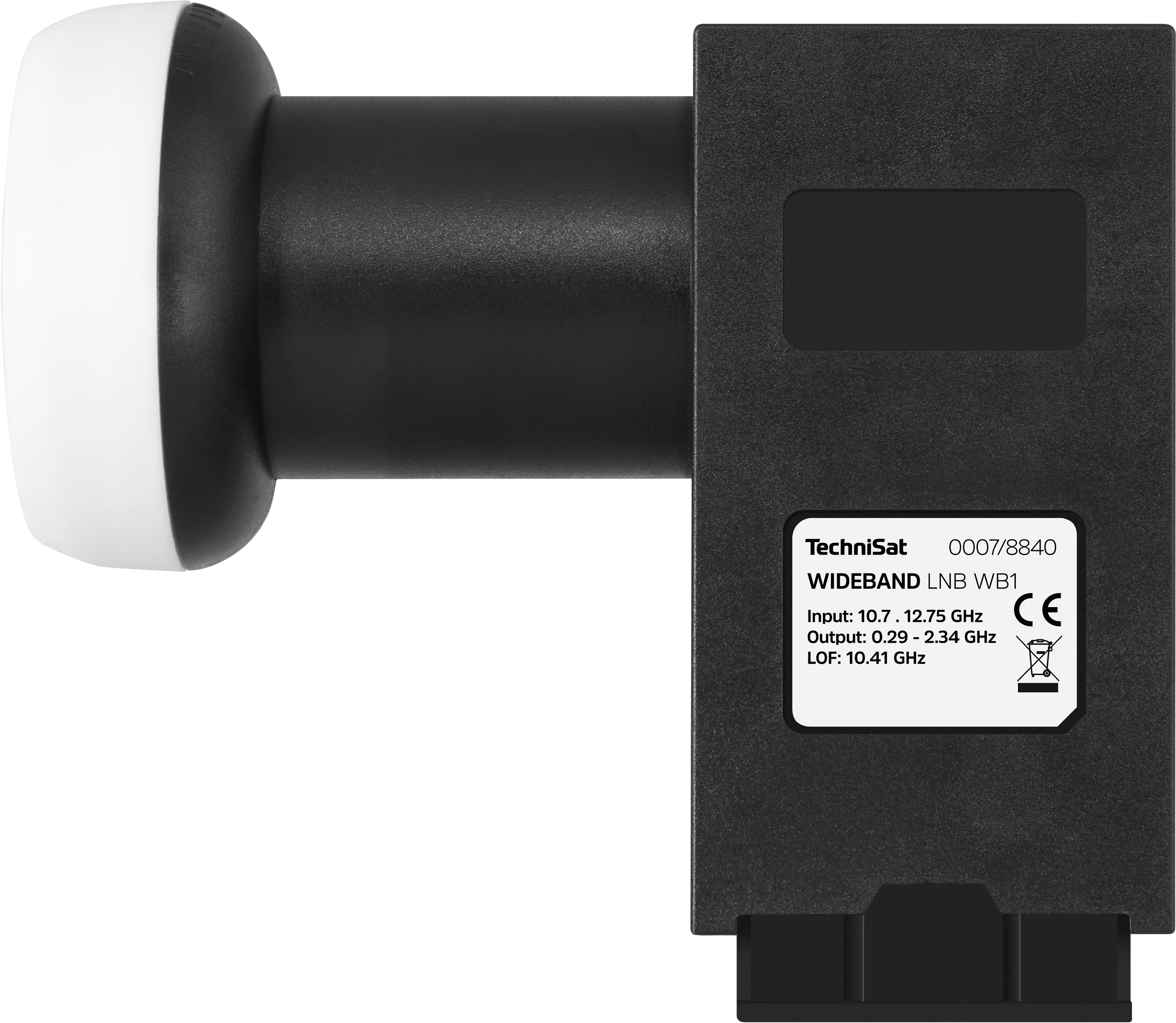

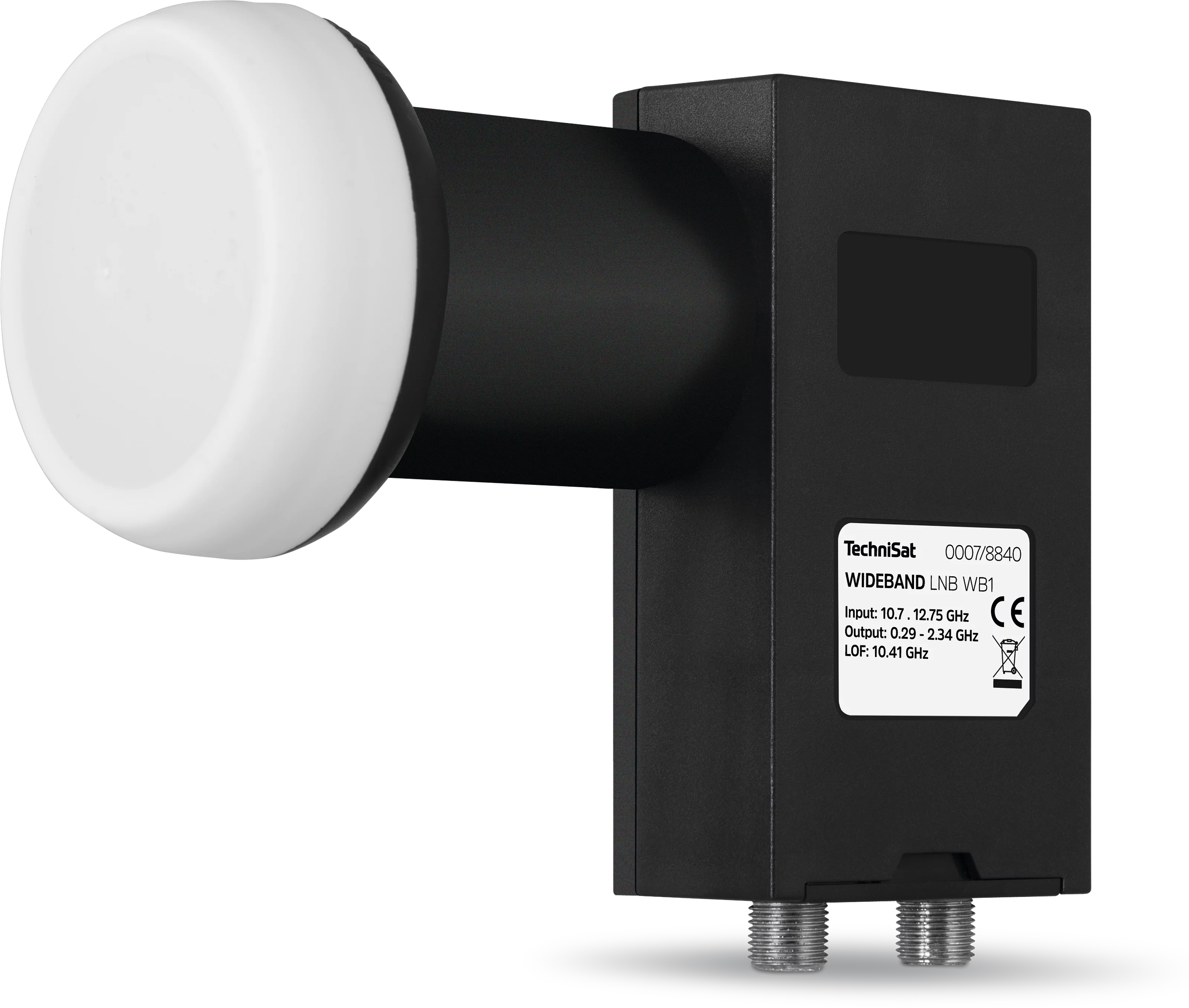

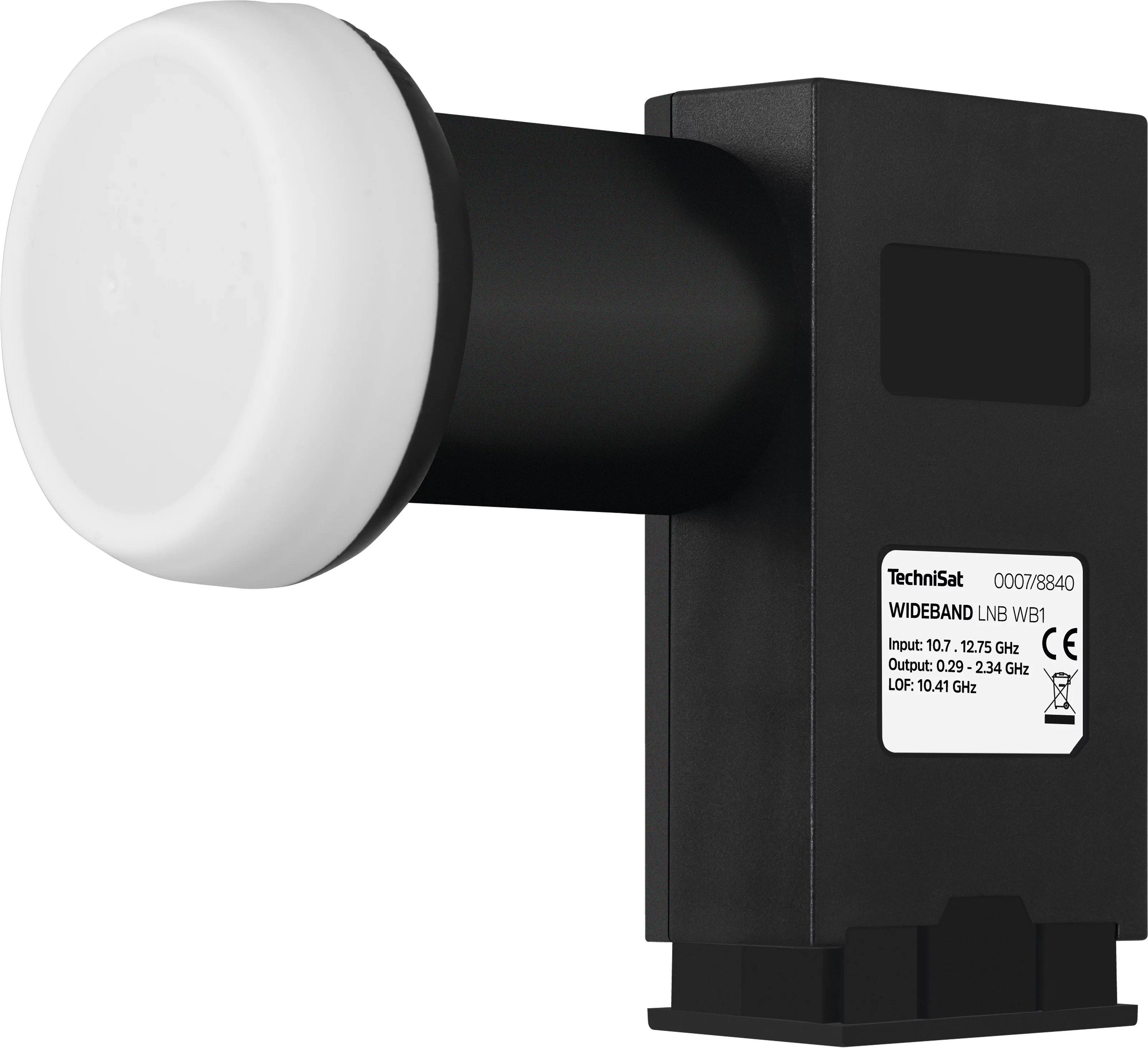

Wideband LNB WB1, 40 mm black
€59.00*
Wideband LNB WB1, 40 mm
Digital LNB, especially for TECHNIROUTER
€59.00*
incl. VAT.
- F-connectors
- Feed diameter: 40 mm
- Weather protection housing
- Energy saver – only 70 mA power consumption
- Funktioniert ausschließlich mit TECHNIROUTER
- No new reception devices required, as frequency conversion takes place in the TECHNIROUTER
Special LNB in combination with TECHNIROUTER which support the EN50607 protocol (SCR2) - ideal for multifeed reception. By using 2 WIDEBAND LNBs, 2 satellites can be distributed without restriction. Suitable TECHNIROUTER see "Additional Products".
| Product Information | |
|---|---|
| EAN | 4019588788404 |
| Colour | black |
| Item no. | 0007/8840 |
| Weight (Box) | 174 g |
| Weight | 146 g |
| Device (W x H x D) | 6 x 10 x 11 cm |
| Box | 6,5 x 10,5 x 12,5 cm |
| sonstiges | |
|---|---|
| bf_filter_number_satellites | 1 |
| Local oscillator | |
|---|---|
| Low band | 10,41 GHz |
| High band | 10,41 GHz |
| Accuracy | ± 0,5 MHz |
| Temperature drift | ± 1 MHz |
| Phase noise | -75 @10kHz |
| LNB control | |
|---|---|
| Vertical | 11,5 - 14 V |
| Horizontal | 16 - 19 V |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 90 % |
| Ambient temperature | -40 ... 60 °C |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,7 dB max. |
| Upper frequency range | 0,7 dB max. |
| Noise figure | 0,1 dB typ. |
| Output frequency range | |
|---|---|
| Low band | 290 ... 1.290 MHz |
| High band | 1.290 ... 2.340 MHz |
| Power supply | |
|---|---|
| LNB voltage supply | 9 ... 19 V |
| Power consumption | 70 mA @12 VDC |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Technical data | |
|---|---|
| Outputs | 2 |
| Impedance | 75 Ω |
| Connector type | F-Buchse |
| Feed reception | ø 40 mm |
| Amplification | 50 ... 60 dB |
