Transfer socket RV 600-10 (for finery installation, complete) white
€13.00*

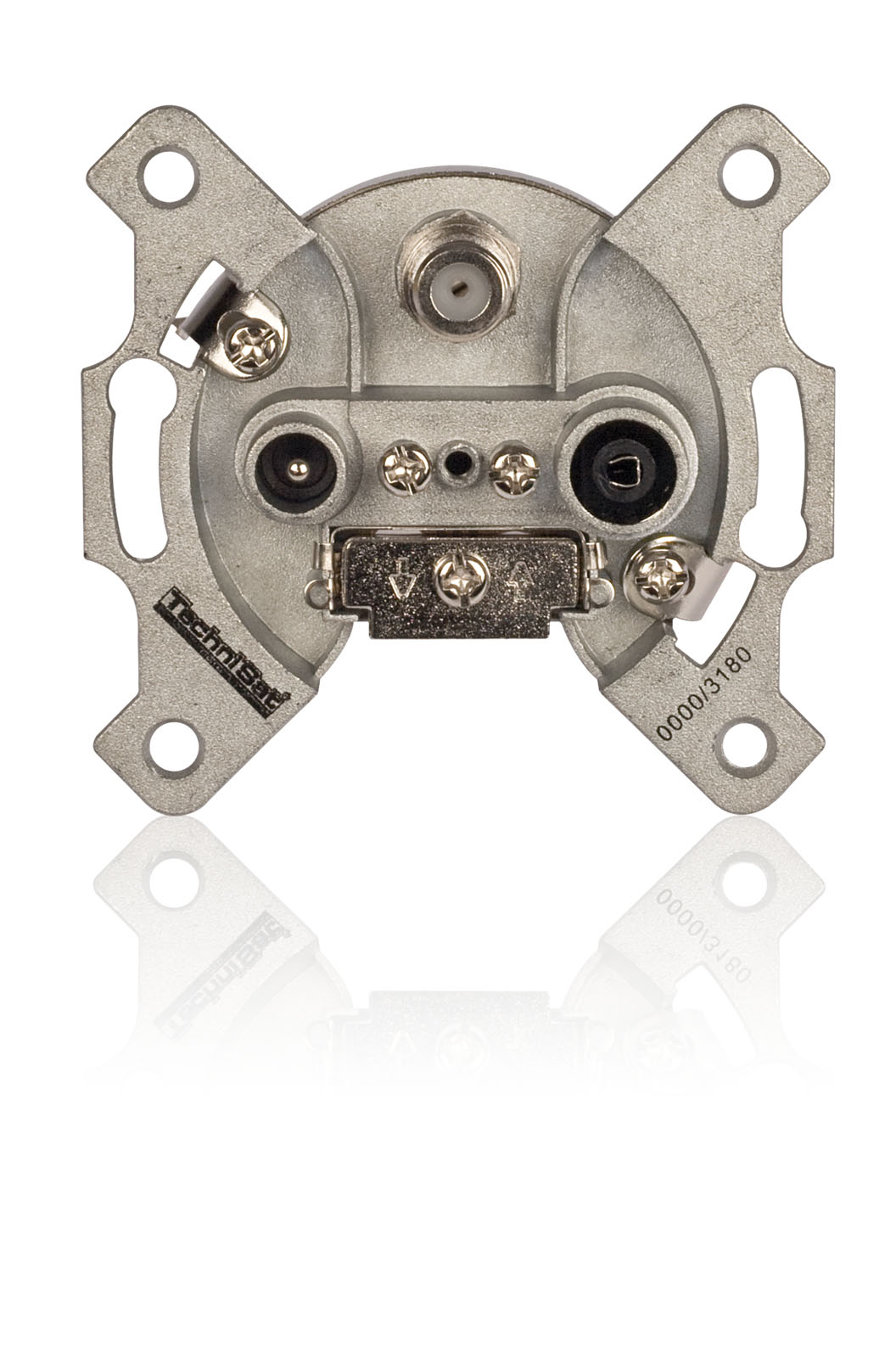

Transfer socket RV 600-10 (for finery installation, complete)
Sat-transfer socket with10 dB insertion loss for loop through-systems in one cable solutions -forflush mounting with frame and cover
€13.00*
incl. VAT.
- High-quality through socket with 10 dB tap attenuation

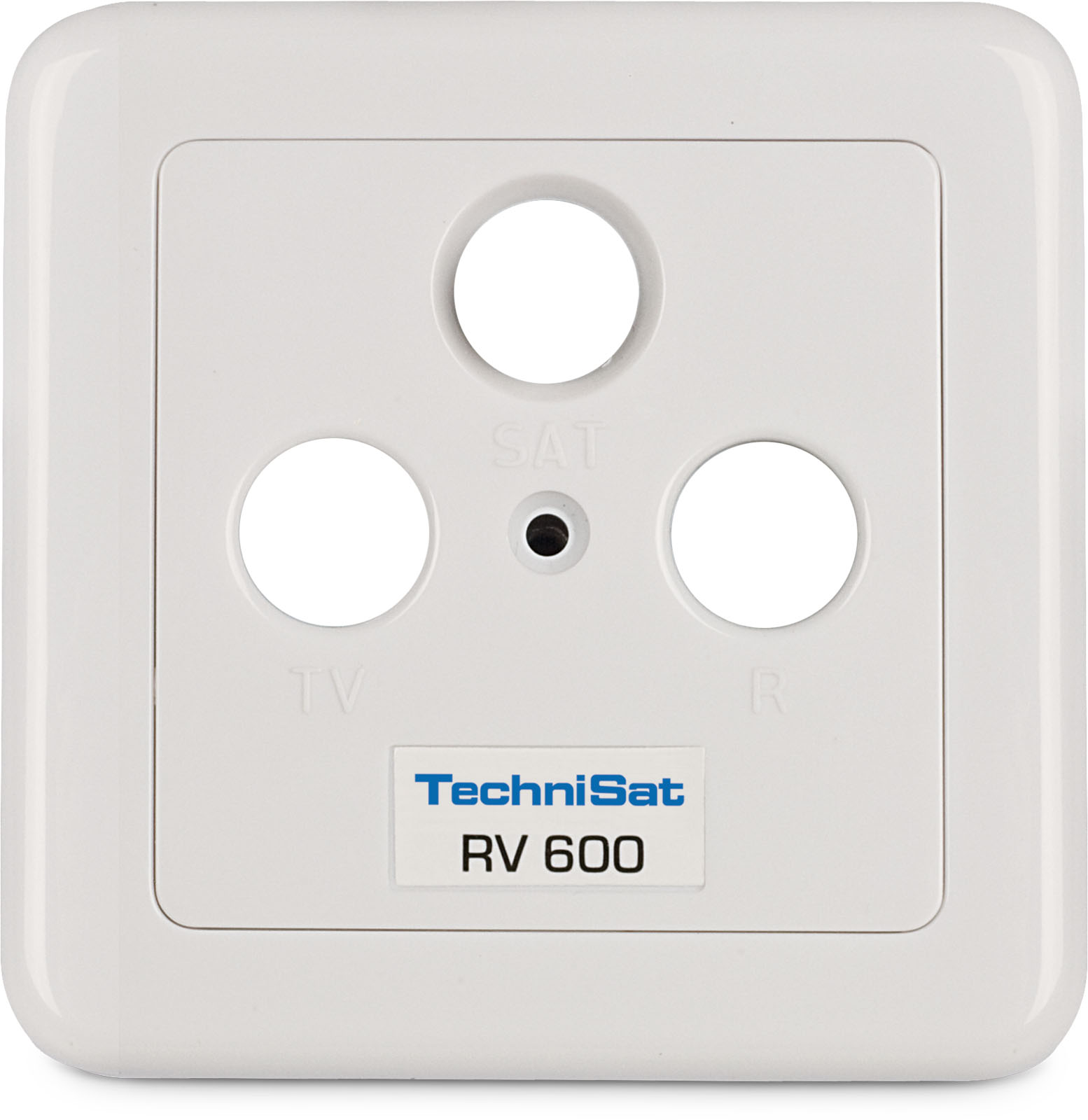

- 3-socket antenna outlet: SAT (F-socket), TV / cable television (IEC plug), Radio (IEC socket)
- Suitable for Unicable satellite systems / loop-through systems in single-cable installations with TechniRouter systems and TechniSelect 12

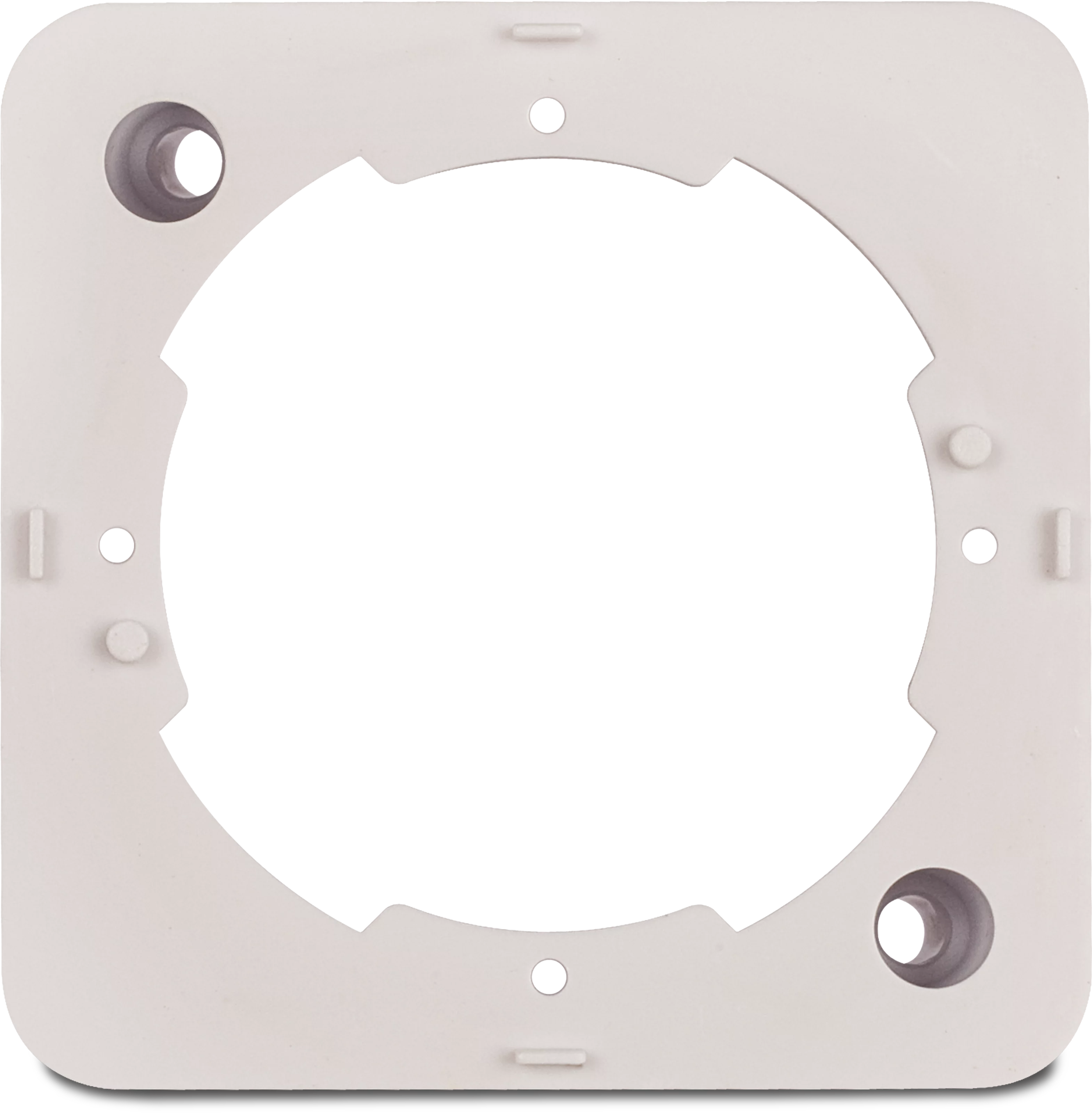

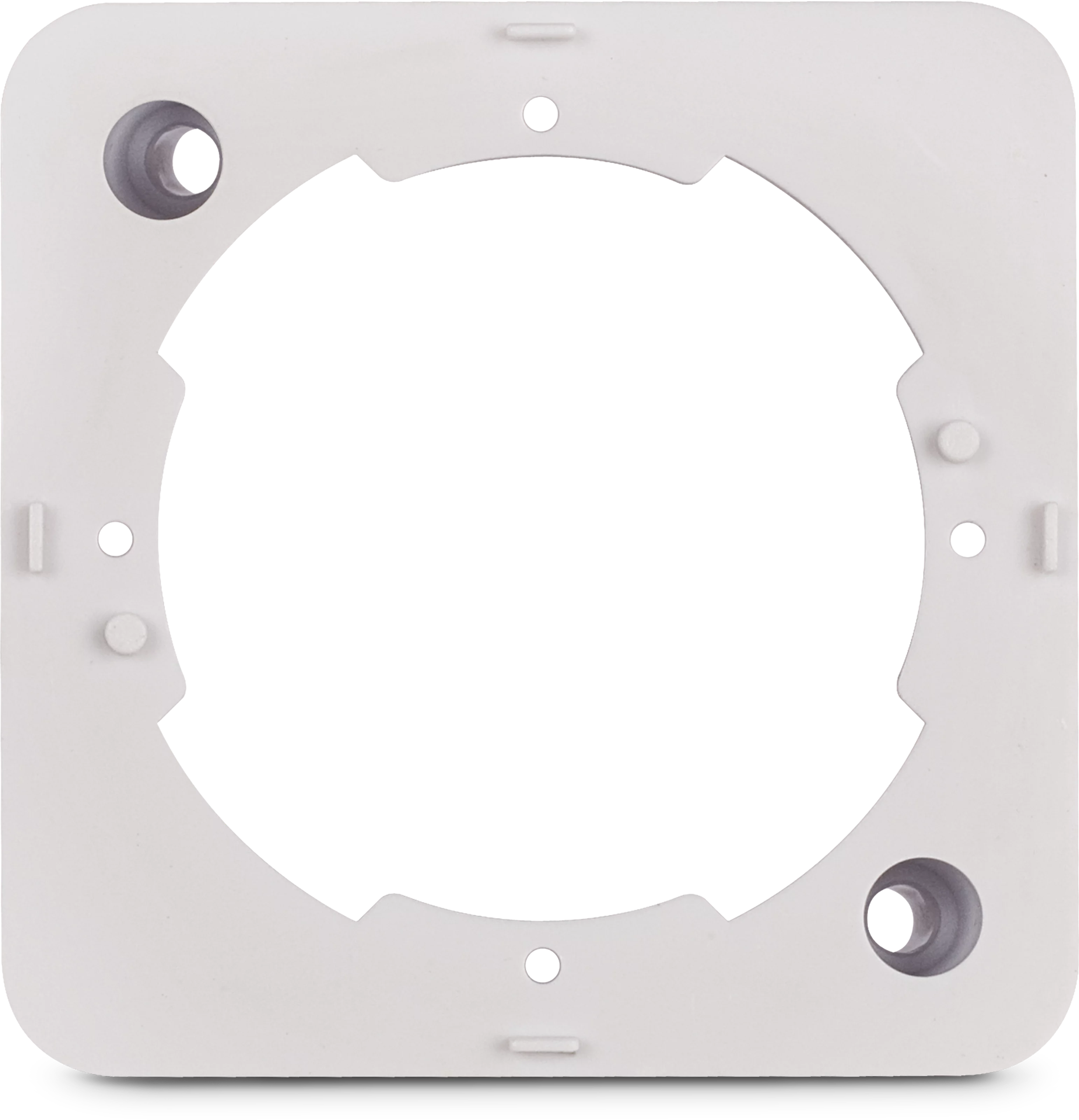

- Surface-mounted version with frame and cover
TechniPro RV 600-10, housing for surface mounting, cover
Diese Sat-Durchgangsdose mit 10 dB Auskoppeldämpfung eignet sich für Durchschleif-Systeme in Einkabel-Anlagen mit TechniRouter Systemen und TechniSelect 12. Die Ausführung ist Aufputz mit Rahmen und Abdeckung.
| Product Information | |
|---|---|
| EAN | 4019588031807 |
| Colour | white |
| Item no. | 0000/3180 |
| Weight (Box) | 100 g |
| Weight | 100 g |
| Device (W x H x D) | 7,8 x 7,5 x 4 cm |
| Box | 8 x 8 x 5 cm |
| Connector type | |
|---|---|
| Radio | IEC connector (f) |
| TV | IEC connector (m) |
| SAT | F-socket |
| frequency range | |
|---|---|
| Radio | 5 ... 139 MHz |
| SAT | 950 ... 2.150 MHz |
| TV | 5 ... 860 MHz |
| Shielding factor | |
|---|---|
| 47 - 300 MHz | 75 dB |
| 300 - 470 MHz | 75 dB |
| 470 - 950 MHz | 65 dB |
| 950 - 2150 MHz | 55 dB |
| Tap loss | |
|---|---|
| Radio | typ. 17 dB |
| SAT | typ. 10 dB |
| TV | typ. 14 dB |
| Transmission loss | |
|---|---|
| VHF | typ. 2 dB |
| UHF | typ. 2,5 dB |
| Sat | typ 3,5 dB |
