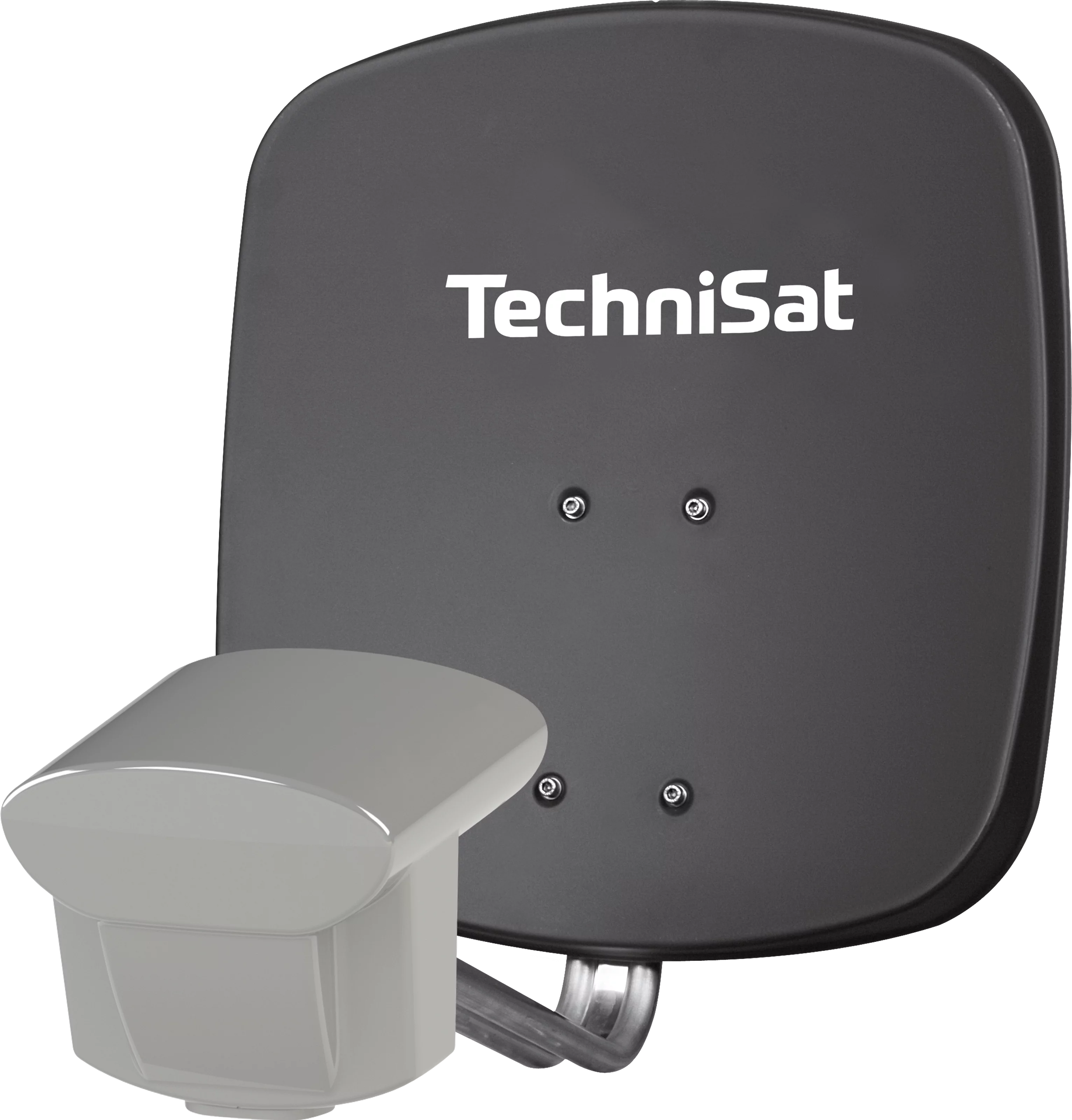

SATMAN 45 incl. UNYSAT 24TN-LNB slate/grey
€179.00*
SATMAN 45 incl. UNYSAT 24TN-LNB
Set consisting of satellite antenna SATMAN 45 and UNYSAT-24TN-LNB
€179.00*
incl. VAT.
- Dish only 45 cm small made of first-class aluminum (powder-coated on both sides)
- Up to 24 participants on one cable
- Participants 1-8 work with EN50494 or EN50607
- From participant 9 onwards, only EN50607 is used
- Ideal for roof mounting
- With antenna adjustment mode, transponder 85 with 18V control
- LNB with weatherproof housing
DigitalSat antenna SATMAN 45, AZ / EL bracket, UNYSAT-24TN-LNB (0000/8824), screws, assembly instructions
About SATMAN 45
The 45 cm offset mirror is made of first-class aluminum, powder-coated on both sides and is 100 percent rustproof. First-class aluminum is also used for the associated AZ / EL bracket. And all screws and washers are made of stainless steel. Thanks to the use of these materials, the outdoor system is extremely durable and absolutely weather-resistant.
The UNYSAT-24TN-LNB
With the UNYSAT-24TN-LNB, you supply via a single coaxial cable Up to 24 participants with the complete programs of a satellite.
How does the control of the single-cable output work?
The SCR-compatible receivers control the single-cable output of the UNYSAT-24TN-LNB via DiSEqC -Level 1.0 with the protocol EN 50494 or EN 50607. With these protocols the selection of the transponder frequencies / programs is initiated in the SCR-LNB. The UNYSAT-24TN-LNB generates twenty-four generated output frequencies in the IF frequency range 950-2150 MHz, via which the individual participants can receive all digital programs without restriction. Both low and high band can be received.
The 45 cm offset mirror is made of first-class aluminum, powder-coated on both sides and is 100 percent rustproof. First-class aluminum is also used for the associated AZ / EL bracket. And all screws and washers are made of stainless steel. Thanks to the use of these materials, the outdoor system is extremely durable and absolutely weather-resistant.
The UNYSAT-24TN-LNB
With the UNYSAT-24TN-LNB, you supply via a single coaxial cable Up to 24 participants with the complete programs of a satellite.
How does the control of the single-cable output work?
The SCR-compatible receivers control the single-cable output of the UNYSAT-24TN-LNB via DiSEqC -Level 1.0 with the protocol EN 50494 or EN 50607. With these protocols the selection of the transponder frequencies / programs is initiated in the SCR-LNB. The UNYSAT-24TN-LNB generates twenty-four generated output frequencies in the IF frequency range 950-2150 MHz, via which the individual participants can receive all digital programs without restriction. Both low and high band can be received.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588348240 |
| Colour | slate/grey |
| Item no. | 1345/8824 |
| Weight (Box) | 3,9 kg |
| Weight | 3,1 kg |
| sonstiges | |
|---|---|
| bf_filter_number_satellites | 1 |
| bf_filter_number_of_participants | 24 |
| bf_filter_austattung | with LNB |
| bf_filter_diameter | 45 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,7 GHz |
| LNB control | |
|---|---|
| Vertical | 11,5 - 14,5 V |
| Horizontal | 16 - 19 V |
| General characteristics | |
|---|---|
| Material | Aluminium |
| Material strength | 1 mm |
| Coating | Powder-coated on both sites |

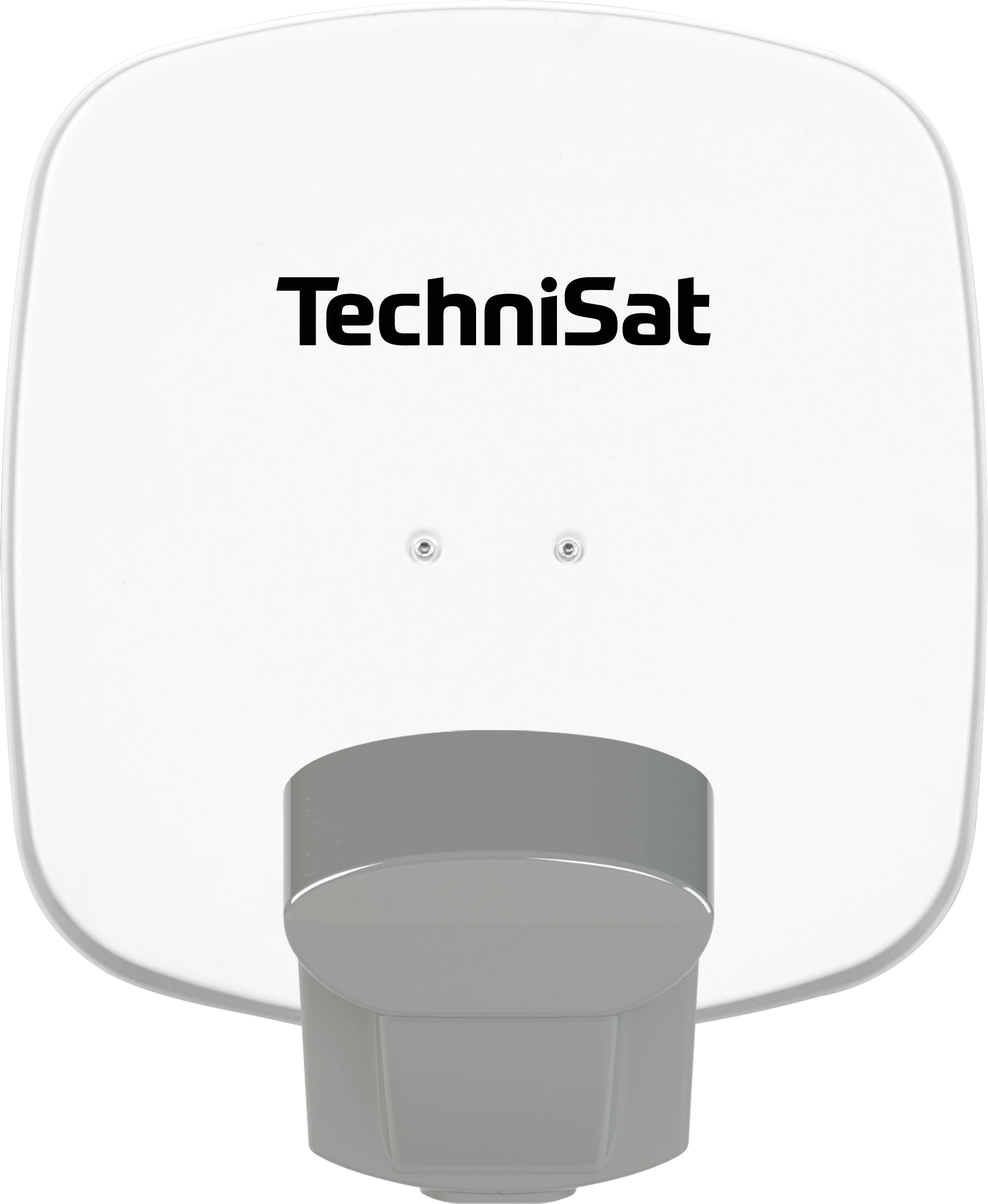

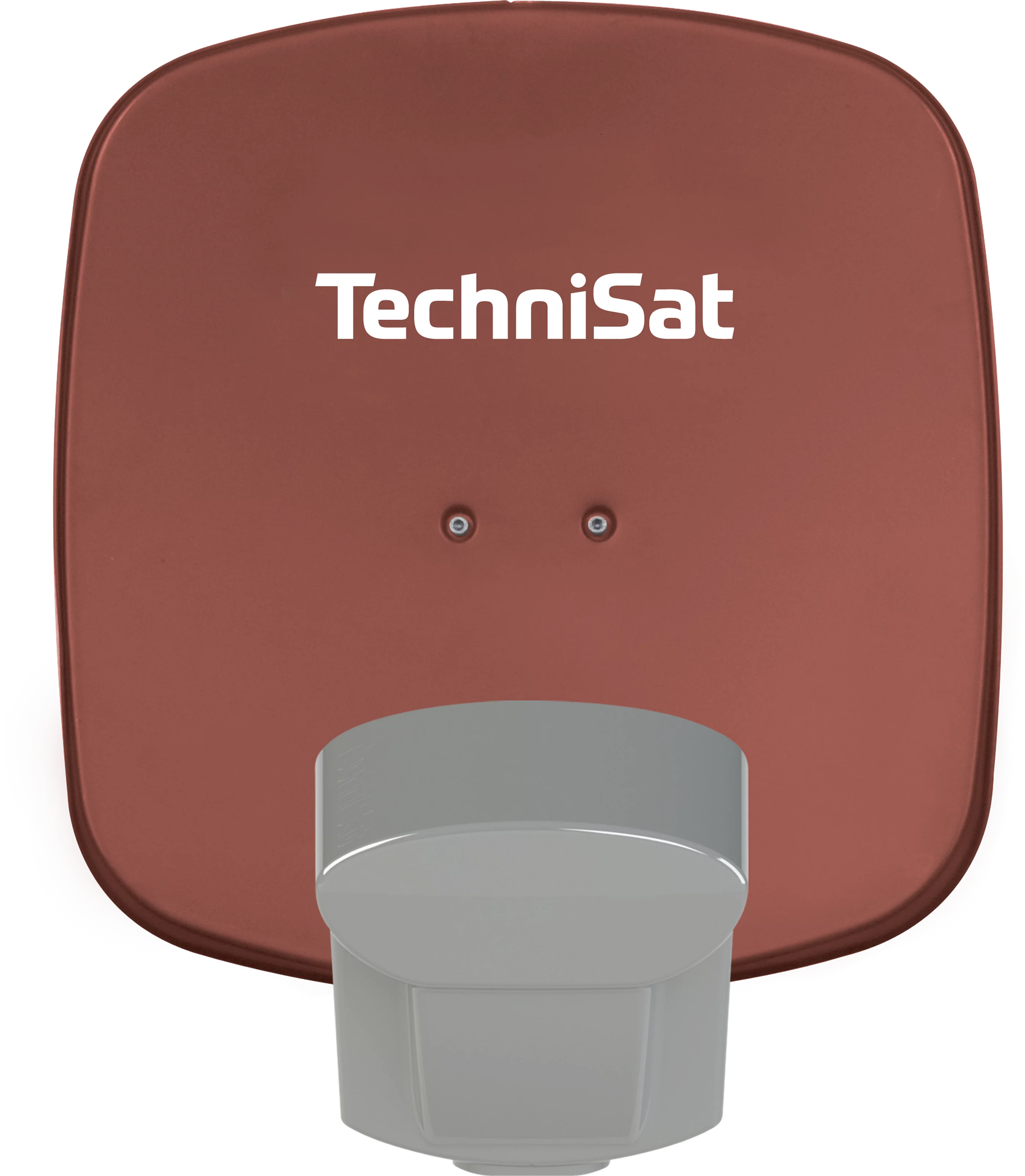

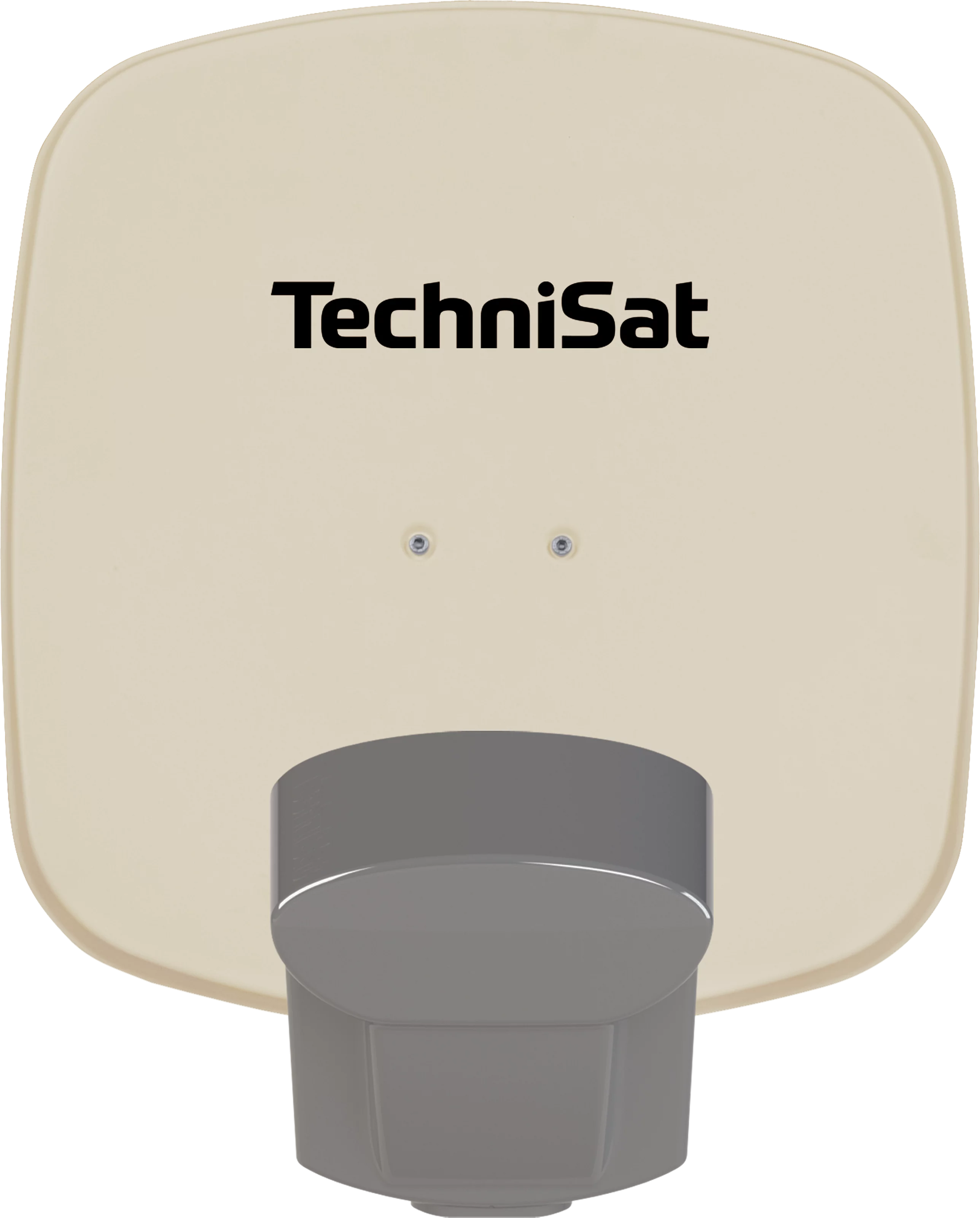

| Colour | beige, polar white, slate-grey, brick-red |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 1 dB max. |
| Upper frequency range | 1 dB max. |
| Output frequency range | |
|---|---|
| Low band | 950 - 1.950 MHz |
| High band | 1.100 - 2.150 MHz |
| Power supply | |
|---|---|
| Power consumption | max. 350 mA @13,5 V |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Number of clients | 24 |
| Single-cable output | |
|---|---|
| Output frequency | 950 ... 2.150 MHz |
| Number of output channels | 24 |
| Frequency of the output channels | 975, 1025, 1075, 1125, 1175, 1225, 1275, 1325, 1375, 1425, 1475, 1525, 1575, 1625, 1675, 1725, 1775, 1825, 1875, 1925, 1975, 2025 MHz |
| Technical data | |
|---|---|
| Rated measurement | 0,45 m |
| F/D | 0,6 |
| Gain | 32,2 dBi @11,3 GHz |
| Offset angle | 30 ° |
| Feed reception | for UNYSAT-Universal-LNB |
