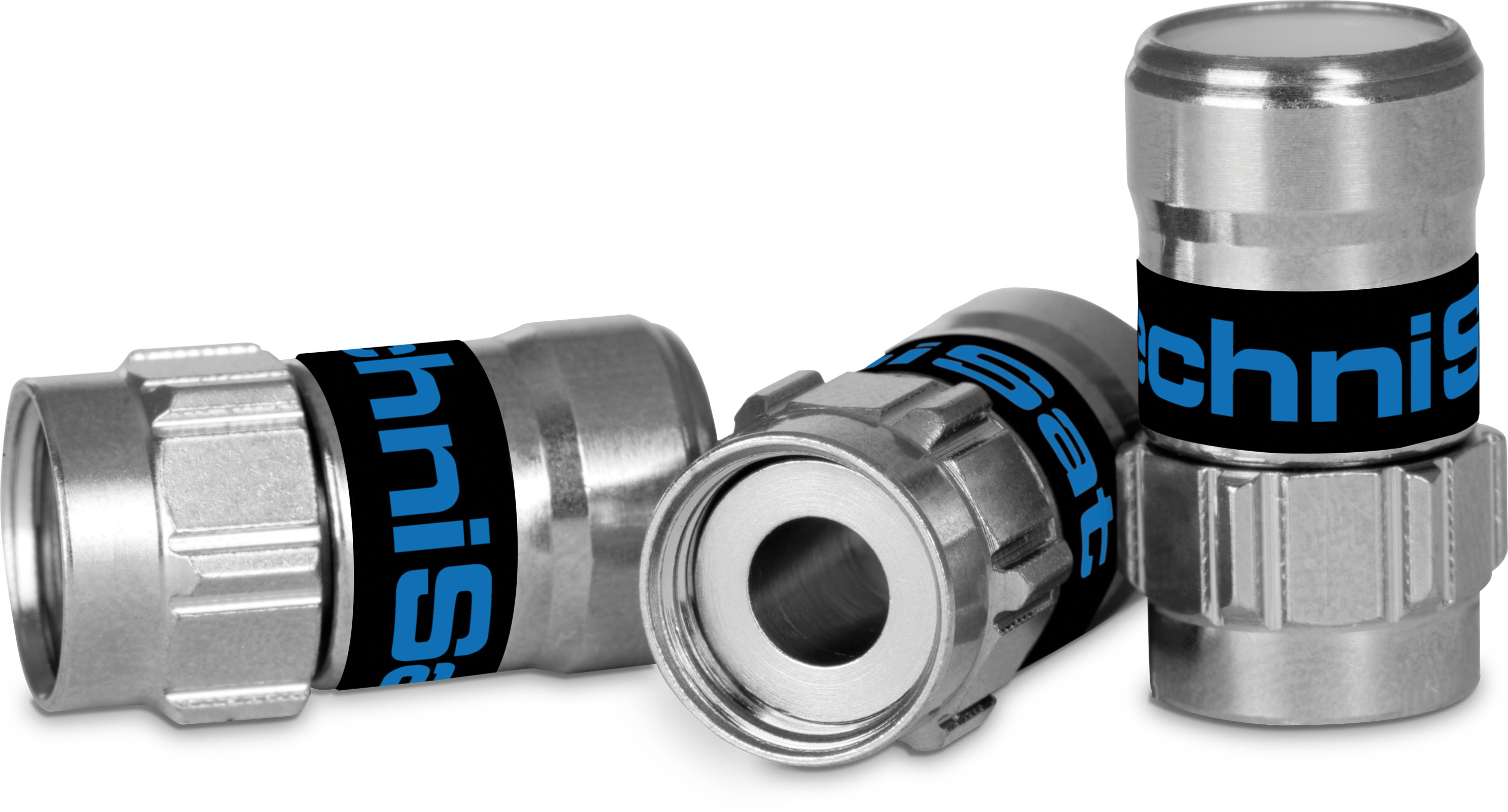

F plug Self-Install™ 3.9 set, blister silver
€7.00*
€19.00
F plug Self-Install™ 3.9 set, blister
3.9 Professional Installation kit for home
%
€7.00*
€19.00
(63.16% saved)
incl. VAT.
- Simple and secure installation within seconds
- With 6 Self-Install™ F connectors 3.9
- Incl. stripping tool
- Suitable for 100 dB Mini-CoaxSat 2150, dual mini coaxial cables, and Multimedia Cable 4 from TechniSat
- geeignet für alle Koaxialkabel 0.8/3.6
- Suitable for all coaxial cables with approx. 3.5 mm dielectric and 5.7 - 6.2 mm outer diameter
6 x F-connectors Self-Install™ 3.91 x stripping tool
Professional installation at home - in seconds.
The F-Self-Install ™ connector is an exceptional quality product that has been developed to replace the low quality screw-on connectors often used in DIY installations. F-Self-Install ™ makes installation easier and more precise than ever before. Just remove the insulation from the cable with the tool provided and attach the connector to the cable - that's it!
Perfectly suited for TechniSat coaxial cables:
COAXSAT 115 cable
The F-Self-Install ™ connector is an exceptional quality product that has been developed to replace the low quality screw-on connectors often used in DIY installations. F-Self-Install ™ makes installation easier and more precise than ever before. Just remove the insulation from the cable with the tool provided and attach the connector to the cable - that's it!
Perfectly suited for TechniSat coaxial cables:
COAXSAT 115 cable
| Product Information | |
|---|---|
| EAN | 4019588633711 |
| Item no. | 0006/3371 |
| Colour | silver |
| Weight (Box) | 6 g |
| Weight | 6 g |
| Box | 12,2 x 18,7 x 2,5 cm |
| Attenuation | |
|---|---|
| 10 MHz | 0,03 |
| 100 MHz | 0,03 |
| 450 MHz | 0,03 |
| 800 MHz | 0,05 |
| 862 MHz | 0,06 |
| 1000 MHz | 0,06 |
| 2250 MHz | 0,06 |
| Return loss | |
|---|---|
| 30 - 65 MHz | ≥ 38 dB |
| 65 - 470 MHz | ≥ 38 dB |
| 470 - 1800 MHz | ≥ 38 dB |
| 1800 - 2450MHz | ≥ 36 dB |
| Technical data | |
|---|---|
| Impedance | 75 Ω |
| Transfer impedance | |
|---|---|
| 5MHz | ≤ 0,2 |
| 30 MHz | ≤ 0,2 |
