GIGASYSTEM 17/8 K (cascade) blue/yellow
€199.00*
GIGASYSTEM 17/8 K (cascade)
€199.00*
incl. VAT.
GigaSystem 17/8 K, Instruction manual
The GigaSystem 17/8 is designed to distribute signals from as many as four satellite positions.

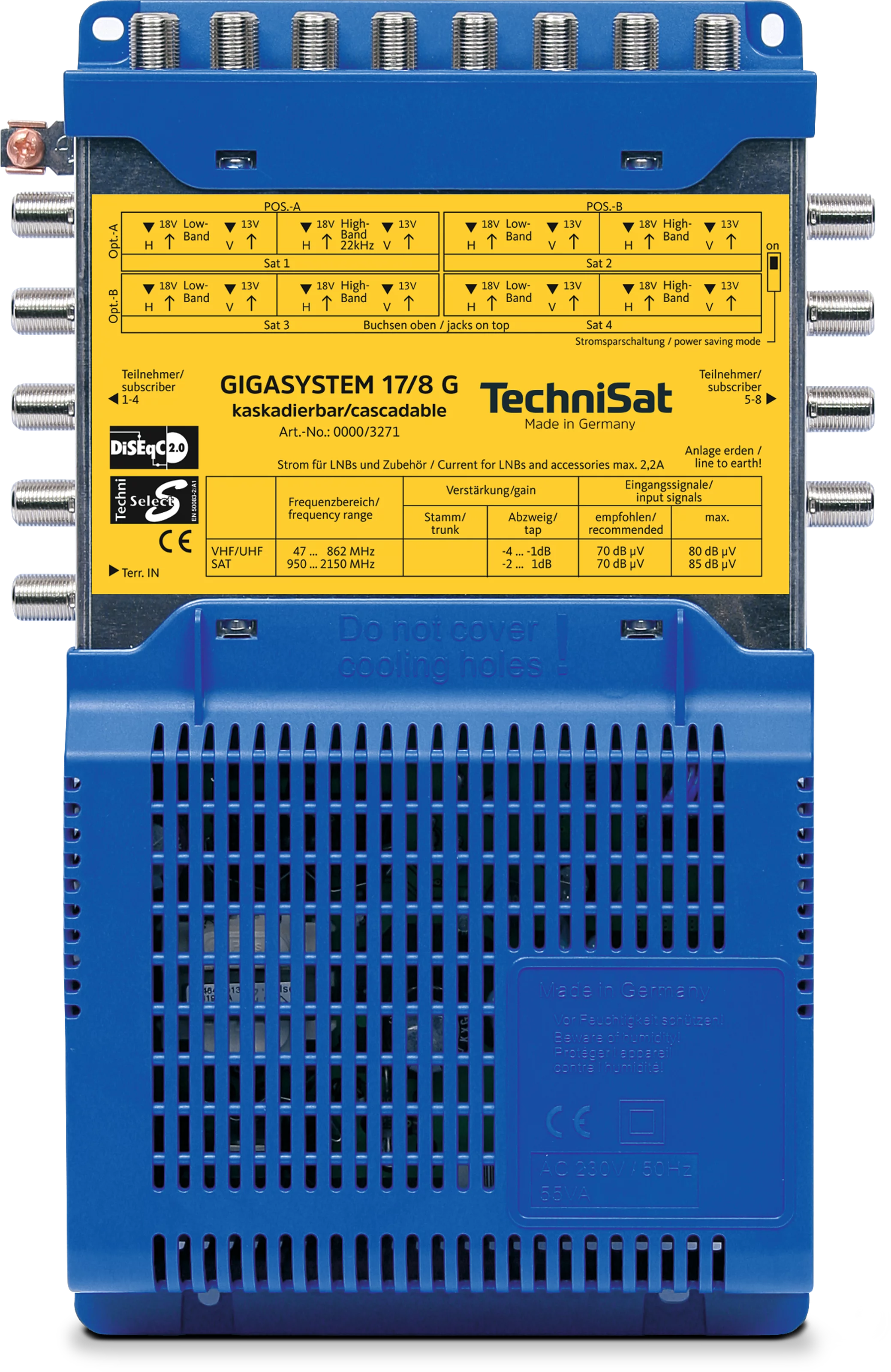

The basic unit 17/8 G comes equipped with a total of 17 inputs. Sixteen of these are satellite IF inputs, which can accommodate the signals from up to four Quattro LNB’s. Each Quattro LNB has four outputs, each of which, depending on the polarisation plane, can supply a specific frequency range - a so-called satellite block. The multi-switch provides an input connection for each of these signals. A total of 16 inputs can be allocated to satellite signals. The seventeenth input is reserved for feeding in terrestrial antenna signals.
As is the case with all high-quality multi-switches, the incoming signals are processed discretely, and are amplified with a so-called slope. The amplification, or gain, is greater, the higher the frequency of the signal is. This compensates for the higher damping effect on higher frequencies caused by cables.
The signals are distributed to as many as eight participants.
Power supply
The basic unit features a high-quality efficient mains adapter, that is capable of supplying current not only to the basic unit, but also up to four cascades, including all LNB’s connected to the system.
Expandability
The GigaSystem 17/8 can be further expanded using suitable components, so that even large-scale networks involving hundreds of participants can be implemented.
The basic unit 17/8 G comes equipped with a total of 17 inputs. Sixteen of these are satellite IF inputs, which can accommodate the signals from up to four Quattro LNB’s. Each Quattro LNB has four outputs, each of which, depending on the polarisation plane, can supply a specific frequency range - a so-called satellite block. The multi-switch provides an input connection for each of these signals. A total of 16 inputs can be allocated to satellite signals. The seventeenth input is reserved for feeding in terrestrial antenna signals.
As is the case with all high-quality multi-switches, the incoming signals are processed discretely, and are amplified with a so-called slope. The amplification, or gain, is greater, the higher the frequency of the signal is. This compensates for the higher damping effect on higher frequencies caused by cables.
The signals are distributed to as many as eight participants.
Power supply
The basic unit features a high-quality efficient mains adapter, that is capable of supplying current not only to the basic unit, but also up to four cascades, including all LNB’s connected to the system.
Expandability
The GigaSystem 17/8 can be further expanded using suitable components, so that even large-scale networks involving hundreds of participants can be implemented.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588032729 |
| Colour | blue/yellow |
| Item no. | 0000/3272 |
| Weight (Box) | 700 g |
| Weight | 600 g |
| Device (W x H x D) | 17,5 x 15,4 x 4,5 cm |
| Box | 29,4 x 18,2 x 6 cm |
| sonstiges | |
|---|---|
| bf_filter_digital_single_cable_solution | No |
| bf_filter_number_of_participants | 8 |
| Amplification | |
|---|---|
| Sat | -2 ... 1 dB |
| Terrestrial | 1 ... 4 dB |
| Decoupling | |
|---|---|
| Output | 35 dB |
| Trunks | 45 dB |
| General characteristics | |
|---|---|
| Top features | Ohne Dämpfung im Sat-Bereich, mit Schräglagenentzerrung |
| Top features | Mit Schräglagenentzerrung |
| Top features | Für 4 Quattro-LNB |
| Reception range | |
|---|---|
| Sat | 950 ... 2.150 MHz |
| Terrestrial | 47 ... 862 MHz |
| Technical data | |
|---|---|
| Satellite inputs | 16 |
| Terrestrial input | 1 |
| Outputs | 8 |
| Transmission loss | |
|---|---|
| Sat | 2 ... 4 dB |
| Terrestrial | 2 ... 3 dB |
