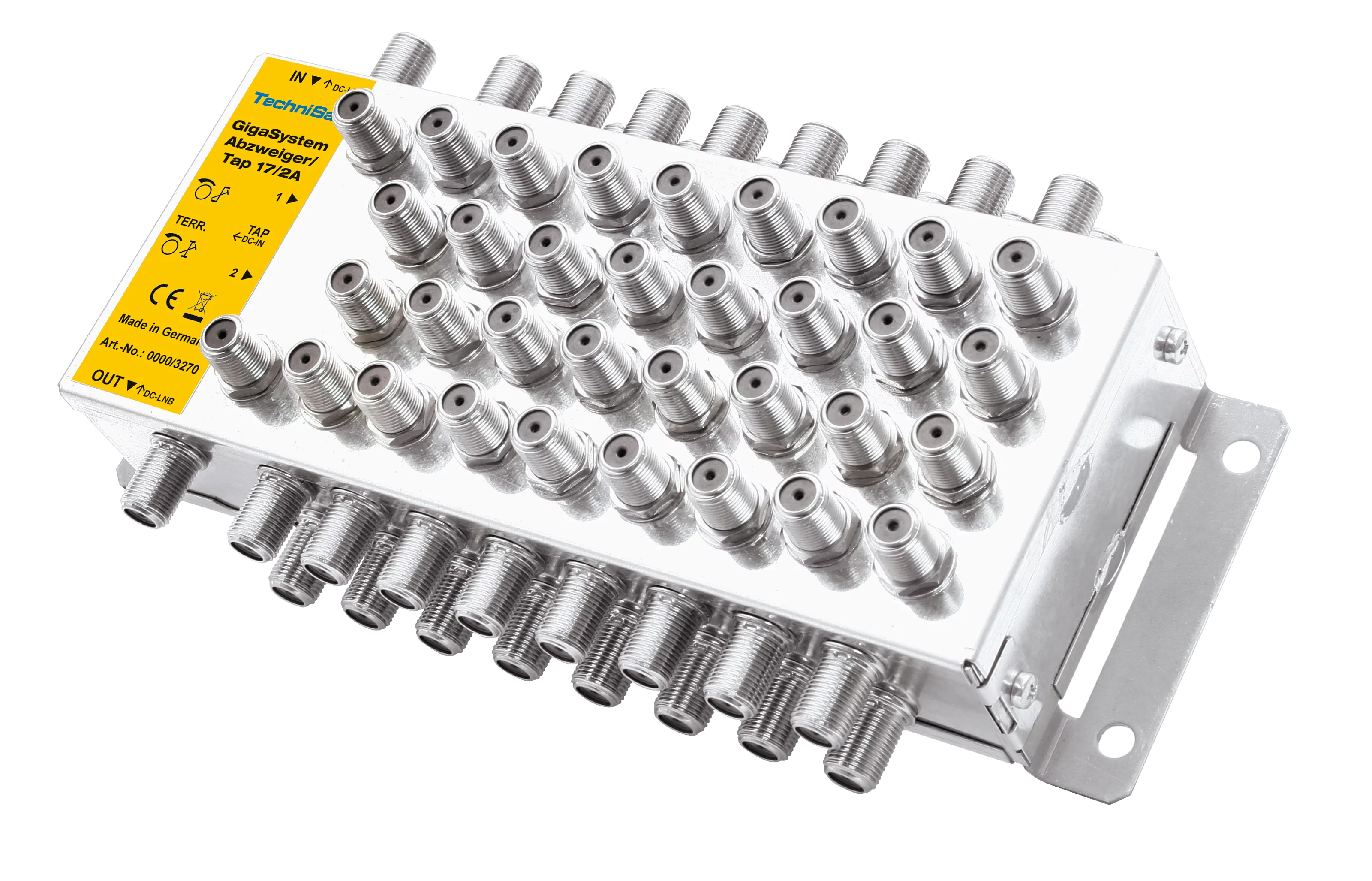

Active 2-way tap 17/2A silver
€259.00*
Active 2-way tap 17/2A
Active 2-way tap for 4 orbital positions
€259.00*
incl. VAT.
Active 2-way tap 17/2A, instruction manual
Active 2-way tap with amplification
With this impressive 2-way tap it is possible to carry out floor-by-floor distribution within a building. In order to do so the active diverter has at its disposal over 17 inputs and 17 daisy-chain outputs which make possible a through-put of the signal from floor to floor. Furthermore the tap is fitted with two active diverter phases each of 17 outputs which enable the installation of two additional distributor sources within a floor. These sources are supplied with an amplification of +4 dB in order to take into account the obliqueness of the position. In daisy-chain operation a damping of -1 dB is attained.
With this impressive 2-way tap it is possible to carry out floor-by-floor distribution within a building. In order to do so the active diverter has at its disposal over 17 inputs and 17 daisy-chain outputs which make possible a through-put of the signal from floor to floor. Furthermore the tap is fitted with two active diverter phases each of 17 outputs which enable the installation of two additional distributor sources within a floor. These sources are supplied with an amplification of +4 dB in order to take into account the obliqueness of the position. In daisy-chain operation a damping of -1 dB is attained.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588032705 |
| Item no. | 0000/3270 |
| Colour | silver |
| Weight (Box) | 858 g |
| Weight | 800 g |
| Device (W x H x D) | 21,3 x 4,3 x 10,5 cm |
| Box | 23,1 x 10,7 x 6 cm |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -25 ... 55 °C |
| Amplification | |
|---|---|
| Sat | 3 ... 6 dB |
| Terrestrial | 5 dB einstellbar |
| Decoupling | |
|---|---|
| Output | 45 dB |
| Trunks | 50 dB |
| General characteristics | |
|---|---|
| Top features | Gleiches Rastermass der F-Buchsen wie GIGASYSTEM 17/8 |
| Power supply | |
|---|---|
| Power consumption | typ. 300 mA @18V, je Abzweigegruppe |
| Reception range | |
|---|---|
| Sat | 950 ... 2.150 MHz |
| Terrestrial | 47 ... 862 MHz |
| Technical data | |
|---|---|
| Satellite inputs | 16 |
| Terrestrial input | 1 |
| Transmission loss | |
|---|---|
| Sat | -1,5 ... -1 dB |
| Terrestrial | -1,2 dB |
