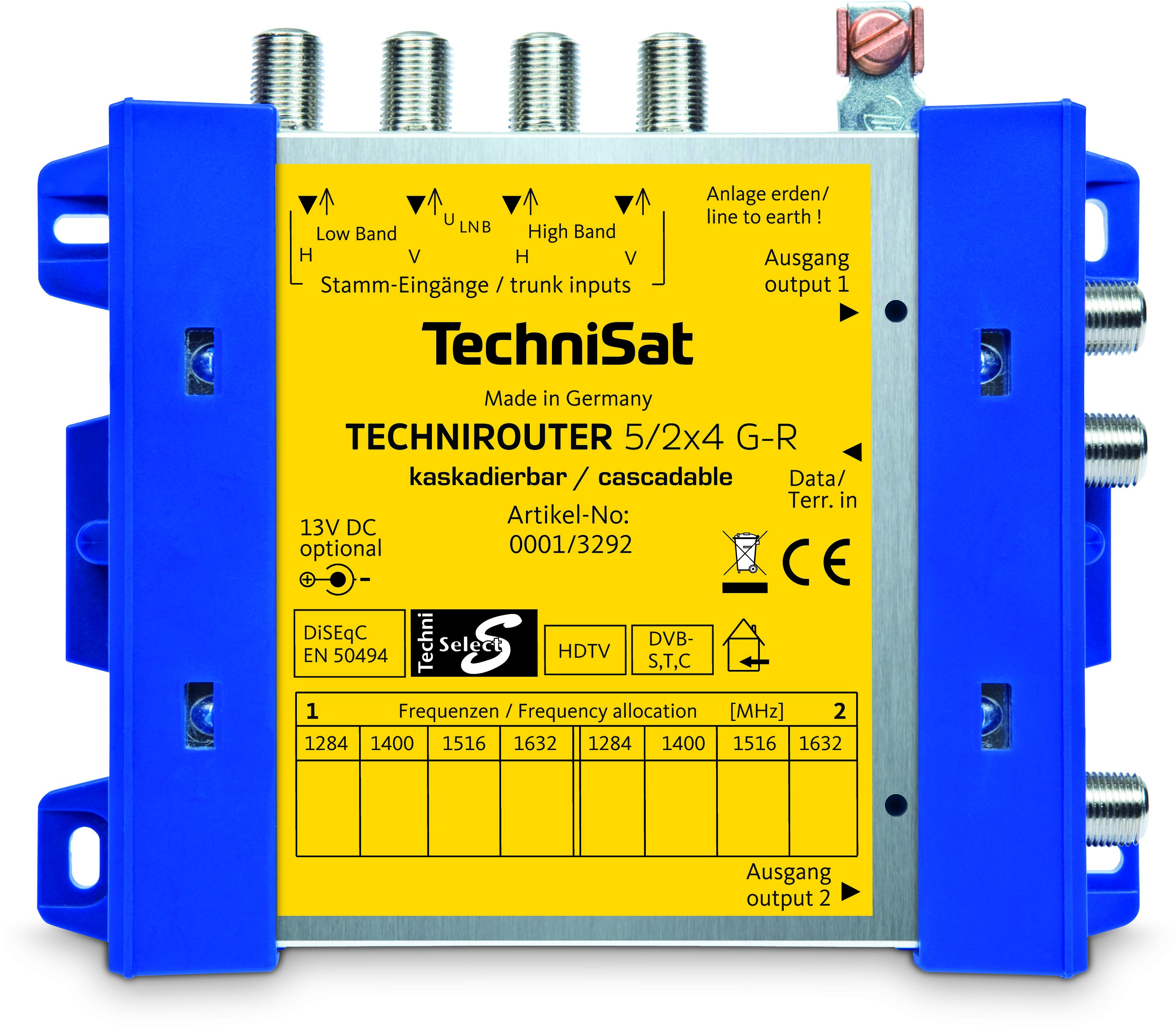

TECHNIROUTER 5/2x4 G-R (base unit)

Name: TECHNIROUTER 5/2x4 G-R (base unit)
Brand: TechniSat
SKU: 0001/3292
Price: 139.0 EUR
Availability: SoldOut

Digital single-cable solution for the distribution of satellite signals from one orbital position via two cable harnesses for an existing cable structure

Colour silber/gelb

€139.00*

incl. VAT.

The router allows unrestricted reception of all digital channels (standard digital or HDTV, DVB-T, and FM)
The single-cable solution is designed for the transmission of return path signals
Power-saving, can be used without power supply, DiSEqC according to EN 50494, expandable

TECHNIROUTER5/2x4 G-R, manual, power supply

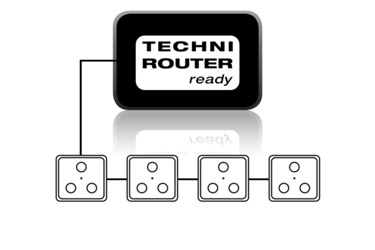

<CRLF>The digital single-cable solution without program restrictions!<CRLF>The TechniRouter is the digital single-cable solution without a new cable! For the first time there is a one-cable solution without program restrictions. This has never happened before! Existing cable structures in residential properties can be upgraded with digital satellite signals from a satellite position without laying new cables.<CRLF><CRLF>What needs to be considered?<CRLF>Existing sockets, distributors and amplifiers must be replaced with satellite-compatible components to be renewed. It should be noted here that all components have a DC bypass and the through-boxes in particular have two DC bypasses. The DC passage is required for transporting the DiSEqC signal. The 13/18 V of the receiver are not required as a switching command, but to transport the DiSEqC commands to the TechniRouter. Of course, the existing coaxial cables must also be checked for satellite compatibility.<CRLF><CRLF>How does the control work?<CRLF>The TechniRouter-compatible receivers control the TechniRouter basic unit and cascade digitally via DiSEqC Level 1.0 with the EN 50494 protocol. The selection of the transponder frequencies/programs in the TechniRouters is initiated and carried out with this protocol. The TechniRouter generates eight generated output frequencies in the 950-2150 MHz IF frequency range, via which individual participants can receive all digital programs without restrictions. Both low and high bands can be received.<CRLF><CRLF>How many participants can be served?<CRLF>Up to eight participants can be served per TechniRouter. If eight connections are not sufficient, further cascades can be connected to the basic unit.<CRLF>If more subscriber connections are required, or a combination with multiswitches (star wiring) is desired, this can be done with the help of multiswitches from the 5 or 9 series, as well as their accessories such as amplifiers, distributors or taps.<CRLF><CRLF>Which LNB is required and how is it powered?<CRLF>Normal Quatro LNBs can be used. The TechniRouter basic unit supplies the operating voltage for the Quatro-LNB and also for any upstream cascade.<CRLF><CRLF>Return channel capability included!<CRLF>The terrestrial signal path of the TechniRouter is from this family designed from the outset for the transmission of the return path signals, so that the TechniRouter can be used as part of the transmission path between the cable network operator's house transfer point (HÜP) and the end customer's cable modem. Even if the advantages of satellite reception are used for television reception using the SCR single-cable system, they also allow the coaxial cable already laid to be used simultaneously for Internet access and telephone via broadband cable, without having to install additional feed-in frequency splitters. For this purpose, the terrestrial input of the TechniRouter is usually connected to the HÜP.

Technical Datasheet ( HTML / PDF )

html

You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.

Product Information
EAN	4019588132924
Colour	silber/gelb
Item no.	0001/3292
Weight (Box)	500 g
Weight	200 g
Device (W x H x D)	14 x 11,5 x 3,2 cm
Box	24,5 x 13,5 x 5,5 cm

sonstiges
bf_filter_digital_single_cable_solution	Yes
bf_filter_number_of_participants	8

Ambient operating conditions
Humidity	10 ... 75 %
Ambient temperature	-25 ... 55 °C

Amplification
Sat	17 ... 22 dB
Terrestrial	-5 dB

Decoupling
Trunks	45 dB

General characteristics
Top features	DiSEqC according to EN 50494
Top features	1 orbit position without restrictions
Top features	Return channel compatible
Top features	No new wiring required
Top features	Can be used to save energy without a power supply unit

Power supply
Power consumption	210 mA @13V (je SCR-Ausgang, ohne LNB)
Mains adapter	external DC 12V/0,46A (nur für LNB + Terrestrik)

Reception range
Return path	5 ... 65 MHz
Terrestrial	65 ... 862 MHz
Sat	950 ... 2.150 MHz

Single-cable output
Output frequency	5 ... 2.150 MHz
Number of output channels	2 x 4
Frequency of the output channels	1284, 1400, 1516, 1632 MHz
Frequency SAT	950 ... 2.150 MHz
Frequency DVB-T	65 ... 862 MHz
