TECHNISWITCH 5/8 Mini LAN blue/yellow
€69.00*

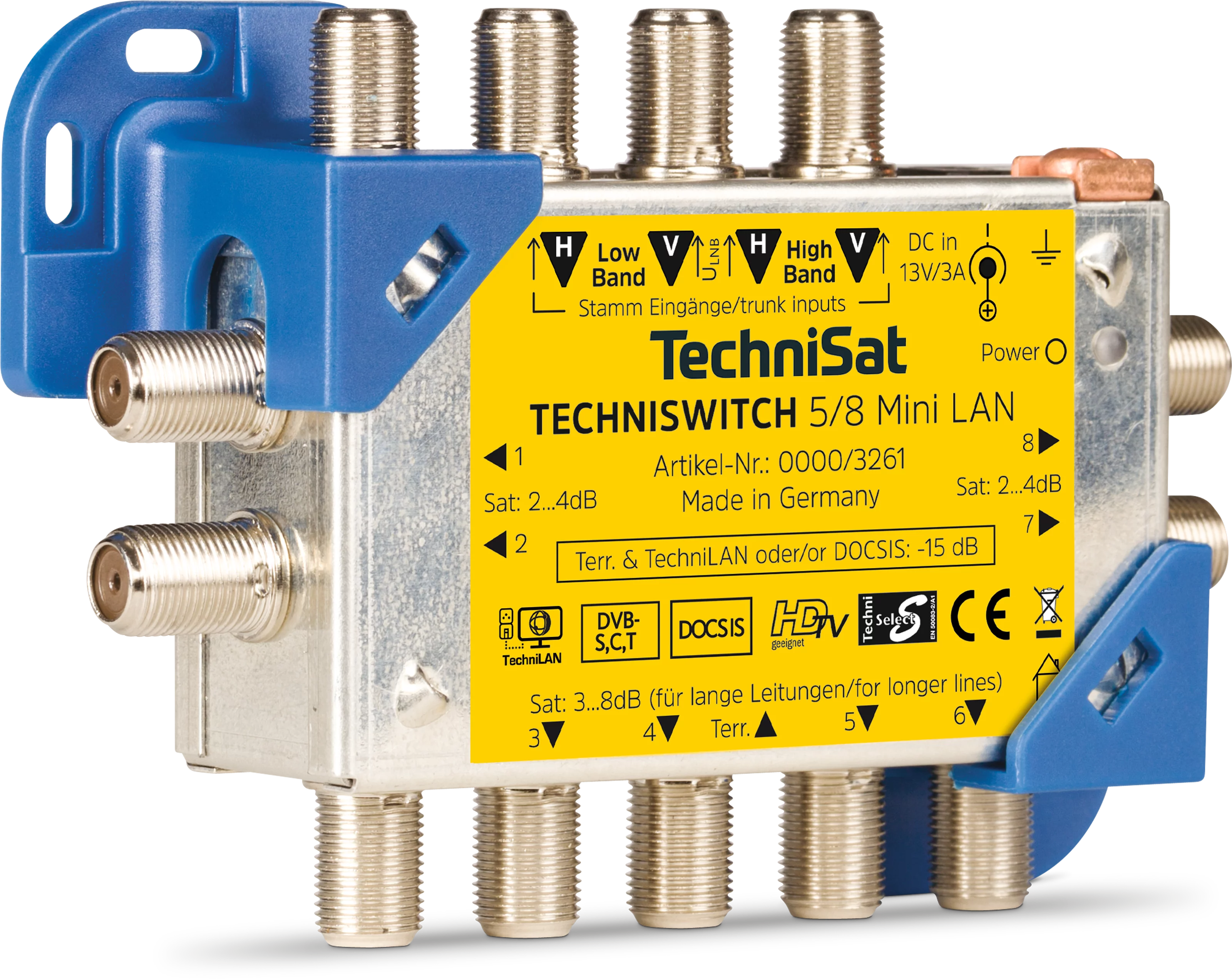

TECHNISWITCH 5/8 Mini LAN
Compact multiswitch for distribution of 4 IF levels and terrestrial signals for 8 participants. Including TECHNILAN support to distribute Internet and other network services over the existing satellite wiring
€69.00*
incl. VAT.
- The multiswitch distributes one orbital position (4 satellite blocks) to up to 8 subscribers, incl. LAN and injection of DVB-T/DAB+/FM or cable TV for analog, digital, HD, 3D operation
- Scope of delivery: 1 x TECHNISWITCH 5/8 MINI LAN and user manual – In best quality from TechniSat
- The transmission of DOCSIS signals from the distributor allows simultaneous use of internet and telephone services from cable providers
- All outputs are slope pre-compensated, enabling cable lengths of up to 100m from the LNB to the antenna socket
- incl. LAN connection for distributing internet & network services via satellite wiring (corresponding satellite sockets required) – no external power supply needed
TECHNISWITCH 5/8 Mini LAN, instruction manual, power supply (13 V/3 A)
This compact Stand-alone multiswitch offers TechniLAN support. This allows to distribute Internet and other network services in the whole house about the available satellite wiring. It also offers up to eight TV wiring boxes for any network capable devices. The multiswitch supplies up to 8 participants with four ZF levels and permits the suply of terrestrial signals. All the participant outputs are slop fixed correction
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588032613 |
| Colour | blue/yellow |
| Item no. | 0000/3261 |
| Weight (Box) | 500 g |
| Weight | 160 g |
| Device (W x H x D) | 7,9 x 3,3 x 11,5 cm |
| Box | 23 x 6 x 15,2 cm |
| sonstiges | |
|---|---|
| bf_filter_digital_single_cable_solution | No |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 75 % |
| Ambient temperature | -25 ... 45 °C |
| Amplification | |
|---|---|
| Sat | 2 ... 4 dB , bottom taps 3 ... 8 dB |
| Terrestrial | -15 dB |
| Decoupling | |
|---|---|
| Output | > 30 dB |
| General characteristics | |
|---|---|
| Top features | Gain in satellite range |
| Top features | Slope fixed correction |
| Top features | For Quattro-LNB |
| Top features | TechniLAN suitable |
| Top features | Input for terrestrial signals |
| Top features | Suitable for DOCSIS |
| Power supply | |
|---|---|
| Mains adapter | Extern, DC 13 V / 3 A |
| Nominal voltage | 100 ... 240 V |
| Frequency | 50 ... 60 Hz |
| Reception range | |
|---|---|
| Sat | 950 ... 2.150 MHz |
| Terrestrial | 80 ... 790 MHz |
| Return path | 2 ... 65 MHz |
| Technical data | |
|---|---|
| Satellite inputs | 4 |
| Terrestrial input | 1 |
| Outputs | 8 |
| Distribution length | max. 100 m |
