UNYSAT Universal-Quattro-Switch-LNB grey
€129.00*

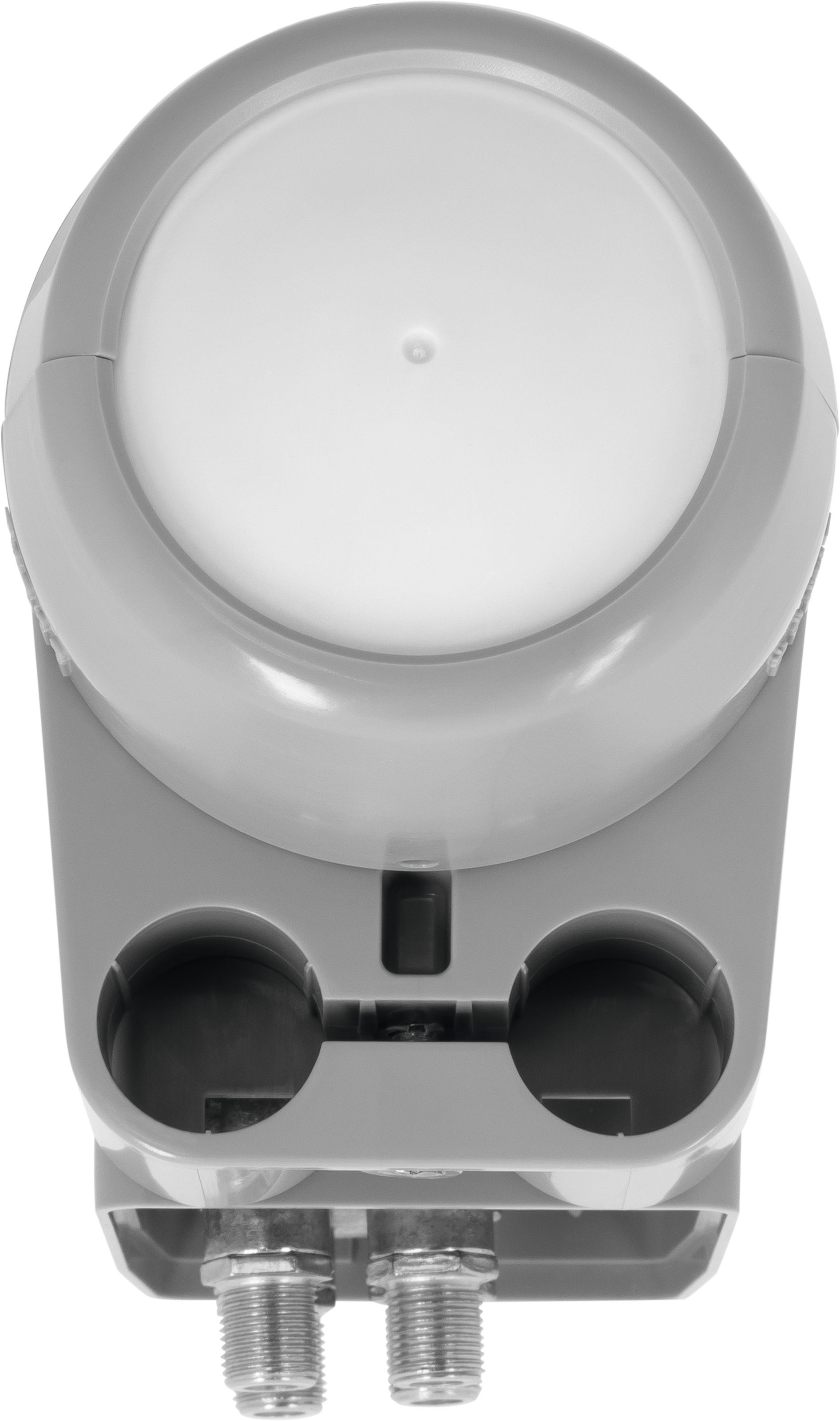

UNYSAT Universal-Quattro-Switch-LNB
Digital LNB with 4 legacy outputs
€129.00*
incl. VAT.
- The UNYSAT Universal Quattro Switch LNB fits AZ/EL mounts of SATMAN satellite dishes and is used for processing TV, radio, and multimedia services broadcast via satellite
- Signal converter for up to four users. The LNB has four outputs that can each be connected directly, without a multiswitch or splitter, to a satellite receiver or smart TV
- UV-resistant, hail-proof housing with generous cross-polarization adjustment up to 15 degrees, extendable cover with embossed polarization markings to simplify installation
- Easy and fast installation without bracket, LNB with the latest and most advanced CHIP technology for long service life, stable oscillator frequencies, and high isolation, LTE interference-proof
Universal-Quattro-Switch-LNB
The UNYSAT Universal Quattro Switch LNB fits all AZ / EL holders of the SATMAN antenna dishes and is used to implement TV, radio and multimedia offers that are broadcast via satellite.
This LNB has four outputs, each of which can be connected directly to a receiving device (satellite receiver or smart TV). All receiving devices are independent in their choice of programs, as the signals from the entire receiving range are present at each of the four LNB outputs. Two twin receivers can easily be connected to this LNB instead of four individual devices.
The UNYSAT Universal-Quattro-Switch-LNB, however, allows a maximum of four-participant reception. An extension of the receiving system with multi-switches is not planned. If more than four participants are to be connected, a Quattro LNB must be used in conjunction with a multi-switch.
Due to its design, the UNYSAT Universal Quattro Switch LNB is protected against interference from LTE cellular radio.
This LNB has four outputs, each of which can be connected directly to a receiving device (satellite receiver or smart TV). All receiving devices are independent in their choice of programs, as the signals from the entire receiving range are present at each of the four LNB outputs. Two twin receivers can easily be connected to this LNB instead of four individual devices.
The UNYSAT Universal-Quattro-Switch-LNB, however, allows a maximum of four-participant reception. An extension of the receiving system with multi-switches is not planned. If more than four participants are to be connected, a Quattro LNB must be used in conjunction with a multi-switch.
Due to its design, the UNYSAT Universal Quattro Switch LNB is protected against interference from LTE cellular radio.
| Product Information | |
|---|---|
| EAN | 4019588109803 |
| Colour | grey |
| Item no. | 0010/8980 |
| Weight (Box) | 420 g |
| Weight | 366 g |
| Device (W x H x D) | 13,5 x 14,5 x 6 cm |
| Box | 15 x 17 x 7,5 cm |
| sonstiges | |
|---|---|
| bf_filter_number_of_participants | 4 |
| bf_filter_number_satellites | 1 |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,6 GHz |
| Accuracy | ± 1 MHz |
| Temperature drift | ± 2,5 MHz |
| Phase noise | -85 @10kHz |
| LNB control | |
|---|---|
| Band switch | 22 kHz |
| Vertical | 10,5 ... 14,5 V |
| Horizontal | 16 ... 22 V |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -40 ... 70 °C |
| Humidity | 10 ... 95 % |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Noise figure | typ. 0,75 dB |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| Power consumption | typ. 150 mA |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Number of clients | 4 |
| Technical data | |
|---|---|
| Outputs | 4 |
| Feed reception | For SATMAN |
| Skew | -20 ... 20 ° |
| Impedance | 75 Ω |
| Connector type | F female |
| Amplification | 60 ... 65 dB |
