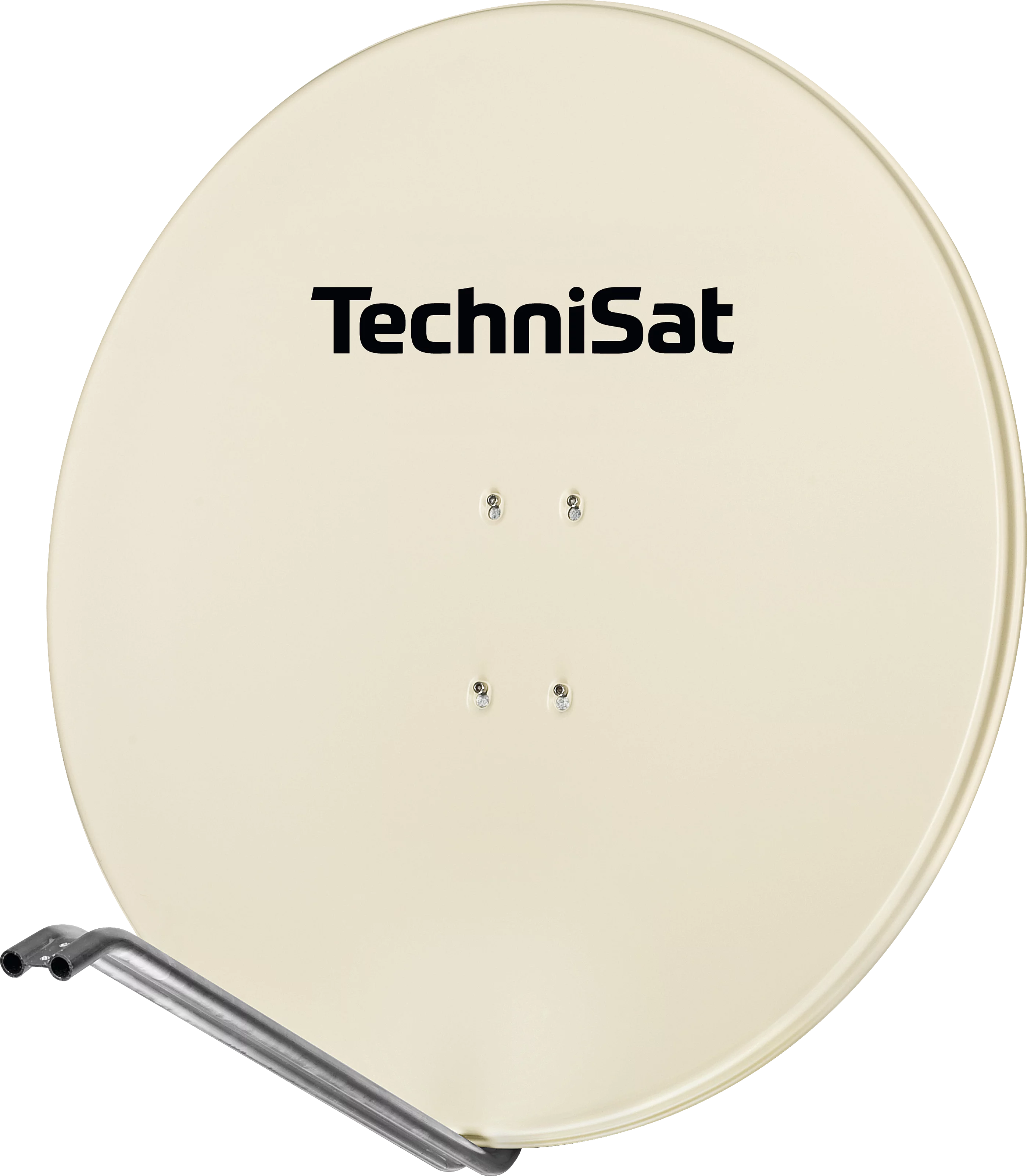

SATMAN 650 PLUS (with AZ/EL-mount for UNYSAT Universal-LNB) beige
€199.00*
SATMAN 650 PLUS (with AZ/EL-mount for UNYSAT Universal-LNB)
Digital Satellite dish with a diameter of 85 cm and completly pre-installed AZ/EL-mount.
€199.00*
incl. VAT.
- The SATMAN 850 Plus is a high-quality, high-performance satellite dish made of premium aluminum with double-sided powder coating, ensuring exceptional weather resistance and long service life
- The satellite system is extremely powerful and easy to install thanks to the fully pre-assembled AZ/EL mount; the mast bracket is suitable for mounting on poles up to 6.5 cm in diameter
- The solid satellite dish with an 85 cm diameter provides stable and excellent reception of free and encrypted TV and radio programs in UHD/4K with optimal alignment

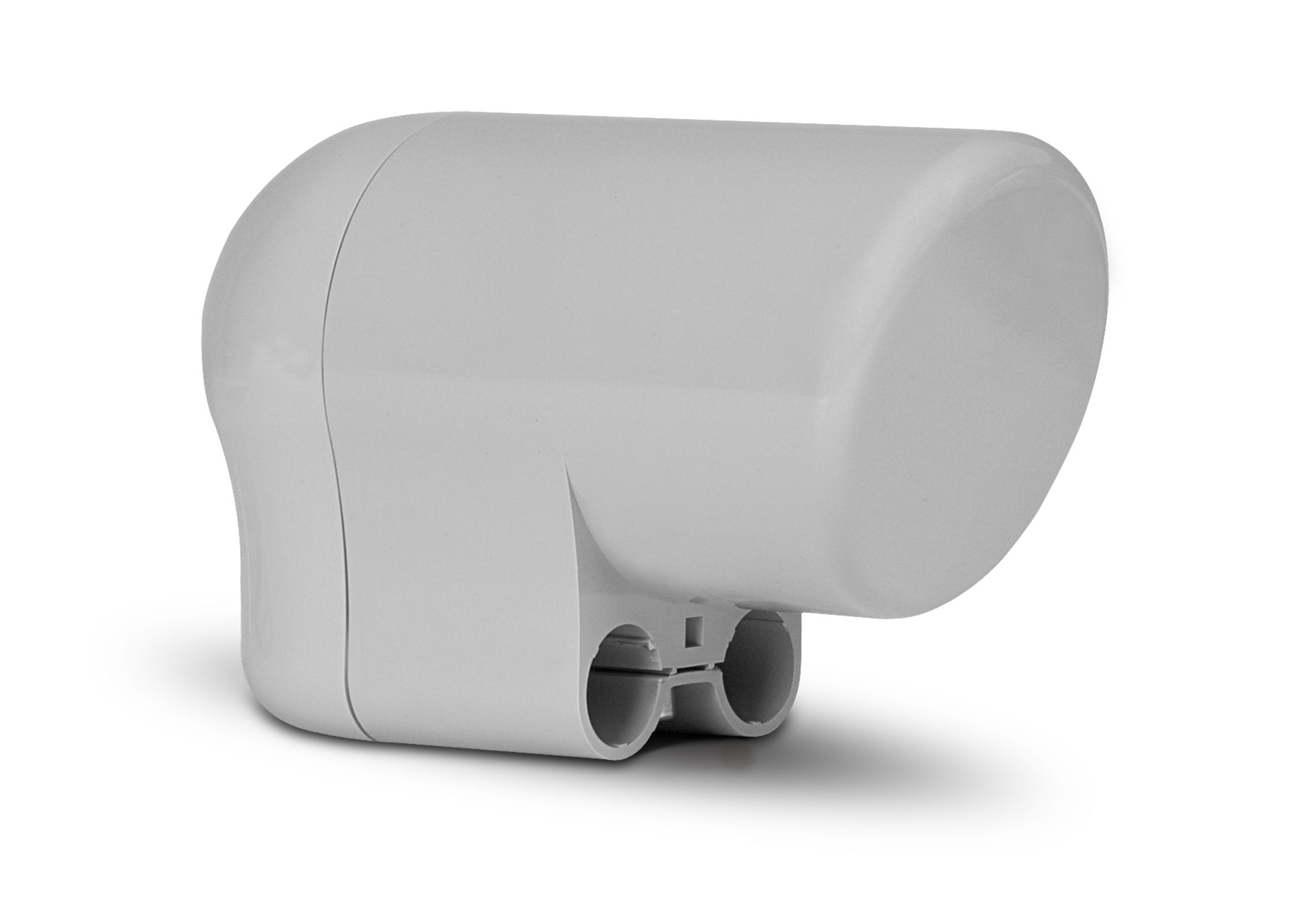

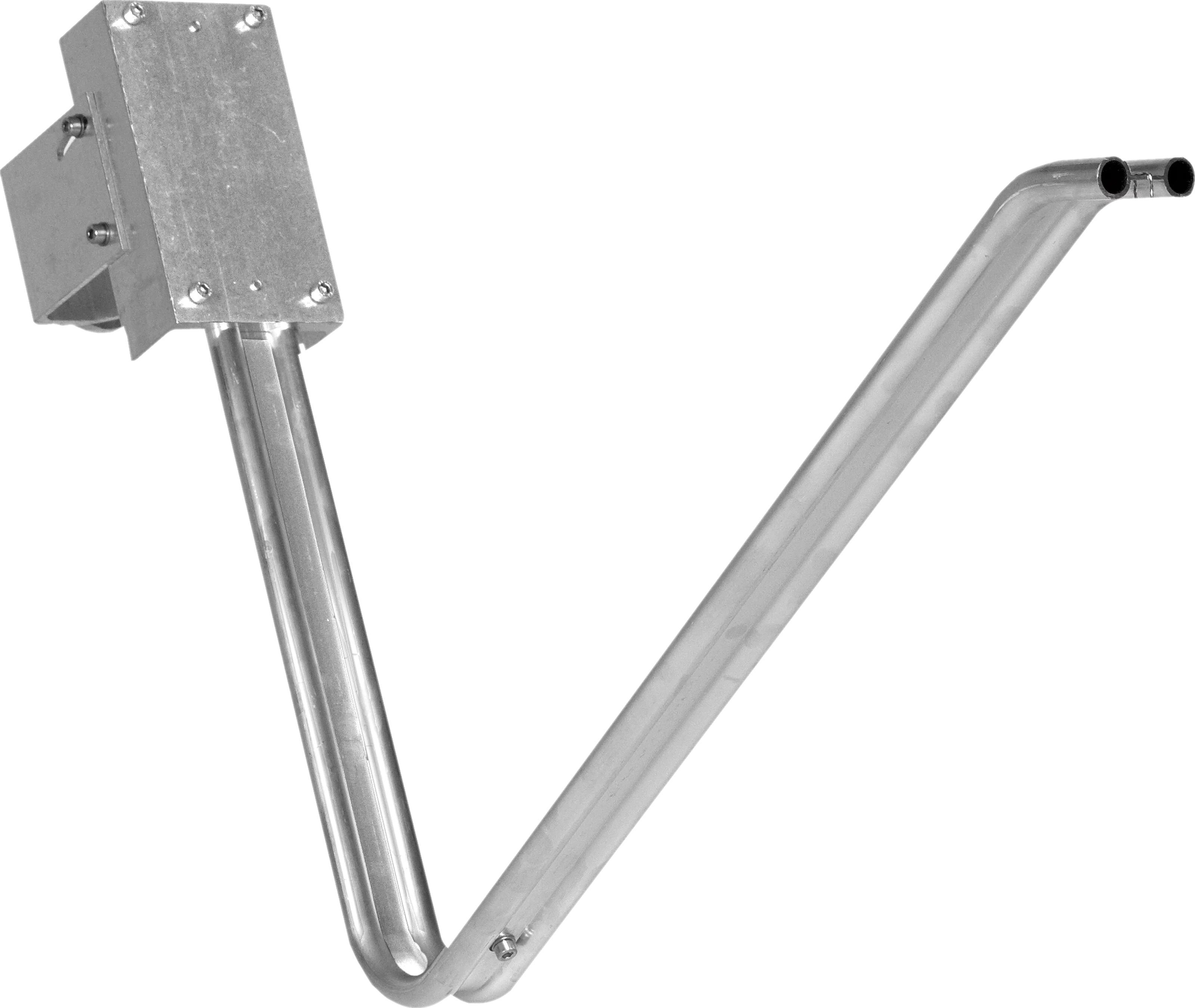

- The included AZ/EL bracket – the LNB support arm – is only compatible with TechniSat UNYSAT universal LNBs; see the table below for a selection
- Scope of delivery: TechniSat SATMAN 850 PLUS, AZ/EL mount made of aluminum, screws and stainless steel washers, installation manual
Satellite dish antenna, AZ/EL bracket mount, Screws, Instruction manual
The offset dish is made of top-quality aluminium, and is thus 100 % rust-free. The use of this high-quality material ensures the dish is protected against the weather, and has a very long life.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588108547 |
| Item no. | 1085/1644 |
| Colour | beige |
| Weight (Box) | 8,4 kg |
| Weight | 4,8 kg |
| Device (W x H x D) | 85 x 87 cm |
| Box | 88 x 95 x 24 cm |
| sonstiges | |
|---|---|
| bf_filter_diameter | 85 cm |
| bf_filter_austattung | with LNB |
| General characteristics | |
|---|---|
| Material strength | 1,6 mm |
| Coating | Powder-coated on both sites |
| Material | Aluminium |
| Technical data | |
|---|---|
| Rated measurement | 0,85 m |
| F/D | 0,67 |
| G/T | 17,2 |
| Gain | 38,2 dBi @11,3GHz |
| Offset angle | 21 ° |
| Mast Ø | 65 mm max. |
| Feed reception | for UNYSAT-Universal-LNB |
