Earth Bonding Bar 9 silver
€17.00*

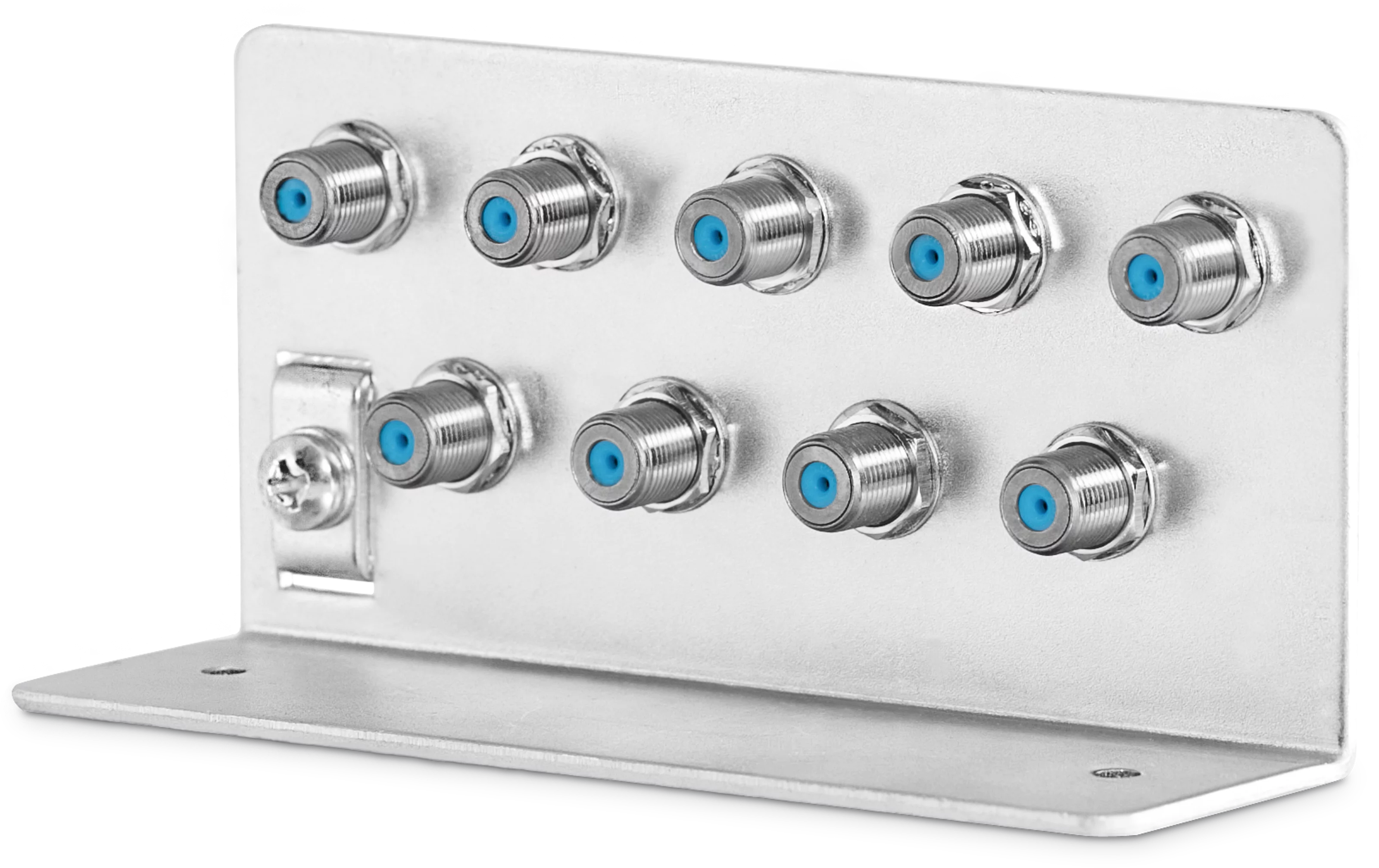

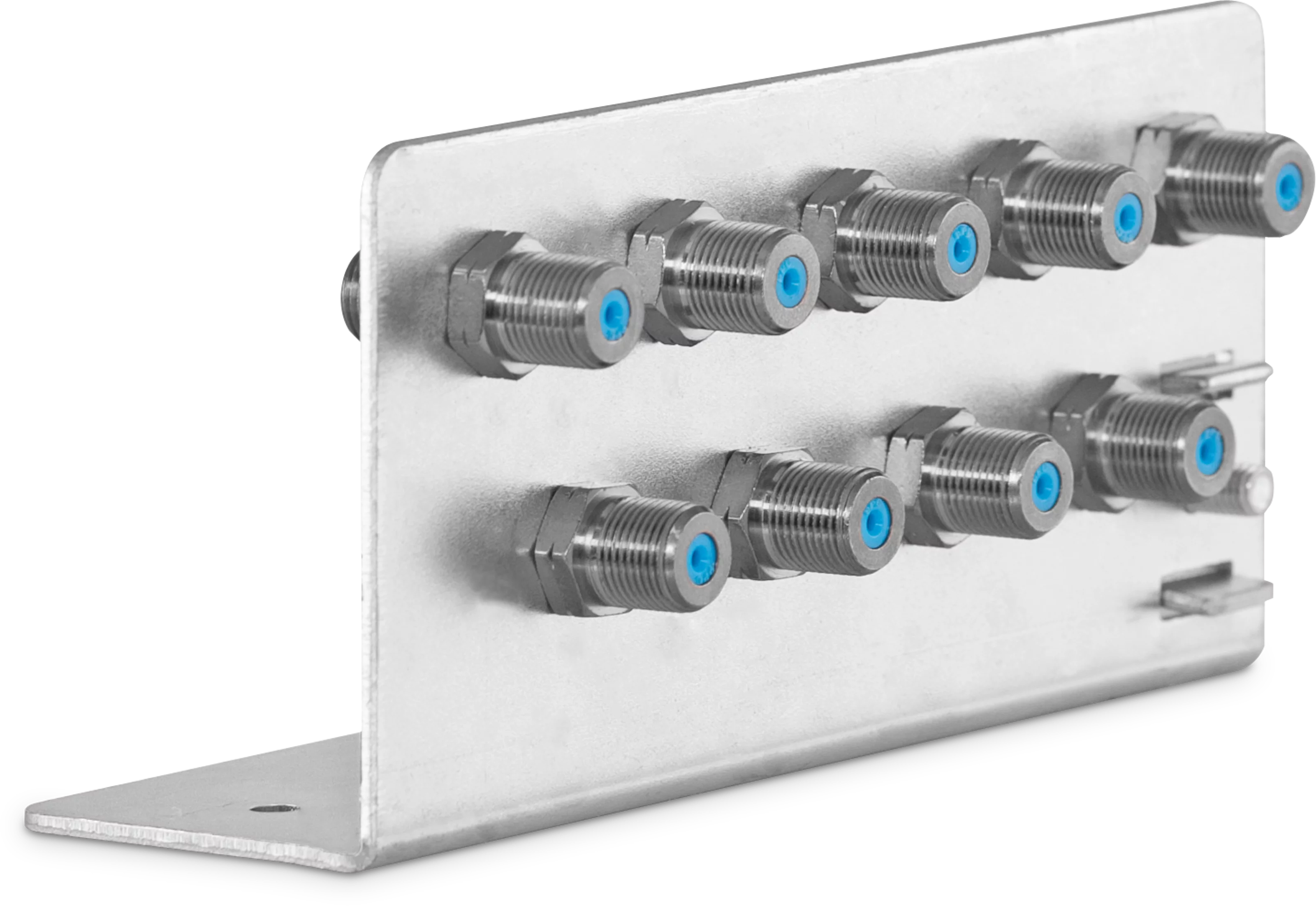

Earth Bonding Bar 9
Equipped with 9 high-quality F-double sockets
€17.00*
incl. VAT.
In- and outgoing antenna cable and additional components of the dish or a small head end need to be included in the potential equalization of the house. With the TechniSat Earth bonding bar this can be managed easily. The earth bonding bar is equipped with first-class F-double sockets with a very high operating loss of more than 30 dB. The grounding terminal is double allocatable with a ground wire of up to 25mm².
To connect the coaxial cable to the earth bonding bar we recommend to use TechniSat F-compression connectors or F-Self-Install™ connectors.
To connect the coaxial cable to the earth bonding bar we recommend to use TechniSat F-compression connectors or F-Self-Install™ connectors.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588057692 |
| Item no. | 0000/5769 |
| Colour | silver |
| Weight (Box) | 275 g |
| Weight | 256 g |
| Device (W x H x D) | 12,6 x 5,6 x 6 cm |
| Box | 20,5 x 12,75 x 5,5 cm |
| General characteristics | |
|---|---|
| Top features | For earthing of multiswitches or amplifiers |
| Top features | 9 Connectors |
| Top features | With high quality double F-sockets |
| Top features | Frequency range up to 3 GHz |
