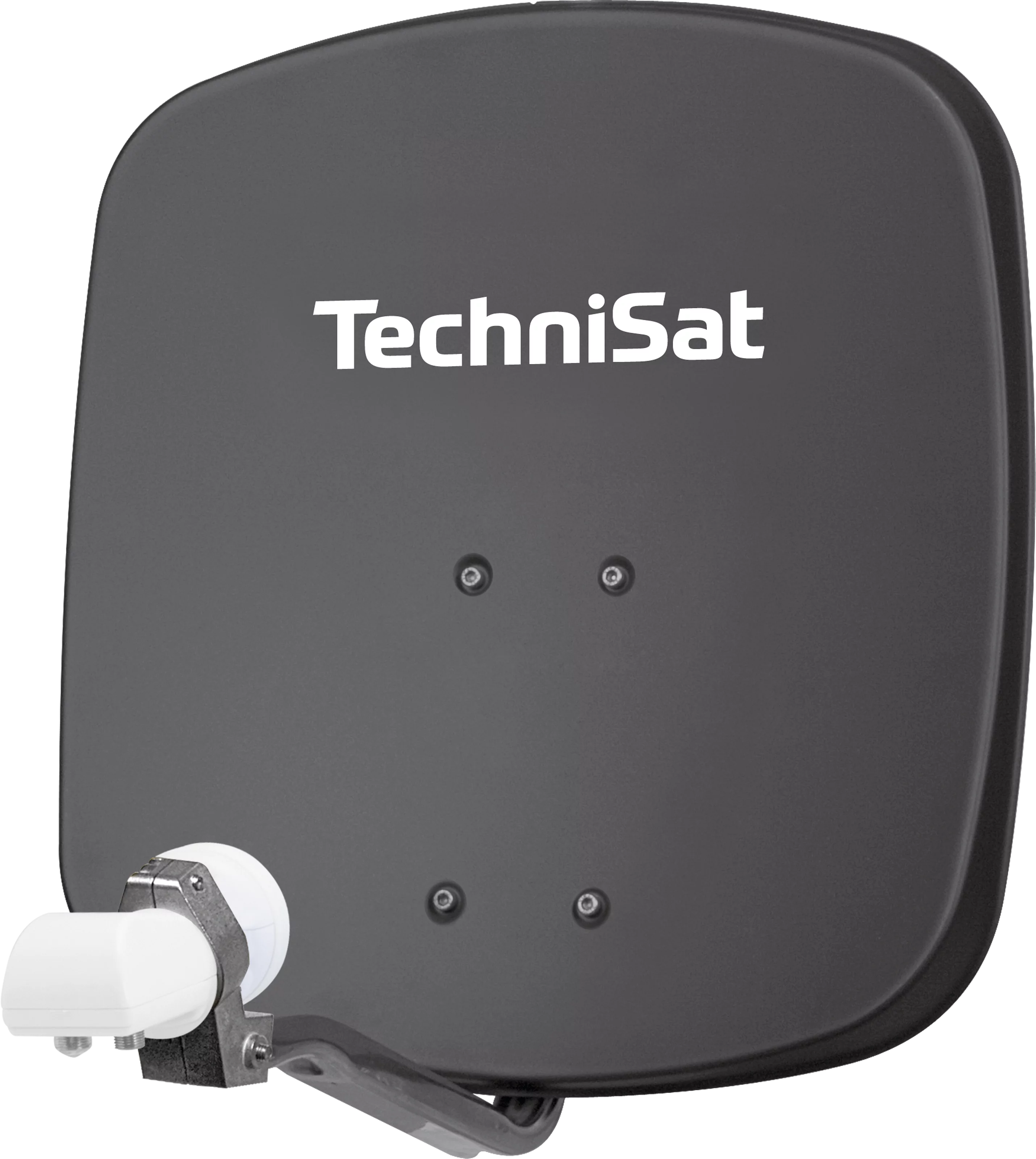

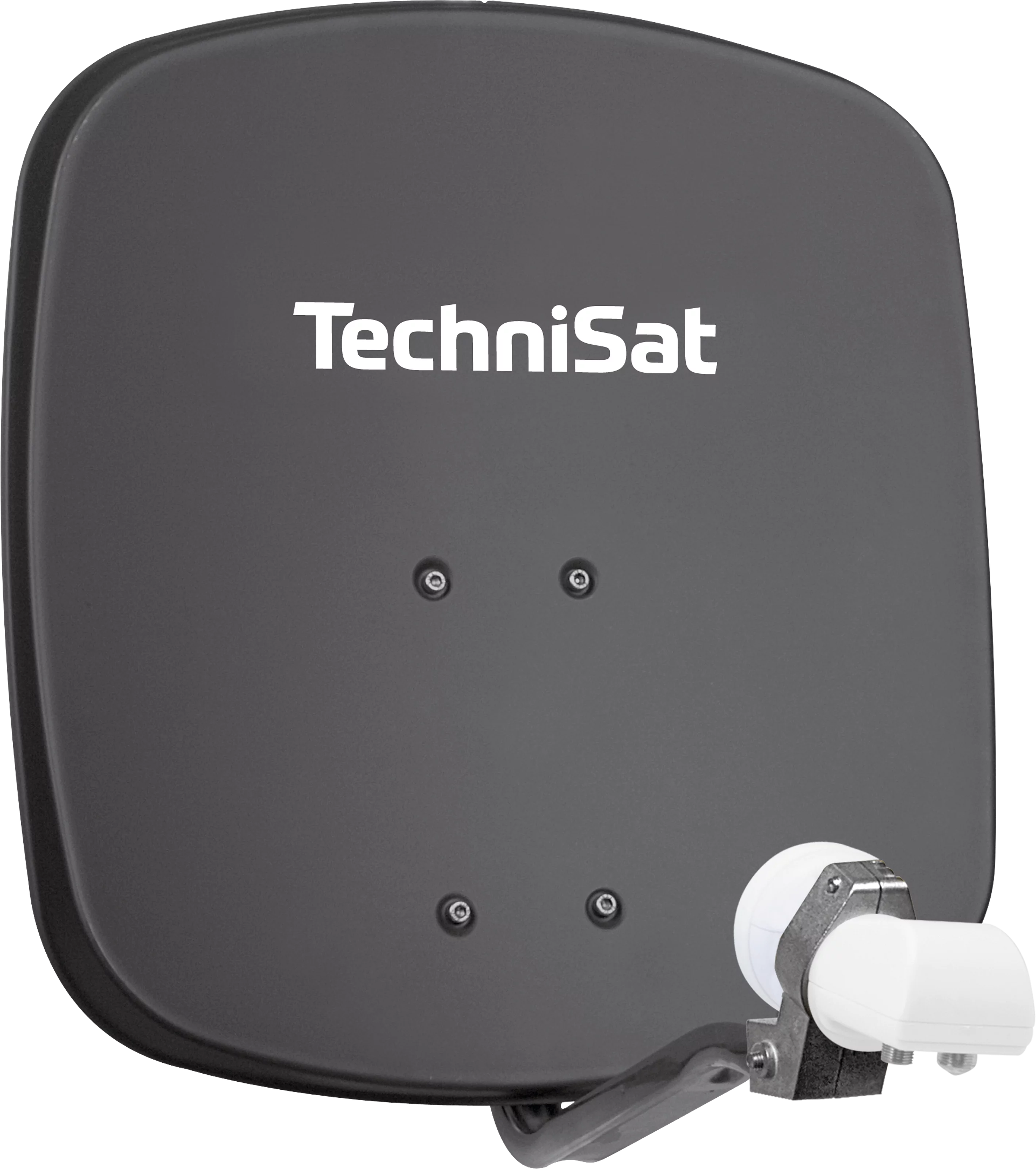

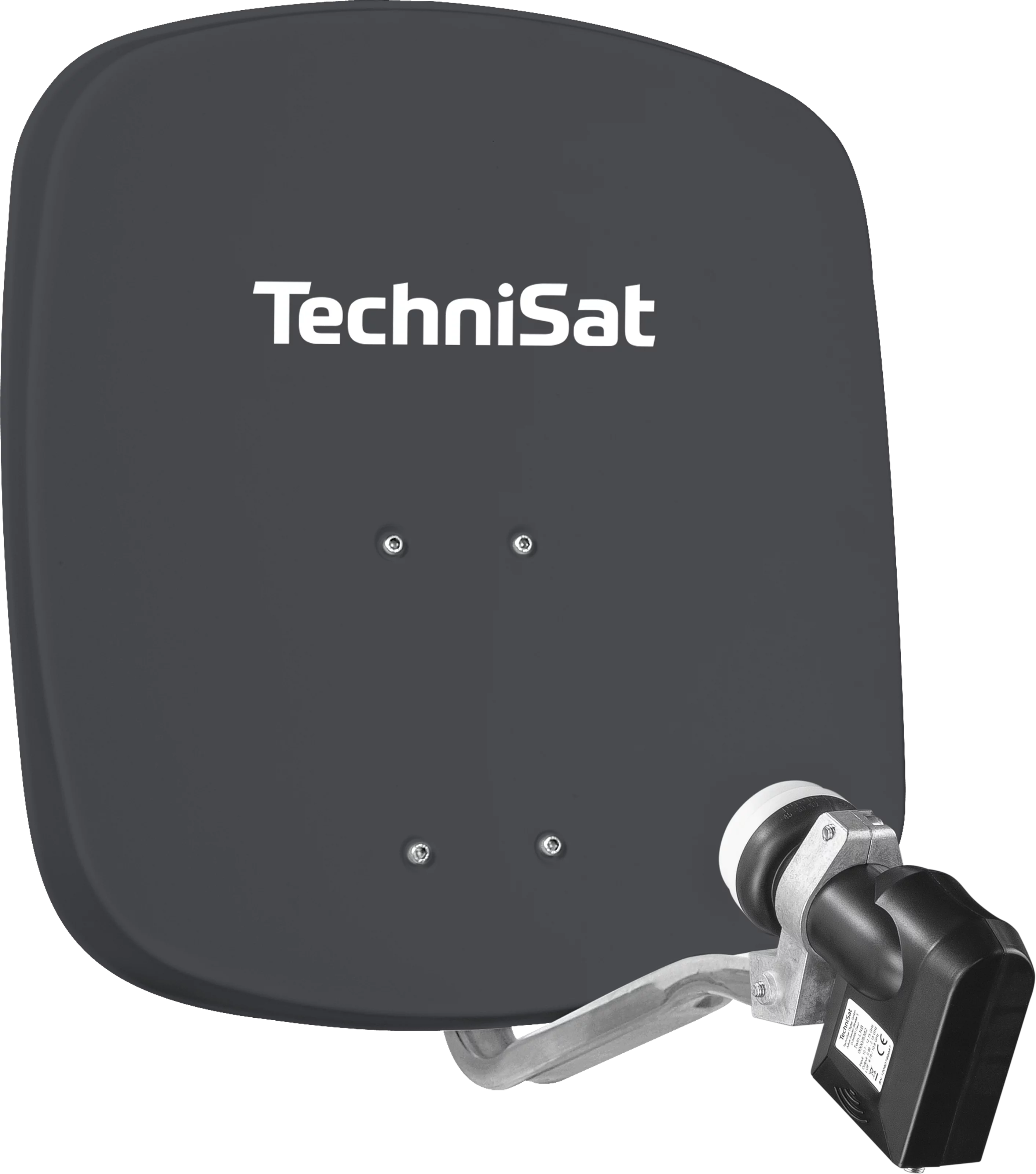

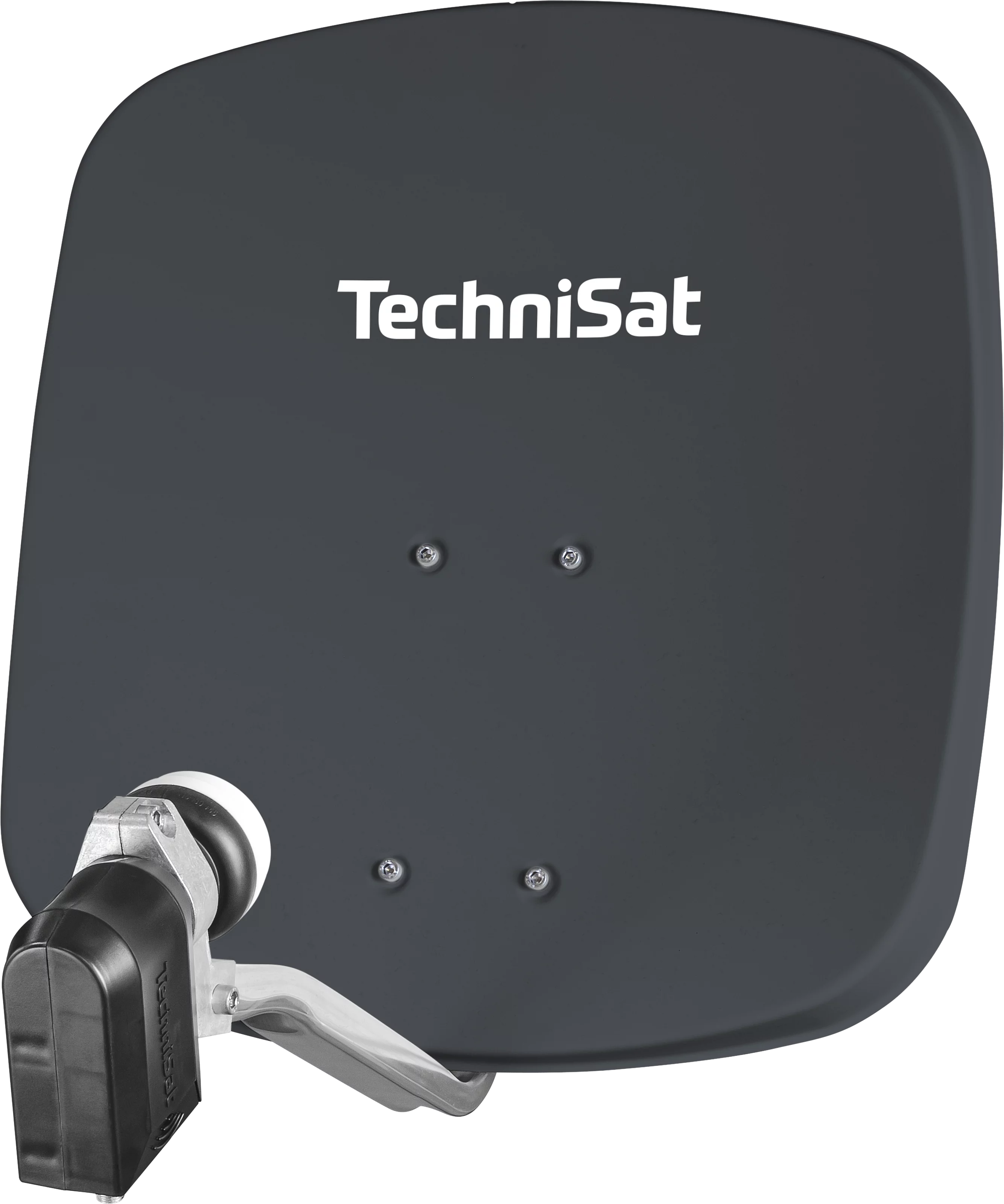

DIGIDISH 45, Universal-Twin-LNB slate/grey
€99.00*
DIGIDISH 45, Universal-Twin-LNB
Thanks to its ingenious reflector design the reception performance of the DigiDish 45 is better than with many 60 cm mirrors - and that is with a far lower size of reflector.
€99.00*
incl. VAT.
- High-quality satellite dish: The aluminum-made reflector ensures long durability and weather protection thanks to its stable construction and double-sided powder coating
- Pre-assembled: Easy-to-install, twist-resistant satellite system for top reception performance – extremely robust and durable due to the use of only high-quality materials
- Two-user reception: The satellite dish is delivered with a 40 mm twin LNB. Two independent receivers / TVs can be connected directly to the dish.
- Discreet installation: Thanks to the small and extremely space-saving design, the satellite dish is ideal for installation on a balcony or for camping
- Scope of delivery: Digital satellite antenna DIGIDISH 45 cm, AZ/EL mount, Universal Twin LNB, wall mount, screws, tools, installation manual
Satellite dish 45 cm, LNB, wall bracket, screws, tool, mounting instruction
High-performance aluminium offset dish antenna (45 cm)
The DigiDish 45 consists of high-quality aluminium and is powder-coated on both sides. The carefully calculated parabolic shape ensures that the reception performance of the DigiDish 45, which has a diameter of only 45 cm, is better than that of many 60 cm dishes - in spite of the much smaller size.
Simple installation

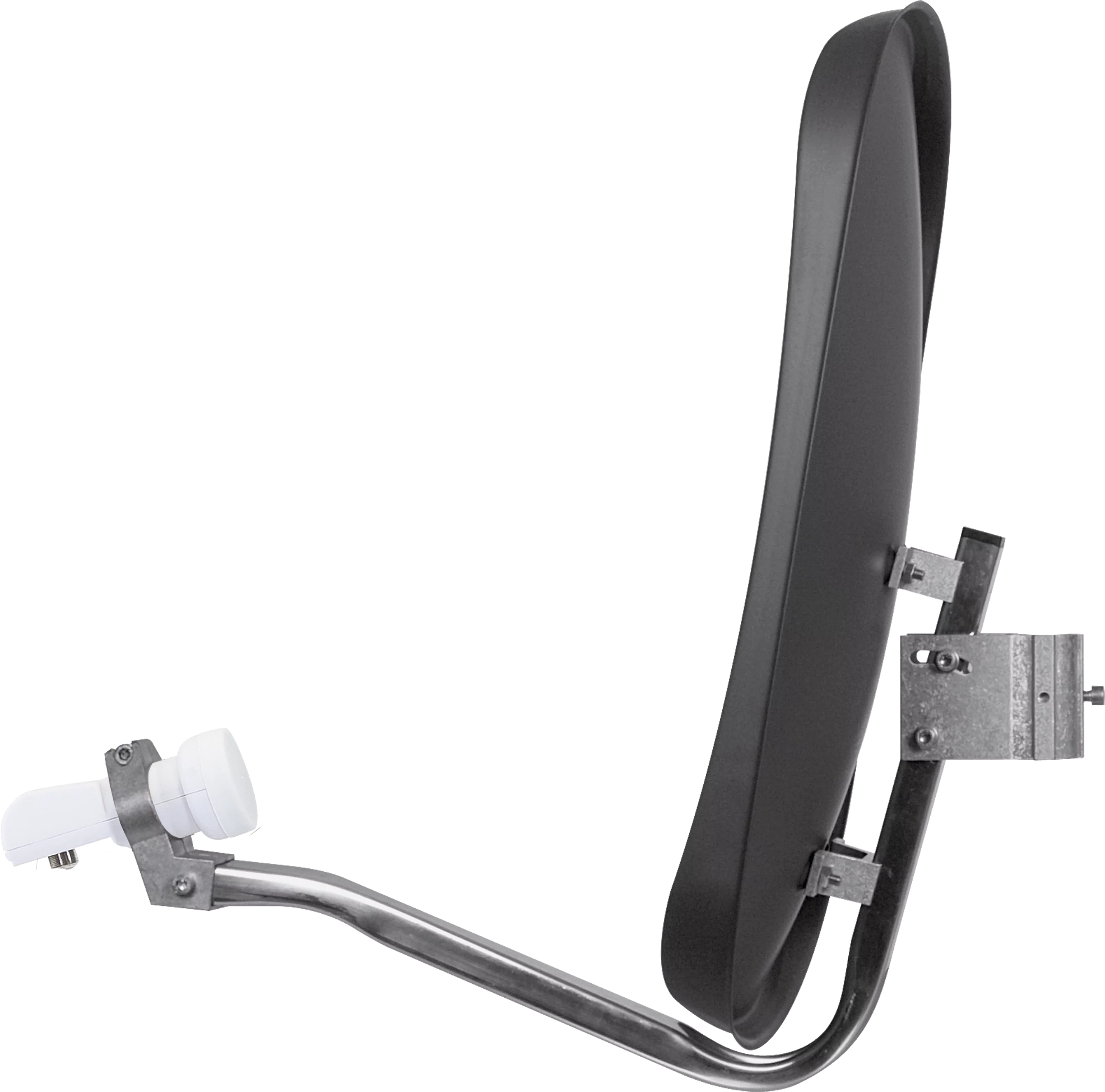

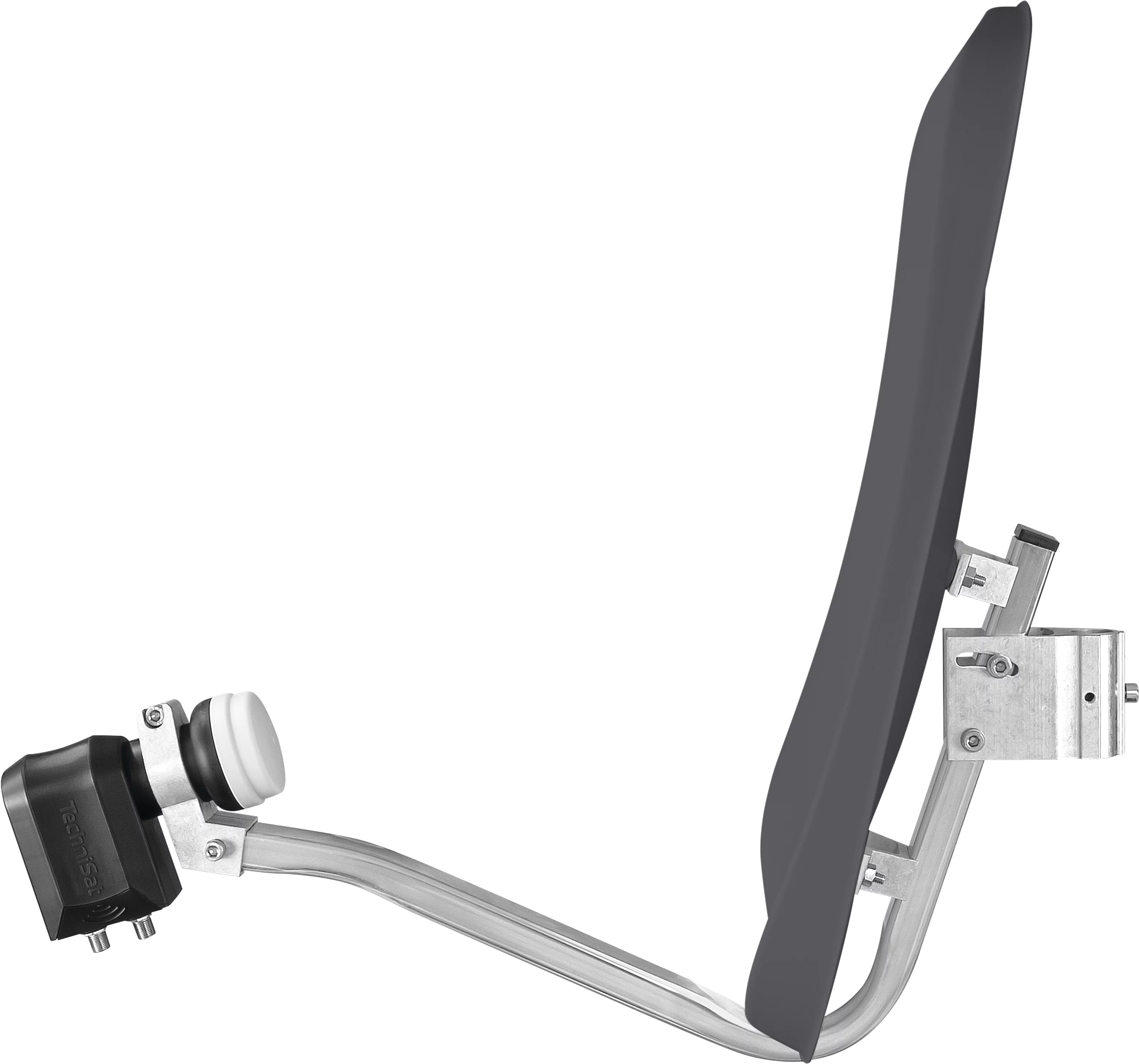

The DigiDish 45 is - just like the DigiDish 33 - ideal for mounting on balconies. The pre-assembled mounting bracket ensures installation of the dish is quick and easy.
The DigiDish 45 consists of high-quality aluminium and is powder-coated on both sides. The carefully calculated parabolic shape ensures that the reception performance of the DigiDish 45, which has a diameter of only 45 cm, is better than that of many 60 cm dishes - in spite of the much smaller size.
Simple installation
The DigiDish 45 is - just like the DigiDish 33 - ideal for mounting on balconies. The pre-assembled mounting bracket ensures installation of the dish is quick and easy.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588453821 |
| Item no. | 1345/2882 |
| Colour | slate/grey |
| Weight (Box) | 3,7 kg |
| Weight | 2,9 kg |
| Device (W x H x D) | 45 x 48 cm |
| Box | 51 x 51 x 23 cm |
| sonstiges | |
|---|---|
| bf_filter_number_of_participants | 2 |
| bf_filter_number_satellites | 1 |
| bf_filter_diameter | 45 cm |
| bf_filter_austattung | with LNB |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,7 GHz |
| LNB control | |
|---|---|
| Vertical | 11,5 - 14 V |
| Horizontal | 16 - 19 V |
| Band switch | 22 kHz |
| General characteristics | |
|---|---|
| Material | Aluminium |
| Material strength | 1 mm |
| Coating | Powder-coated on both sites |

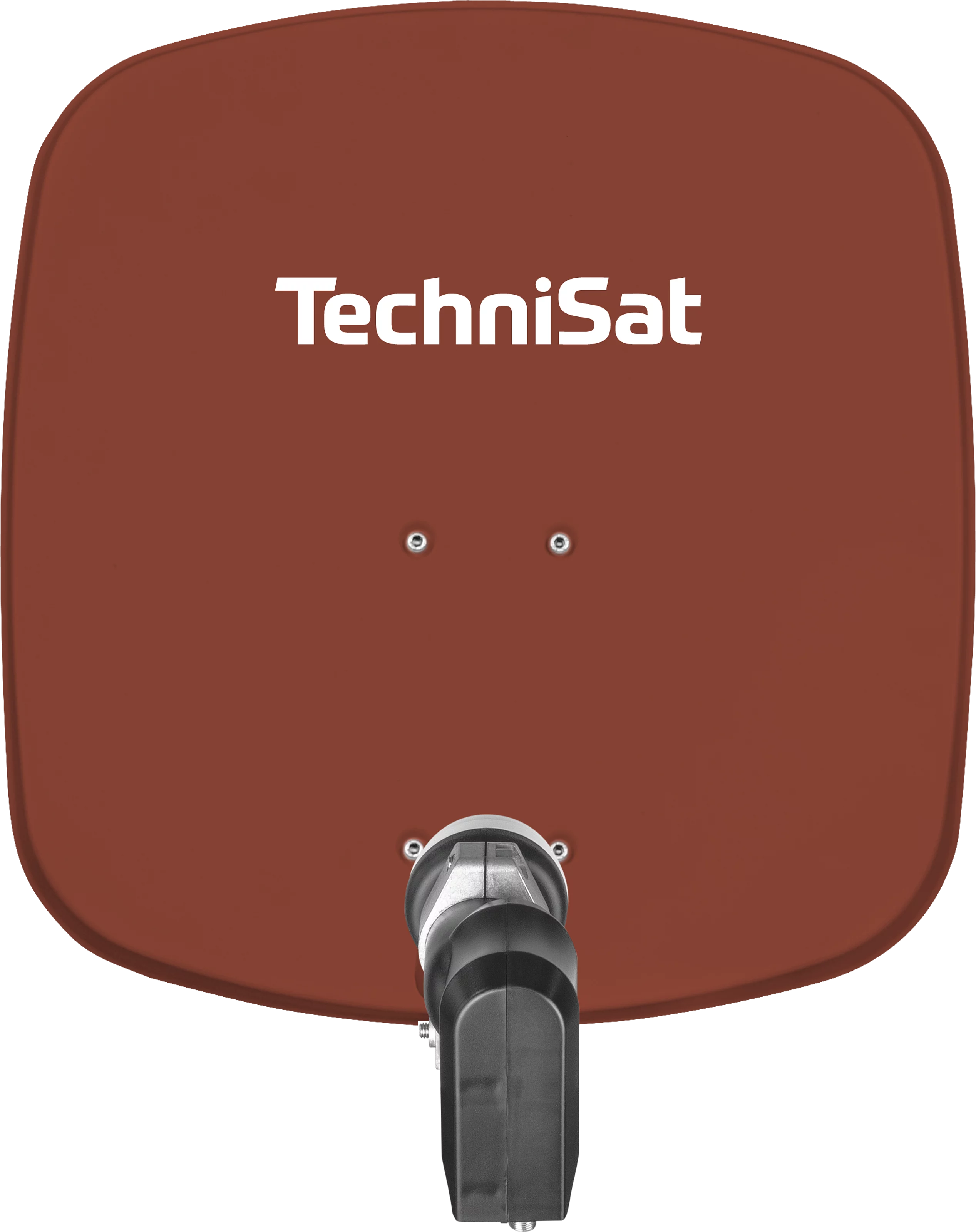

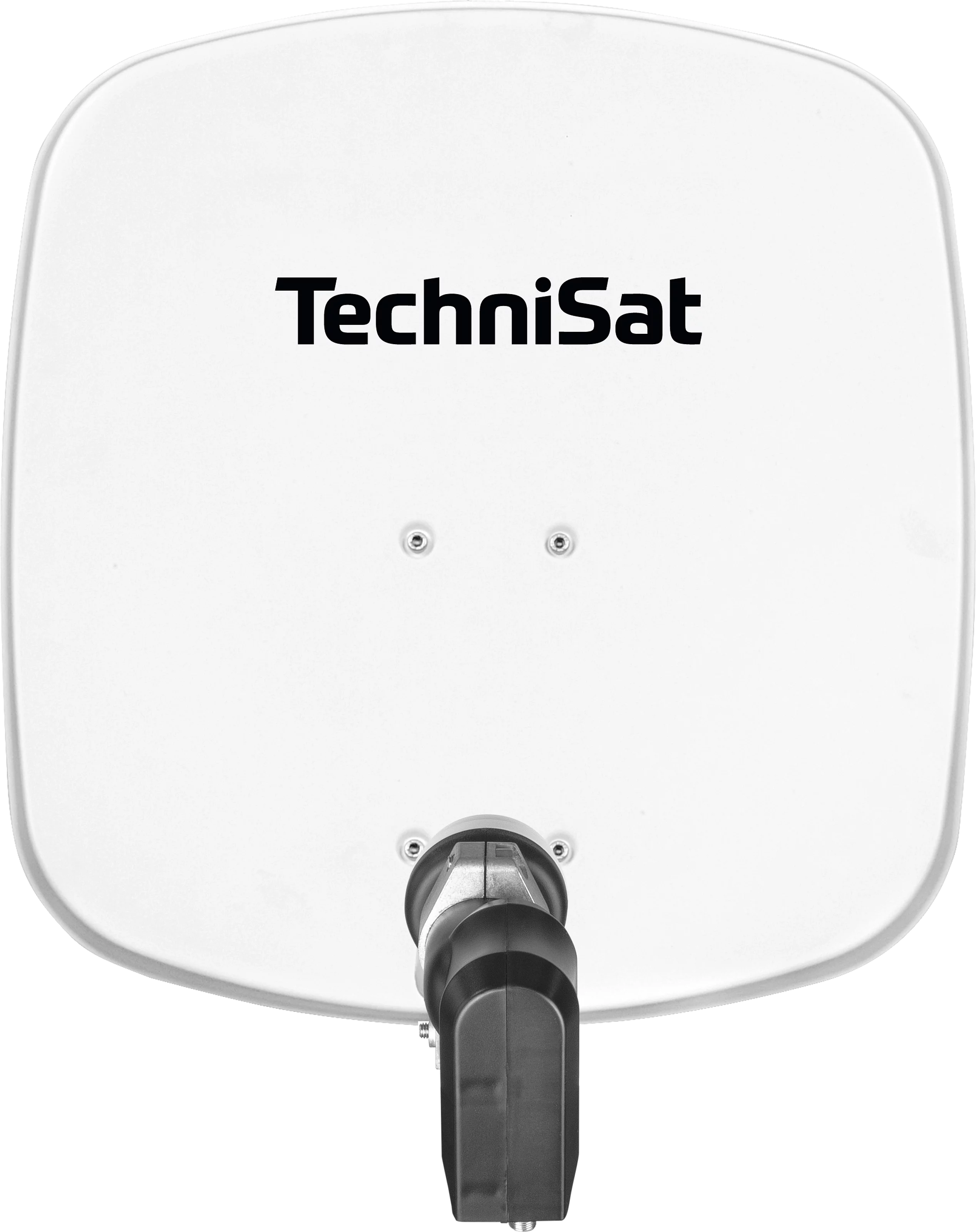

| Colour | beige, polar white, slate-grey, brick-red |
| including Wall bracket | Yes |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,7 dB max. |
| Upper frequency range | 0,7 dB max. |
| Output frequency range | |
|---|---|
| Low band | 950 - 1.950 MHz |
| High band | 1.100 - 2.150 MHz |
| Power supply | |
|---|---|
| LNB voltage supply | 11,5 ... 19 V |
| Power consumption | max. 190 mA |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Number of clients | 2 |
| Technical data | |
|---|---|
| Rated measurement | 0,45 m |
| F/D | 0,6 |
| Gain | 32,2 dBi @11,3 GHz |
| Offset angle | 30 ° |
| Feed reception | 40 mm |
