DIGITRADIO UP 55 white
€189.00*
DIGITRADIO UP 55

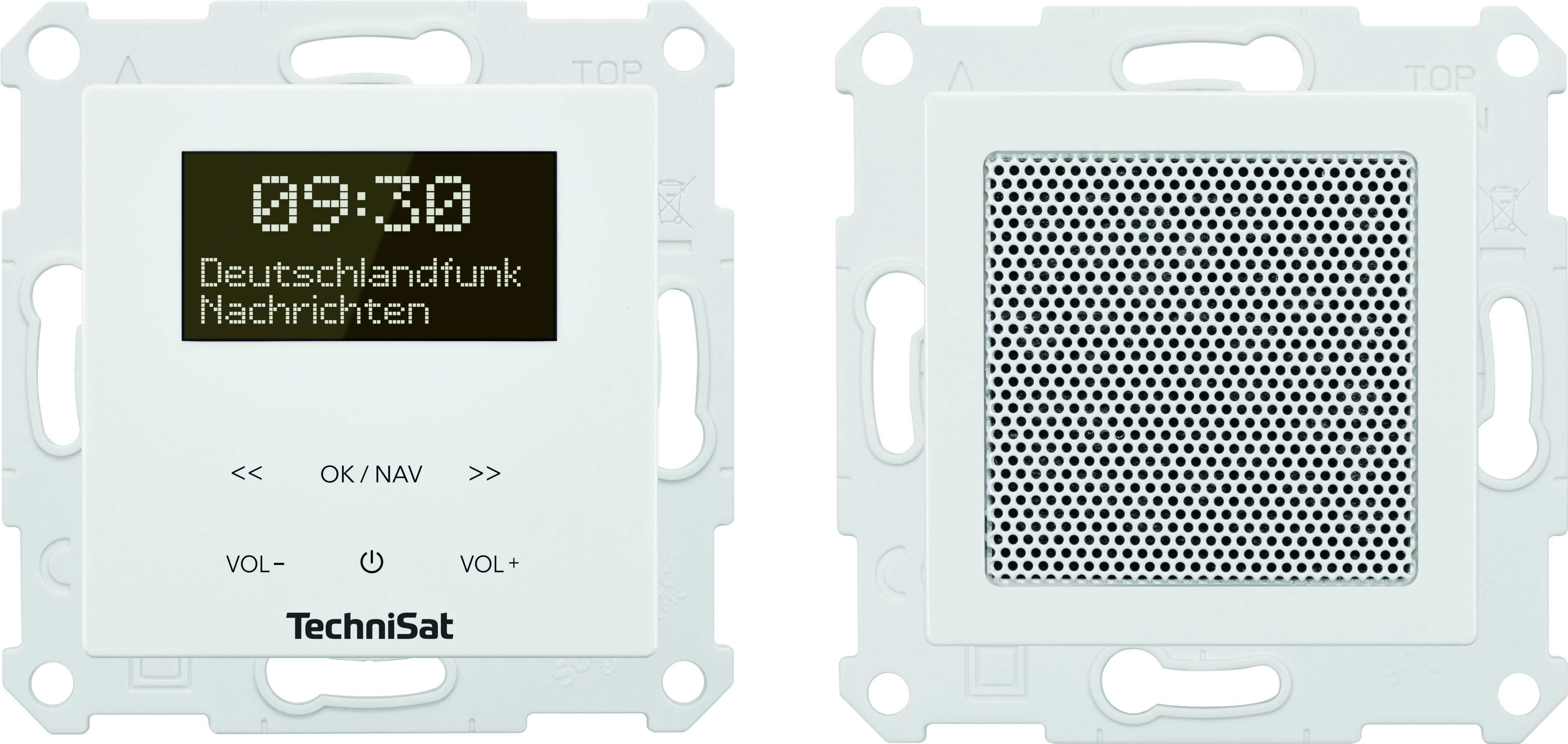

Set with flush-mounted radio and flush-mounted speaker
€189.00*
incl. VAT.

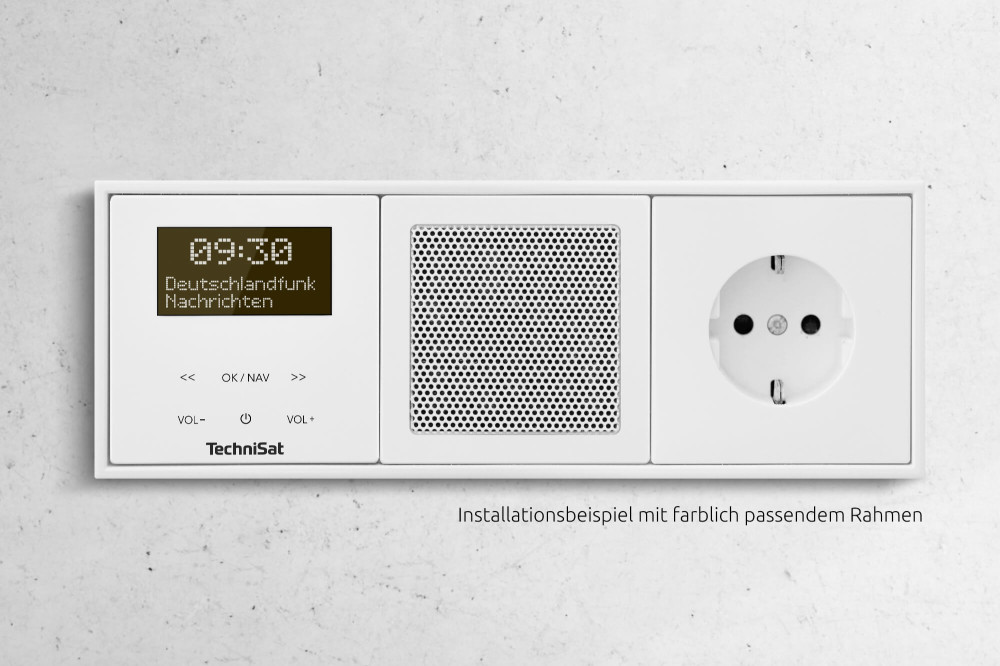

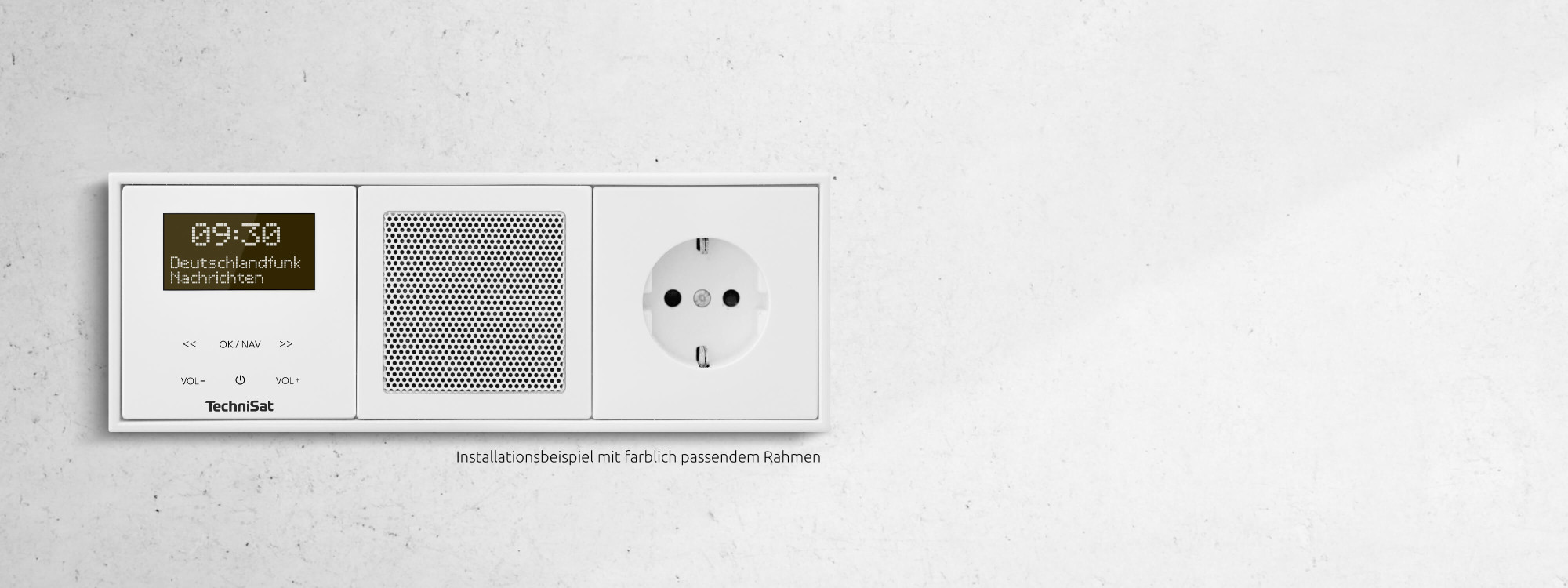

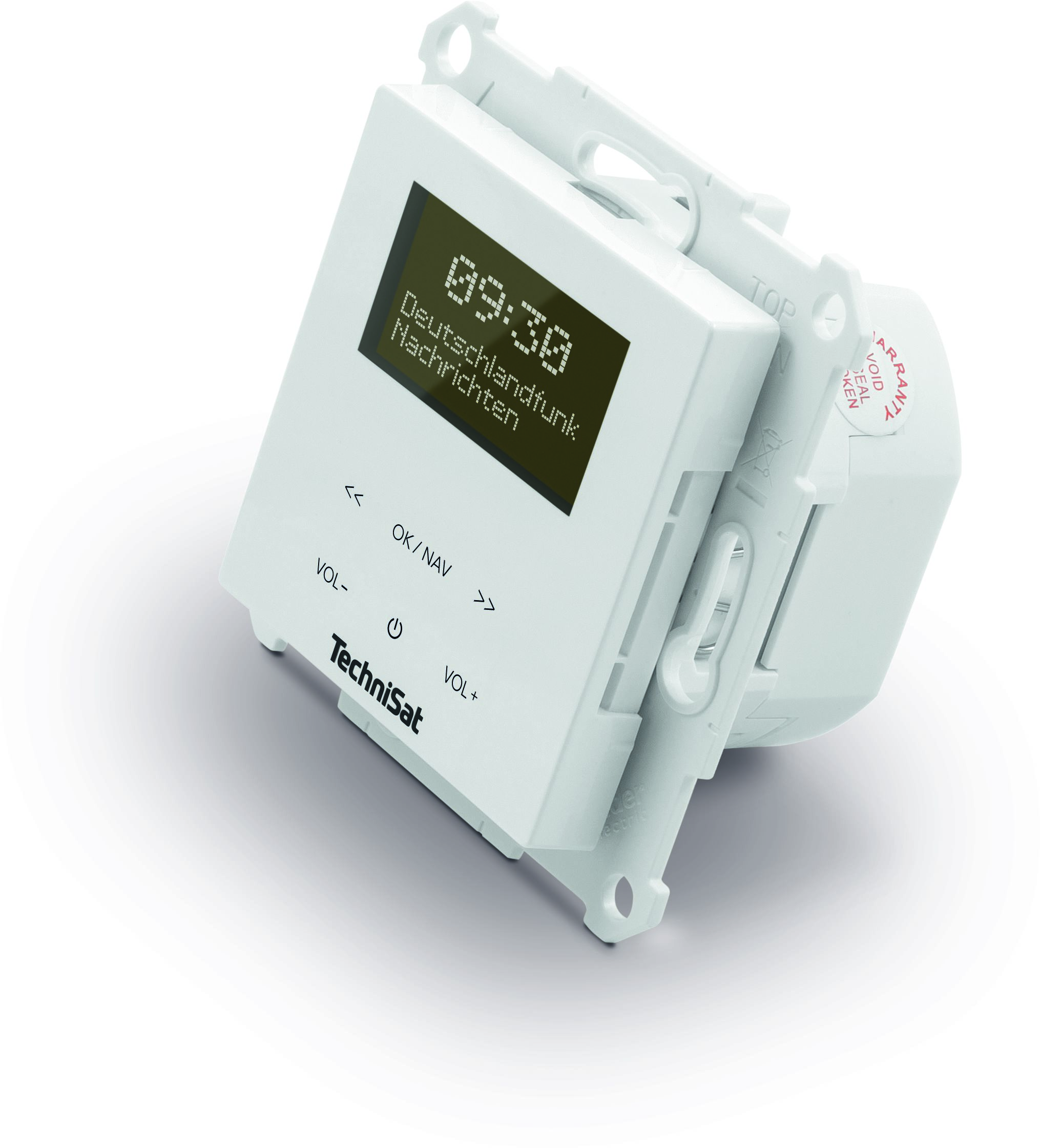

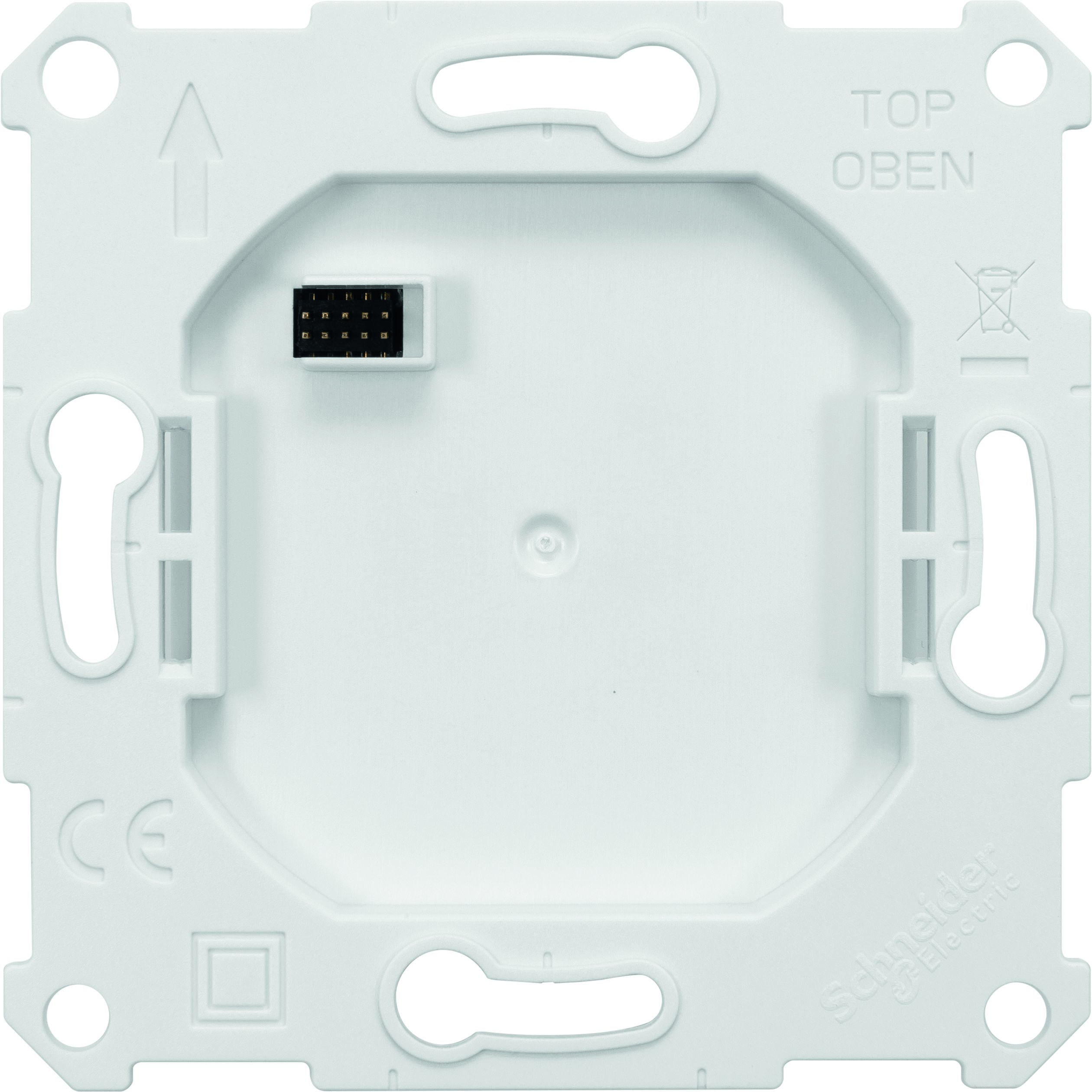

- Compact digital radio: The flush-mounted radio consists of two units. Radio and speaker can be installed flexibly, e.g. in a double flush-mounted box, either vertically or horizontally
- Flexible: The radio is delivered without a cover frame, both inserts are 55 mm high and wide. They can be combined with standard cover frames from well-known switch program manufacturers
- Features: The digital radio with sleep and alarm timer receives analog and digital radio stations and also allows wireless music streaming via Bluetooth

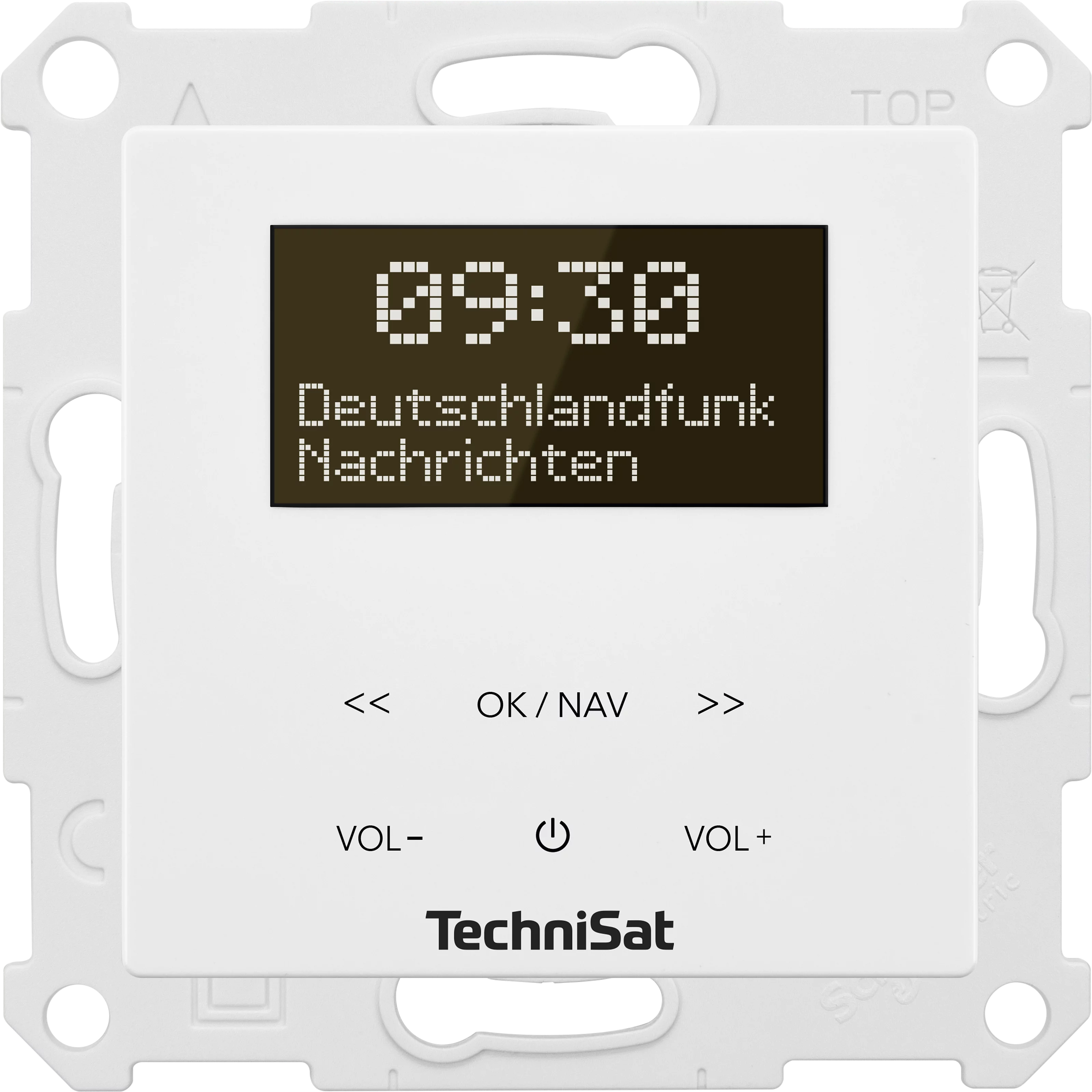

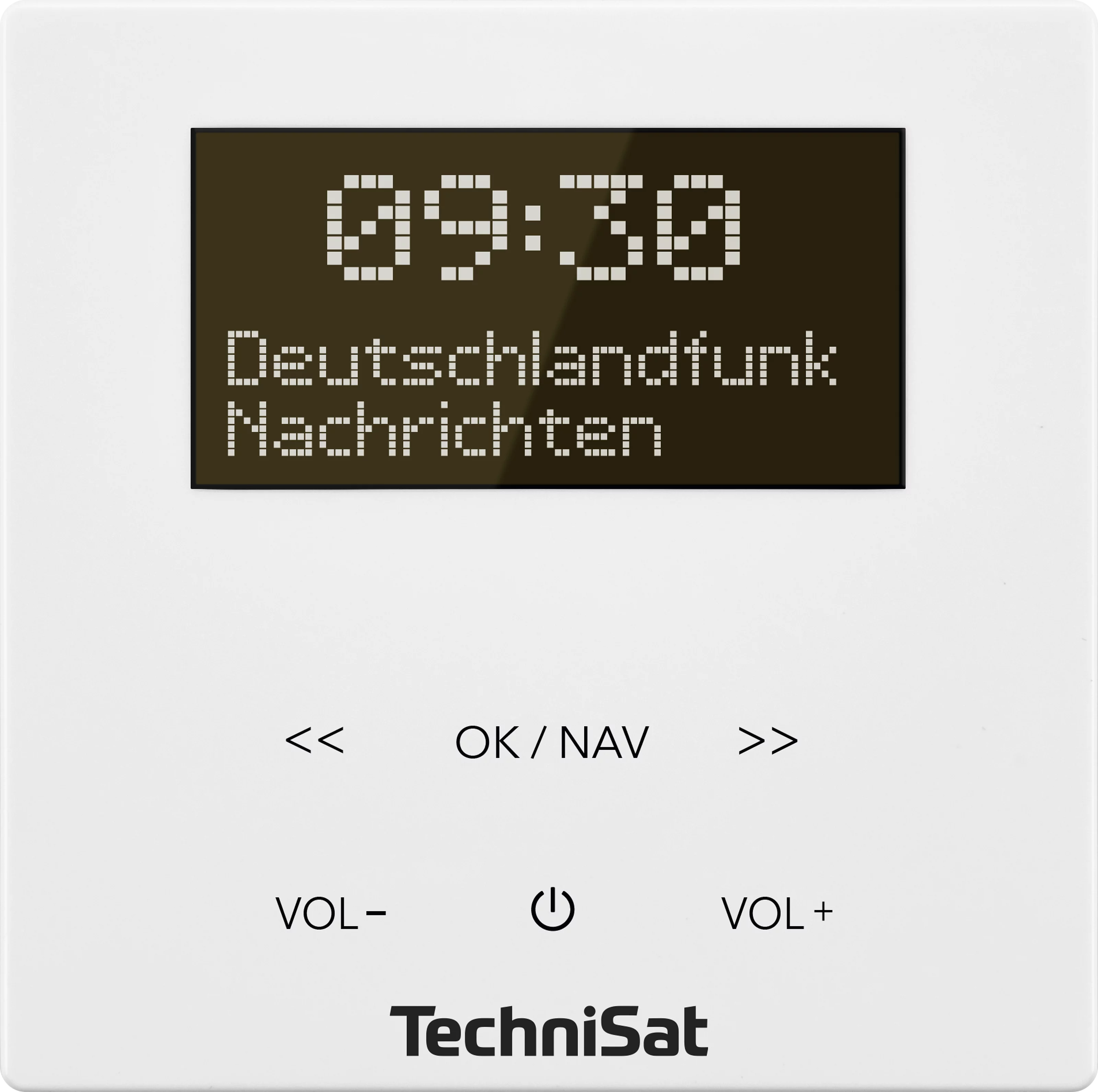

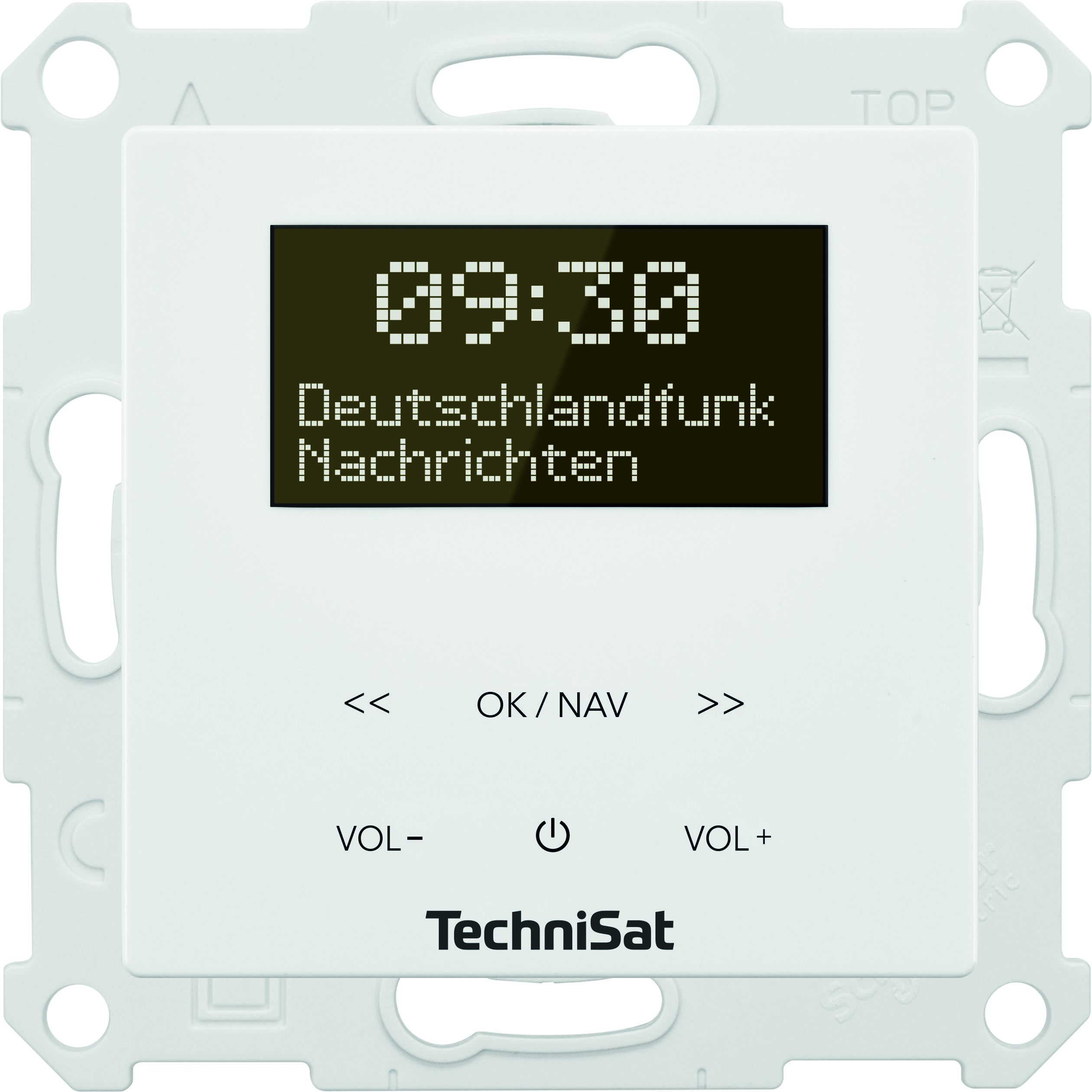

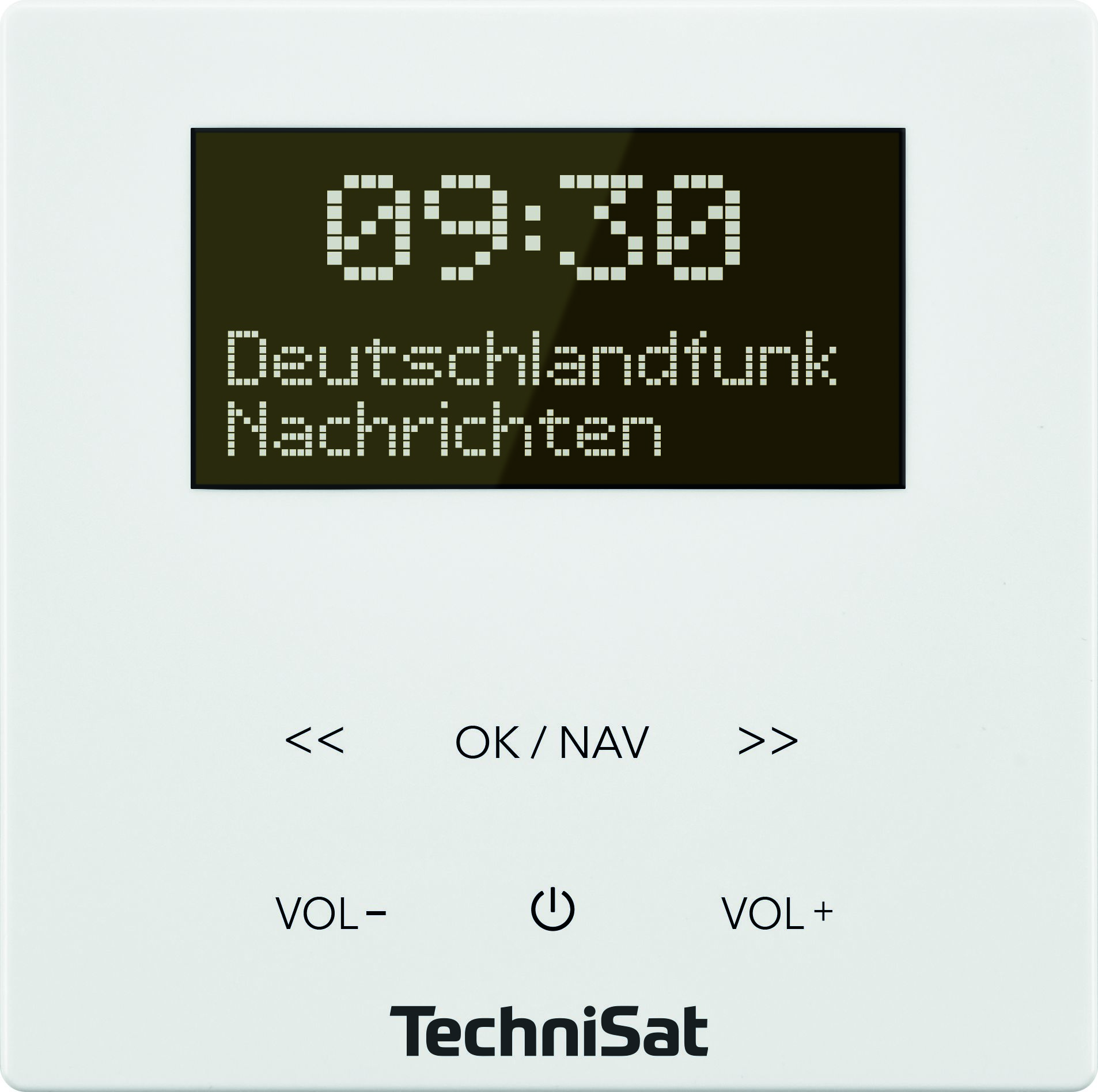

- Display/Operation: The OLED display shows station names and has a dimming function. Additionally, 20 DAB Plus and FM stations can be saved as favorites
- Good to know and not a defect: Turn off power circuit before installation and only turn it back on after installing the radio and attaching the display, otherwise no display will appear

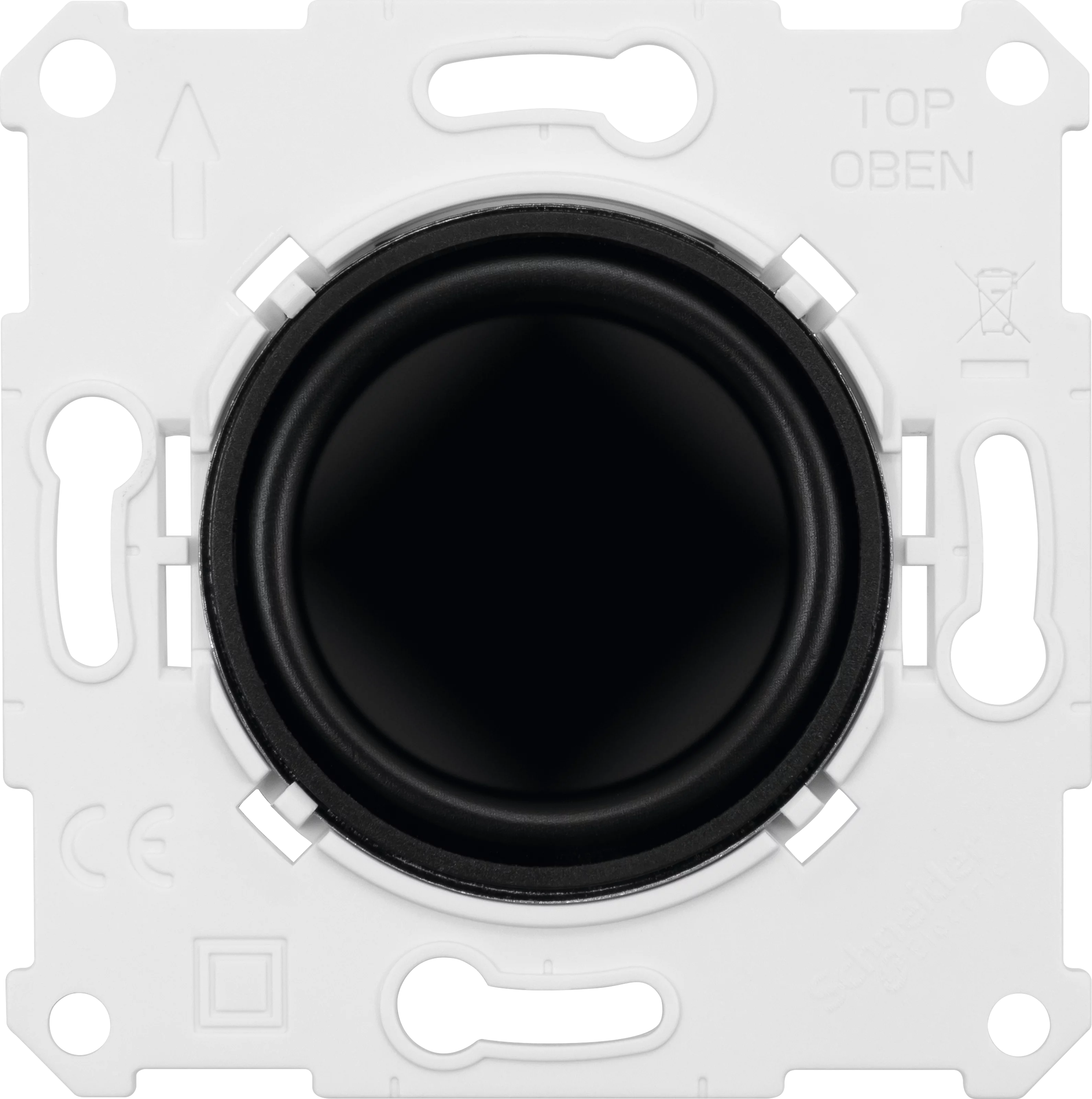

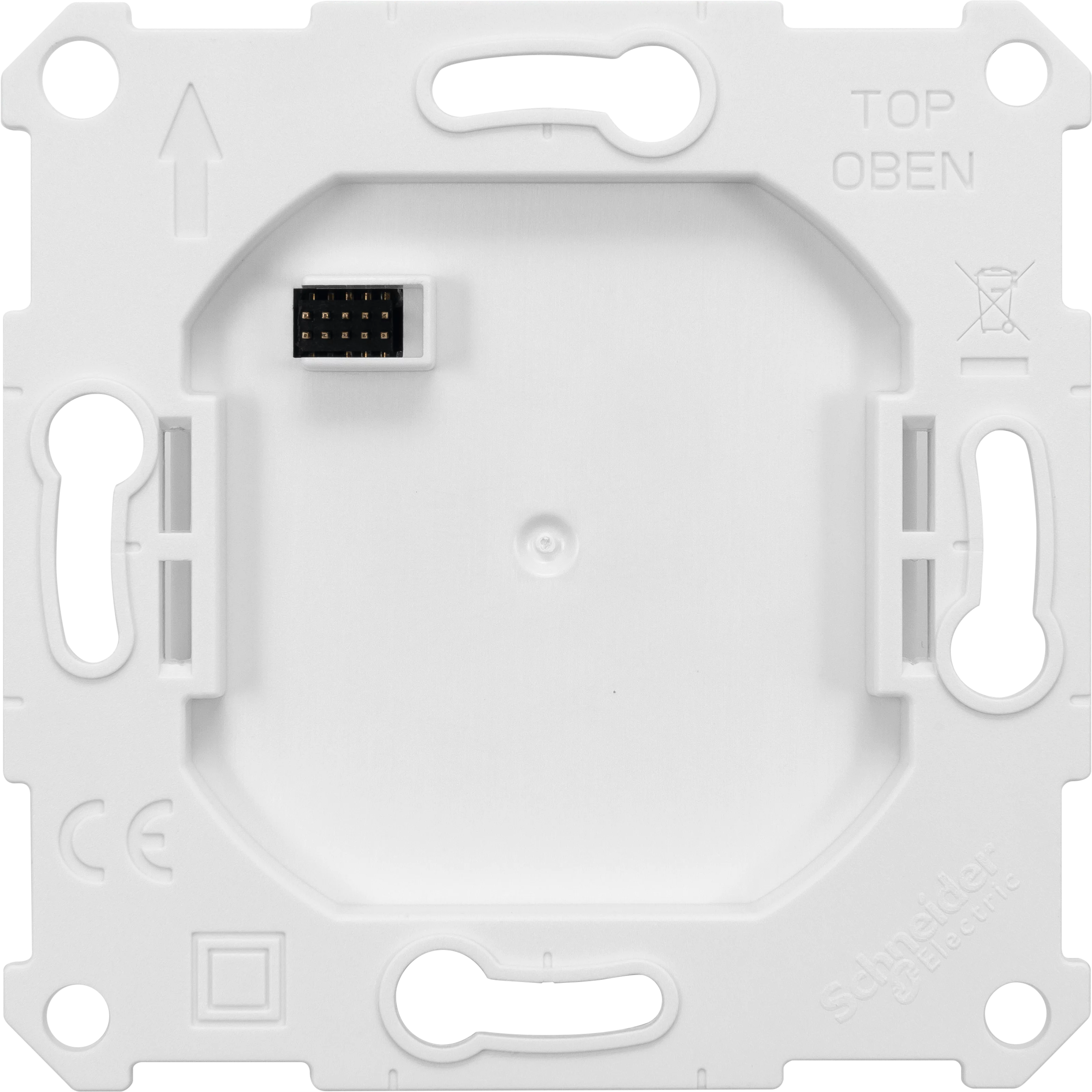

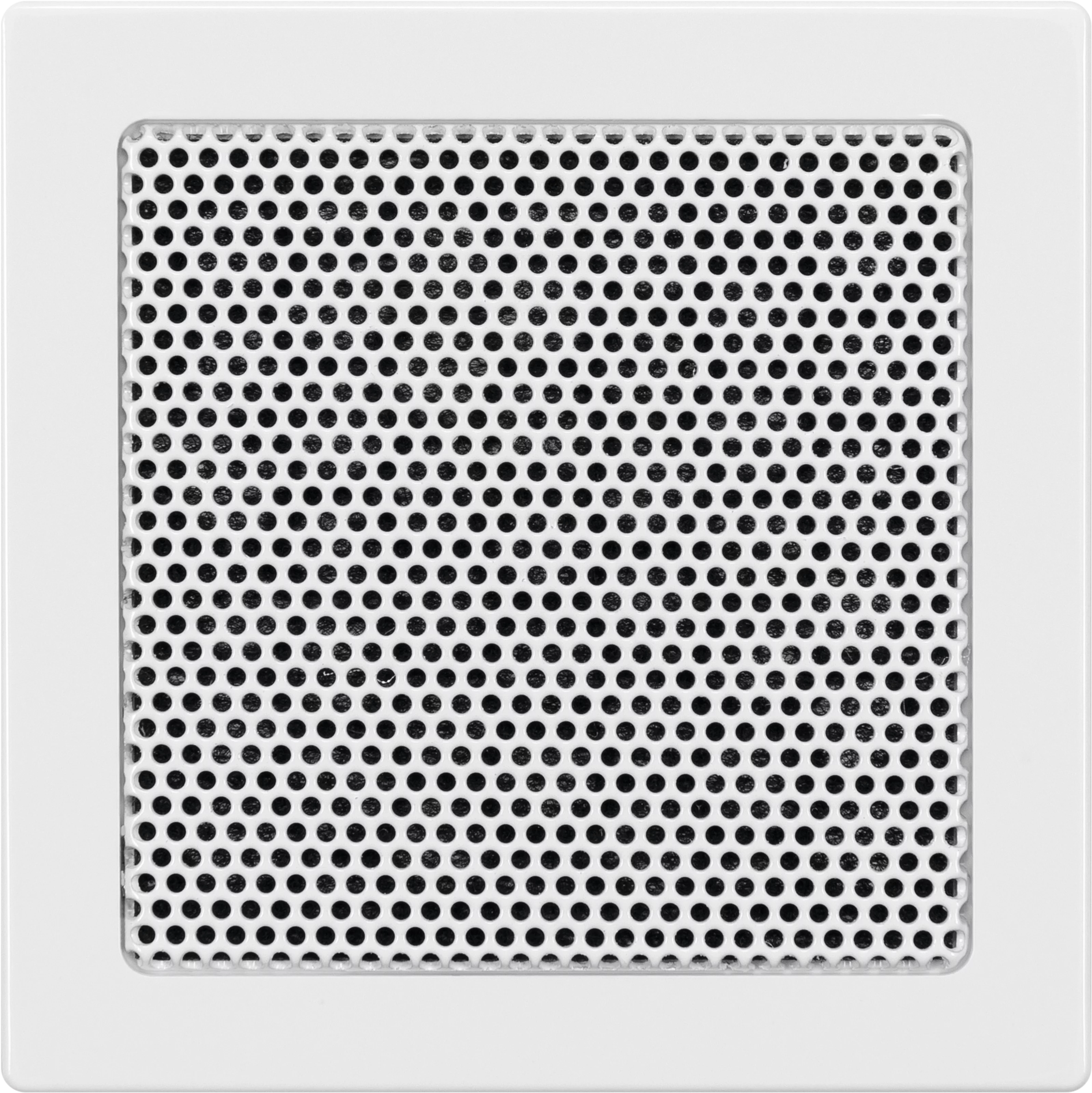

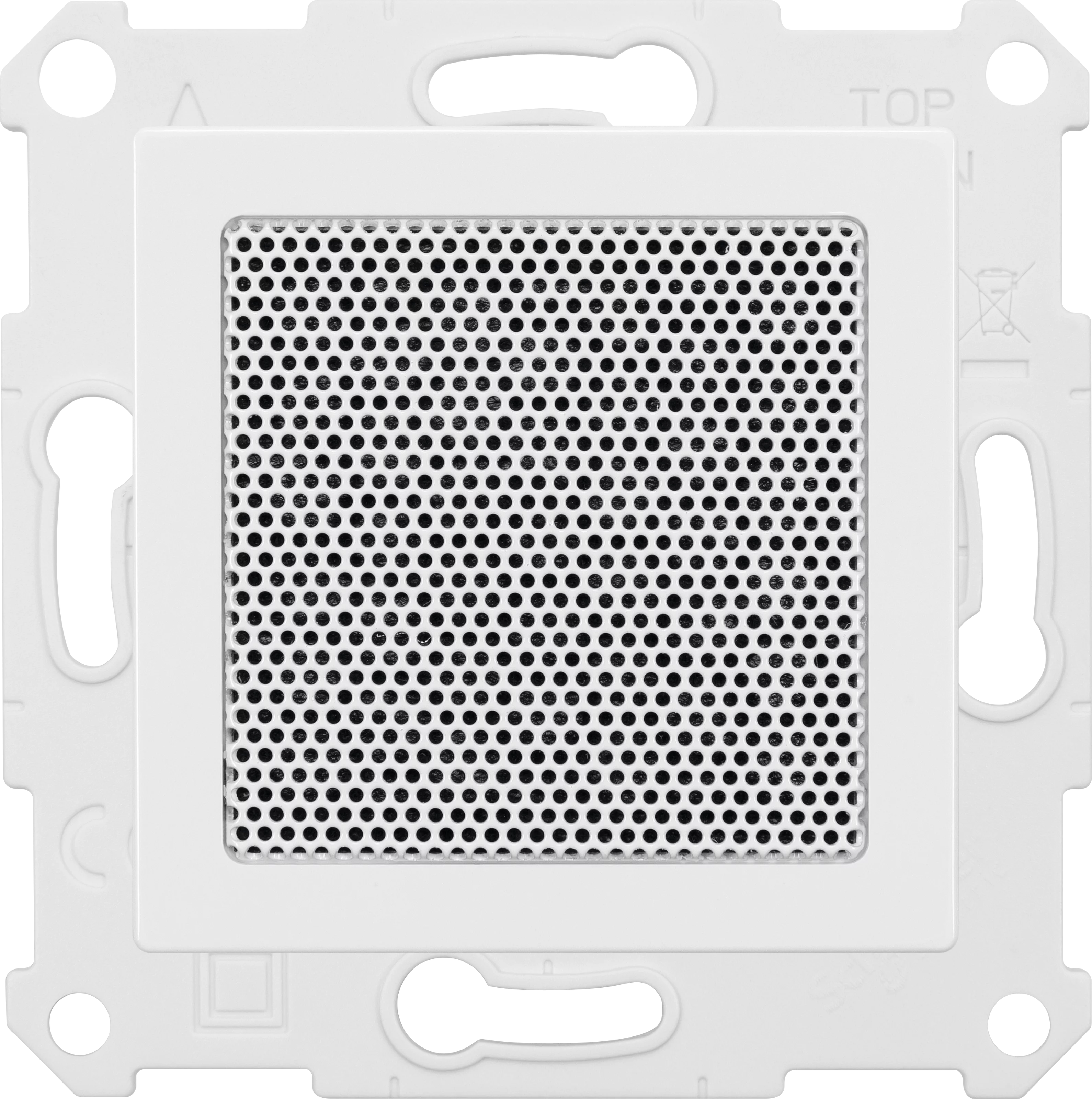

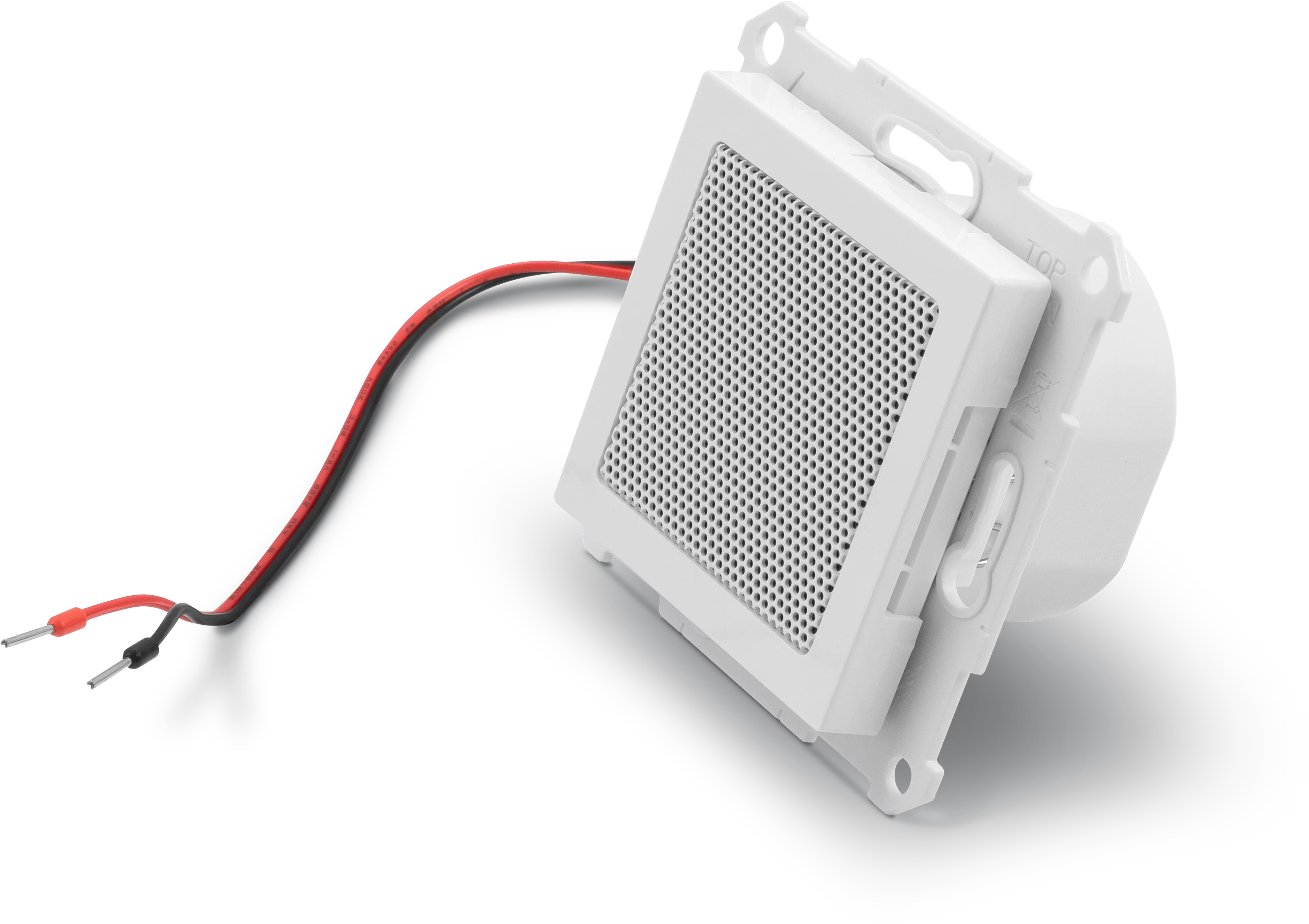

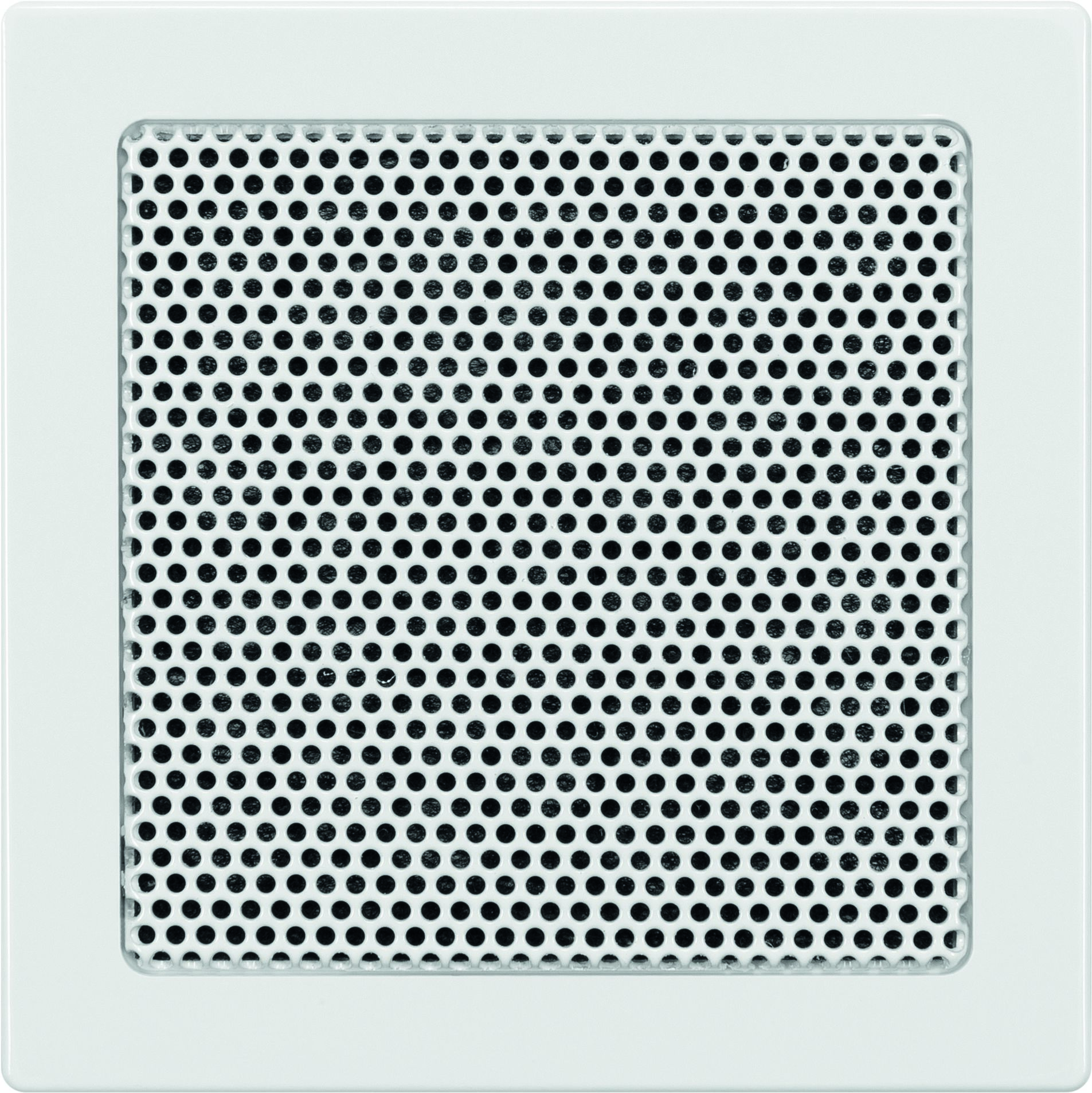

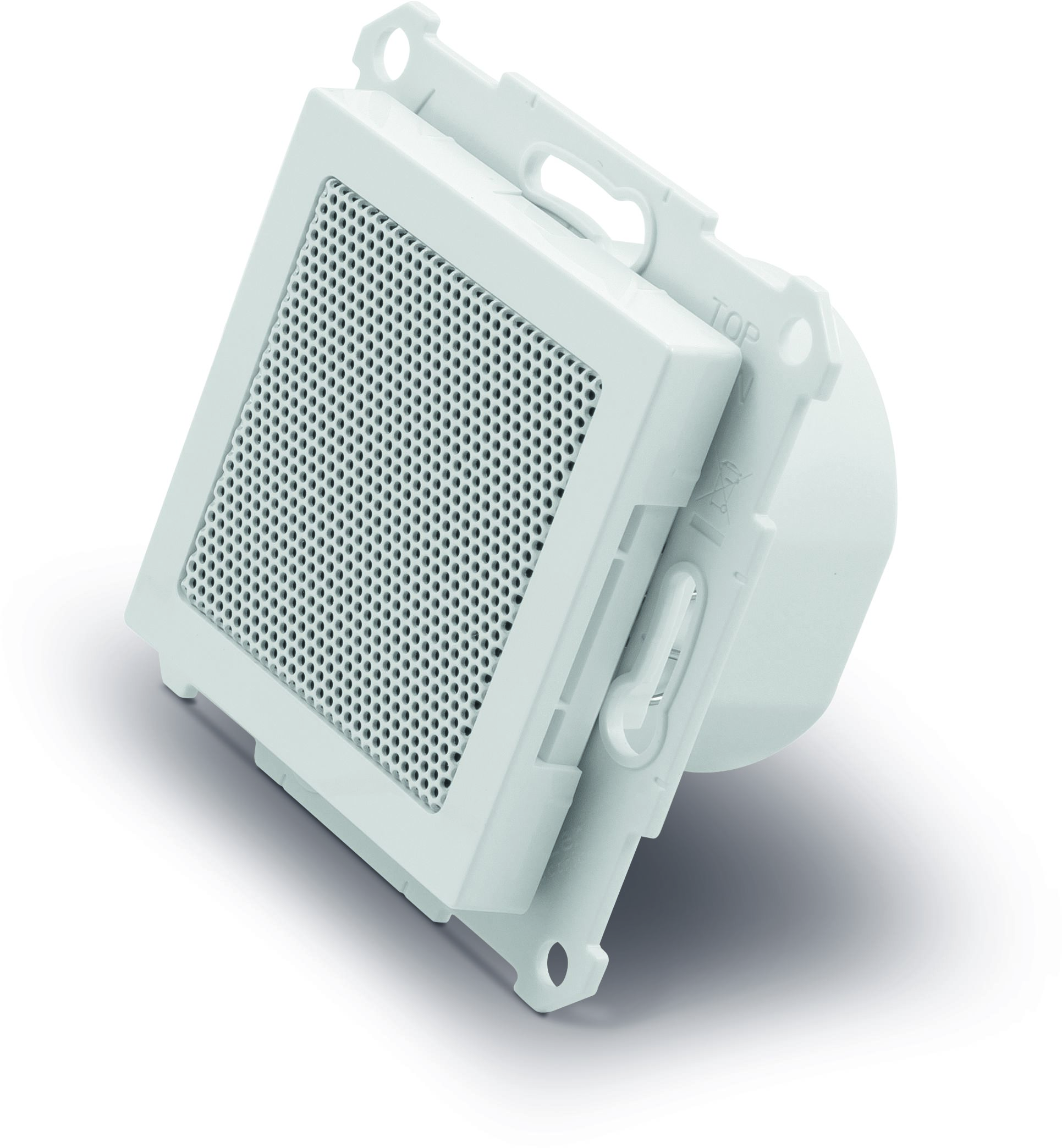

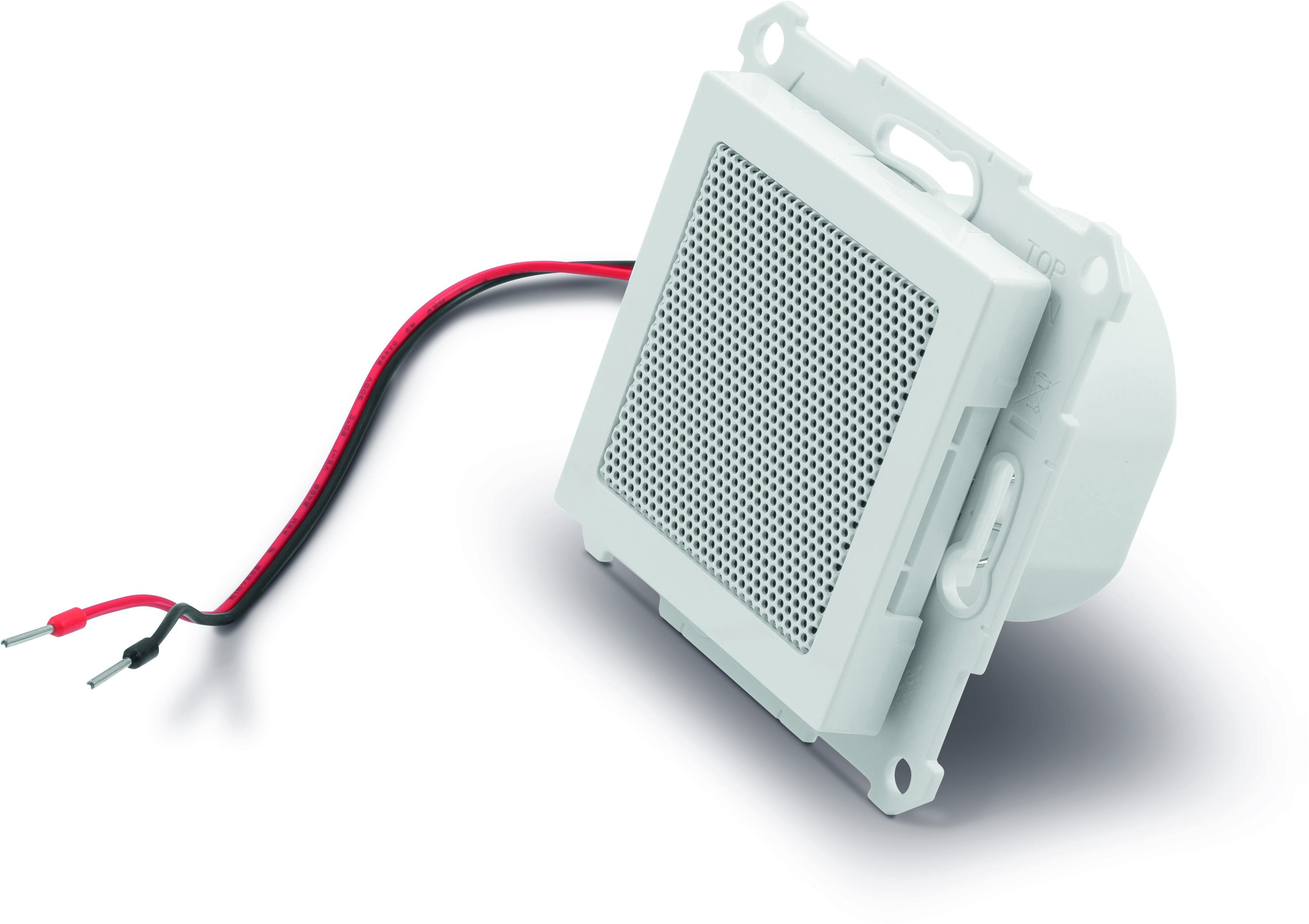

1x flush-mounting radio, 1x flush-mounting speaker with speaker cable (24 cm long), instruction manual
This product is manufactured in Germany and represents the highest quality standards. Precise workmanship and strict controls ensure long-lasting reliability.
Hinweis für die Wahl der passenden Rahmen und Blenden:
Die Fronten des DIGITRADIO UP 55 sind im Farbton RAL 9016 gehalten.
Hinweis für die Wahl der passenden Rahmen und Blenden:
Die Fronten des DIGITRADIO UP 55 sind im Farbton RAL 9016 gehalten.
| Product Information | |
|---|---|
| Colour | white |
| EAN | 4019588139015 |

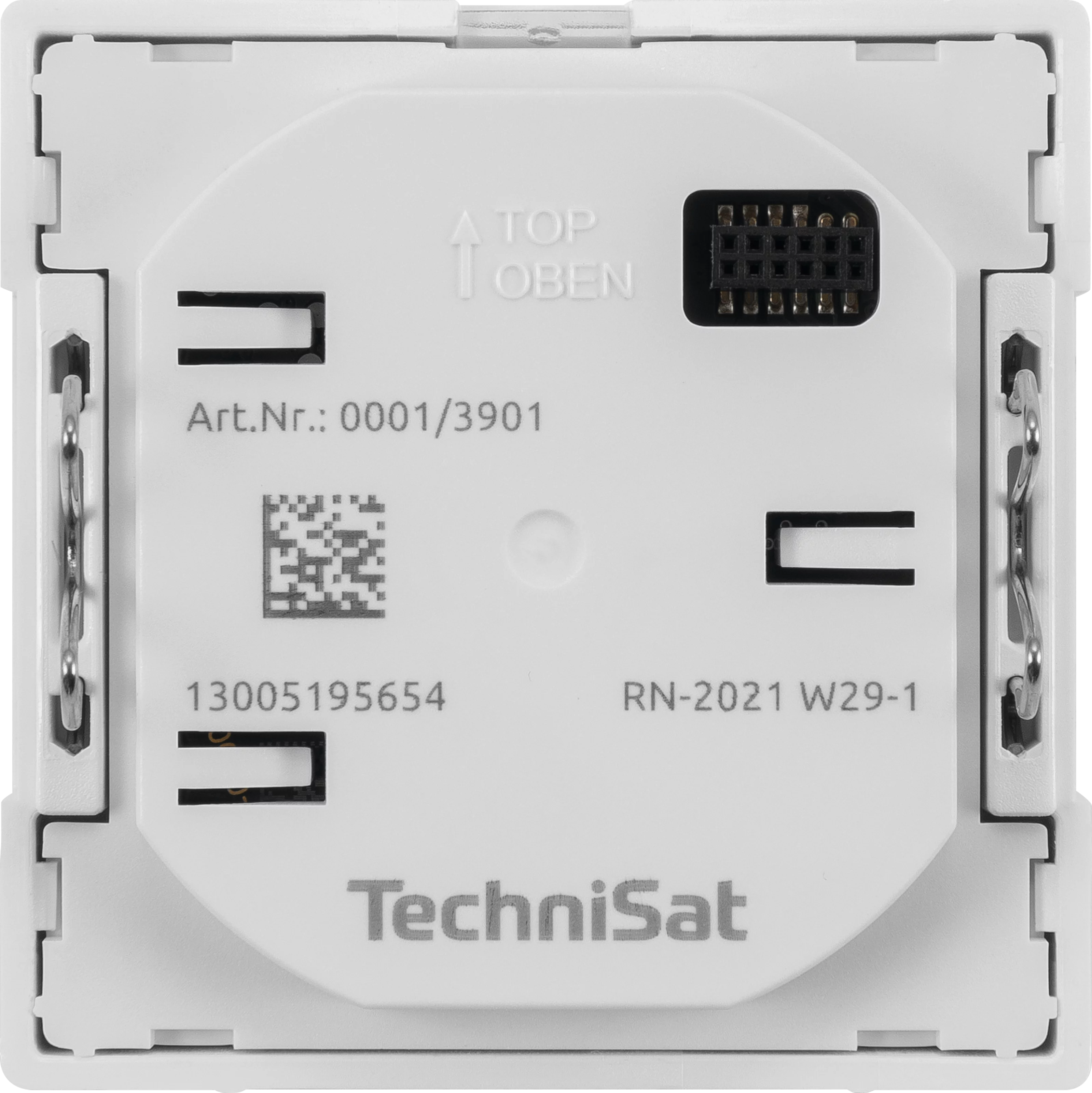

| Item no. | 0001/3901 |
| Weight (Box) | 370 g |
| Weight | 170 g |
| Device (W x H x D) | 7 x 7 x 4 cm |
| Box | 19,5 x 6,3 x 11 cm |
| Filter-Navigation | |
|---|---|
| Operating mode | Mains operation |
| Features | Bluetooth |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 - 75 % relative air humidity (non-condensing) |
| Ambient temperature | 5 - 35 °C |
| Bluetooth Version & Profile | |
|---|---|
| Bluetooth version | 5 |
| AVRCP (Audio Video Remote Control Profile) | Yes |
| A2DP (Advanced Audio Distribution Profile ) | Yes |
| Display | |
|---|---|
| Type | OLED |
| Resolution (vertical and horizontal) | 128x64 |
| Dimmable | Yes |
| General characteristics | |
|---|---|
| Colour | Front: RAL 9016, part: RAL 9010 |
| Handling/comfort | |
|---|---|
| Alarm | Yes |
| Sleep timer | Yes |
| Favourites programme manager DAB+ | 20 |
| Protection class | IP 20 |
| Favourites programme manager FM | 20 |
| Loudspeakers | |
|---|---|
| Output performance | 2x 2 W (RMS) for optional 2nd speaker |
| Mono speakers | Yes |
| Equalizer | Yes |
| Network & communication | |
|---|---|
| Bluetooth | Yes |
| Power consumption | |
|---|---|
| Standby | 0,5 W |
| Power consumption in standby mode with active network connection | 0,5 W |
| In operation | 6 W max. |
| Power supply | |
|---|---|

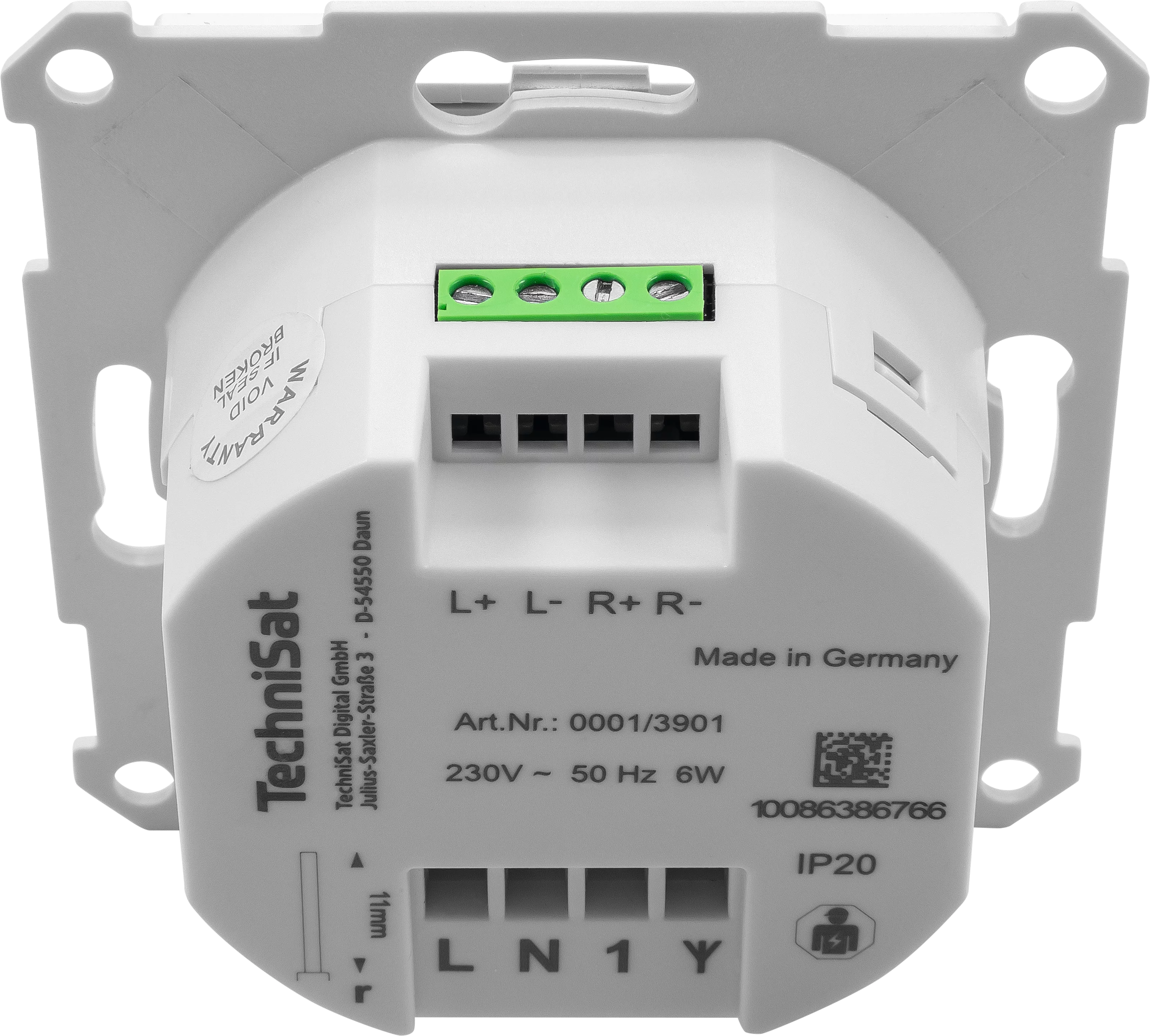

| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Radio / reception | |
|---|---|
| DAB+ | 174 - 240 MHz |
| FM/RDS | 87,5 - 108 MHz |
| Aerial | DAB / FM cable antenna |
