TECHNINET BS5 Professional blue/white
€4,999.00*
PRODUCT NO LONGER AVAILABLE

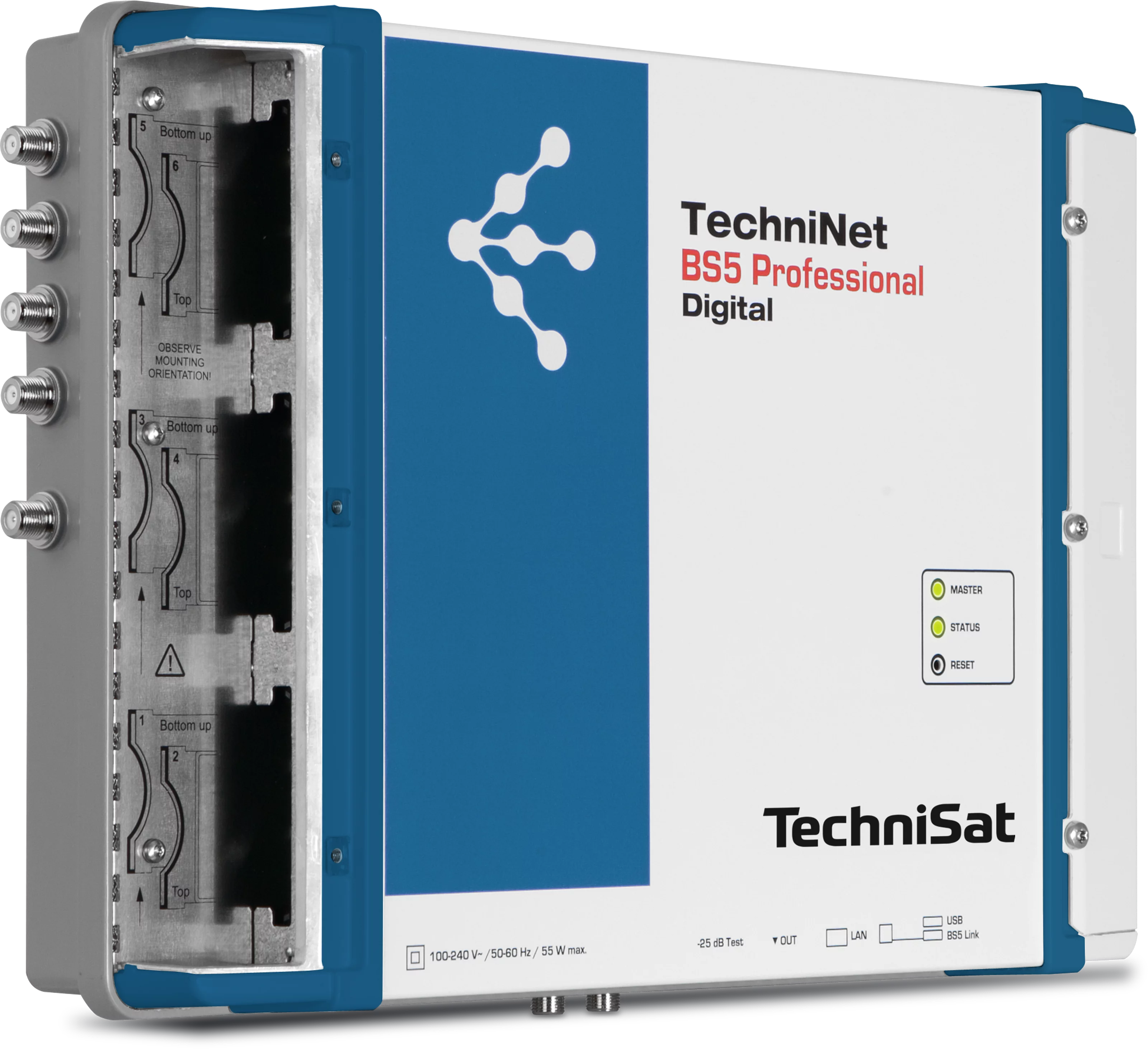

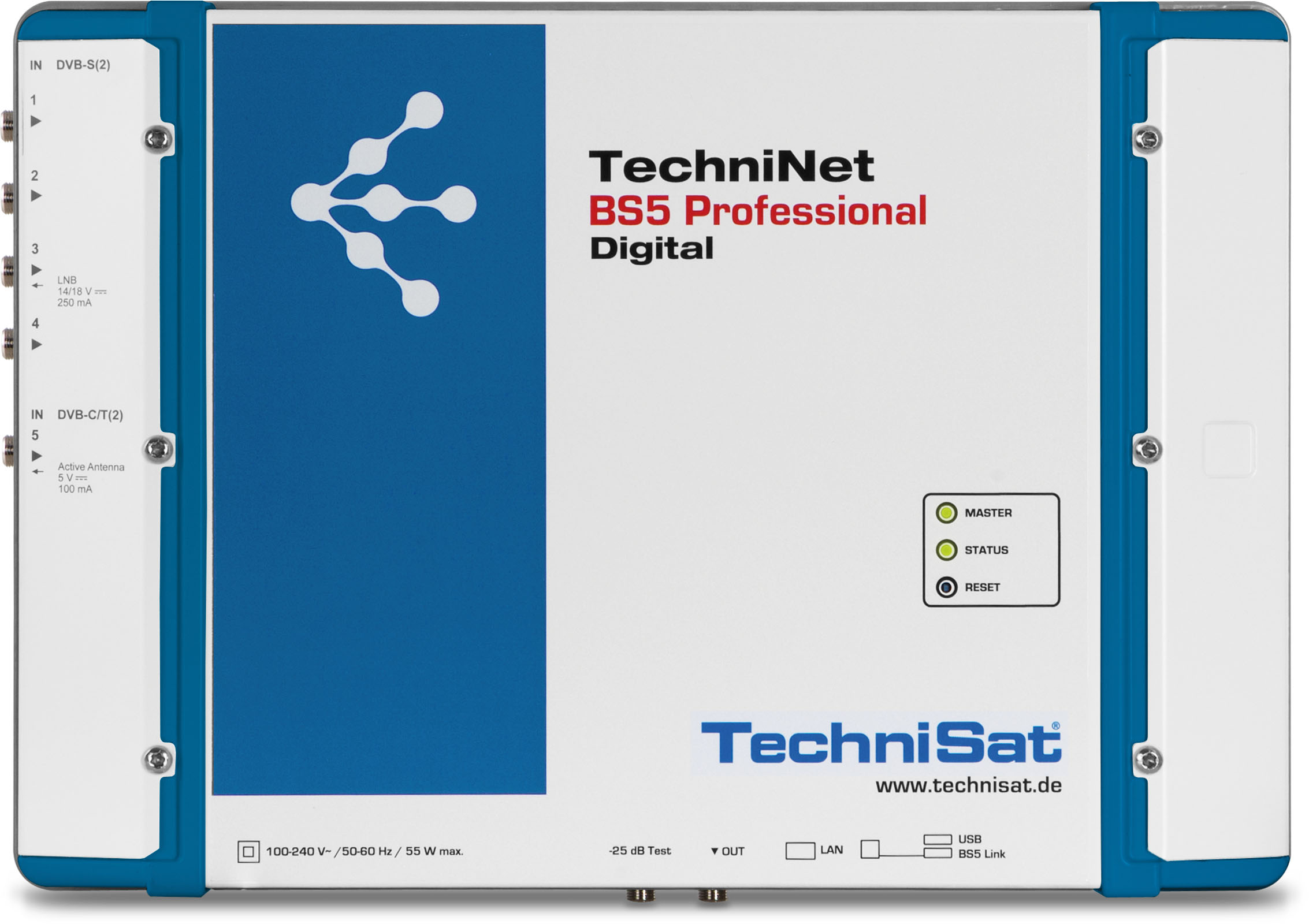

TECHNINET BS5 Professional
(0000/5990)
Digital Multi-standard 8-way Head-end
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588059900 |
| Colour | blue/white |
| Item no. | 0000/5990 |
| Weight (Box) | 5,56 kg |
| Weight | 3,95 kg |
| Device (W x H x D) | 36 x 10 x 25 cm |
| Box | 49 x 14 x 34 cm |
| Tuner (DVB-S2) | |
|---|---|
| DVB-S2 demodulator | EN 302 307 |
| Demodulation | 8PSK, QPSK |
| Symbol rates | 1 ... 45 |
| Roll off factor | 0,35 |
| FEC block size | 64 kB |
| FEC Code rate (LDPC) | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Outer coding (BCH) | GF(2^16), t=8, 10, 12 |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 75 % |
| Ambient temperature | 0 ... 45 °C |
| LNB control | |
|---|---|
| Vertical | 14 V |
| Horizontal | 18 V |
| Band switch | 22 kHz |
| Current consumption | max. 250 mA (at F-socket no. 3) |
| DiSEqC | 1 (sat. pos. (A/B/C/D)) |
| Configuration, monitoring | |
|---|---|
| Network interface | RJ45, Ethernet, 100BaseT, TCP/IP |
| Decryption system | |
|---|---|
| CI | 6x Yes |
| DVB-C output | |
|---|---|
| Modulation | 16-, 32-, 64-, 128-, 256-QAM |
| Symbol rate | 2,25 ... 7,2 |
| MER | Typ. 45 dB (256-QAM, with equaliser) |
| Reception range | 47 ... 862 MHz |
| Output level | 110 @862 MHz, adjustable |
| Secondary wave suppression | > 60 dB |
| Signal output | F socket |
| Output impedance | 75 Ω |
| Return loss | 14 dB @47 MHz (-1.5dB/Oct.) |
| Power consumption | |
|---|---|
| In operation | 28 W |
| Power supply | |
|---|---|
| Frequency | 50 Hz |
| Nominal voltage | 230 V |
| Mains adapter | *Unnamed (Identifier: netzteil_intern) |
| SAT IF input / Multiswitch | |
|---|---|
| Reception range | 950 ... 2.150 MHz |
| input / output | F-socket |
| Impedance | 75 Ω |
| Input level | 60 ... 100 |
| LNB voltage supply | 14 / 18 V & 22kHz |
| LNB power supply | Max. 250 mA at input 3 |
| Tuner DVB-C | |
|---|---|
| input | F female |
| Impedance | 75 Ω |
| Reception range | 48 ... 862 MHz |
| Symbol rates | 1 ... 7,2 |
| Modulation | 16-, 32-,64-, 128-, 256-QAM |
| Nyquist roll-off | 0,15 |
| FEC coding | 204, 188 |
| Tuner DVB-S | |
|---|---|
| DVB-S demodulator | EN 300 421 |
| Demodulation | QPSK |
| Symbol rates | 1 ... 45 |
| Roll off factor | 0,35 |
| FEC code rate | 1/2, 2/4, 3/4, 5/6, 6/7, 7/8 |
| Interleaving | Convolutional; l=12 |
| Outer coding | Reed Solomon 204, 188, T=8 |
| Tuner DVB-T | |
|---|---|
| input | F female |
| Impedance | 75 Ω |
| Reception range | 50,5 ... 858 MHz |
| Modulation | QPSK, 16-QAM, 64-QAM |
| Channel bandwidth | 6, 7, 8 MHz |
| FFT mode | 2k, 8k |
| Guard interval | 1/4, 1/8, 1/16, 1/32 |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Tuner DVB-T2 | |
|---|---|
| input | F-Buchse |
| Impedance | 75 Ω |
| Reception range | 50,5 ... 858 MHz |
| Modulation | QPSK, 16-QAM, 64-QAM, 256-QAM |
| Channel bandwidth | 1,7 / 5 / 6 / 7 / 8 MHz |
| FFT mode | 1k, 2k, 4k, 8k, 16k, 32k |
| Guard interval | 1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4 |
| FEC | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 |
