DIGIPLUS UHD S2

Name: DIGIPLUS UHD S2
Brand: TechniSat
SKU: 0000/4761
Price: 299.0 EUR
Availability: LimitedAvailability

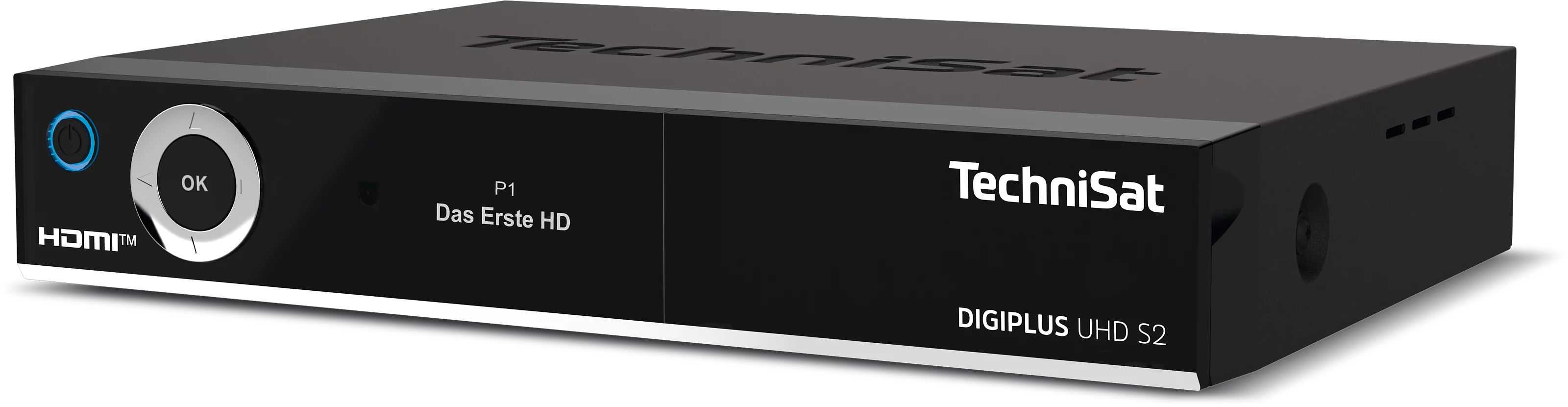

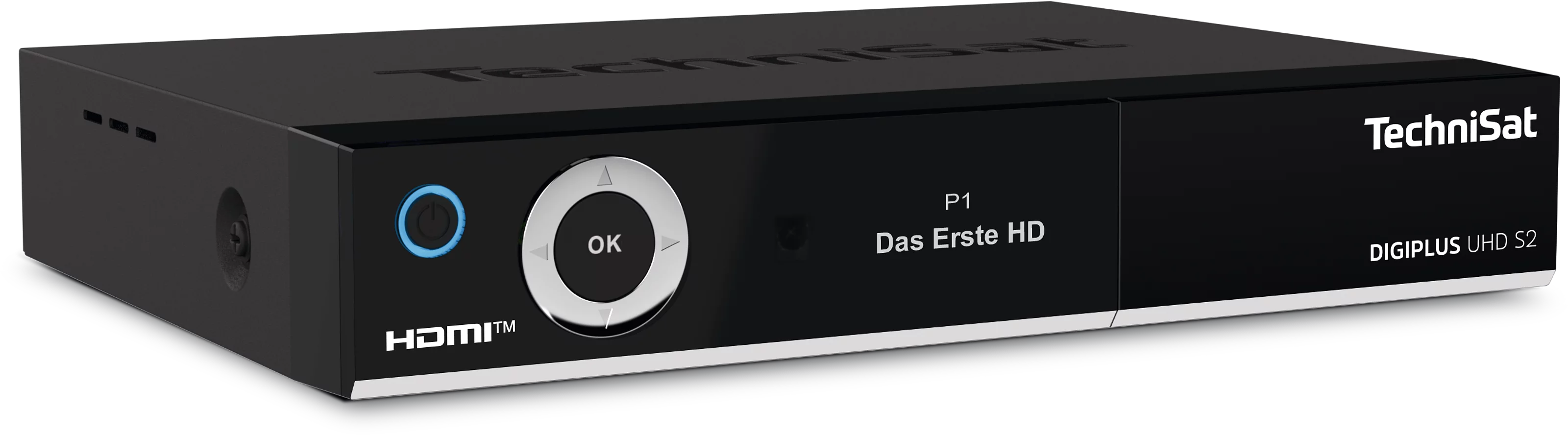

UHD/4K digital satellite receiver with TwinTuner

Colour black

€299.00*

incl. VAT.

Made in Germany: Digital satellite receiver for UHD TV – with twin tuner to record two programs simultaneously / Recordings on USB hard drive or NAS
The receiver supports playback of UHD video files from the network or USB devices. Seamless integration into your network as a UPnP client and server / Suitable for single-cable solution, Unicable
On-demand TV: Access to internet content, HbbTV, and media libraries (Netflix and Amazon Video not supported) / Flexible and convenient TV reception, easy control with the remote.
Easy operation: Simple and fast setup thanks to installation assistant. Additionally, an alphanumeric display, multilingual menu, ISI mode with extra-large font, and the SFI+ program info service make operation easier.
Integrated Wi-Fi connectivity

DIGIPLUS UHD S2, remote control TechniControl including batteries, power supply, HDMI cable, manual, warranty card

Product from the TechniSat PREMIUMLINE range. Exclusively available from authorized partners.

Immerse Yourself in the world of fascinating 4K content and expand Your UHD TV experience with the DIGIPLUS UHD S2. The satellite receiver offers a twin tuner for DVB-S/S2, which means that You can watch and record two different programs at the same time. You can save the recordings on USB data carriers or in the network (NAS) as You wish. In addition, the DIGIPLUS UHD S2 supports the plaYback of UHD video files from Your network or from USB devices. The receiver can be seamlesslY integrated into Your network as a UPnP client and server, transforming it into a versatile multimedia center. With the advanced ISIO Internet technologY, the intelligent receiver offers You access to media libraries, ISIO apps and HbbTV. With the high-qualitY OLED displaY, You alwaYs have station information in clear resolution at a glance.

Technical Datasheet ( HTML / PDF )

html

Quick start guide

pdf

EU-Konformitätserklärung

pdf

Product Information
EAN	4019588047617
Colour	black
Item no.	0000/4761
Weight (Box)	1,32 kg
Weight	614 g
Device (W x H x D)	22 x 4,5 x 17 cm
Box	31 x 8 x 19,5 cm

Multimedia
DVR function	Ja
DVR storage medium	via USB
Timeshift	Yes
Recordings edition function	Yes
Recordings folder management	Yes

Filter-Navigation
Features	App control
Tuner type	Twin tuner
Reception type	Satellite (DVB-S/S2)
Resolution	4K/UHD
Connections	USB

WLAN
WLAN	802.11n a/b/g (2,4 GHz / 5 GHz)
5 GHz	Yes
2,4 GHz	Yes

Ambient operating conditions
Ambient temperature	5 ... 35 °C
Humidity	10 ... 75 %

LNB control
Vertical	14 V
Horizontal	18 V
Band switch	22 kHz
Current consumption	max. 400 mA (short-circuit proof)
DiSEqC	1.0 / 1.2 / SCR1 / SCR2

TechniSat added value services
AUTOINSTALL	Yes
ISI-Mode	Yes
ISIPRO	Yes
TECHNIMATIC	Yes
SFI	Yes
TECHNIFAMILY	Yes

Internet/Network
Internet speed test	Yes
HTML 5 support	Yes
Webbrowser	Yes
HbbTV	Yes
ISIO Internet	Yes

Audio
Clear language from ARD	Yes via DVB

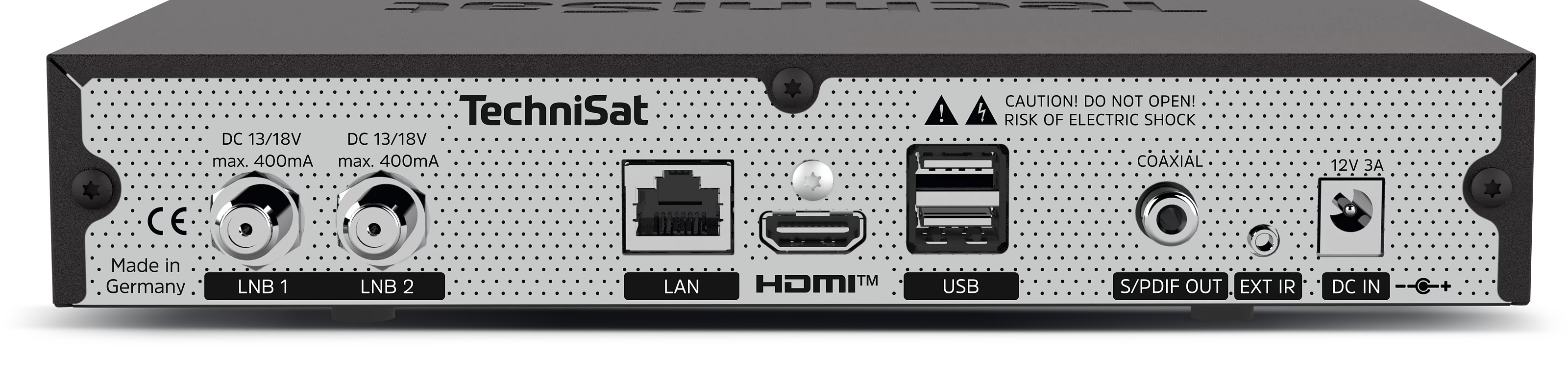

Connections
HDMI™ (out)	1 (4K 50/60p / HDCP 2.2)
USB	2 (USB 2.0)
Common Interface Plus (CI+)	Yes
Digital electric audio output (S/PDIF)	Yes
F socket	2
Connector for external IR-Receiver	1
DC IN	1
Ethernet 1Gbit/s (RJ-45)	1

Decoder
Video decoder	MPEG-2 MP@HL/ML, H.264/MPEG-4 AVC, H.265/HEVC
Audio decoder	MPEG-1 & MPEG-2 Layer I, II, III

Decryption system
CI+	Yes

Display
Picture in Picture (PIP)	Yes (2x SD, 2x HD, 1x UHD u. 1x HD, 1x UHD u. 1x SD, 1x SD u. 1x HD)
Picture and Picture (PAP)	Yes
Freeze frame	Yes
Zoom	Yes
UHD/4K upscaling	Yes
SD	Yes
HD	Yes
UHD	Yes
2160p	Yes
1080p	Yes
1080i	Yes
720p	Yes
576p	Yes
576i	Yes
Type	OLED

Handling/comfort
Page memory	1.000
Teletext subtitles	Yes
Media Player	Yes
Remote control	Yes
Alarm	Yes
Teletext	Yes
Parental Control	Ja
Sleep timer	Yes
Autostandby	Yes
Hotel mode	Yes
Ideal for camping	Yes
Clock	Yes
Channel presets	9.999
Selection regional channels	Yes

Hotel mode
Protected access to hotel mode	Yes
Customisable start screen	Yes
Lockable volume	Yes
Menu locking	Yes
Control panel lock	Yes
Integrated LED clock	Yes
Selectable start source	Yes
Selectable start channel	Yes

Network & communication
HTTPS	Yes
IGMP	Yes
HTTP	Yes
DHCP	Yes
1000Base-T	Yes
UDP	Yes
RTP	Yes
UPnP	Yes
TCP/IP	Yes
IPv4	Yes

Other features
OSD languages	Czech, Italian, Hungarian, Turkish, French, English, Spanish, German, Polish, Dutch, Portuguese, Russian, Swedish, Greek

Power consumption
Standby LED	0,4 W
In operation	17,1 W

Power supply
Nominal voltage	230 V
Frequency	50 Hz
Mains adapter	external DC12V/3A

Streaming
DLNA Server	Yes
DLNA Client	Yes
Cloud store	Ja
Parental Control	Yes

Supported formats & codecs
Video-Codecs	MPEG-2, MPEG-4, MPEG-1, H.264 (up to H.264/AVC Level 4.2), H.265
Video-Formats	M4V, MP4, MKV, MOV, MPG, MTS, TS, TS4, VOB, M2TS, AVI, ASF
Picture-Formats	BMP, JPEG, GIF, PNG
Audio-Formats	WAV, MP3, AAC, FLAC, M4A, MP2, DDAC3, AIFF

Tuner
Tuner type	Twin-Tuner
DVB-S tuner	2
Single Cable Solution (SatCR)	SCR1 = EN50494, SCR2 = EN50607
Satellite radio	Yes
Internet radio	Yes
Reception on	UHD-TV, HD-TV, SD-TV
TECHNISELECT 12 ready	Yes
DVB-IP (multicast)	1
TECHNIROUTER ready	Yes

Tuner - Sat
Reception range	950 ... 2.150 MHz
Viterbi rates	1/2, 2/3, 3/4, 5/6, 7/8 , (auto adjustment)
DVB-S	QPSK
DVB-S	2 ... 45
DVB-S2	8PSK-QPSK
DVB-S2	10 ... 31
FEC	RS, LDPC, BCH
