Intermediate Amplifier 9 Z2 silver/yellow
€139.00*
Intermediate Amplifier 9 Z2
Amplifier for signal gain for 2 orbital positions
€139.00*
incl. VAT.
Line Amplifier 9Z2, instruction manual
The amplifier TechniSat 9Z2 has been especially developed in order to compensate for greater cable lengths. To this end the amplification in the Sat-field is designed in such a way that the damping of 60 m TechniSat CoaxSat 2150 or 40 m TechniSat multimedia cable is compensated for.
With the assistance of this booster amplifier even very large cable lengths can be coped with. The amplification of the terrestrial signal is individually adjustable in order to avoid reciprocal influence with the Sat- frequency range.
With the assistance of this booster amplifier even very large cable lengths can be coped with. The amplification of the terrestrial signal is individually adjustable in order to avoid reciprocal influence with the Sat- frequency range.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588232310 |
| Colour | silver/yellow |
| Item no. | 0002/3231 |
| Weight (Box) | 280 g |
| Weight | 190 g |
| Device (W x H x D) | 20,8 x 5,5 x 3,2 cm |
| Box | 25,2 x 7,4 x 4,7 cm |
| LNB control | |
|---|---|
| Current consumption | max. 850 mA |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -25 ... 55 °C |
| Amplification | |
|---|---|
| Sat | 15 ... 20 dB fest, schräglagenentzerrt |
| Terrestrial | 7 ... 14 dB einstellbar |
| Return path | -1 dB |
| Decoupling | |
|---|---|
| Trunks | 50 dB |
| General characteristics | |
|---|---|
| Top features | Kompensiert die Dämpfung von bis zu 60 m Koaxkabel |
| Top features | Rückkanaltauglich von 2...68 MHz |
| Top features | Optionale Stromversorgung über Steckernetzteil |

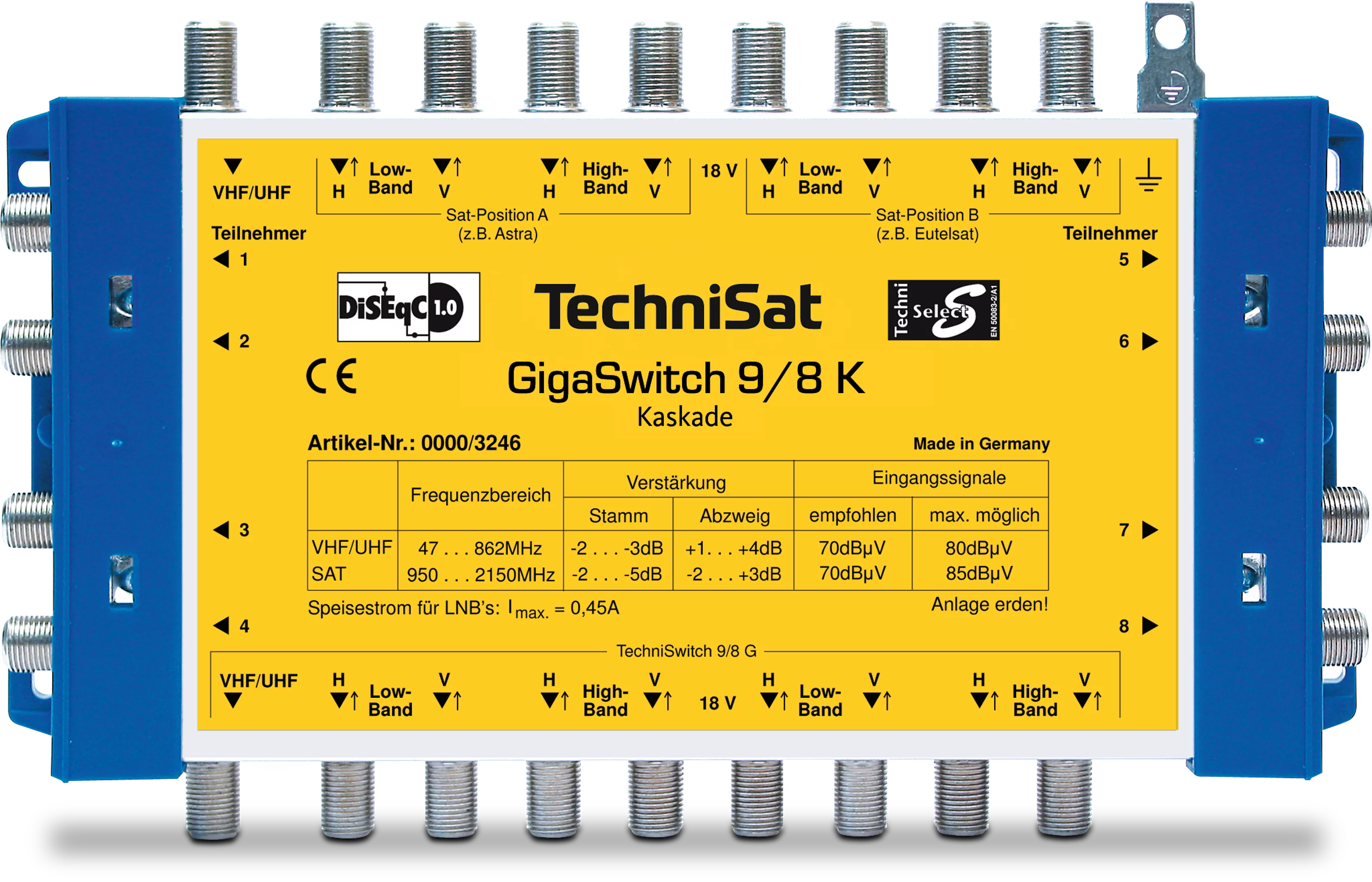

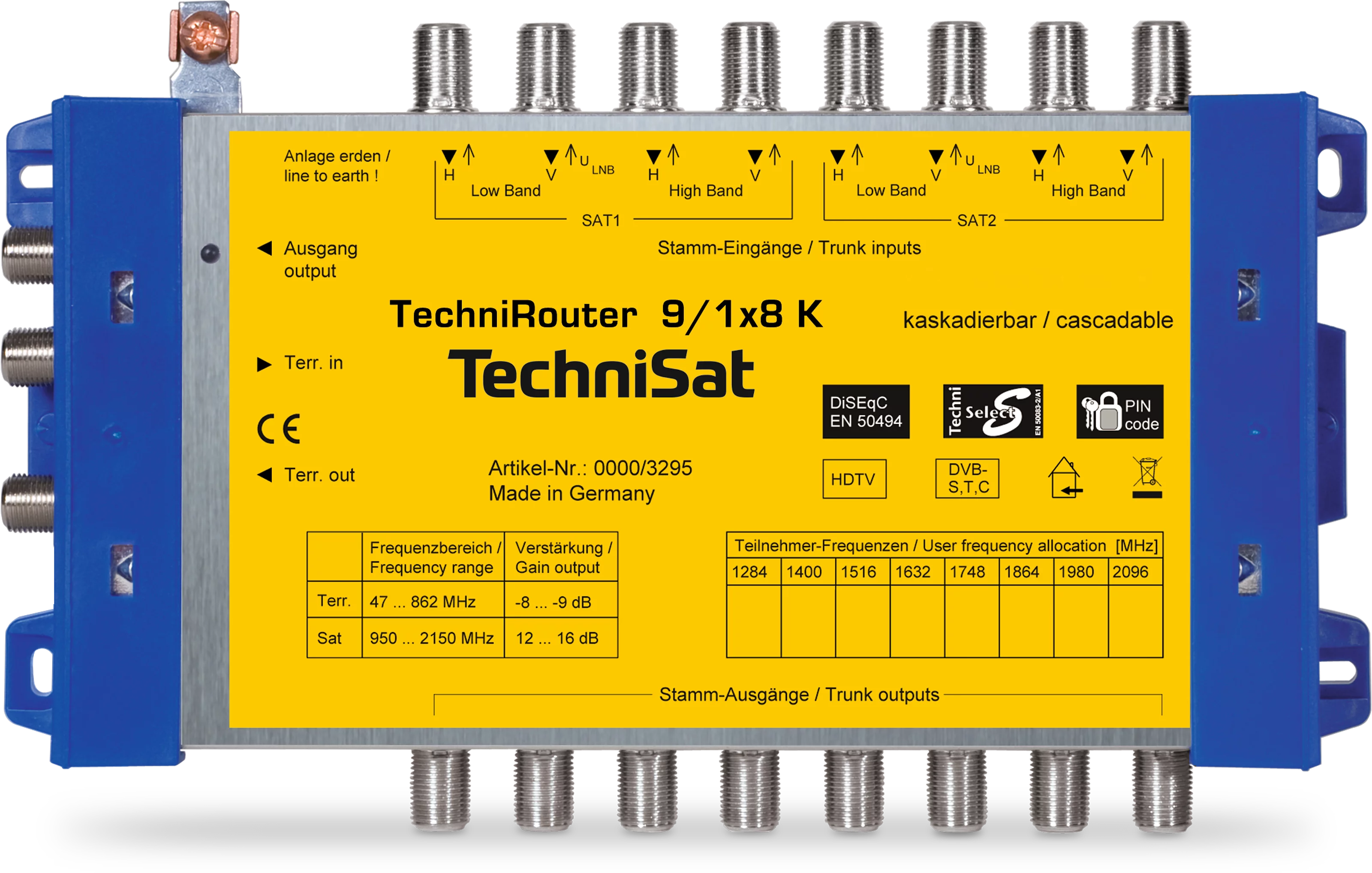

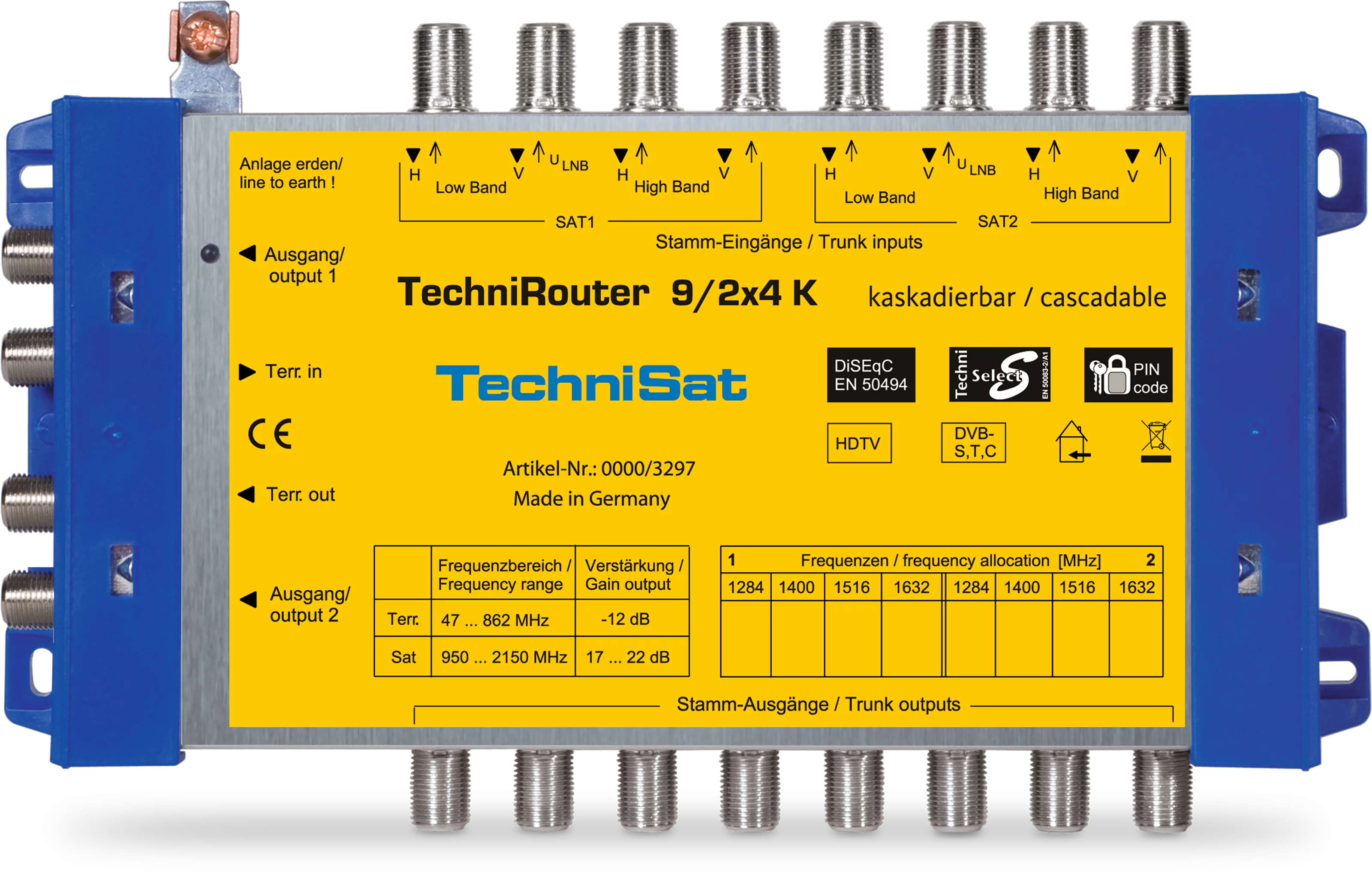

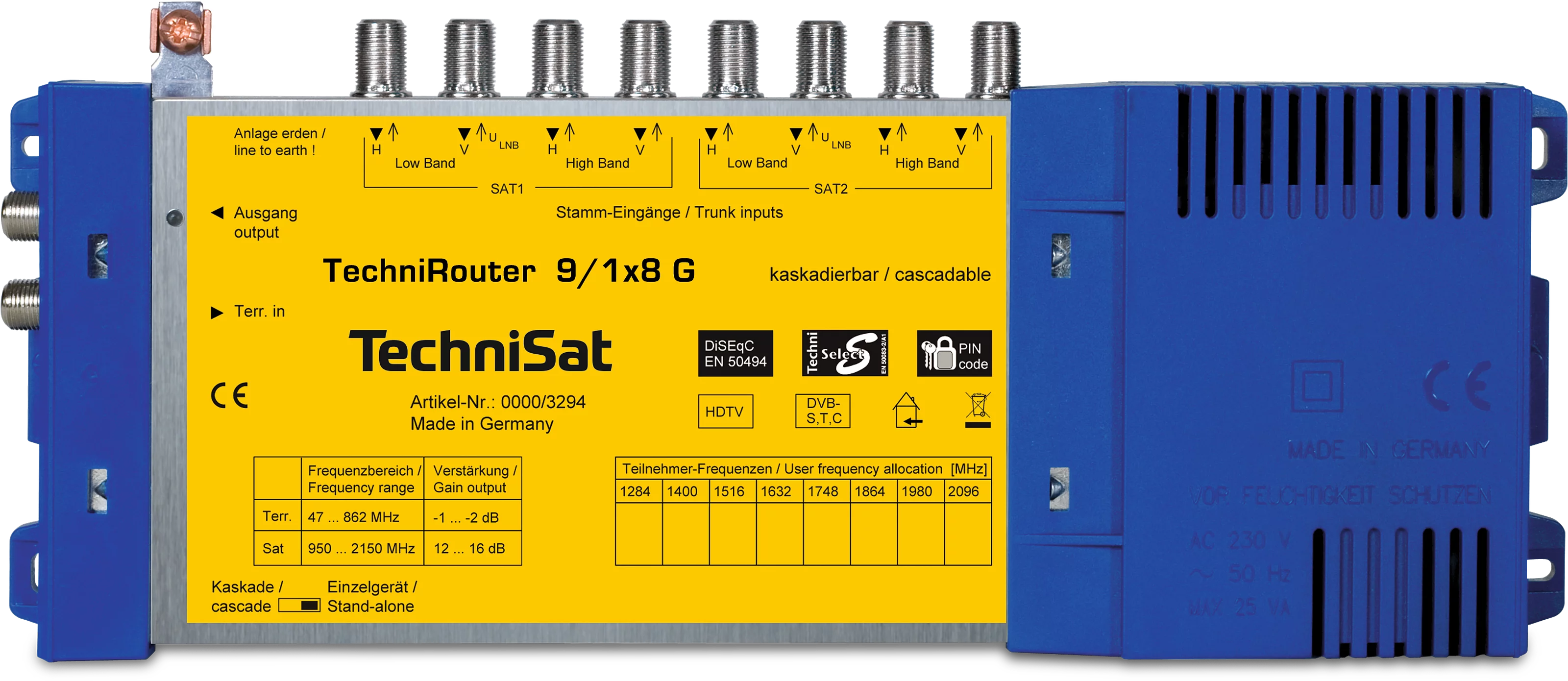

| Top features | Gleiches Rastermass der F-Buchsen wie GigaSwitch 9/8 und TechniRouter 9/8 |
| Power consumption | |
|---|---|
| In operation | 5,5 W |
| Power supply | |
|---|---|
| Nominal voltage | 15 V DC |
| Mains adapter | external (Optional) |
| Power consumption | typ. 340 mA @15 V |
| Reception range | |
|---|---|
| Sat | 950 ... 2.150 MHz |
| Terrestrial | 87 ... 790 MHz |
| Return path | 2 ... 68 MHz |
| Technical data | |
|---|---|
| Satellite inputs | 8 |
| Terrestrial input | 1 |
