COAXSAT 115-2x3.6, 2 x m 80eel Weiß
€199.00*

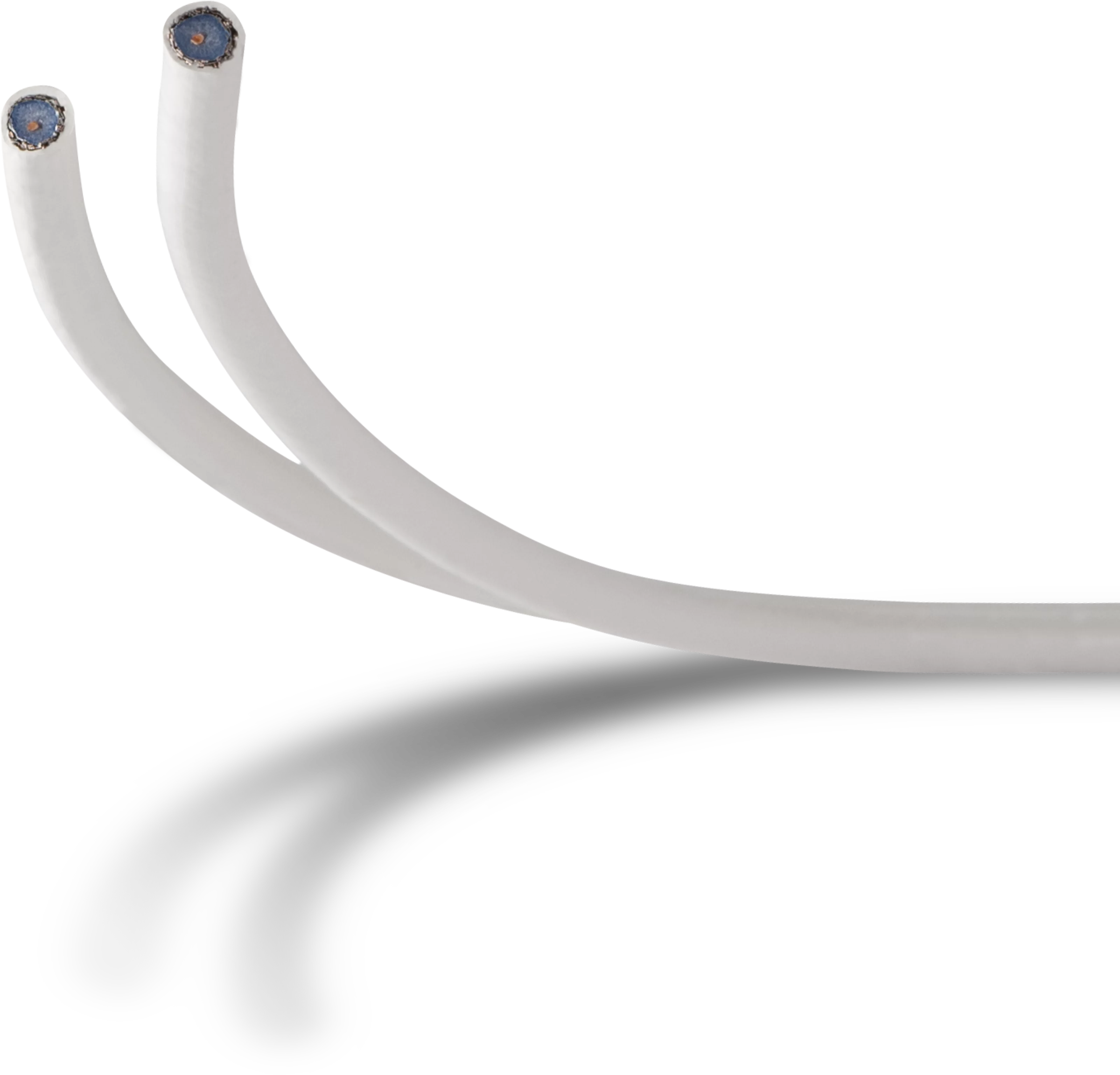

COAXSAT 115-2x3.6, 2 x m 80eel
Quadruple screened 0.8/3.6 Twin-coaxial cable for satellite and CATV
€199.00*
incl. VAT.
Content:
160 metr
(€1.24 / 1 metr)
- Innenleiter aus massivem hochreinen Elektrolytkupfer!
- Physikalisch geschäumtes, stabiles PE-Dielektrikum = sehr gute Dämpfung und Alterungsbeständigkeit!
- Alufolie, geklebt
- Geflecht aus verzinntem Kupfer; große optischen Bedeckung. Sehr gute Leitfähigkeit.
- Strapazierfähige PVC-Mischung, die dem Kabel trotzdem die notwendige Flexibilität verleiht!
80m ring
This product is manufactured in Germany and represents the highest quality standards. Precise workmanship and strict controls ensure long-lasting reliability.
The CoaxSat 115-2x3.6 is a double-mini high-frequency antenna cable with 115 dB shieldingand suitable for use in the Sat-field and the CATV systems. Two mini coaxial cable are linked to one another whereby it is possible to achieve a lower overall diameter. It is particularly suitable for usage in parallel row distribution systems since it can be led, without any trouble, through already existing empty conduits. The high shielding affords effective protection against radio interference of all kinds.
| Product Information | |
|---|---|
| EAN | 4019588330221 |
| Colour | white |
| Item no. | 0003/3022 |
| Weight (Box) | 7,5 kg |
| Weight | 6,46 kg |
| Device (W x H x D) | 27,5 x 27,5 x 15 cm |
| Box | 55 x 45 x 40 cm |
| Attenuation | |
|---|---|
| 5 MHz | 2,45 |
| 10 MHz | 3,34 |
| 25 MHz | 5,05 |
| 45 MHz | 6,57 |
| 100 MHz | 7,2 |
| 200 MHz | 11,8 |
| 300 MHz | 13,9 |
| 450 MHz | 17,8 |
| 800 MHz | 24,6 |
| 1000 MHz | 28,7 |
| 1350 MHz | 33,2 |
| 1750 MHz | 38,6 |
| 2050 MHz | 42,9 |
| 2250 MHz | 45,3 |
| Return loss | |
|---|---|
| 5 - 30 MHz | ≥ 21 dB |
| 30 - 65 MHz | ≥ 33 dB |
| 65 - 470 MHz | ≥ 27 dB |
| 470 - 1800 MHz | ≥ 26 dB |
| 1800 - 2450MHz | ≥ 26 dB |
| Technical data | |
|---|---|
| Frequency range | 5 ... 3.000 MHz |
| Impedance | 75 Ω (± 3) |
| Inner cable diameter | 0,8 mm |
| Inner cable material | Copper bare (OFC) |
| Isolation | Zell-PE |
| Diameter dielectric | 3,6 mm (± 0,1) |
| Outer cable | 1x Alu-Folie doppelt kaschiert und geklebt, 2x Cu-Geflecht Sn 16 x 3 x 0.13 mm, 1x Alu-Folie doppelt kaschiert |
| Sheath | PVC, withe |
| Diameter with coating | 5,6 x 11 mm (± 0,2) |
| Bending radius | ≥ 50 mm |
| Coupling resistance | ≤ 0,5 @ 5 MHz |
| Capacity | 55 pF /m |
| Shrinkage factor | 0,85 |
| Shielding factor | ≥ 115 dB ≙ Klasse A+ |
| Transfer impedance | |
|---|---|
| 5MHz | ≤ 0,5 |
| 30 MHz | ≤ 0,05 |
