TECHNIVISION 26 HD, silver/black silver/black
€749.99*
PRODUCT NO LONGER AVAILABLE

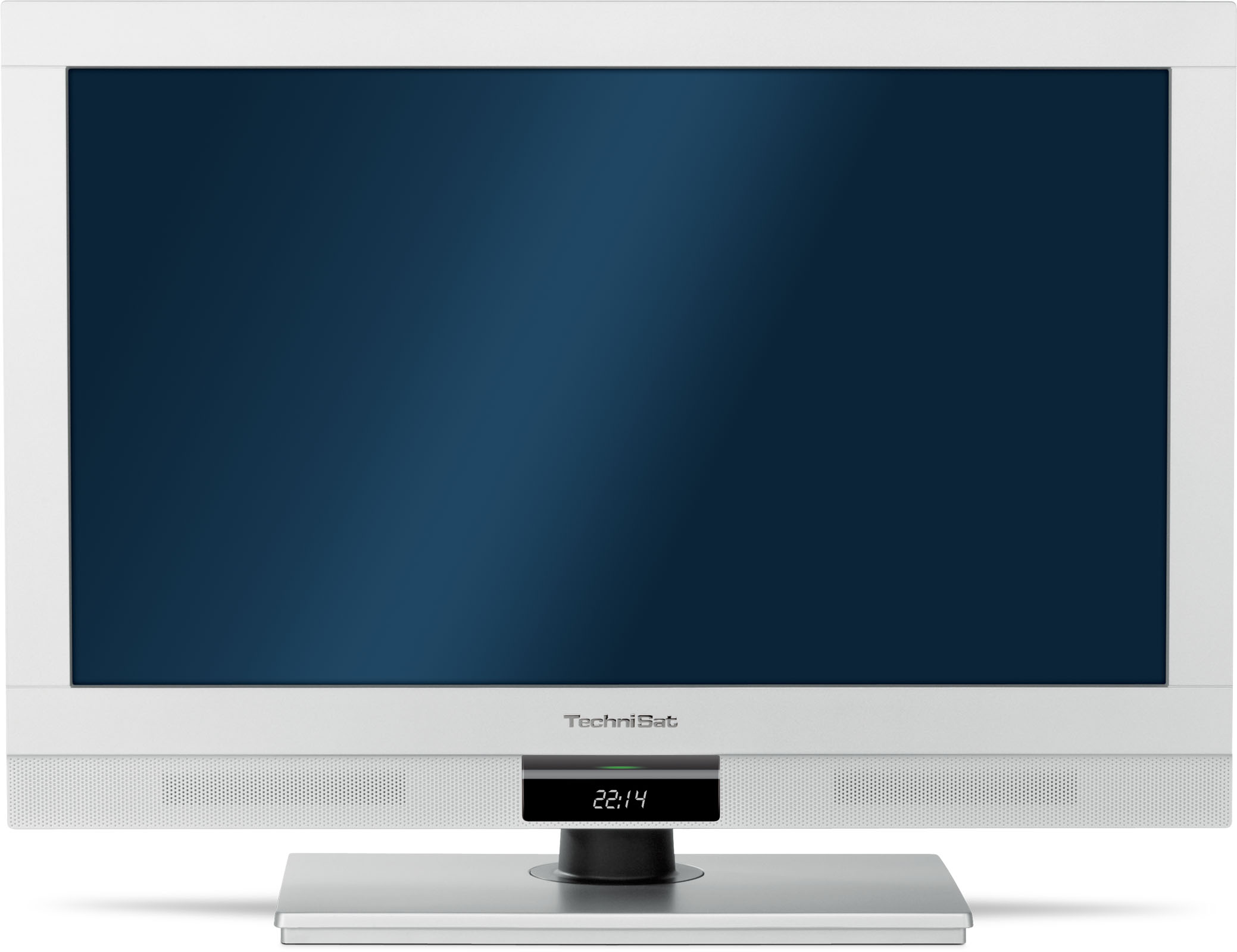

TECHNIVISION 26 HD, silver/black
(5026/7306)
Full-HD Digital TV with eLED panel and HDTV multituner including digital DVR function via USB to record TV and radio broadcast on an external hard drive
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| Weight without stand | 6,4 kg |
| EAN | 4019588267305 |
| Colour | silver/black |
| Item no. | 5026/7306 |
| Weight (Box) | 9 kg |
| Weight | 9 kg |
| Unit without stand (W x H x D) | 649 x 438 x 48 mm |
| Device (W x H x D) | 64,9 x 49 x 20,5 cm |
| Box | 72,5 x 57,5 x 25 cm |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 - 75 % |
| Ambient temperature | 5 - 35 °C |
| LNB control | |
|---|---|
| Band switch | 22 kHz |
| Vertical | <14 V without load, > 11.5 V at 400 mA V |
| DiSEqC | DiSEqC 1.0 and 1.2 / DiSEqC 1x Sat Channel Router |
| Current consumption | max (kurzschlussfest) 400 mA |
| Horizontal | <20 V without load, > 17.2 V at 400 mA V |
| TechniSat added value services | |
|---|---|
| AUTOINSTALL | Yes |
| Audio | |
|---|---|
| AC3 Dolby Digital bitstream out | Yes |
| Speakers | integrated broadband speaker system |
| Connections | |
|---|---|
| HDMI™ (in) | 2 |
| Common Interface Plus (CI+) | Yes |
| Digital electric audio output (S/PDIF) | Yes Cinch |
| Audio in/AUX in | Yes 3.5mm Klinke |
| VGA | Yes |
| YUV (component input) | Yes Cinch |
| Scart | 1 (FBAS/RGB) |
| S Video | Yes |
| Video IN | 1 Cinch Composite |
| F socket | 1 |
| IEC-Connector | Yes |
| Decryption system | |
|---|---|
| CI+ | Yes |
| Dimensions / Weight | |
|---|---|
| Set width without stand | 649 mm |
| Weight without stand | 6,4 kg |
| Set height without stand | 438 mm |
| Set depth without stand | 48 mm |
| Display | |
|---|---|
| Size (cm) | 66 cm |
| Frequency | 50 Hz |
| Format | 16:9 |
| Contrast ratio | 800:1 |
| Brightness | 400 cd/m² |
| Response time | 5 ms |
| Angle of view | 150° V / 160° H |
| Freeze frame | Yes |
| HD | Yes |
| Type | Full-HD eLED |
| 1080i | Yes |
| Resolution (vertical and horizontal) | 1920 x 1080 |
| 720p | Yes |
| SD | Yes |
| Size (inches) | 26 |
| Handling/comfort | |
|---|---|
| Alarm | Yes |
| Clock | Yes |
| Sleep timer | Yes |
| Hotel mode | |
|---|---|
| Customisable start screen | Yes |
| Configurable on times | Yes |
| Energy card function | Yes |
| USB cloning function | Yes |
| Multimedia connectors | Yes |
| Menu locking | Yes |
| Integrated LED clock | Yes |
| Radio mode | Yes |
| Mixing of channel slots | Yes |

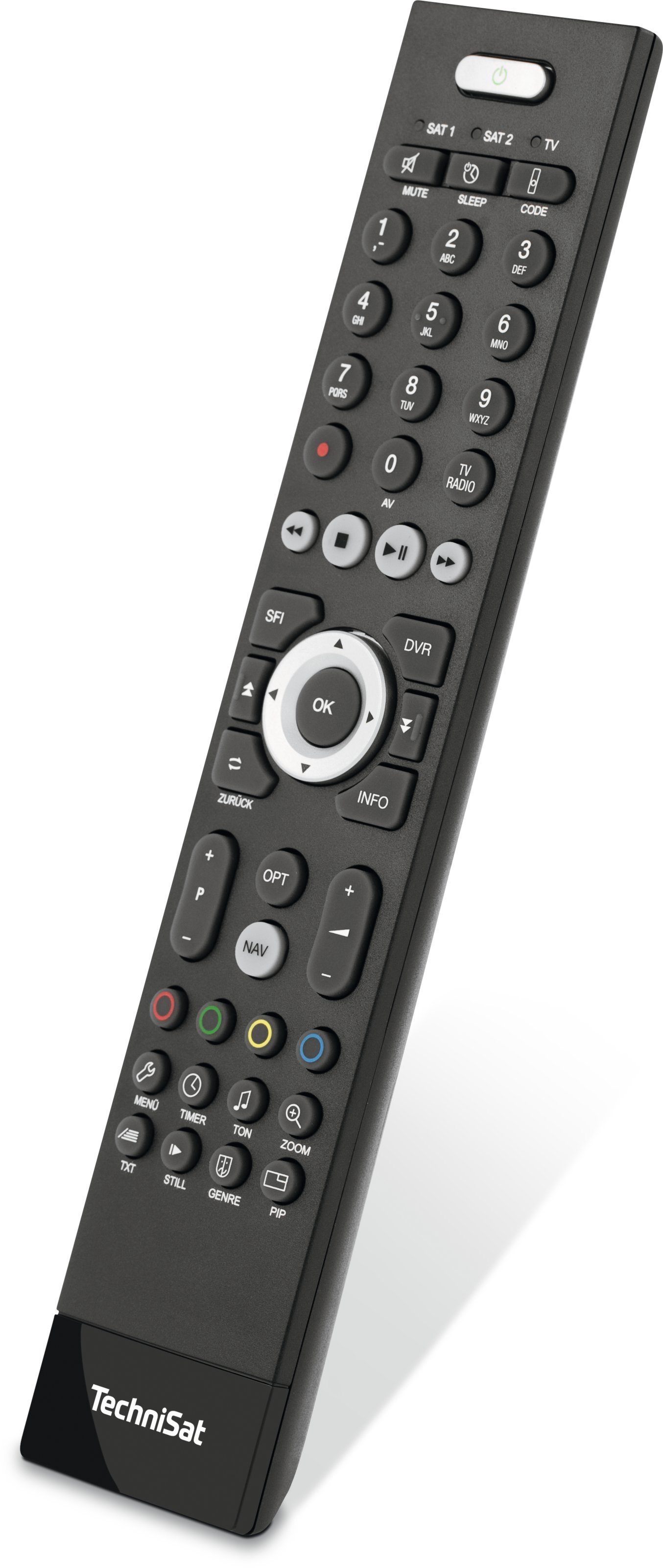

| Multicode remote control | Yes |
| Fireproofed housing | Yes |
| materials contained | |
|---|---|
| Lead | Yes |
| Other features | |
|---|---|
| OSD languages | German, Spanish, Hungarian, Czech, Portuguese, Turkish, Polish, French, Italian, Russian, English, Greek, Swedish, Dutch |
| Total programme memory | 5.000 |
| Regional channel selection | Yes |
| Power consumption | |
|---|---|
| SFIplus updating | 19,8 W |
| Software update | 19,8 W |
| Energy class | B |
| Standby fast start | 19 W |
| Standby LED | 0,64 W |
| In operation | 42 W |
| annual energy consumption when switched on | 61 kilowatt hour per annum |
| Off status | 0 W |
| Power switch | Yes |
| Power supply | |
|---|---|
| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Mains adapter | internal |
| Supported formats & codecs | |
|---|---|
| MPEG-2 | Yes |
| Video-Formats | TS4, TS, VOB |
| JPEG | Yes |
| MP3 | Yes |
| Tuner | |
|---|---|
| Tuner type | HDTV-Multituner |
| DVB-S tuner | 1 |
| DVB-C Tuner | 1 |
| DVB-T Tuner | 1 |
| Analogue UHF/VHF/CATV tuner | 1 |
| TECHNIROUTER ready | Yes |
| Input impedance | 75 Ω |
| Reception on | HDTV (Mpeg-4+2) SD (MPEG-2) |
| Tuner - Analogue | |
|---|---|
| Video standards | B/G stereo, D/K mono, L/L' |
| Reception range | 47 ... 862 MHz |
| Tuner - Cable | |
|---|---|
| Demodulation | 16/32/64/128/256 QAM |
| Reception range | 51 ... 858 MHz |
| Symbol rate | 1,7 ... 7 |
| FEC | Reed-Solomon |
| Tuner - Sat | |
|---|---|
| Viterbi rates | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Reception range | 950 ... 2.150 MHz |
| DVB-S2 | 8PSK - QPSK |
| DVB-S | QPSK |
| DVB-S | 2 ... 45 |
| DVB-S2 | 10 ... 31 |
| FEC | Viterbi and Reed-Solomon |
| Tuner - Terrestrial | |
|---|---|
| Reception range 2 | 470 ... 860 MHz |
| Transmission mode | 2k/8k |
| Demodulation | COFDM |
| Power supply | 0,05 A |
| Reception range 1 | 174 ... 230 MHz |
| Voltage supply | 5 V |
| Bitrate | 4 ... 32 |
| wall bracket | |
|---|---|
| VESA wall mounting standards | VESA 100 x 100 |
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
