TECHNIVISION 22 ST, black Black
€580.00*
€599.99
PRODUCT NO LONGER AVAILABLE

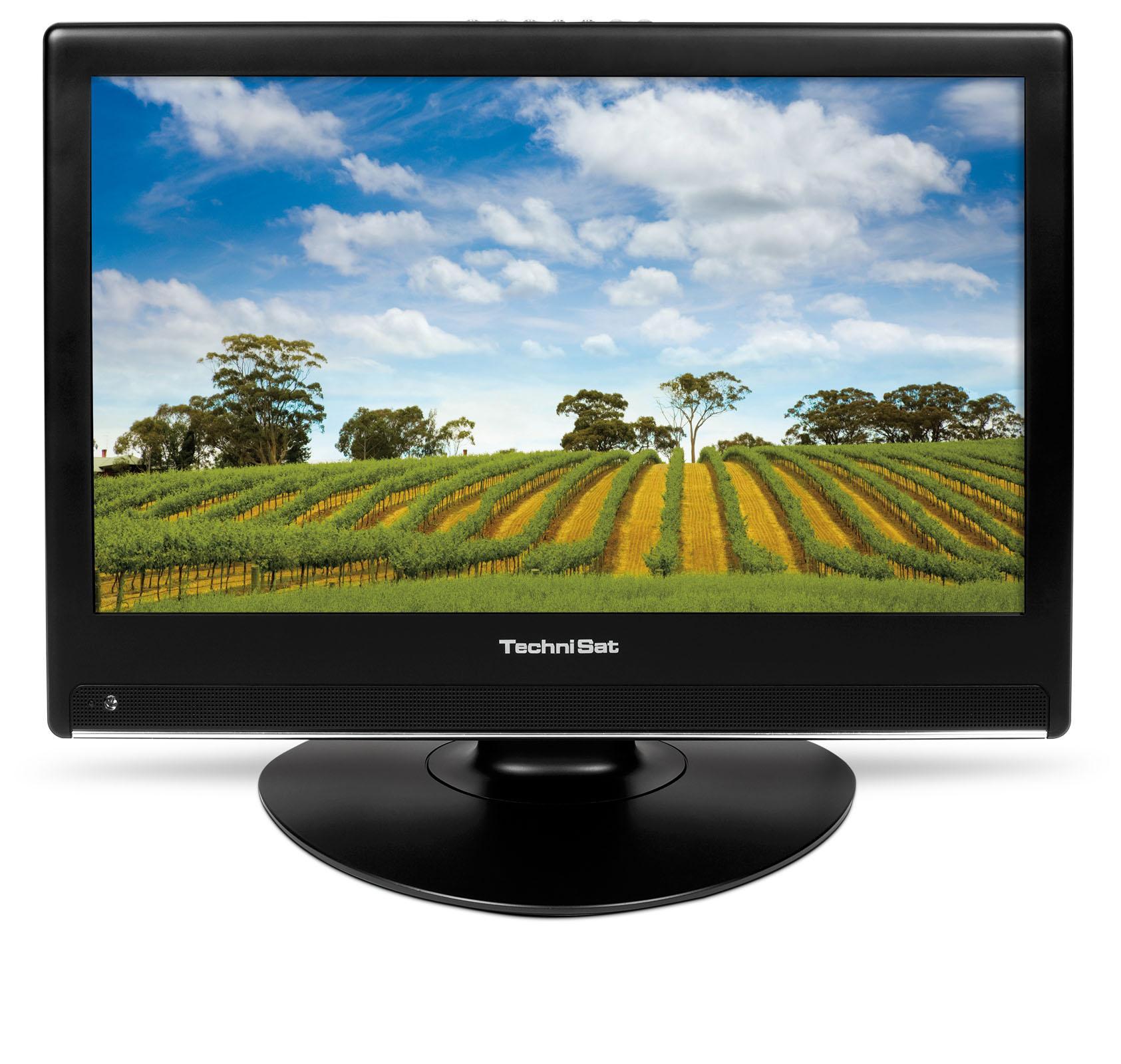

TECHNIVISION 22 ST, black
(5022/6403)
Versatile LCD digital television set with 22?? wide screen and integrated digital receiver for satellite reception and digital antenna reception (DVB-T)
| Product Information | |
|---|---|
| EAN | 4019588226432 |
| Colour | black |
| Item no. | 5022/6403 |
| Weight (Box) | 8 kg |
| Weight | 7 kg |
| Unit without stand (W x H x D) | 530 x 360 x 85 mm |
| Device (W x H x D) | 53 x 41,5 x 20,5 cm |
| Box | 59,5 x 47,3 x 23,4 cm |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | 5 35 °C |
| Humidity | 10 75 % |
| LNB control | |
|---|---|
| DiSEqC | DiSEqC 1.0 / DiSEqC 1.2 Sat Channel Router |
| Vertical | <14 V without load, > 11.5 V at 400 mA V |
| Band switch | 22 kHz |
| Current consumption | 400 mA |
| Horizontal | <20 V without load, > 17.2 V at 400 mA / LNB shut-off standby mode V |
| TechniSat added value services | |
|---|---|
| AUTOINSTALL | Yes |
| Audio | |
|---|---|
| Speakers | 2 W |
| Connections | |
|---|---|
| HDMI™ (in) | 1 |
| Common Interface (CI) | 1 |
| VGA | Yes |
| Scart | 1 |
| S Video | Yes |
| F socket | 1 |
| Decryption system | |
|---|---|
| CI | Yes |
| Dimensions / Weight | |
|---|---|
| Set depth without stand | 85 mm |
| Set width without stand | 530 mm |
| Set height without stand | 360 mm |
| Weight without stand | 5,9 kg |
| Display | |
|---|---|
| Size (cm) | 55 |
| Format | 16:9 |
| Contrast ratio | 700:1 |
| Brightness | 400 cd/m² |
| Response time | 5 ms |
| Angle of view | 150° V / 160° H |
| Freeze frame | Yes |
| Zoom | Yes |
| Size (inches) | 22 |
| Resolution (vertical and horizontal) | 1366 x 768 |
| SD | Yes |
| Type | TFT-LCD |
| Handling/comfort | |
|---|---|
| Alarm | Yes |
| Sleep timer | Yes |
| Hotel mode | |
|---|---|
| Radio mode | Yes |
| Mixing of channel slots | Yes |
| materials contained | |
|---|---|
| Lead | Yes |
| Other features | |
|---|---|
| OSD languages | Spanish, Hungarian, Portuguese, Czech, Turkish, French, Russian, Polish, Greek, Dutch, German, Swedish, Italian, English |
| Total programme memory | 4.000 |
| Power consumption | |
|---|---|
| Energy class | D |
| Standby LED | 0,45 W |
| In operation | 50 W |
| annual energy consumption when switched on | 73 kilowatt hour per annum |
| Off status | 0 |
| Power switch | Yes |
| Power supply | |
|---|---|
| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Mains adapter | internal |
| Tuner | |
|---|---|
| Tuner type | DigitalSat und DVB-T-Empfangstuner |
| DVB-S tuner | 1 |
| DVB-T Tuner | 1 |
| Analogue UHF/VHF/CATV tuner | 1 |
| TECHNIROUTER ready | Yes |
| Input impedance | 75 Ω |
| Reception on | SD (MPEG-2) |
| Tuner - Analogue | |
|---|---|
| Video standards | PAL, SECAM |
| Reception range | 46 860 MHz |
| Tuner - Sat | |
|---|---|
| FEC | Viterbi and Reed-Solomon |
| Viterbi rates | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Reception range | 950 ... 2.150 MHz |
| DVB-S | QPSK |
| DVB-S | 1 ... 45 |
| Tuner - Terrestrial | |
|---|---|
| Bitrate | 4 32 |
| Reception range 2 | 470 ... 860 MHz |
| Transmission mode | 2k/8k |
| Demodulation | COFDM |
| Voltage supply | 0,05 V |
| Power supply | 5 A |
| Reception range 1 | 174 ... 230 MHz |
| wall bracket | |
|---|---|
| VESA wall mounting standards | VESA 100 x 100 |
