TECHNIPLUS ISIO 42 (107 cm) silver/white
€899.00*
PRODUCT NO LONGER AVAILABLE

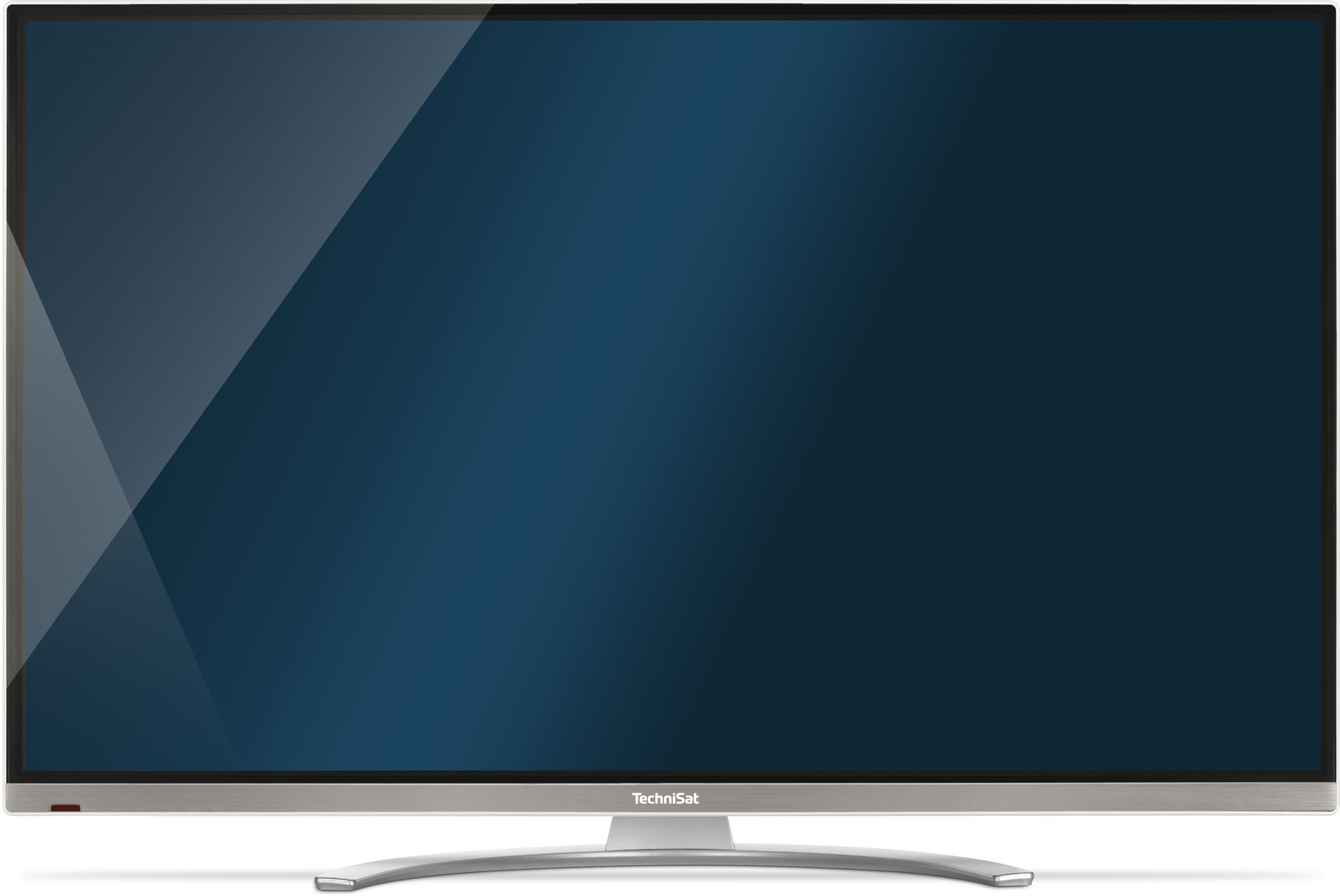

TECHNIPLUS ISIO 42 (107 cm)
(5542/9211)
Full-HD ISIO smart TV with QuattroTuner Twin, Internet functionality and possibility of recording TV and radio programmes on an external storage medium. Ultra slim aluminium design.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588422117 |
| Colour | silver/white |
| Item no. | 5542/9211 |
| Weight (Box) | 20 kg |
| Weight | 15,5 kg |
| Device (W x H x D) | 96,5 x 62,5 cm |
| Box | 106 x 70 x 17 cm |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 75 % |
| Ambient temperature | 5 ... 35 °C |
| LNB control | |
|---|---|
| Vertical | 14 V |
| Horizontal | 18 V |
| Band switch | 22 kHz |
| Current consumption | max. 400 mA (kurzschlussfest) |
| DiSEqC | 1.0 / 1.2 / SCR1 = EN50494, SCR2 = EN50607 |
| TechniSat added value services | |
|---|---|
| SFI+ | Yes |
| TECHNIFAMILY | Yes |
| ISIPRO | Yes |
| AUTOINSTALL | Yes |
| TECHNIMATIC | Yes |
| Internet/Network | |
|---|---|
| ISIO Internet | Yes |
| HbbTV | Yes |
| VoD services | Ja |
| Webbrowser | Yes |
| Internet speed test | Yes |
| Audio | |
|---|---|
| Speakers | 2 x 2-way sound system |
| AC3 Dolby Digital bitstream out | Yes |
| Connections | |
|---|---|
| HDMI™ (in) | 3 |
| Digital electric audio output (S/PDIF) | Yes |
| Digital optical audio out | Yes |
| Audio out analogue (RCA) | Yes |
| Audio in/AUX in | Yes (3,5 mm Klinke) |
| Scart | 1 (über Adapter) |
| Ethernet 10/100 (RJ-45) | Yes |
| F socket | 2 |
| IEC-Connector | Yes |
| Decryption system | |
|---|---|
| CI+ | Yes |
| Dimensions / Weight | |
|---|---|
| Weight without stand | 13 kg |
| Set depth without stand | 65 mm |
| Set height without stand | 580 mm |
| Set width without stand | 965 mm |
| Display | |
|---|---|
| Size (cm) | 107 cm |
| Frequency | 400 Hz TechniMotion |
| Format | 16:9 |
| Contrast ratio | 1200:1 |
| Brightness | 350 cd/m² |
| Picture in Picture (PIP) | Yes (2 x SD, 1 x SD u. 1 x HD) |
| Response time | < 8 ms |
| Angle of view | 178° / 178° |
| Picture and Picture (PAP) | Yes (2 x SD, 1 x SD u. 1 x HD) |
| Freeze frame | Yes |
| Zoom | Yes |
| 720p | Yes |
| Type | Full-HD eLED |
| 1080i | Yes |
| Size (inches) | 42 |
| SD | Yes |
| Resolution (vertical and horizontal) | 1920 x 1080 |
| HD | Yes |
| General characteristics | |
|---|---|
| Appearance | Slim 55mm |
| Handling/comfort | |
|---|---|
| Quick start | Yes |
| Parental Control | Ja |
| Media Player | Yes |
| Channel number mix | Yes |
| Teletext | Yes |
| Autostandby | Yes |
| Hotel mode | Yes |
| Sleep timer | Yes |
| Alarm | Yes |
| Clock | Yes |
| Hotel mode | |
|---|---|
| Protected access to hotel mode | Yes |
| Customisable start screen | Yes |
| Energy card function | Yes |
| USB cloning function | Yes |
| Multimedia connectors | Yes |
| Lockable volume | Yes |
| Menu locking | Yes |
| Control panel lock | Yes |
| Radio mode | Yes |
| Alarm function | Yes |
| Sleep timer | Yes |
| Mixing of channel slots | Yes |
| Multicode remote control | Yes |
| Selectable start source | Yes |
| Selectable start channel | Yes |
| materials contained | |
|---|---|
| Lead | Yes |
| Other features | |
|---|---|
| OSD languages | English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Total programme memory | 5.000 |
| Regional channel selection | Yes |
| Power consumption | |
|---|---|
| SFIplus updating | 24 W |
| Energy class | A+ |
| Software update | 24 W |
| Standby fast start | 16,4 W |
| In operation | 53 W |
| annual energy consumption when switched on | 74 kilowatt hour per annum |
| Standby | 0,42 W |
| Off status | 0 W |
| Power switch | Yes |
| Contains no mercury | Yes |
| Power supply | |
|---|---|
| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Mains adapter | internal |
| Supported formats & codecs | |
|---|---|
| Video-Codecs | MPEG-2, MPEG-4, H.264, VC-1 |
| Video-Formats | MKV, MP4, MOV, MPG, TS, TS4, VOB, WMV, Xvid, M2TS, AVI, ASF |
| JPEG | Yes |
| Audio-Formats | AAC, MP3, MP2, DDAC3, WMA |
| Tuner | |
|---|---|
| Tuner type | Doppel-QuattroTuner |
| DVB-S tuner | 2 |
| DVB-C Tuner | 2 |
| DVB-T Tuner | 2 |
| Analogue UHF/VHF/CATV tuner | 2 |
| Reception on | HDTV (MPEG-4), SD (MPEG-2) |
| Input impedance | 75 Ω |
| TECHNIROUTER ready | Yes |
| TECHNISELECT 12 ready | Yes |
| Tuner - Analogue | |
|---|---|
| Reception range | 47 ... 862 MHz |
| Video standards | PAL B/G, D/K, L/L, I |
| Tuner - Cable | |
|---|---|
| Reception range | 47 ... 862 MHz |
| Demodulation | 16-, 32-, 64-, 128-, 256-QAM |
| Symbol rate | 1,5 ... 7,2 |
| FEC | Reed-Solomon (204, 188) |
| Tuner - Sat | |
|---|---|
| Reception range | 950 ... 2.150 MHz |
| DVB-S | QPSK |
| DVB-S | 2 ... 45 (MCPC / SCPC) |
| DVB-S2 | 8PSK - QPSK |
| DVB-S2 | 10 ... 31 (MCPC / SCPC) |
| FEC | RS, LDPC, BCH |
| Tuner - Terrestrial | |
|---|---|
| Reception range 1 | 174 ... 230 MHz |
| Reception range 2 | 470 ... 862 MHz |
| Demodulation | COFDM (QPSK, 16-QAM, 64-QAM) |
| Transmission mode | 2k/8k |
| Bitrate | 4,98 ... 31,67 |
| FEC | 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 |
| Voltage supply | 5 V |
| Power supply | 0,03 A |
| wall bracket | |
|---|---|
| VESA wall mounting standards | VESA 400 x 400 |
