TECHNIMEDIA UHD+ 43 SL, 108 cm silber metallic/schwarz
€1,459.00*
€1,499.00
PRODUCT NO LONGER AVAILABLE

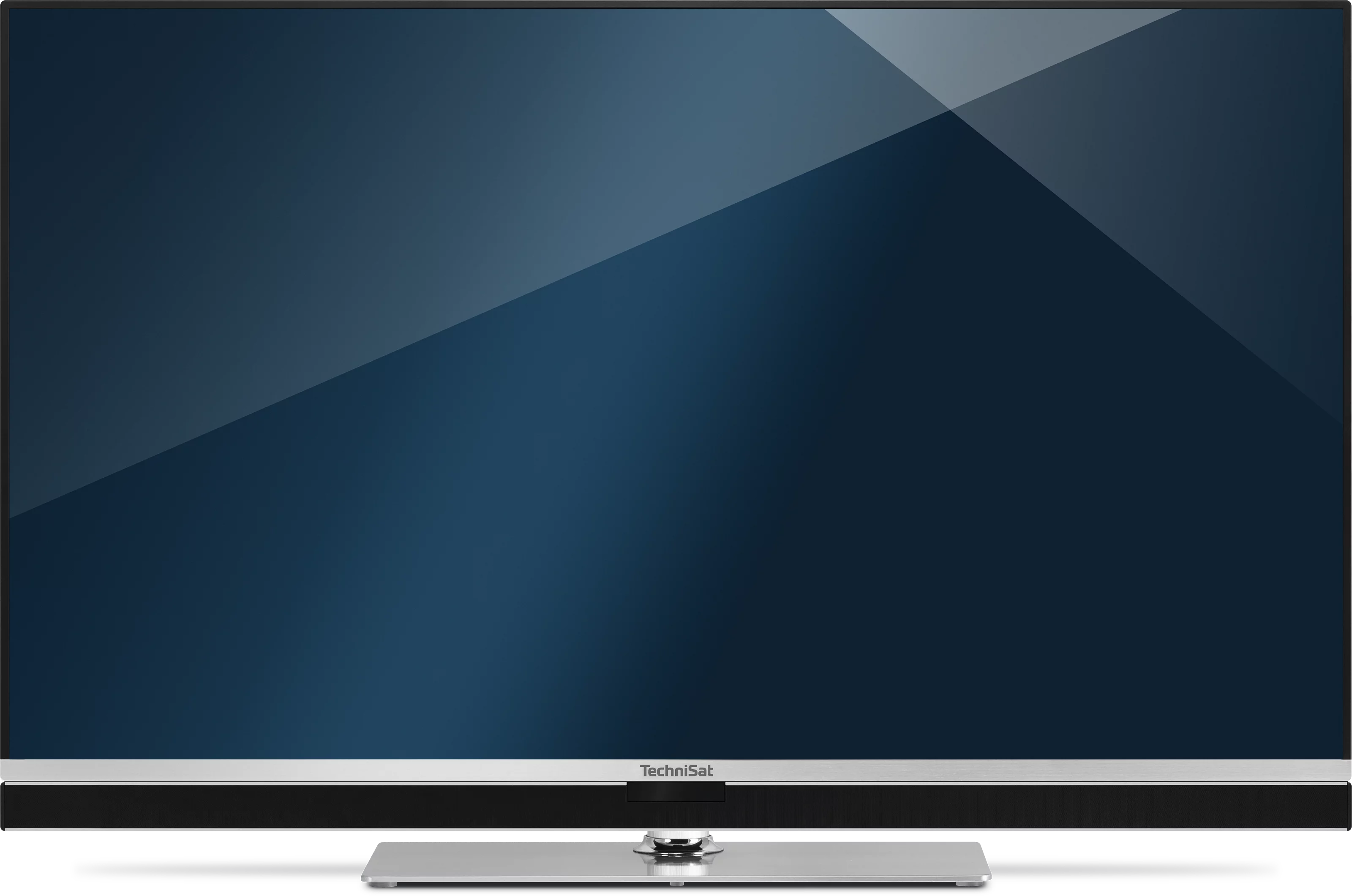

TECHNIMEDIA UHD+ 43 SL, 108 cm
(5643/9510)
UHD/4K Smart-TV mit dreifachem TwinTuner, integriertem HD+ und eleganter Soundbar
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588109155 |
| Colour | silver metallic/black |
| Item no. | 5643/9510 |
| TechniSat added value services | |
|---|---|
| SFI+ | Yes |
| ISI-Mode | Yes |
| TECHNIFAMILY | Yes |
| ISIPRO | Yes |
| AUTOINSTALL | Yes |
| TECHNIMATIC | Yes |
| Multimedia | |
|---|---|
| DVR function | Ja |
| DVR storage medium | USB, NAS |
| Timeshift | Yes |
| Recordings edition function | Yes |
| Recordings folder management | Yes |
| WLAN | |
|---|---|
| WLAN | integriert |
| 2,4 GHz | Yes |
| 5 GHz | Yes |
| IEEE 802.11n | Yes |
| IEEE 802.11g | Yes |
| IEEE 802.11b | Yes |
| IEEE 802.11a | Yes |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 75 % |
| Ambient temperature | 5 ... 35 °C |
| LNB control | |
|---|---|
| Vertical | 14 V |
| Horizontal | 18 V |
| Band switch | 22 kHz |
| Current consumption | max. 400 mA (kurzschlussfest) |
| DiSEqC | 1.0 / 1.2 / SCR1 = EN50494, SCR2 = EN50607 |
| Internet/Network | |
|---|---|
| ISIO Internet | Yes |
| HbbTV | Yes |
| VoD services | Ja |
| Webbrowser | Yes |
| HTML 5 support | Yes |
| Internet speed test | Yes |
| Audio | |
|---|---|
| HDMI ARC | Yes |
| Speakers | 2 x 2-way sound system |
| Connections | |
|---|---|
| HDMI™ (in) | 3 (4K 50/60p / HDCP 2.2) |
| USB | 2 (USB 3.0) |
| Common Interface Plus (CI+) | Yes |
| Smartcard reader | Yes |
| Digital optical audio out | Yes |
| Scart | 1 (via Mini-Scart-Adapter) |
| Ethernet 1Gbit/s (RJ-45) | 1 |
| F socket | 2 |
| IEC-Connector | Yes |
| Audio out analogue (3,5 mm jack) | 1 |
| Headphone output | Yes (3,5mm Klinke) |
| Decryption system | |
|---|---|
| Nagravision | Yes |
| CI+ | Yes (1x) |
| Dimensions / Weight | |
|---|---|
| Weight without stand | 14,6 kg |
| Display | |
|---|---|
| Type | UHD eLED |
| Resolution (vertical and horizontal) | 3840 x 2160 |
| Size (cm) | 108 cm |
| Size (inches) | 43 |
| UHD/4K upscaling | Yes |
| SD | Yes |
| HD | Yes |
| UHD | Yes |
| 2160p | Yes |
| 1080p | Yes |
| 1080i | Yes |
| 720p | Yes |
| 576p | Yes |
| 576i | Yes |
| 480p | Yes |
| 480i | Yes |
| 3D-Technologie | Yes |
| Converter 2d <3d | Yes |
| Angle of view | 178° / 178° |
| Format | 16:9 |
| Picture in Picture (PIP) | Yes (2x SD, 2x HD, 1x UHD u. 1x HD, 1x UHD u. 1x SD, 1x SD u. 1x HD) |
| Picture and Picture (PAP) | Yes (2x SD, 2x HD, 1x UHD u. 1x HD, 1x UHD u. 1x SD, 1x SD u. 1x HD) |
| Zoom | Yes |
| Freeze frame | Yes |
| General characteristics | |
|---|---|
| Appearance | Slim 55mm |
| Handling/comfort | |
|---|---|
| Smart Home central unit | Yes für Smart Functions, nur in Verbindung mit Z-Wave Stick 1, (Art.-Nr. 0000/9536) |
| Smart Home client | Yes |
| Electronic Program Guide (EPG) | Ja |
| Quick start | Yes |
| Parental Control | Ja |
| Media Player | Yes |
| Channel number mix | Yes |
| Teletext | Yes |
| Alarm | Yes |
| Autostandby | Yes |
| Sleep timer | Yes |
| Hotel mode | Yes |
| Clock | Yes |
| Hotel mode | |
|---|---|
| Protected access to hotel mode | Yes |
| Customisable start screen | Yes |
| Energy card function | Yes |
| USB cloning function | Yes |
| Multimedia connectors | Yes |
| Lockable volume | Yes |
| Menu locking | Yes |
| Control panel lock | Yes |
| Radio mode | Yes |
| Alarm function | Yes |
| Sleep timer | Yes |
| Mixing of channel slots | Yes |
| Multicode remote control | Yes |
| Selectable start source | Yes |
| Selectable start channel | Yes |
| Other features | |
|---|---|
| OSD languages | English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Total programme memory | 9.999 |
| Regional channel selection | Yes |
| Power consumption | |
|---|---|
| Model designation | TECHNIMEDIA UHD+ 43 SL |
| Energy class | A |
| Visible screen size (cm) | 108 |
| Visible screen size (inches) | 43 |
| In operation | 67 W |
| annual energy consumption when switched on | 98 kilowatt hour per annum |
| Standby | 0,48 W |
| Off status | 0 W |
| Power switch | Yes |
| Software update | 28 W |
| SFIplus updating | 28 W |
| Standby fast start | 28 W |
| Power supply | |
|---|---|
| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Mains adapter | internal |
| Ready for reception | |
|---|---|
| HD+ | Yes |
| Streaming | |
|---|---|
| DLNA Server | Yes |
| DLNA Client | Yes |
| Cloud store | Ja |
| Parental Control | Yes |
| TechniCast | Ja (optional über Dongle) |
| Supported formats & codecs | |
|---|---|
| Video-Codecs | MPEG-2, MPEG-4, H.264 (bis H.264/AVC Level 4.2), H.265, DivX, VC-1 |
| Video-Formats | M4V, MP4, MKV, MOV, MPG, TS, TS4, VOB, WMV, Xvid, M2V, M2TS, AVI, ASF |
| Picture-Formats | BMP, JPEG, GIF, PNG, TIFF |
| Audio-Formats | WAV, MP3, AAC, FLAC, M4A, MP2, OGG, DDAC3, WMA |
| TechniSat CONNECT | |
|---|---|
| SFI | Yes |
| Tuner | |
|---|---|
| Tuner type | 3xTwin-Tuner |
| Twin-Tuner | Yes |
| Reception on | UHD ( H.265/HEVC), HDTV (MPEG-4), SD (MPEG-2) |
| DVB-S tuner | 2 |
| Single Cable Solution (SatCR) | SCR1 = EN50494, SCR2 = EN50607 |
| DVB-C Tuner | 2 |
| Tuner DVB-T2 | 2 |
| Analogue UHF/VHF/CATV tuner | 1 |
| Satellite radio | Yes |
| Pay TV enabled | Yes |
| Cable radio | Yes |
| Internet radio | Yes |
| Input impedance | 75 Ω |
| TECHNISELECT 12 ready | Yes |
| TECHNIROUTER ready | Yes |
| Tuner - Analogue | |
|---|---|
| Reception range | 47 ... 862 MHz |
| Video standards | PAL B/G, D/K, L/L, I |
| Tuner - Cable | |
|---|---|
| Reception range | 47 ... 862 MHz |
| Demodulation | 16-, 32-, 64-, 128-, 256-QAM |
| Symbol rate | 1,5 ... 7,2 |
| FEC | Reed-Solomon (204, 188) |
| Tuner - Sat | |
|---|---|
| Reception range | 950 ... 2.150 MHz |
| DVB-S | QPSK |
| DVB-S | 2 ... 45 (MCPC / SCPC) |
| DVB-S2 | 8PSK - QPSK |
| DVB-S2 | 10 ... 31 (MCPC / SCPC) |
| FEC | RS, LDPC, BCH |
| Tuner - Terrestrial | |
|---|---|
| Reception range 1 | 174 ... 230 MHz |
| Reception range 2 | 470 ... 862 MHz |
| Demodulation | COFDM (QPSK, 16-QAM, 64-QAM) |
| Transmission mode | 2k/8k |
| Bitrate | 4,98 ... 31,67 |
| FEC | 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 |
| Voltage supply | 5 V |
| Power supply | 0,03 A |
| wall bracket | |
|---|---|
| VESA wall mounting standards | VESA 200 x 200 |
