TECHNICORDER ISIO STC chili/red anodised
€399.99*
PRODUCT NO LONGER AVAILABLE

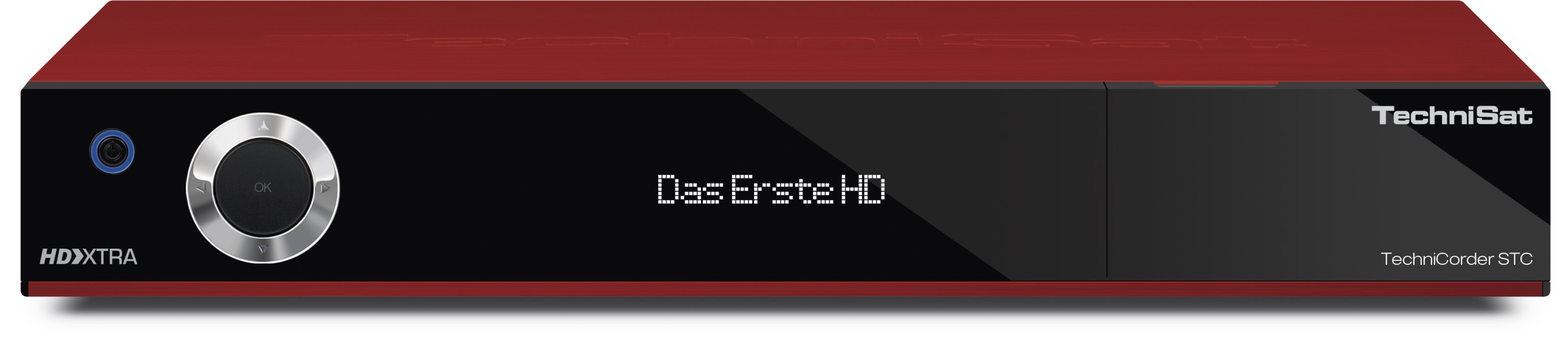

TECHNICORDER ISIO STC
(0002/4730)
Digital HDTV satellite receiver with internet functionality
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588247307 |
| VPE Karton | 4 |
| Colour | chili/red anodised |
| VPE Palette | 85 |
| Item no. | 0002/4730 |
| Hard drive | Einschubmöglichkeit und extern GigaByte |
| sonstiges | |
|---|---|
| ts_mehrwert_isipro_kabel | Yes |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | 5 ... 35 °C |
| Humidity | 10 ... 75 % |
| LNB control | |
|---|---|
| Vertical | 14 V |
| Horizontal | 18 V |
| Band switch | 22 kHz |
| Current consumption | max. 400 mA (kurzschlussfest) |
| DiSEqC | 1.0 / 1.2 / SCR1 = EN50494, SCR2 = EN50607 |
| TechniSat added value services | |
|---|---|
| AUTOINSTALL | Yes |
| Internet/Network | |
|---|---|
| HbbTV | Yes |
| HTML 5 support | Yes |
| Card reader | |
|---|---|
| SD card | Yes |
| Connections | |
|---|---|
| HDMI™ (out) | 1 |
| SATA Interface | 1 |
| Smartcard reader | Yes |
| Digital electric audio output (S/PDIF) | Yes |
| Digital optical audio out | Yes |
| Audio out analogue (RCA) | Yes (rechts / links) |
| Scart | 1 |
| F socket | 2 |
| Decryption system | |
|---|---|
| Conax | Yes |
| CI+ | Yes |
| Display | |
|---|---|
| Picture in Picture (PIP) | Yes (2x HD, 2x SD, 1x SD u. 1x HD) |
| Freeze frame | Yes |
| Zoom | Yes |
| HD | Yes |
| 720p | Yes |
| 576i | Yes |
| SD | Yes |
| 1080i | Yes |
| 576p | Yes |
| General characteristics | |
|---|---|
| Hard drive | Einschubmöglichkeit und extern GigaByte |
| Handling/comfort | |
|---|---|
| Sleep timer | Yes |
| Alarm | Yes |
| Hotel mode | |
|---|---|
| Protected access to hotel mode | Yes |
| Customisable start screen | Yes |
| Lockable volume | Yes |
| Menu locking | Yes |
| Control panel lock | Yes |
| Integrated LED clock | Yes |
| Selectable start source | Yes |
| Selectable start channel | Yes |
| Other features | |
|---|---|
| OSD languages | English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Total programme memory | 9.999 |
| Regional channel selection | Yes |
| Loopthrough | Yes |
| Power consumption | |
|---|---|
| Standby fast start | 7,7 W |
| Standby LED | < 0,25 W |
| In operation | 12 W |
| Power supply | |
|---|---|
| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Mains adapter | internal |
| Supported formats & codecs | |
|---|---|
| Video-Codecs | MPEG-2, MPEG-4, MPEG-1, H.264, DivX |
| Video-Formats | MKV, MP4, MOV, TS, TS4, VOB, WMV, Xvid, AVI |
| Picture-Formats | BMP, JPEG |
| Audio-Formats | AAC, MP3, M4A, MP2 |
| TechniSat CONNECT | |
|---|---|
| SFI | Yes |
| Tuner | |
|---|---|
| Tuner type | Doppel-Quattro Tuner |
| DVB-S tuner | 2 |
| DVB-C Tuner | 2 |
| DVB-T Tuner | 2 |
| Reception on | HDTV (MPEG-4 & 2), SD (MPEG-2) |
| Input impedance | 75 Ω |
| TECHNIROUTER ready | Yes |
| TECHNISELECT 12 ready | Yes |
| Tuner - Cable | |
|---|---|
| Reception range | 47 ... 862 MHz |
| Demodulation | 16 / 32 / 64 / 128 / 256 QAM |
| Symbol rate | 1,5 ... 7,2 |
| FEC | Reed-Solomon (204, 188) |
| Tuner - Sat | |
|---|---|
| Reception range | 950 ... 2.150 MHz |
| Viterbi rates | 1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung) |
| DVB-S | QPSK |
| DVB-S | 2 ... 45 |
| DVB-S2 | 8PSK-QPSK |
| DVB-S2 | 10 ... 31 |
| FEC | Viterbi and Reed-Solomon |
| Tuner - Terrestrial | |
|---|---|
| Reception range 1 | 174 ... 230 MHz |
| Reception range 2 | 470 ... 862 MHz |
| Demodulation | COFDM |
| Transmission mode | 2k/8k |
| Bitrate | 4,98 ... 31,67 Mbit/s |
| Voltage supply | 5 V |
