SKYTENNE (reception system for multiple receivers) slate/grey
€209.00*
€289.00
PRODUCT NO LONGER AVAILABLE

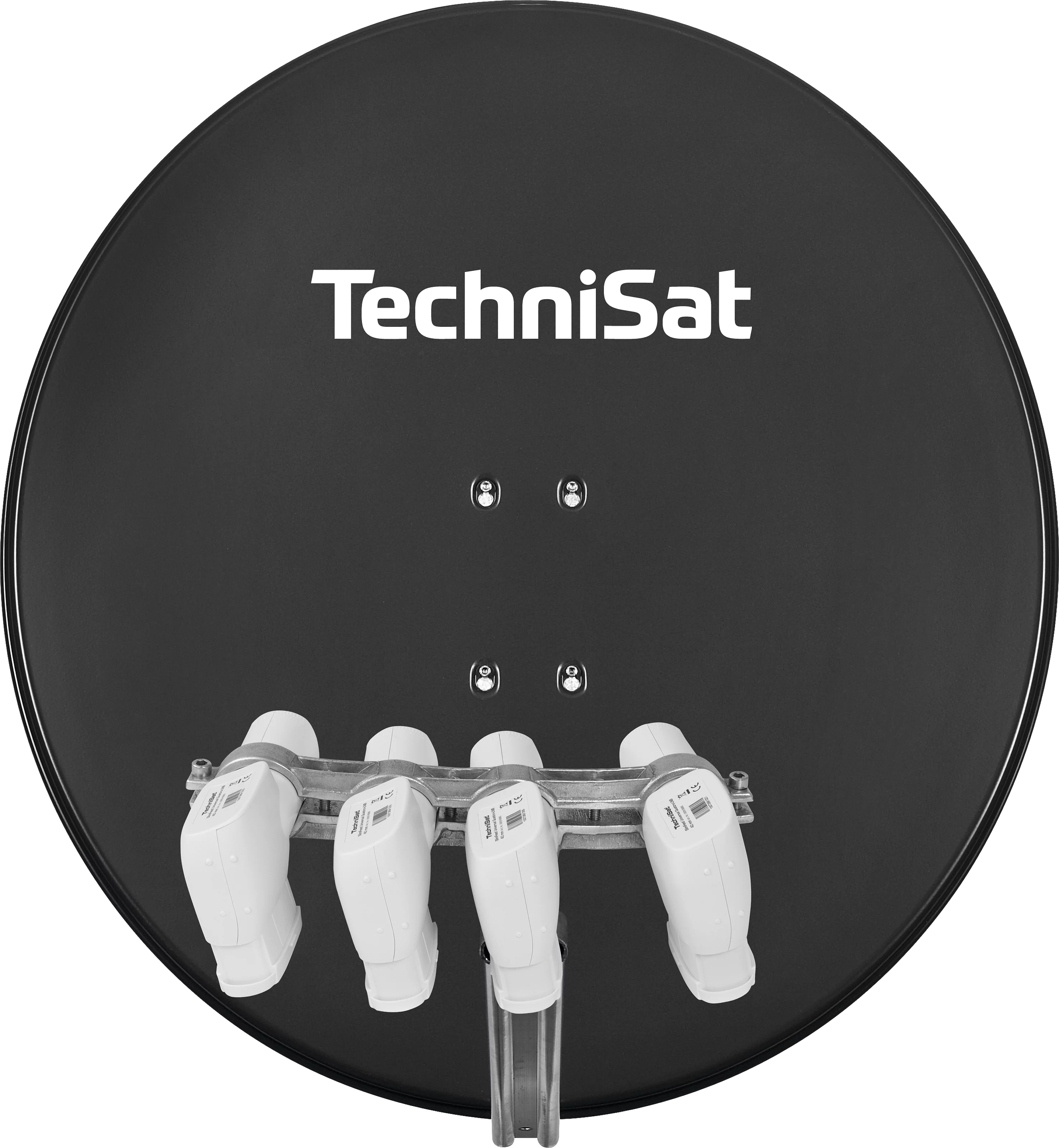

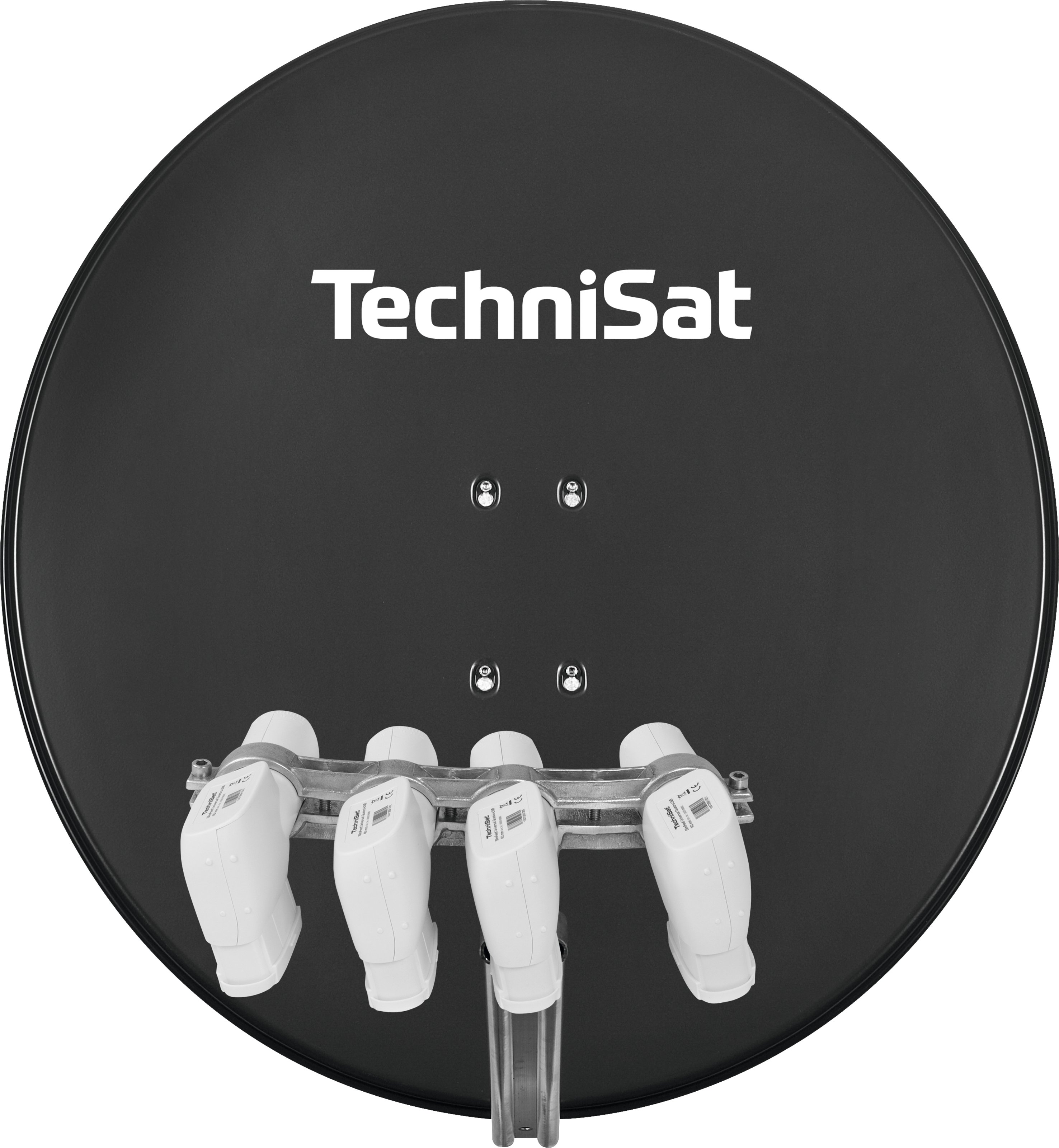

SKYTENNE (reception system for multiple receivers)
(6385/1544)
Digital satellite dish with a diameter of 85 cm ready for the reception of four Orbital positions at the same time without any rotor. Perfect for Multi-participant reception(with multi switch)!
| Product Information | |
|---|---|
| EAN | 4019588853447 |
| Colour | slate/grey |
| Item no. | 6385/1544 |
| Weight (Box) | 10,2 kg |
| Weight | 6,6 kg |
| Device (W x H x D) | 85 x 87 cm |
| Box | 87 x 95 x 24 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz ± 3MHz |
| High band | 10,6 GHz ± 3MHz |
| Ambient operating conditions | |
|---|---|
| Humidity | 5 - 100 % |
| Ambient temperature | -40 bis 65 °C |
| General characteristics | |
|---|---|
| Material | Aluminium |
| Top features | 1 to various receptors |
| Top features | 4 orbital positions |
| Top features | optimized for roof mounting |
| Top features | perfect for the reception of the BBC channels on Astra & Eutelsat 28.5° |
| Top features | You may need various distribution components for the Mutliparticipant reception please ask you nearest TechniSat Partner |
| Material strength | 1,6 mm |
| Coating | Powder-coated on both sites |
| Colour | beige, polar white, slate-grey, brick-red, fir green, yellow |
| Colour tone | beige, polar white, slate-grey, brick-red, fir green, yellow |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,1 dB max. |
| Upper frequency range | 0,1 dB max. |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| LNB voltage supply | 11 ... 20 V |
| Power consumption | typ. 680 mA (4 x LNB á 170 mA) |
| Technical data | |
|---|---|
| Rated measurement | 0,85 m |
| F/D | 0,67 |
| G/T | 17,2 |
| Offset angle | 21 ° |
| Gain | 38,2 dBi @11,3 GHz |
| Satellite positions | Eutelsat 13° Ost, Astra 19,2° Ost, Astra 23,5° Ost, Astra 28,2° Ost |
| Mast Ø | 65 mm max. |
| Feed reception | for Skytenne-System |
