SKYCABLE 8-PSK/PAL CI TWIN card green
€465.00*
€479.99
PRODUCT NO LONGER AVAILABLE

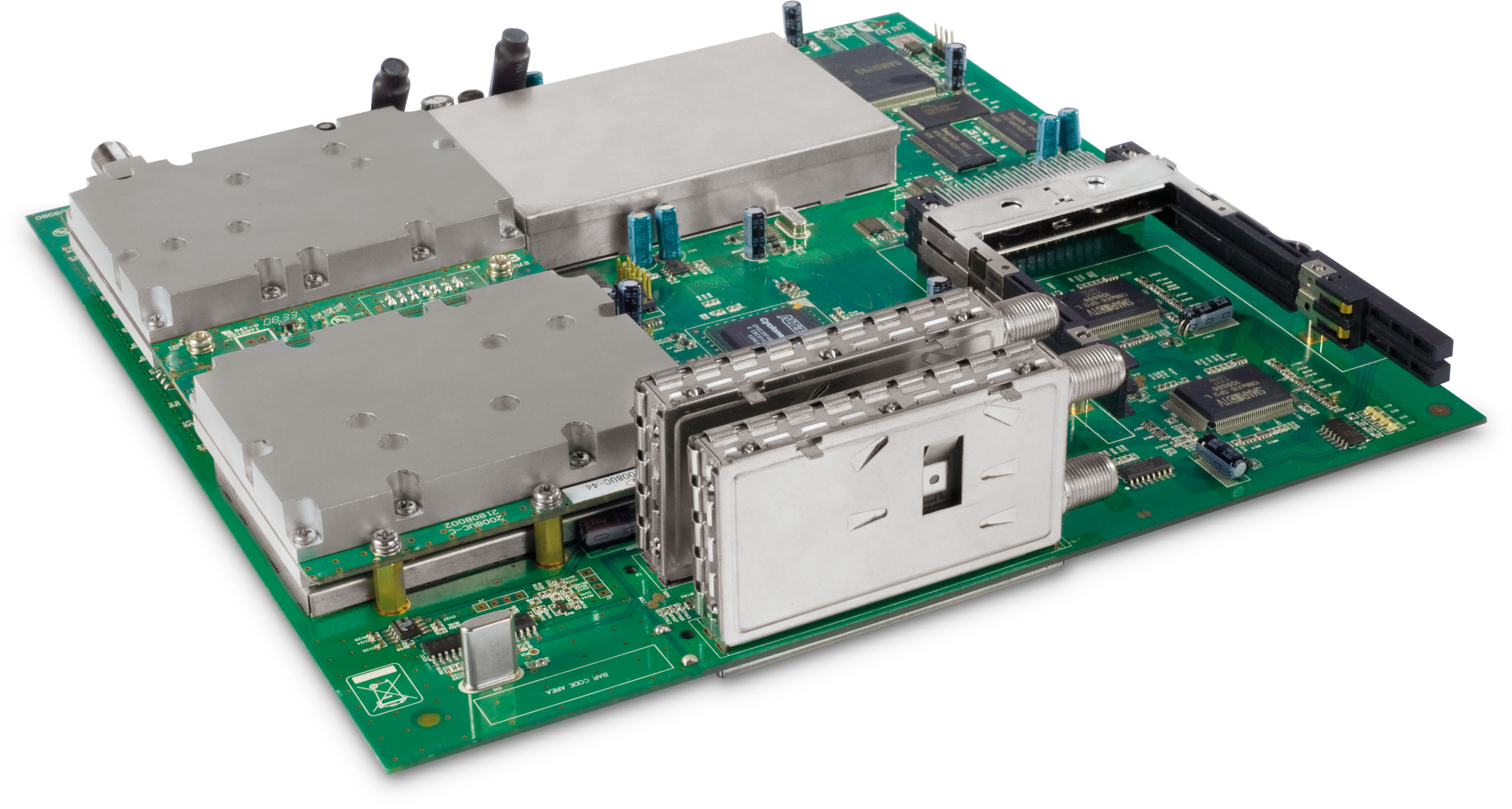

SKYCABLE 8-PSK/PAL CI TWIN card
(0000/5962)
Convert 2 digital satellite channels (DVB-S/S2) into 2 analogue PAL B/G channels
| Product Information | |
|---|---|
| EAN | 4019588059627 |
| Colour | green |
| Item no. | 0000/5962 |
| Weight (Box) | 1,1 kg |
| Weight | 800 g |
| Device (W x H x D) | 3,5 x 23,7 x 24 cm |
| Box | 63 x 28,3 x 35,3 cm |
| Tuner (DVB-S2) | |
|---|---|
| DVB-S2 demodulator | EN 302 307 |
| Demodulation | 8PSK, QPSK |
| Roll off factor | 0,20; 0,25; 0,35 |
| FEC block size | 64 kB |
| FEC Code rate (LDPC) | 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Outer coding (BCH) | GF(2^16), t=8, 10, 12 |
| Decoder | |
|---|---|
| Video decoder | MPEG2, MP@ML |
| Audio decoder | MPEG1, MPEG2 |
| General characteristics | |
|---|---|
| Top features | Echte TWIN Karte; Umsetzen von 2 SD Sat-Programmen (verschlüsselt oder unverschlüsselt) in 2 PAL B/G Kanäle |
| Top features | Eingangsfrequenzbereich von 950 bis 2150 MHz |
| Top features | Ausgangsfrequenzbereich von 110 bis 862 MHz (S2 bis K69) nachbarkanaltauglich |
| Top features | Ausgangspegel regelbar von 98 – 107 dBμV |
| Top features | 2 x Common Interface (getrennt einstellbar) |
| RF modulator | |
|---|---|
| Modulation | CCIR PAL B/G |
| RF output converter | |
|---|---|
| Noise | ≤ 45 typisch |
| C/N | 55 dB typisch |
| Output level | 81 ... 90 dB |
| Harmonic product | ≤ -50 dB typisch |
| Output frequency | 100 ... 860 MHz |
| Tuner DVB-S | |
|---|---|
| DVB-S demodulator | EN 300 421 |
| Demodulation | QPSK |
| Symbol rates | 2 ... 45 |
| FEC code rate | 1/2, 2/4, 3/4, 5/6, 6/7, 7/8 (automatisch) |
| Interleaving | Convolutional; l=12 |
| Outer coding | Reed Solomon 204, 188, T=8 |
