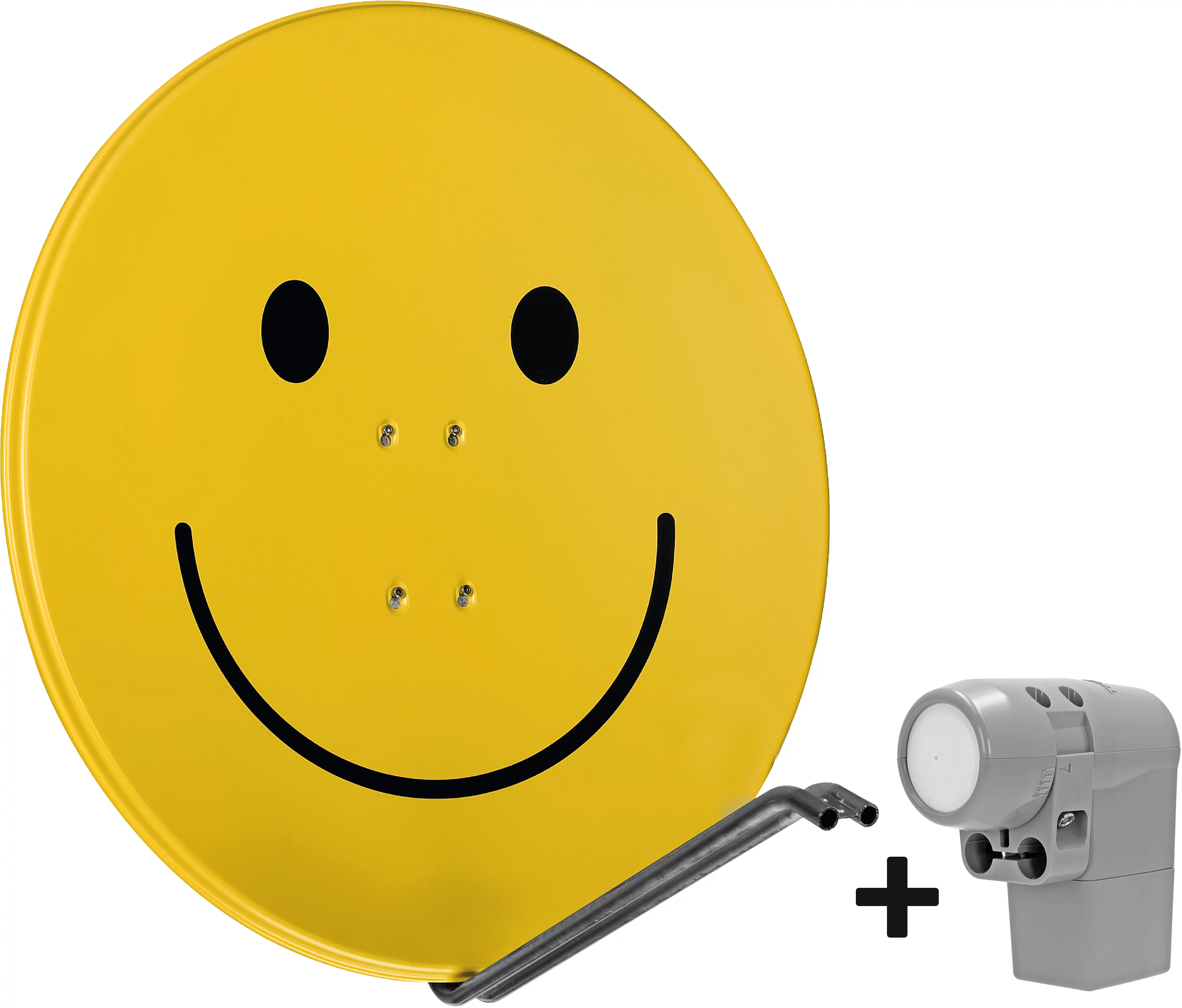

SATMAN 850, UNYSAT Quattro-LNB yellow with Smiley
€229.00*
€259.00
PRODUCT NO LONGER AVAILABLE
SATMAN 850, UNYSAT Quattro-LNB
(6585/9880)
SATMAN external unit with pre-assembled AZ/EL mount, 85 cm Ø
| Product Information | |
|---|---|
| EAN | 4019588589889 |
| Colour | yellow with Smiley |
| Item no. | 6585/9880 |
| Device (W x H x D) | 89 x 85 x 7,5 cm |
| Box | 92,75 x 88 x 23,5 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,6 GHz |
| Temperature drift | ± 2,5 MHz |
| Phase noise | -85 @10kHz |
| Accuracy | ± 1 MHz |
| LNB control | |
|---|---|
| Vertical | 11,5 - 14,5 V |
| Horizontal | 16 - 19 V |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -40 ... 70 °C |
| Humidity | 10 ... 95 % |
| General characteristics | |
|---|---|
| Material | Aluminium |
| Material strength | 1,6 mm |
| Coating | Powder-coated on both sites |
| Colour | beige, polar white, slate-grey, brick red, fir green, yellow with smiley |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,6 dB max. |
| Upper frequency range | 0,6 dB max. |
| Noise figure | typ. 0,75 dB |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| LNB voltage supply | 11,5 ... 19 V |
| Power consumption | 200 mA |
| Prepared for | |
|---|---|
| Number of clients | 4 |
| Number of orbit positions | 1 |
| Technical data | |
|---|---|
| Rated measurement | 0,85 m |
| F/D | 0,67 |
| G/T | 17,2 |
| Offset angle | 21 ° |
| Gain | 38,2 dBi @11,3 GHz |
| Mast Ø | 65 mm max. |
| Feed reception | for UNYSAT-Universal-LNB |
