SATMAN 850 incl. SCR-LNB fir/green
€219.00*
€249.00
PRODUCT NO LONGER AVAILABLE

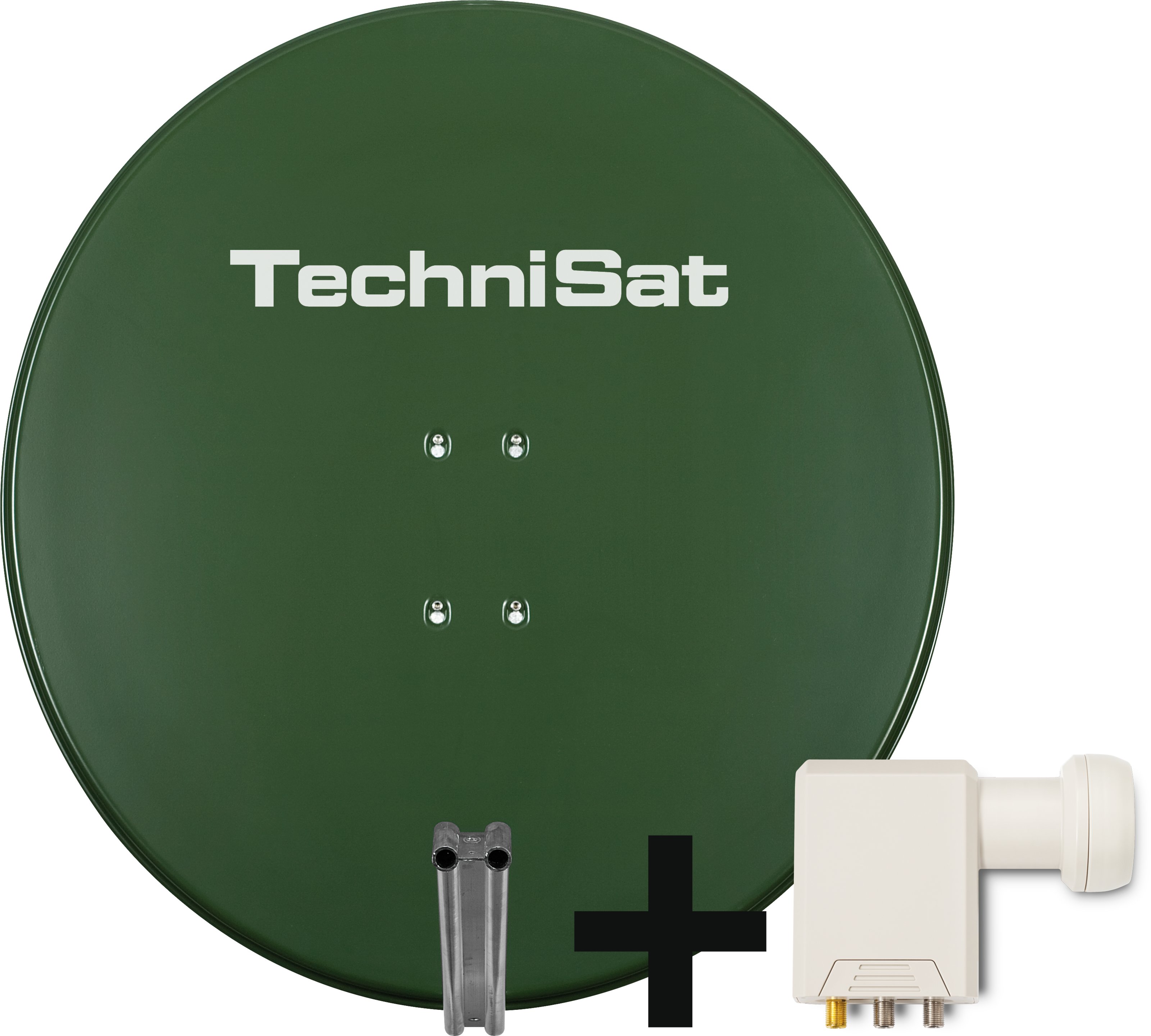

SATMAN 850 incl. SCR-LNB
(6285/8886)
Set bestehend aus SATMAN 850 PLUS (Antenne) und TechniSat SCR-LNB
| Product Information | |
|---|---|
| EAN | 4019588285866 |
| Colour | fir/green |
| Item no. | 6285/8886 |
| Weight (Box) | 8,8 kg |
| Weight | 5,2 kg |
| Device (W x H x D) | 89 x 85 x 7,5 cm |
| Box | 92,75 x 88 x 23,5 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,7 GHz |
| LNB control | |
|---|---|
| Vertical | 11,5 - 14,5 V |
| Horizontal | 16 - 19 V |
| General characteristics | |
|---|---|
| Material | Aluminium |
| Material strength | 1,6 mm |
| Coating | Powder-coated on both sites |
| Colour | beige, polar white, slate-grey, brick red, fir green, yellow with smiley |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,6 dB max. |
| Upper frequency range | 0,6 dB max. |
| Output frequency range | |
|---|---|
| Low band | 950 - 1.950 MHz |
| High band | 1.100 - 2.150 MHz |
| Prepared for | |
|---|---|
| Number of clients | 6 |
| Number of orbit positions | 1 |
| Technical data | |
|---|---|
| Rated measurement | 0,85 m |
| F/D | 0,67 |
| G/T | 17,2 |
| Offset angle | 21 ° |
| Gain | 38,2 dBi @11,3 GHz |
| Mast Ø | 65 mm max. |
| Feed reception | LNB retaining clamp (40mm) |
