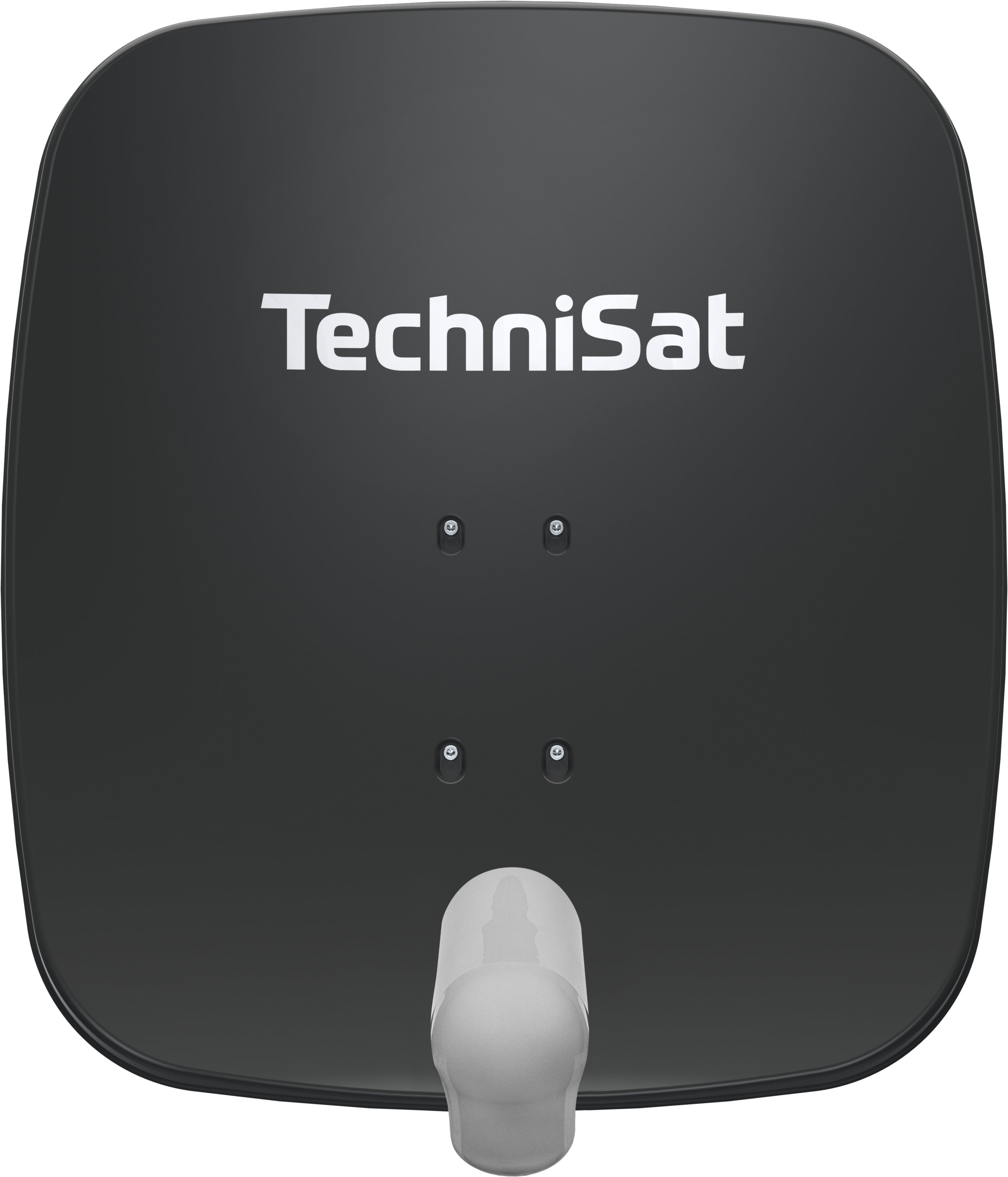

SATMAN 65 PLUS, UNYSAT Twin-LNB slate/grey
€205.00*
€239.00
PRODUCT NO LONGER AVAILABLE
SATMAN 65 PLUS, UNYSAT Twin-LNB
(2365/9882)
SATMAN external unit with pre-assembled AZ/EL mount, 65 cm Ø
| Product Information | |
|---|---|
| EAN | 4019588369825 |
| Colour | slate/grey |
| Item no. | 2365/9882 |
| Weight (Box) | 6,6 kg |
| Weight | 4,2 kg |
| Device (W x H x D) | 68 x 76 x 5,8 cm |
| Box | 69,2 x 77,8 x 19,5 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,7 GHz |
| Phase noise | -75 |
| Accuracy | ± 1 MHz |
| Temperature drift | ± 0,5 MHz |
| LNB control | |
|---|---|
| Band switch | 22 kHz |
| Vertical | 10,5 ... 14 V |
| Horizontal | 16 ... 23 V |
| General characteristics | |
|---|---|
| Material | Aluminium |
| Material strength | 1,5 mm |
| Coating | Powder-coated on both sites |
| Colour | beige, slate-grey, brick-red, green |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,6 dB max. |
| Upper frequency range | 0,6 dB max. |
| Noise figure | typ. 0,1 dB |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| Power consumption | max. 140 mA |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Number of clients | 2 |
| Technical data | |
|---|---|
| Outputs | 2 |
| Rated measurement | 0,65 m |
| F/D | 0,69 |
| G/T | 14,5 |
| Offset angle | 27 ° |
| Gain | 35,7 dBi @11,3 GHz |
| Mast Ø | 65 mm max. |
| Feed reception | for UNYSAT-Universal-LNB |
| Amplification | 58 ... 64 dB |
