SATMAN 65 incl. 40 mm Twin-LNB slate/grey
€159.00*
€189.00
PRODUCT NO LONGER AVAILABLE

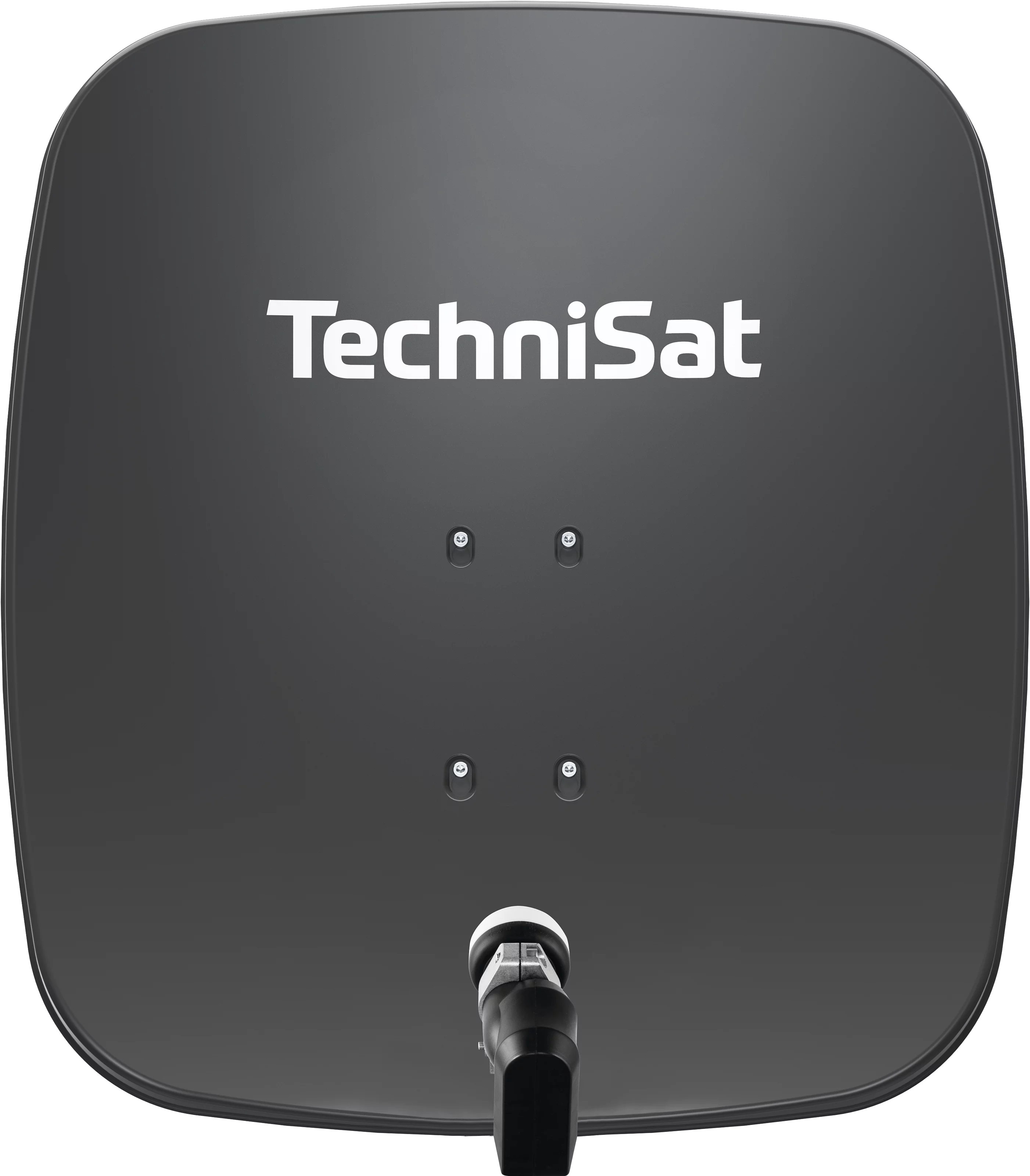

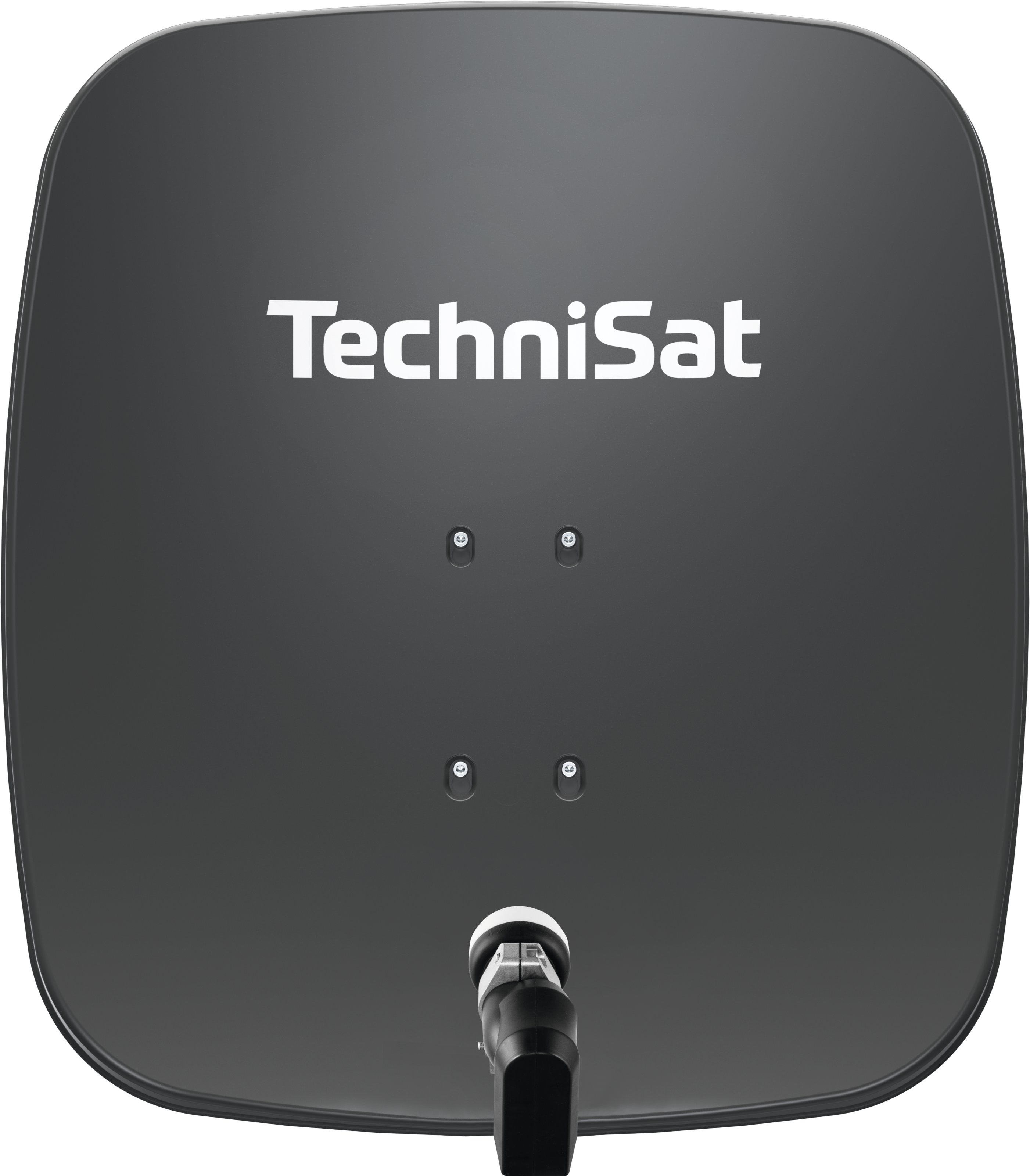

SATMAN 65 incl. 40 mm Twin-LNB
(2365/4882)
SATMAN external unit with pre-assembled AZ/EL mount, 65 cm Ø
| Product Information | |
|---|---|
| EAN | 4019588488236 |
| Colour | slate/grey |
| Item no. | 2365/4882 |
| Device (W x H x D) | 68 x 76 x 5,8 cm |
| Box | 69,2 x 77,8 x 19,5 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,7 GHz |
| LNB control | |
|---|---|
| Vertical | 11,5 - 14,5 V |
| Horizontal | 16 - 19 V |
| General characteristics | |
|---|---|
| Material | Aluminium |
| Material strength | 1,5 mm |
| Coating | Powder-coated on both sites |
| Colour | beige, slate-grey, brick-red, green |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,6 dB max. |
| Upper frequency range | 0,6 dB max. |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Number of clients | 2 |
| Technical data | |
|---|---|
| Rated measurement | 0,65 m |
| F/D | 0,69 |
| G/T | 14,5 |
| Offset angle | 27 ° |
| Gain | 35,7 dBi @11,3 GHz |
| Mast Ø | 65 mm max. |
| Feed reception | for UNYSAT-Universal-LNB |
