Passive Splitter 5 P silver
€86.50*
€89.00
PRODUCT NO LONGER AVAILABLE

Passive Splitter 5 P

(0000/3242)

Passive splitter for 1 orbital position

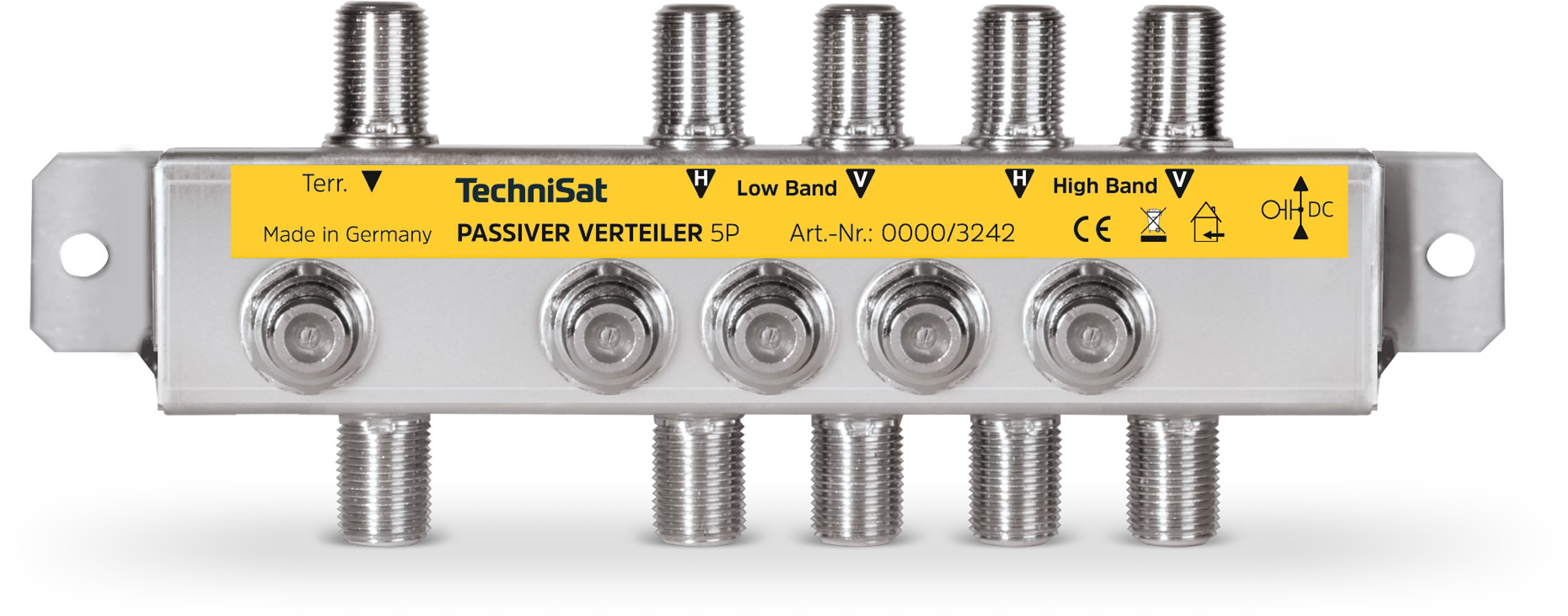

Passive Splitter 5 P Frontal, Front
Product Information
EAN 4019588032422
Colour silver
Item no. 0000/3242
Weight (Box) 200 g
Weight 200 g
Device (W x H x D) 10,15 x 4,4 x 3 cm
Box 16,4 x 9,3 x 5,7 cm
Ambient operating conditions
Ambient temperature -25 ... 55 °C
Decoupling
Output 40 dB
Trunks 55 dB
General characteristics
Top features Verteilt eine Stammleitungstrasse auf 2 Trassen mit nur 4 dB Dämpfung
Top features Keine Stromversorgung nötig - Gerät ist passiv
Top features Gleiches Rastermass der F-Buchsen wie TECHNISWITCH und TECHNISYSTEM
Power supply
Power consumption 0 mA (passiv)
Reception range
Sat 950 ... 2.150 MHz
Terrestrial 87 ... 862 MHz
Technical data
Satellite inputs 4
Terrestrial input 1
Transmission loss
Sat 4 dB
Terrestrial 4 dB
