DIGITALSAT 55, Twin-LNB grey
€39.00*
€59.00
PRODUCT NO LONGER AVAILABLE

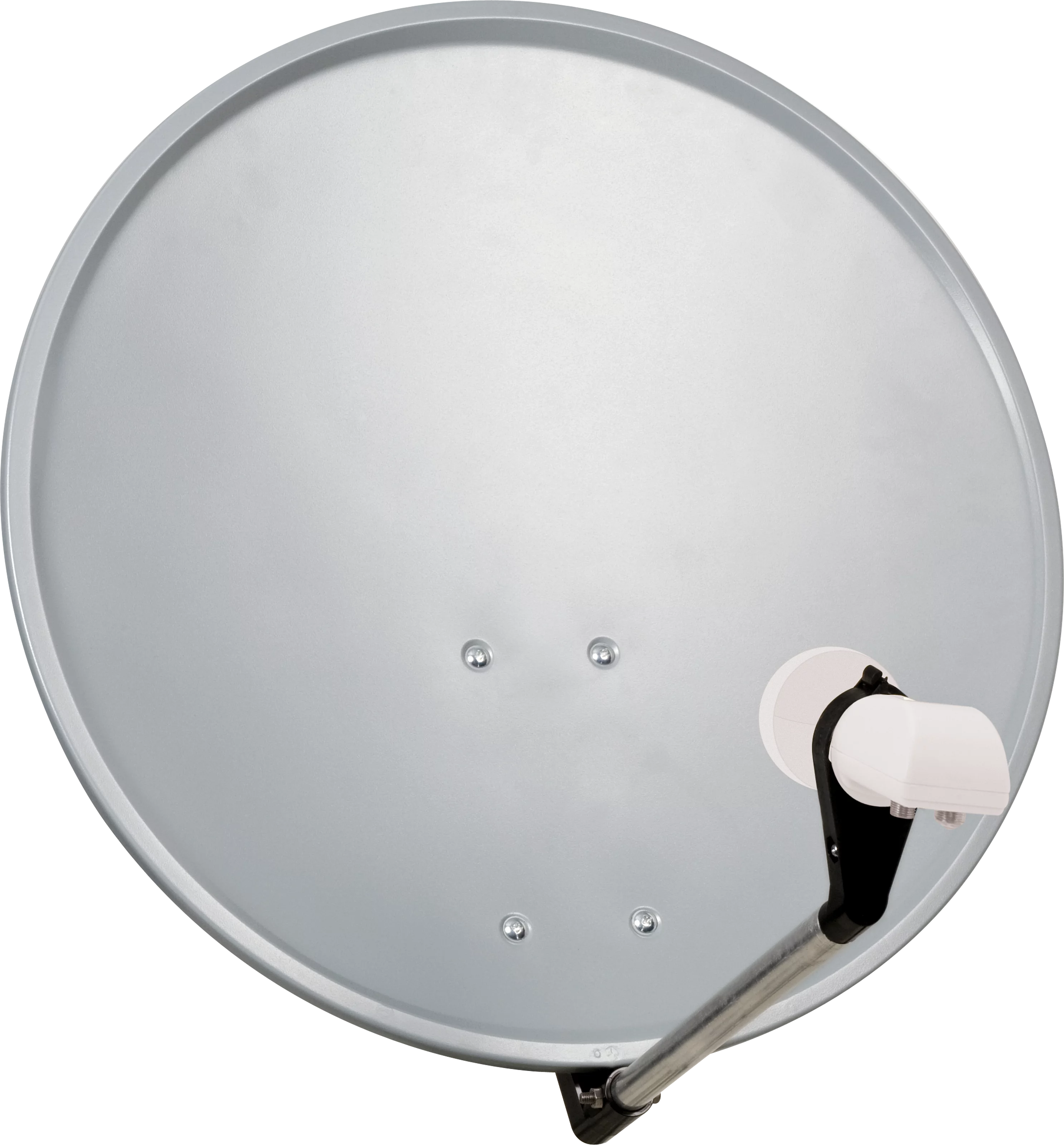

DIGITALSAT 55, Twin-LNB
(1055/2882)
Digital satellite dish with a diameter of 55 cm
| Product Information | |
|---|---|
| EAN | 4019588528826 |
| Colour | grey |
| Item no. | 1055/2882 |
| Weight (Box) | 3,2 kg |
| Weight | 2,5 kg |
| Device (W x H x D) | 55 x 55 x 140,0 cm |
| Box | 59 x 61 x 14 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,7 GHz |
| LNB control | |
|---|---|
| Vertical | 11,5 - 14,5 V |
| Horizontal | 16 - 19 V |
| General characteristics | |
|---|---|
| Material | Stahl |
| Top features | Powerful satellite dish (55 cm) |
| Top features | With few individual parts and partially assembled components it is easy to install and therefore time and cost-saving |
| Top features | Material: Steel / special powder coating on both sides for optimum corrosion protection |
| Material strength | 0,5 mm |
| Coating | Powder-coated on both sites |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,7 dB max. |
| Upper frequency range | 0,7 dB max. |
| Output frequency range | |
|---|---|
| Low band | 950 - 1.950 MHz |
| High band | 1.100 - 2.150 MHz |
| Technical data | |
|---|---|
| F/D | 0,6 |
| Offset angle | 20 ° |
| Gain | 32 dBi @11,3GHz |
| Mast Ø | max. 60 mm |
| Feed reception | 40 mm |
