DIGICORDER HD S2, 160 GB black titanium/black
€9,999,999.00*
PRODUCT NO LONGER AVAILABLE

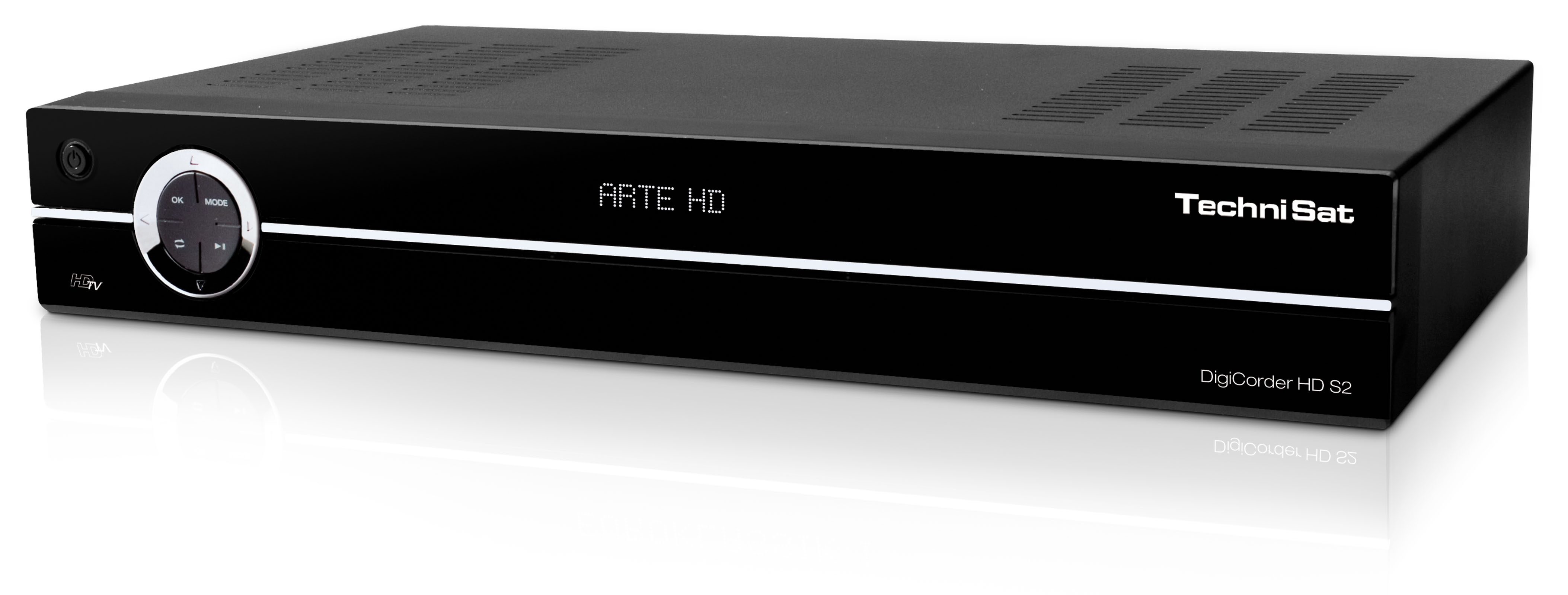

DIGICORDER HD S2, 160 GB
(0000/4720)
First-class HDTV receiver with integrated hard disc, which makes it possible to watch TV in a quality previously unheard of
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588047204 |
| Item no. | 0000/4720 |
| Colour | black |
| Weight (Box) | 2,9 kg |
| Weight | 2,66 kg |
| Device (W x H x D) | 37 x 6,5 x 22 cm |
| Box | 44,5 x 12 x 28 cm |
| LNB control | |
|---|---|
| DiSEqC | 1 |
| Horizontal | 18 V |
| Vertical | 14 V |
| Band switch | 22 kHz |
| TechniSat added value services | |
|---|---|
| AUTOINSTALL | Yes |
| Audio | |
|---|---|
| AC3 Dolby Digital bitstream out | Yes |
| Connections | |
|---|---|
| HDMI™ (out) | 1 |
| Common Interface (CI) | 2 |
| Digital electric audio output (S/PDIF) | Yes |
| Digital optical audio out | Yes |
| Audio out analogue (RCA) | Yes |
| YUV (component output) | 1 |
| Scart | 2 |
| Video Cinch out | 1 |
| Ethernet 10/100 (RJ-45) | Yes (RJ-45) |
| F socket | 2 |
| RS-232 | 1 |
| Decryption system | |
|---|---|
| Conax | Yes |
| CI | Yes |
| Display | |
|---|---|
| Picture in Picture (PIP) | Yes (2 x SD, 1 x SD u. 1 x HD) |
| Freeze frame | Yes |
| Zoom | Yes |
| SD | Yes |
| 720p | Yes |
| 1080i | Yes |
| HD | Yes |
| Other features | |
|---|---|
| Total programme memory | 5.000 |
| Loopthrough | Yes |
| Power consumption | |
|---|---|
| Standby LED | < 1 W |
| In operation | < 24 W |
| Power supply | |
|---|---|
| Mains adapter | internal |
| Nominal voltage | 180 ... 250 V |
| Frequency | 50 Hz |
| Tuner | |
|---|---|
| Tuner type | Twin-Tuner |
| Single Cable Solution (SatCR) | SCR1 = EN50494 |
| Input impedance | 75 Ω |
| TECHNIROUTER ready | Yes |
| Reception on | HDTV (Mpeg-4+2) SD (MPEG-2) |
| Tuner - Sat | |
|---|---|
| DVB-S | QPSK |
| Viterbi rates | 1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung) |
| DVB-S2 | 8PSK - QPSK |
| DVB-S | 2 ... 45 |
| FEC | Viterbi and Reed-Solomon |
| DVB-S2 | 10 ... 31 (8PSK), 10…30Mbaud/s (QPSK) |
| Reception range | 2 x 950 ... 2.150 MHz |
