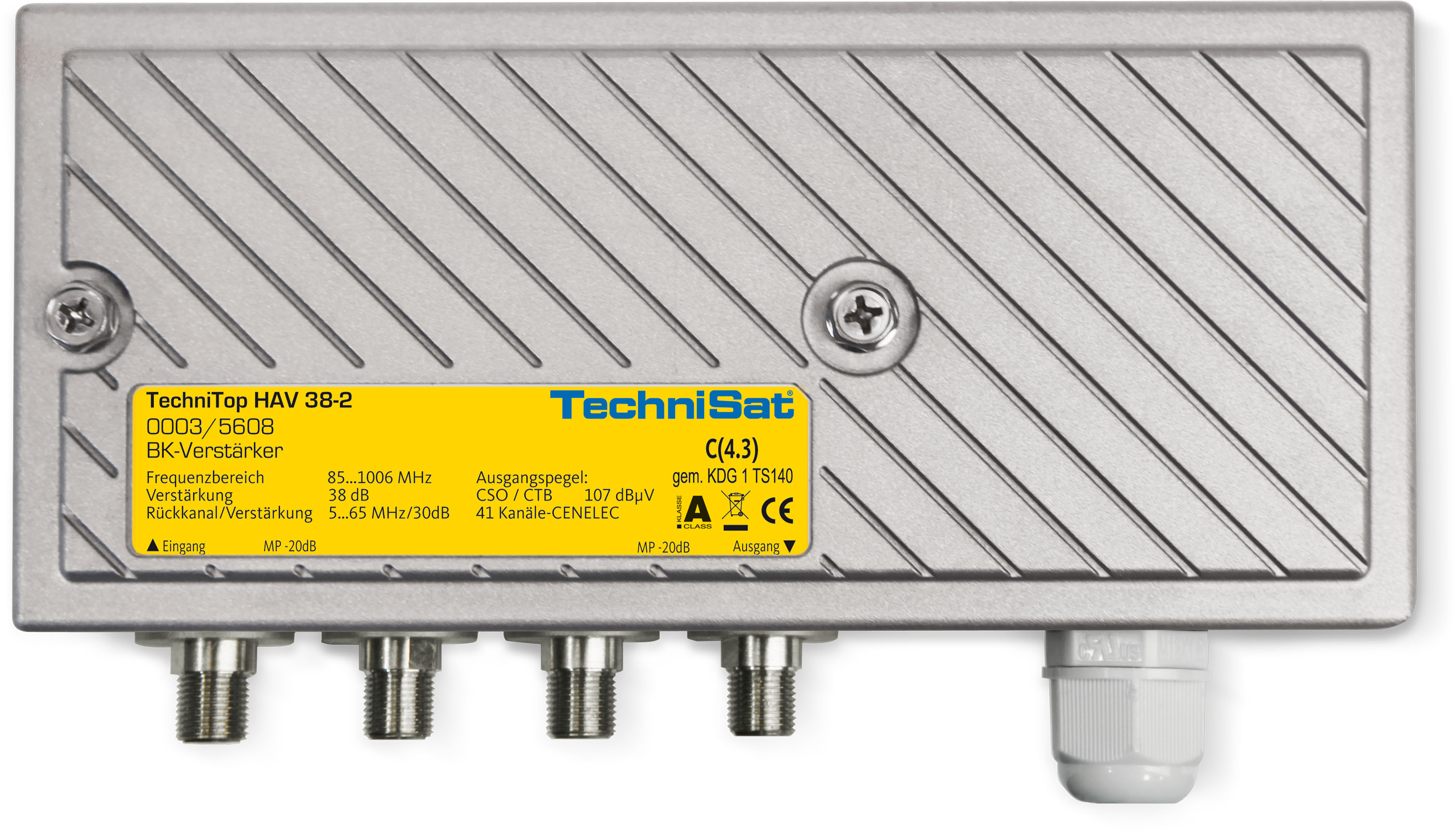

CATV amplifier TECHNITOP HAV 38-2
(0003/5608)
CATV amplifier with 38 dB gain and active return path of 5-65 MHz.
| Product Information | |
|---|---|
| EAN | 4019588356085 |
| Colour | silver |
| Item no. | 0003/5608 |
| Weight (Box) | 906 g |
| Weight | 744 g |
| Device (W x H x D) | 19,5 x 6 x 6 cm |
| Box | 24 x 7 x 13,5 cm |
| General characteristics | |
|---|---|
| Top features | 38 dB amplification |
| Top features | in the alu-diecast housing (Protection class IP54) |
| Top features | with measurement jacks at in- and output (-20dB) |
| Top features | ajustable attenuation and equalization |
| Top features | developed according to KDG1- classfication TS 140 |
| Top features | shielding class A according to EN 500083-2 |
| Output level | |
|---|---|
| IMA DIN 45004B VHF | 107 dB |
| IMA DIN 45004B UHF | 107 dB |
| Power requirement | |
|---|---|
| Power input | 10 W |
| Power supply | |
|---|---|
| Nominal voltage | 115 / 230 V ~ |
| Frequency | 47 ... 63 Hz |
| Effective output | 10 W |
| Range of adjustment | |
|---|---|
| Attenuator | 15 dB |
| Equaliser | 15 dB |
| Technical data | |
|---|---|
| Frequency range | 85 ... 1.006 MHz |
| Frequency range return path | 5 ... 65 MHz |
| Amplification | 38 dB |
| CSO / CTB | 107 |
| Noise factor | ≤ 5,5 dB |
| Shielding factor | ≥ 80 dB EN 50083-2 (Klasse A) |
| Output + input measuring points | -20 dB (± 2,5) |
| Protection class | IP 50 |
| Connector type | F female |
| Impedance | 75 Ω |
| Return loss | ≥ 18 dB (-1,5 dB/Okt.) |
| Interstage attenuator | 6 dB |
