120 dB Premium Cable, 100 m reel white
€87.50*
€89.99
PRODUCT NO LONGER AVAILABLE

120 dB Premium Cable, 100 m reel

(0001/3106)

High-end 4-way shielded RG6 coaxial cable , 120 dB screening

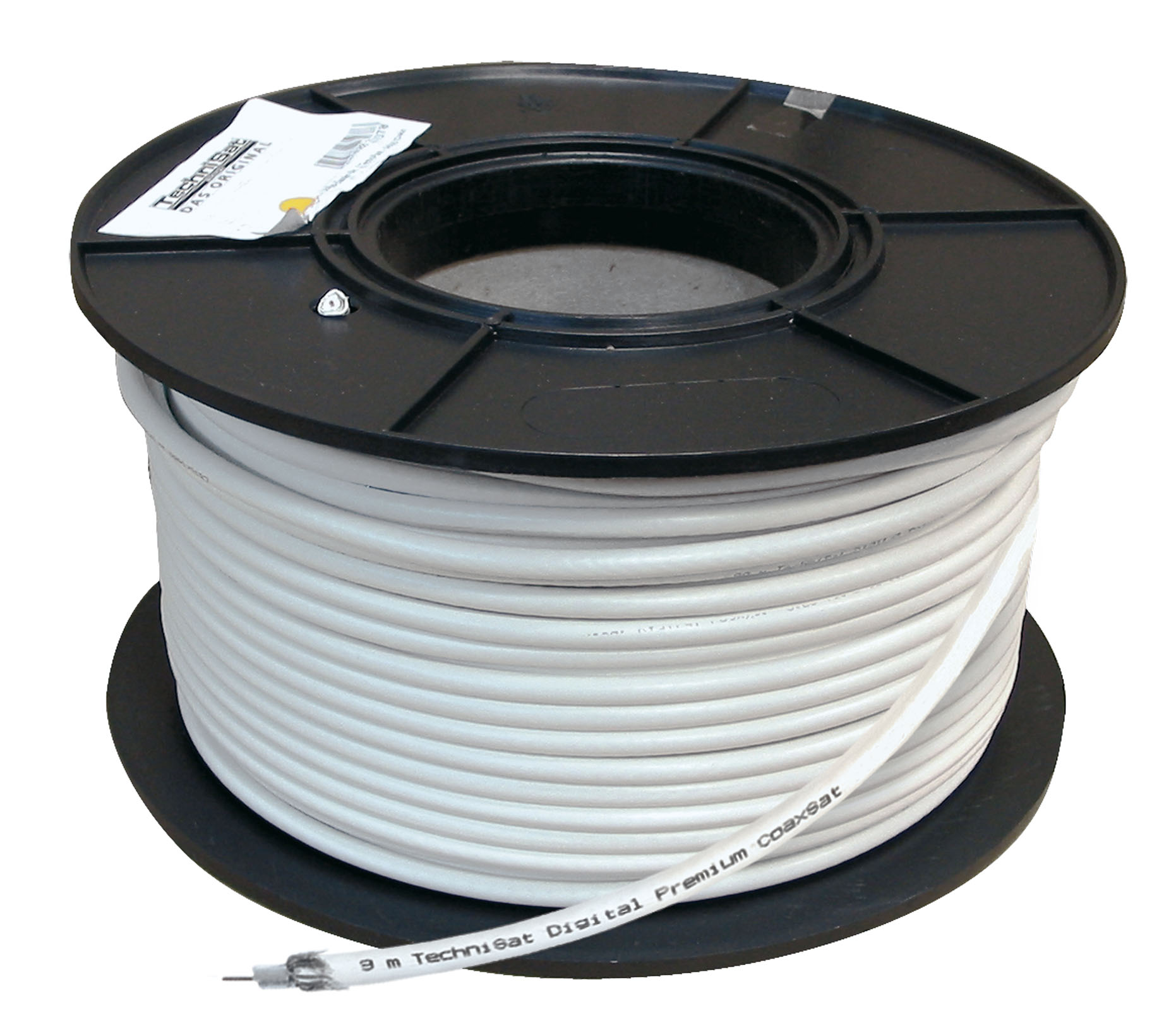

120 dB Premium Cable, 100 m reel Frontal, Front
Product Information
EAN 4019588131064
Colour white
Item no. 0001/3106
Weight 5,9 kg
Attenuation
5 MHz 1,7
10 MHz 2,3
25 MHz 3,4
45 MHz 4,4
65 MHz 5,3
100 MHz 6,7
200 MHz 9,3
450 MHz 14,1
800 MHz 18,4
1000 MHz 22,2
1350 MHz 25
1750 MHz 29,6
2050 MHz 33,3
DC resistance
Inner cable 19
Outer cable 9,5
Return loss
5 - 30 MHz ≥ 31 dB
30 - 65 MHz ≥ 33 dB
65 - 470 MHz ≥ 30 dB
470 - 1800 MHz ≥ 28 dB
1800 - 2450MHz ≥ 28 dB
Shielding
30 - 470 MHz ≥ 130 dB
470 - 1800 MHz ≥ 120 dB
1800 - 2450 MHz ≥ 110 dB
Technical data
Impedance 75 Ω (± 3)
Inner cable diameter 1 mm (18AWG)
Inner cable material Copper bare (OFC)
Isolation Zell-PE
Diameter dielectric 4,6 mm (± 0,1)
Outer cable 1 x Alum. foil + 2 x tinned coppper braiding 24 x 3 x 0.12 mm + 1 x Alum. foil
Sheath PVC, withe
Diameter with coating 7 mm (± 0,2)
Bending radius ≥ 50 mm
Coupling resistance ≤ 1,5 @ 5 MHz
Capacity 55 pF
Shrinkage factor 0,85
Shielding factor typ. 120 dB ≙ Klasse A+
Transfer impedance
5MHz ≤ 1,5
30 MHz ≤ 0,2
