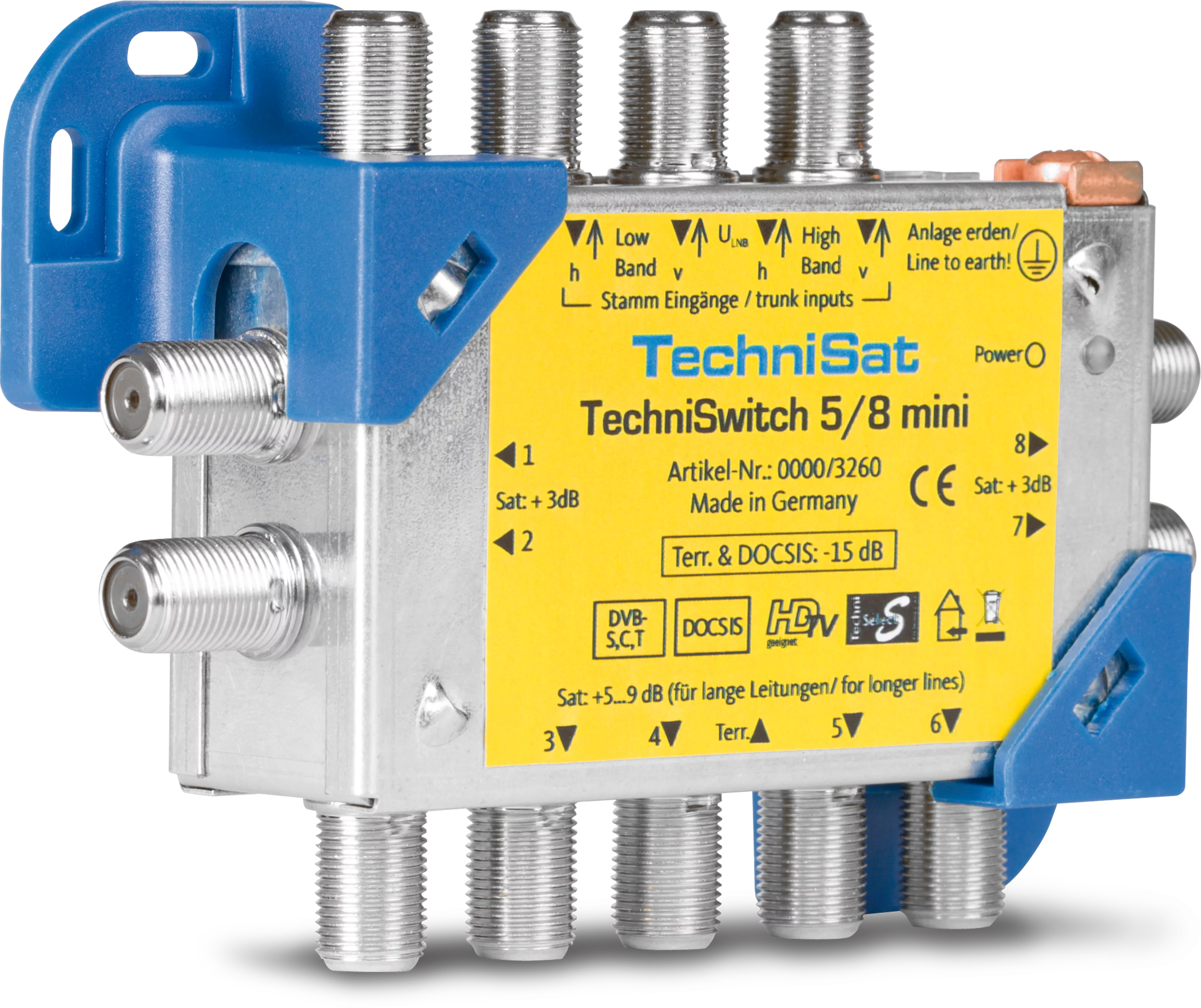

TECHNISWITCH 5/8 Mini

Compact multiswitch for distribution of 4 IF levels and terrestrial signals for 8 participants.

Colour blue/yellow

€65.00*

incl. VAT.

The multiswitch distributes one orbital position (4 satellite blocks) to up to 8 users, including injection of DVB-T/DAB+/FM or cable TV for analog, digital, HD, 3D operation
Package includes: 1 x TECHNISWITCH 5/8 MINI and user manual – in top quality from TechniSat
DOCSIS signal transmission enables simultaneous use of internet and telephone services from cable providers
All outputs are pre-compensated for slope, allowing cable lengths of up to 100 meters from LNB to antenna socket
Energy-efficient multiswitch is powered by the receiver and does not require an external power supply

TECHNISWITCH 5/8 Mini, instruction manual

This product is manufactured in Germany and represents the highest quality standards. Precise workmanship and strict controls ensure long-lasting reliability.

This ultra-compact stand-alone multiswitch distributes one orbital position (four satellite blocks) to up to eight subscribers and also allows for the input of either DVB-T/DAB+/FM or cable TV. All subscriber outputs are pre-compensated for tilt, so distances of up to 100 m from the LNB to the wall outlet can be bridged without additional accessories. The TechniSwitch 5/8 mini is designed for transmitting DOCSIS signals and is therefore ideally suited for use in satellite distribution systems for the simultaneous use of internet and telephone services from cable network operators. With the appropriate 5/8 distribution components, signal distribution can be expanded to 16 or more subscribers. Because the TechniSwitch 5/8 mini is particularly energy-efficient, no power supply is required at the installation location of the multiswitch. The switch is powered by the receiver.

Technical Datasheet ( HTML / PDF )

html

Product Information
EAN	4019588032606
Colour	blue/yellow
Item no.	0000/3260
Weight (Box)	200 g
Weight	160 g
Device (W x H x D)	7,9 x 3,3 x 11,5 cm
Box	9,5 x 4 x 12,2 cm

Ambient operating conditions
Humidity	10 ... 75 %
Ambient temperature	-25 ... 45 °C

Amplification
Sat	2 ... 4 dB , bottom taps 3 ... 8 dB
Terrestrial	-15 dB

Decoupling
Output	> 30 dB

General characteristics
Top features	Gain in satellite range
Top features	Slope fixed correction
Top features	For Quattro-LNB
Top features	Energy saving - usable without mains adapter
Top features	Input for terrestrial signals
Top features	Suitable for DOCSIS
