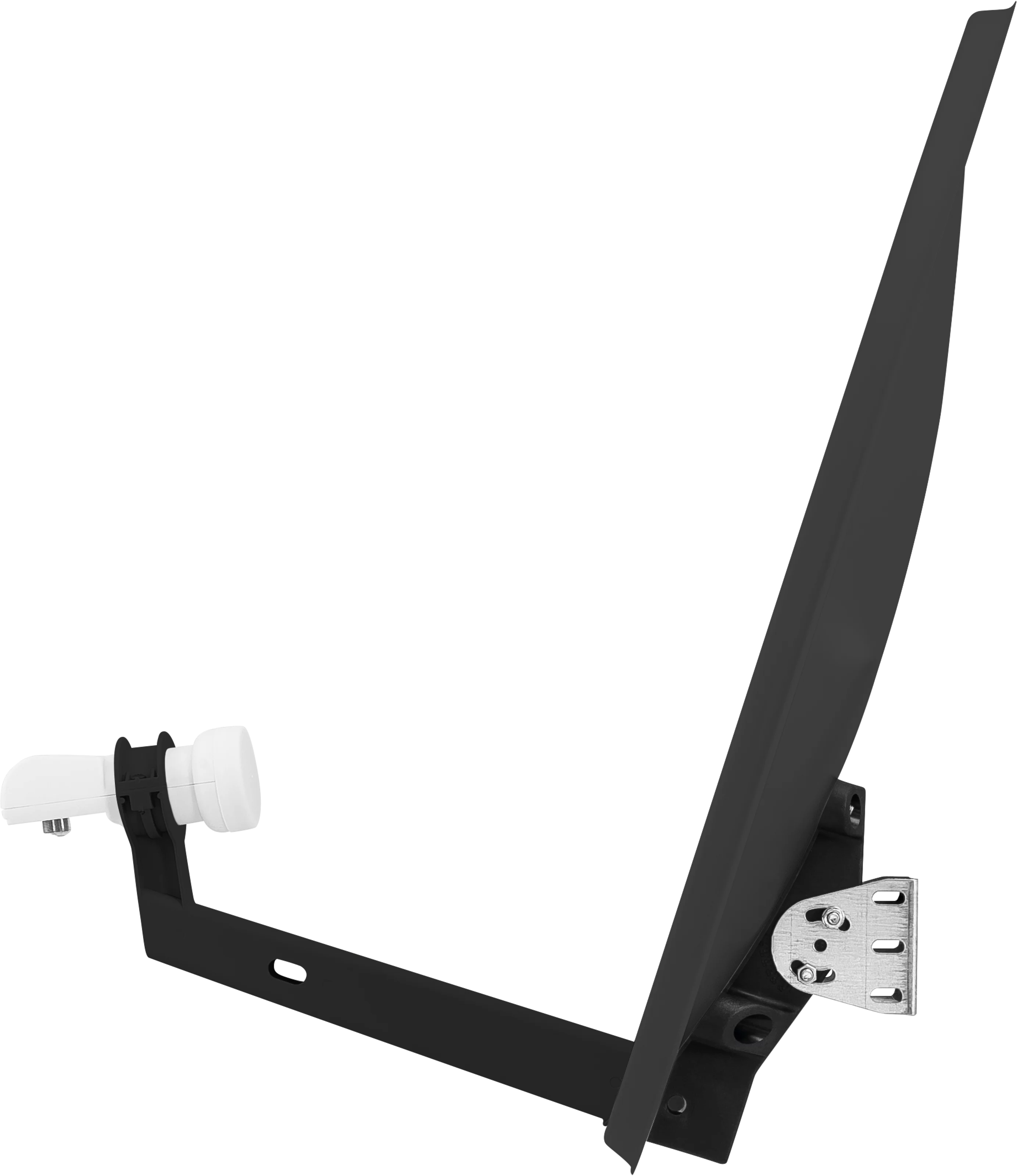

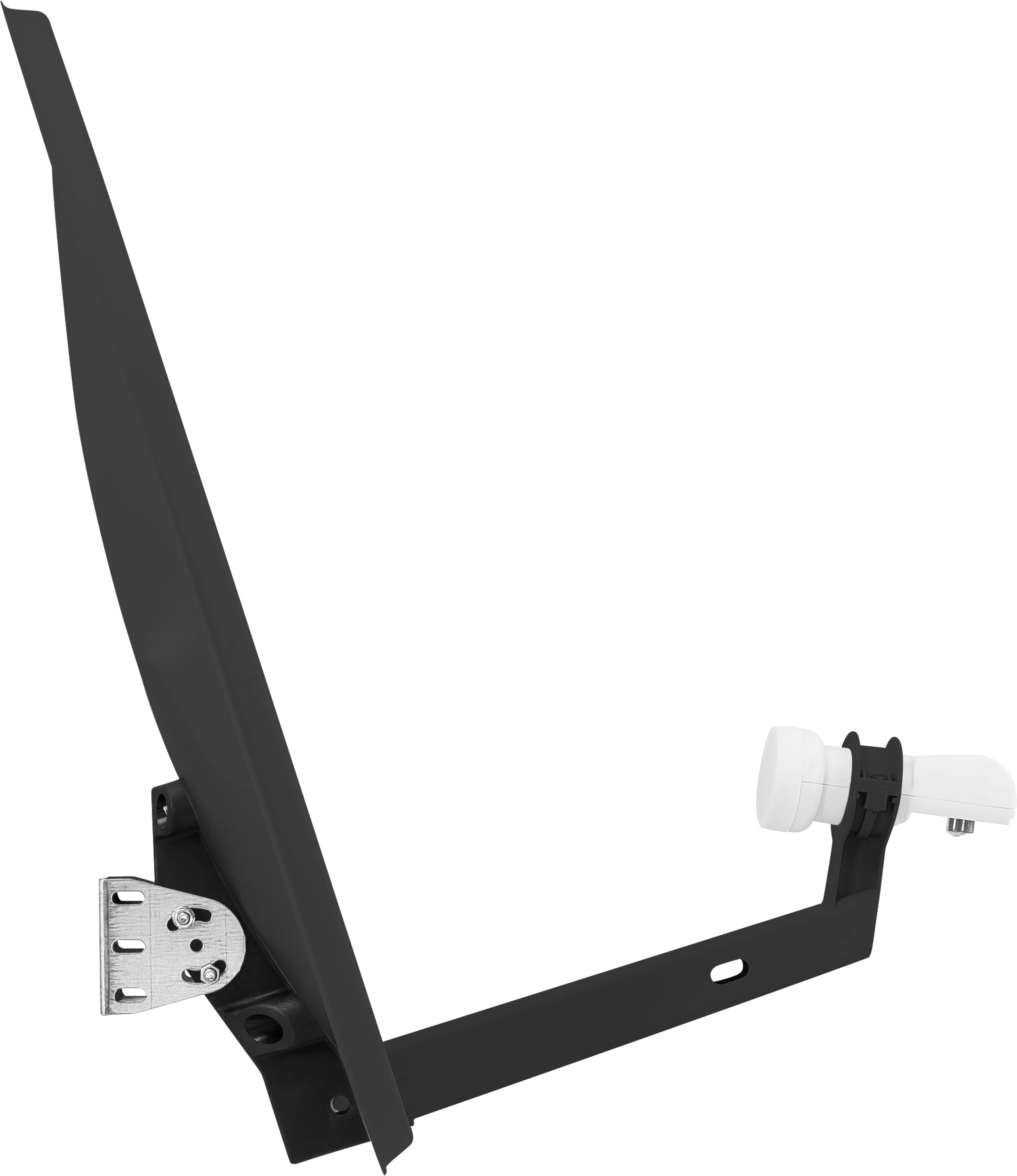

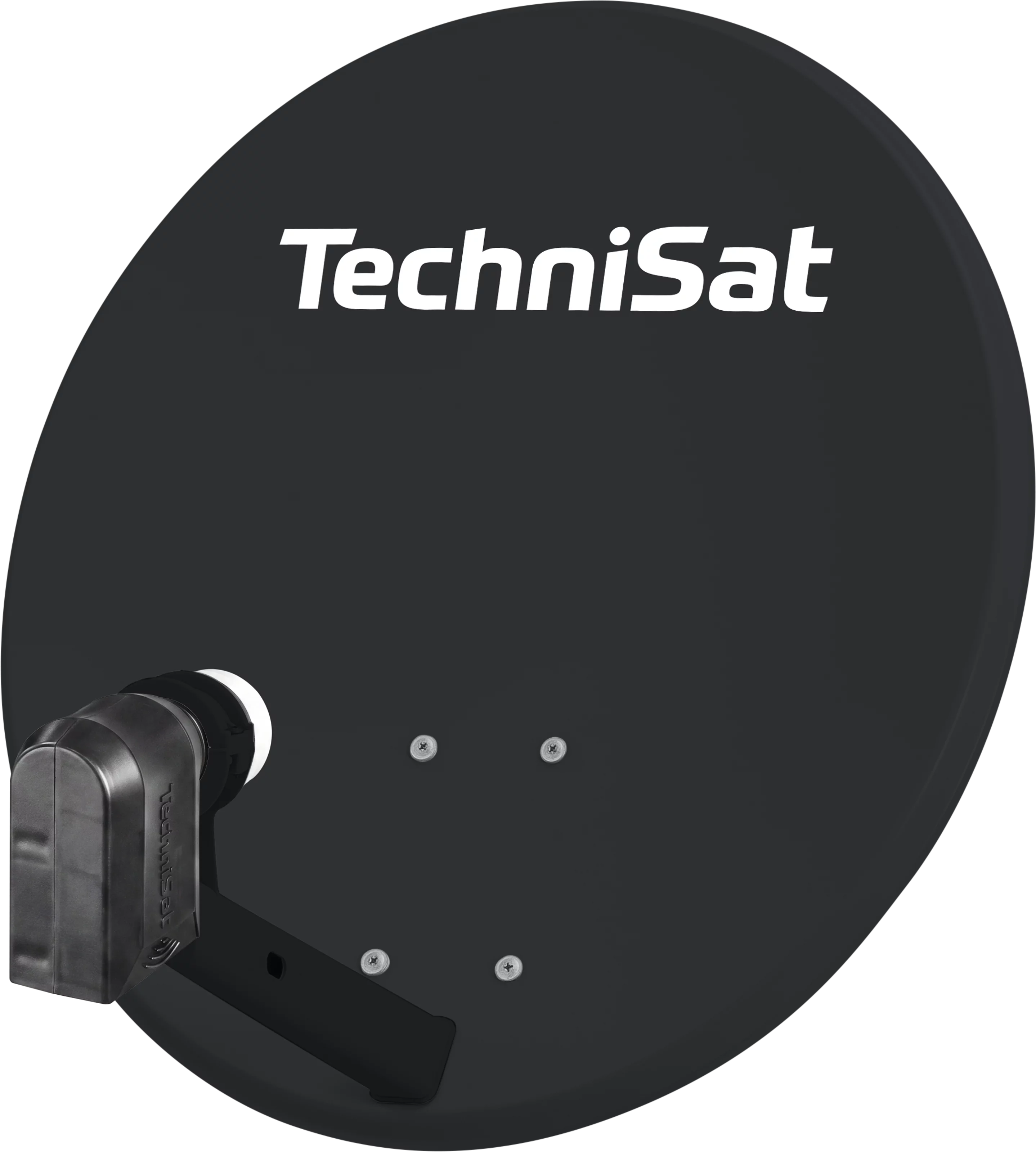

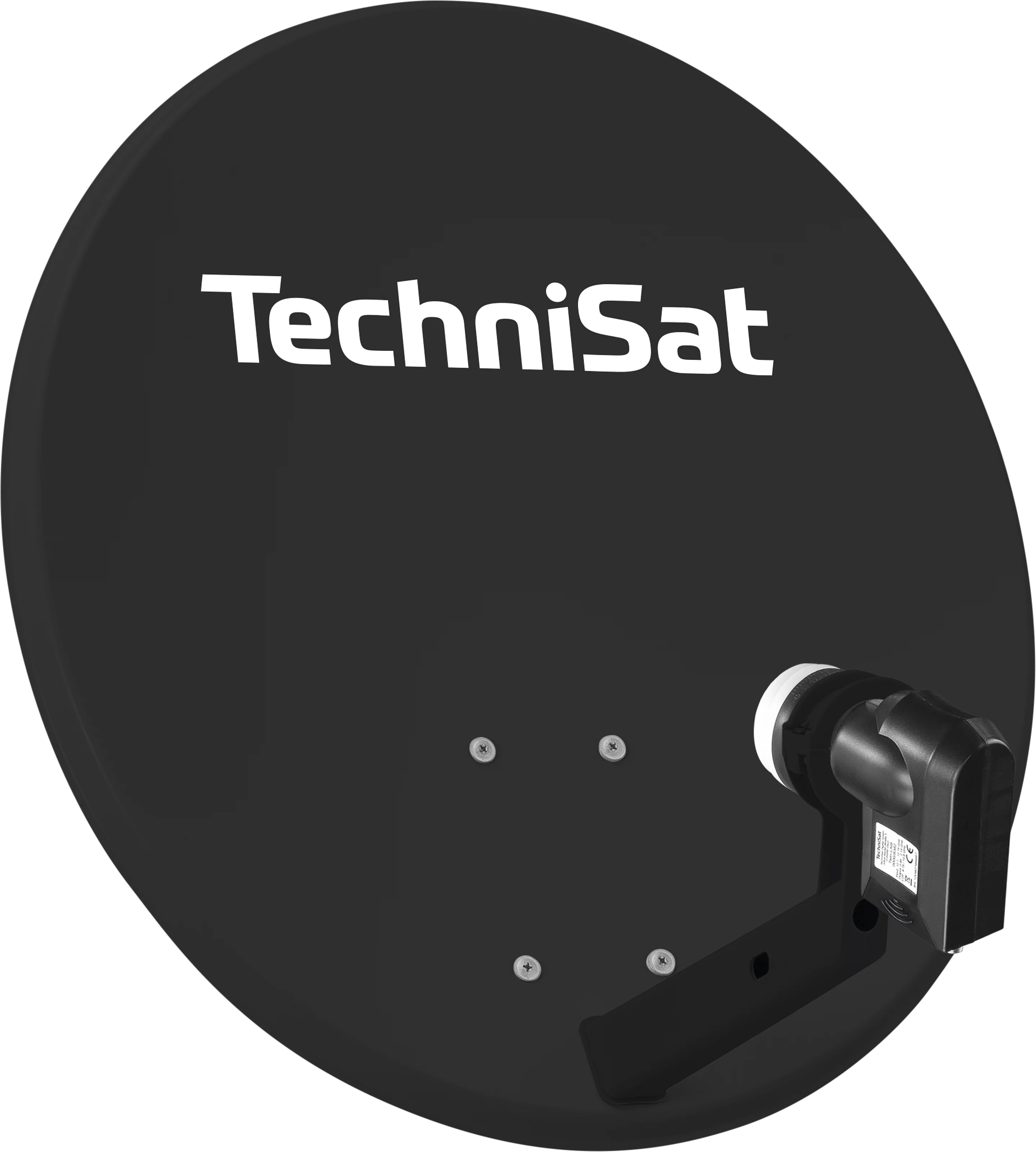

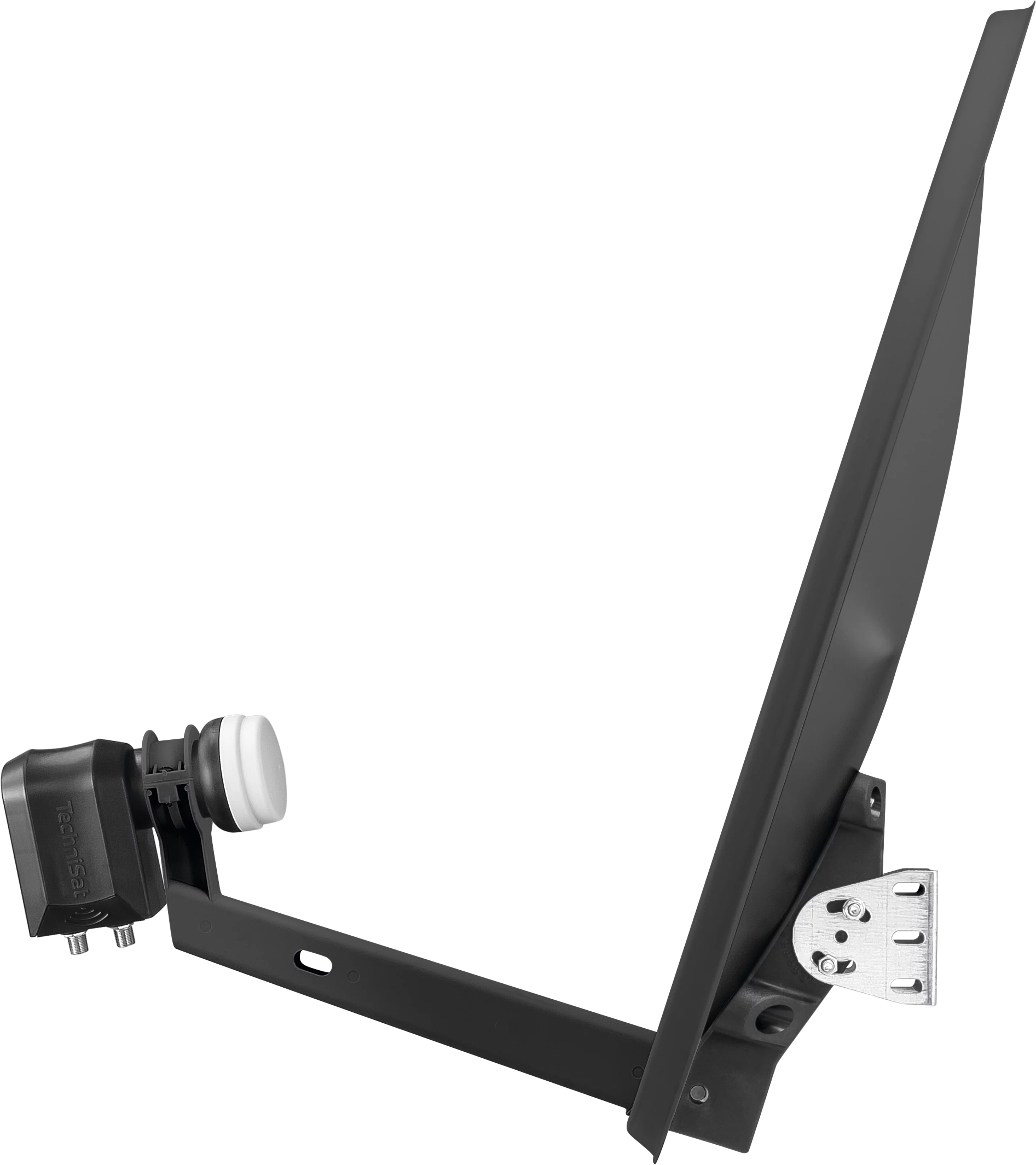

TECHNITENNE 60, Universal-Twin-LNB anthracite
€45.00*

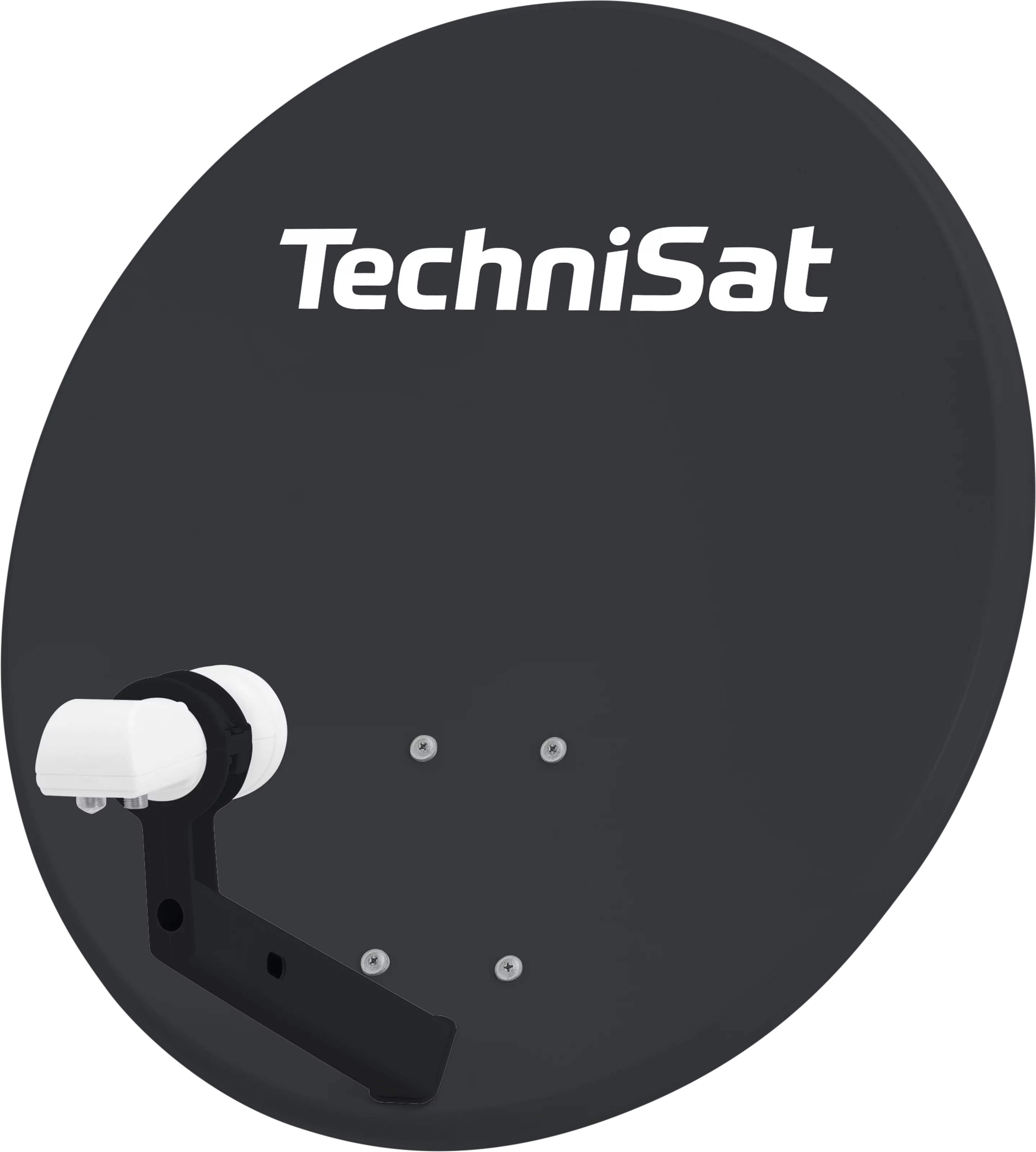

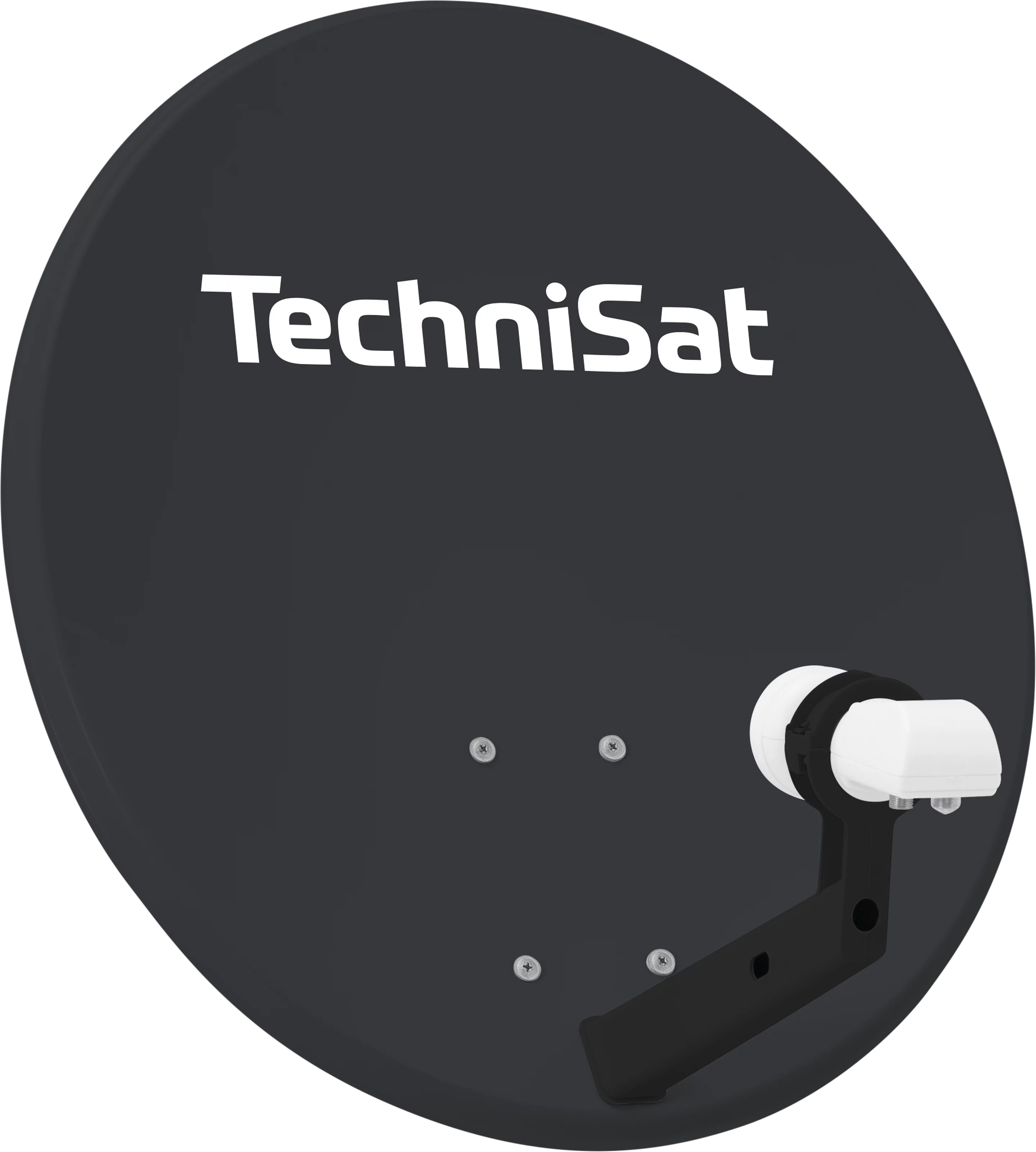

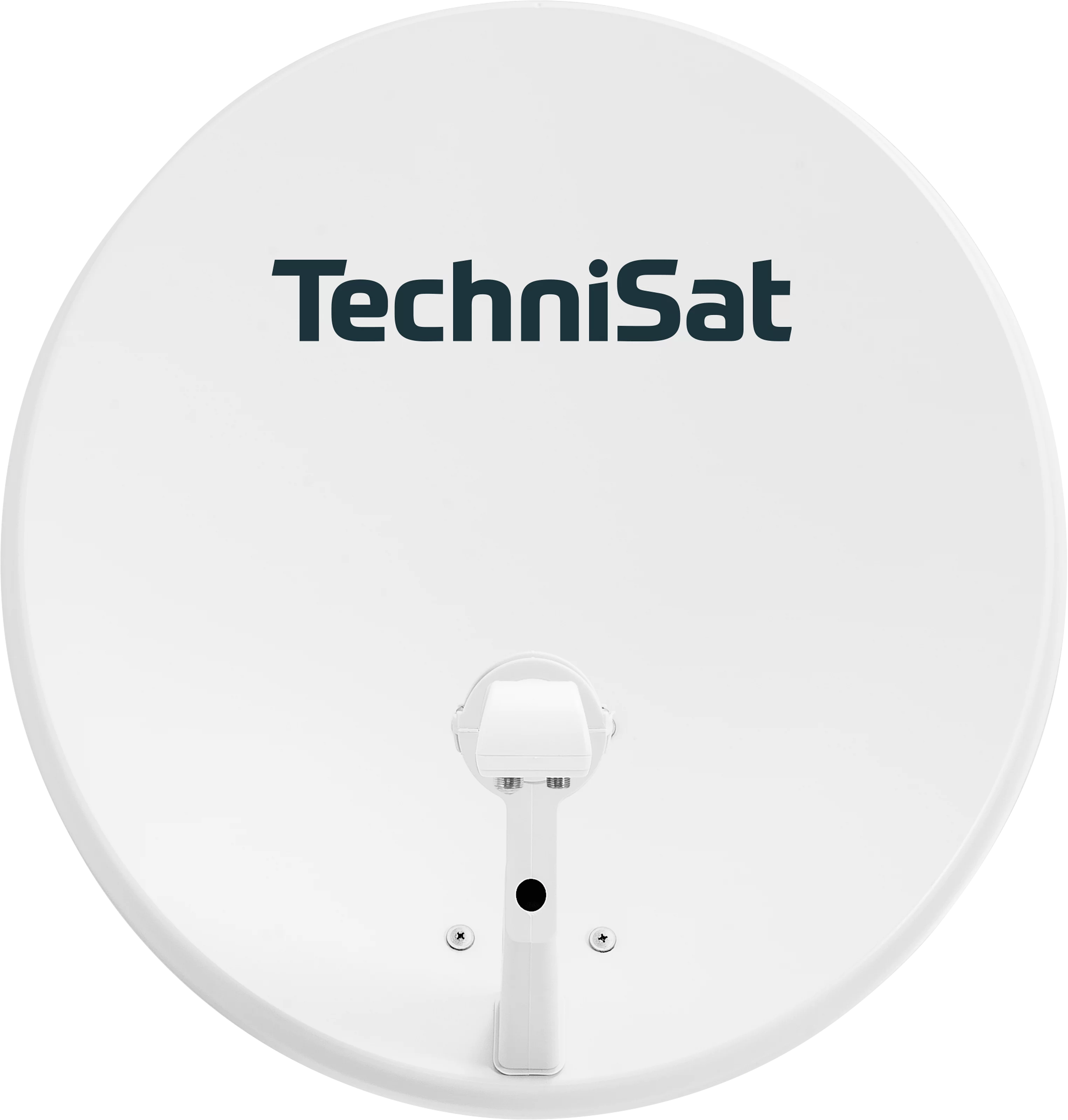

TECHNITENNE 60, Universal-Twin-LNB
60 cm digital satellite antenna made of steel with twin LNB
€45.00*
incl. VAT.
- Powerful: digital 60 cm satellite dish with 40 mm Twin LNB for easy connection of up to two receivers or TVs for optimal satellite reception with a wide variety of programs
- Easy installation: With the integrated mast mount (32 – 56 mm) and the included manual, mounting the satellite dish is quick and easy

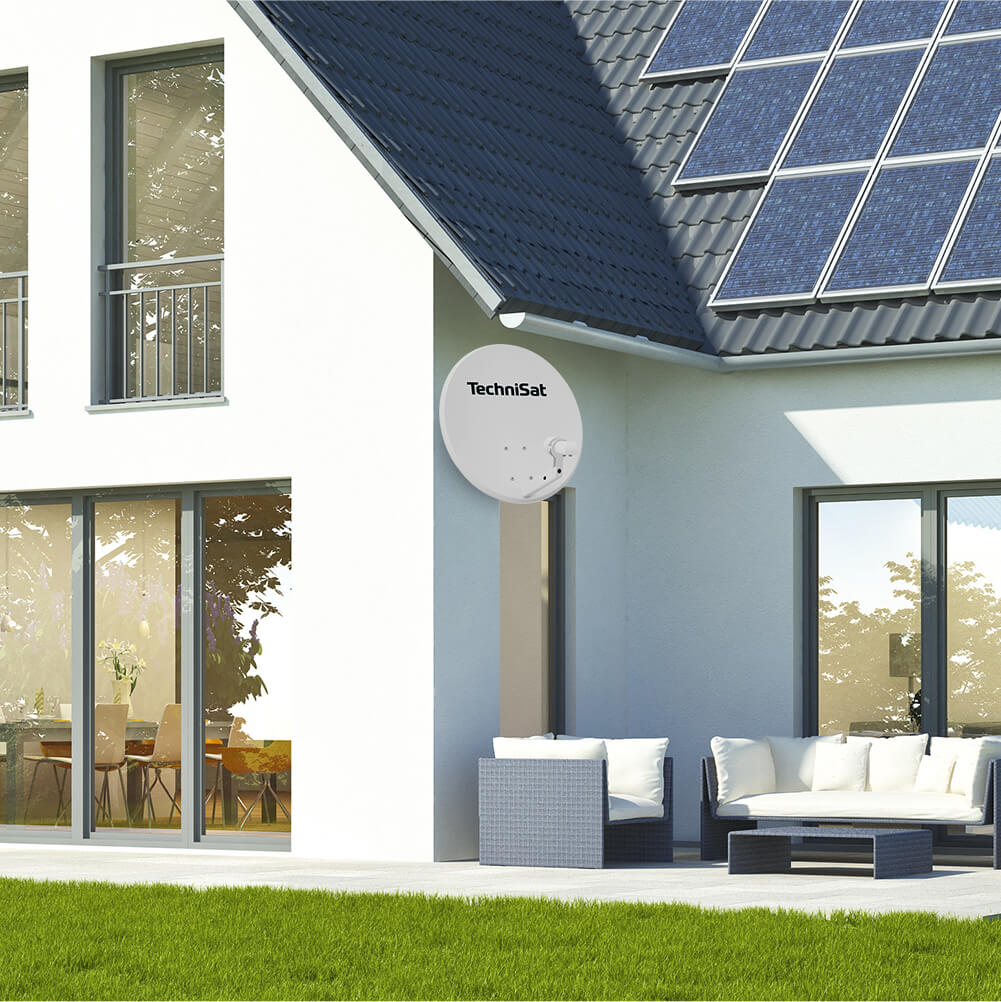

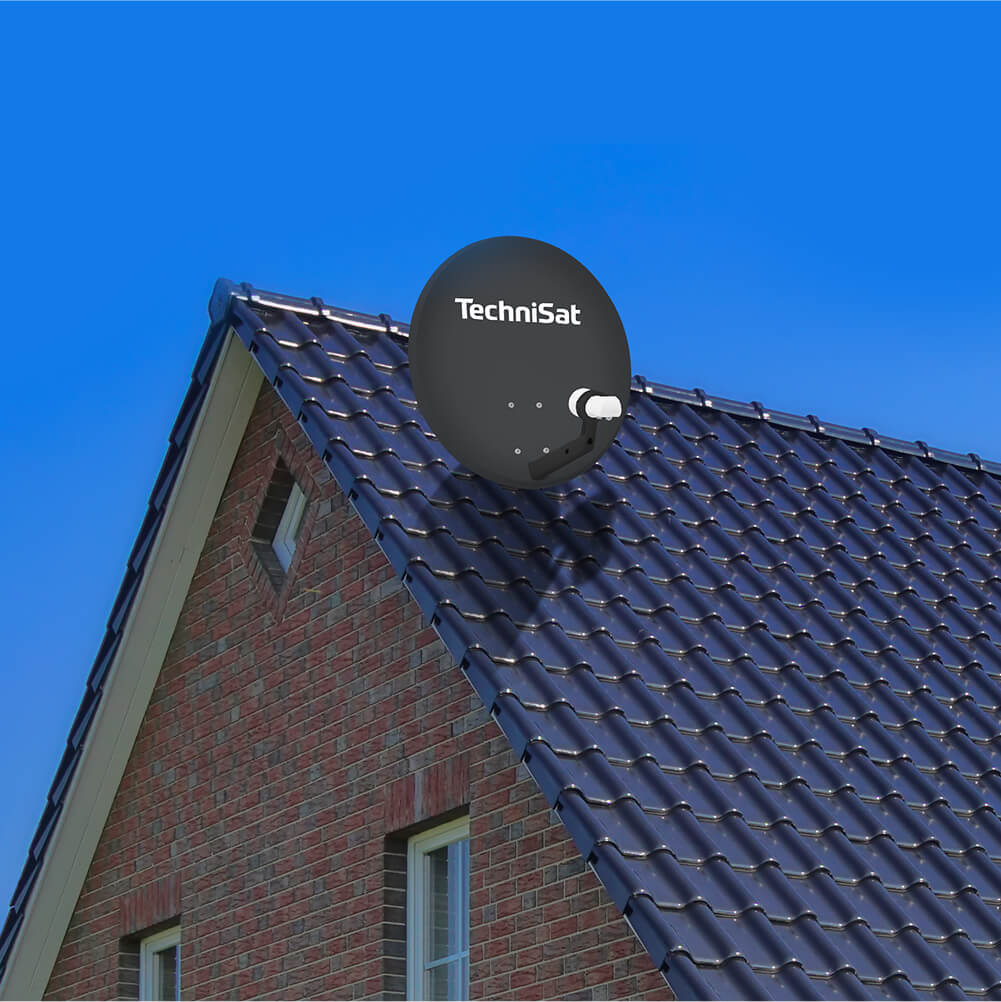

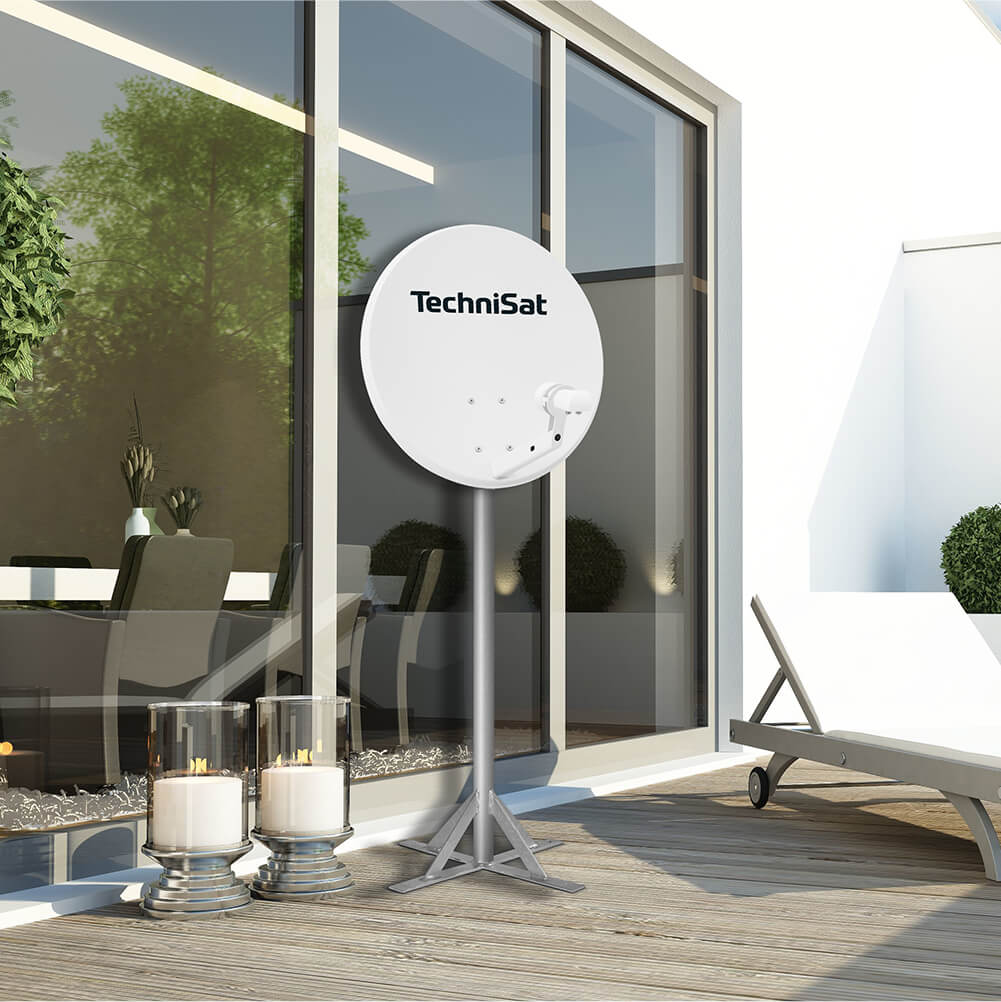

- Versatile: The stable satellite system can be mounted in various ways on the house. Suitable for roof or wall installation or mounting on a special ground stand
- Reception: The satellite dish with LNB is Ultra-HD compatible and provides stable, razor-sharp reception of one orbital position for up to two receivers/users
- Scope of delivery: TECHNITENNE 60 incl. mast mount, light gray, universal twin LNB, LNB holder with 40 mm feed holder, mounting instructions, product dimensions (WxHxD): 56 x 65 x 50 cm

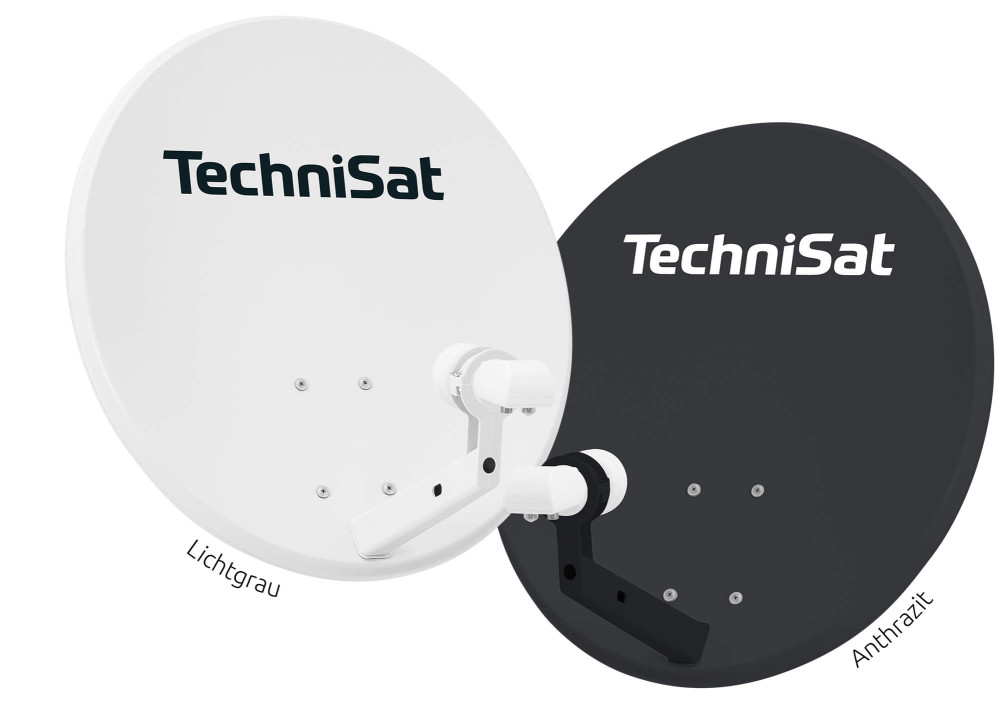

Die TECHNITENNE 60 ist in zwei Farben erhältlich.
Vielseitige Montagemöglichkeiten
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588136823 |
| Colour | anthracite |
| Item no. | 1360/2882 |
| Weight | 2,1 kg |
| Device (W x H x D) | 56 x 65 x 50 cm |
| Box | 58 x 65,4 x 13,4 cm |
| sonstiges | |
|---|---|
| bf_filter_austattung | with LNB |
| bf_filter_number_of_participants | 2 |
| bf_filter_diameter | 60 cm |
| bf_filter_number_satellites | 1 |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,6 GHz |
| Accuracy | ± 1 MHz |
| Temperature drift | ± 0,5 MHz |
| Phase noise | -75 @10kHz |
| LNB control | |
|---|---|
| Vertical | 10,5 ... 14 V |
| Horizontal | 16 ... 23 V |
| Band switch | 22 kHz |
| General characteristics | |
|---|---|
| Material | steel |
| Material strength | 0,5 mm |
| Coating | painted |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Technical data | |
|---|---|
| Rated measurement | 0,56 m |
| F/D | 0,49 |
| G/T | 14,5 |
| Gain | 35,3 dBi @11.30GHz |
| Offset angle | 27,77 ° |
| Mast Ø | 32 ... 50 mm |
| Feed reception | 40 mm |
| Outputs | 2 |
| Connector type | F female |
| Impedance | 75 Ω |
| Amplification | 58 ... 64 dB (LNB) |
