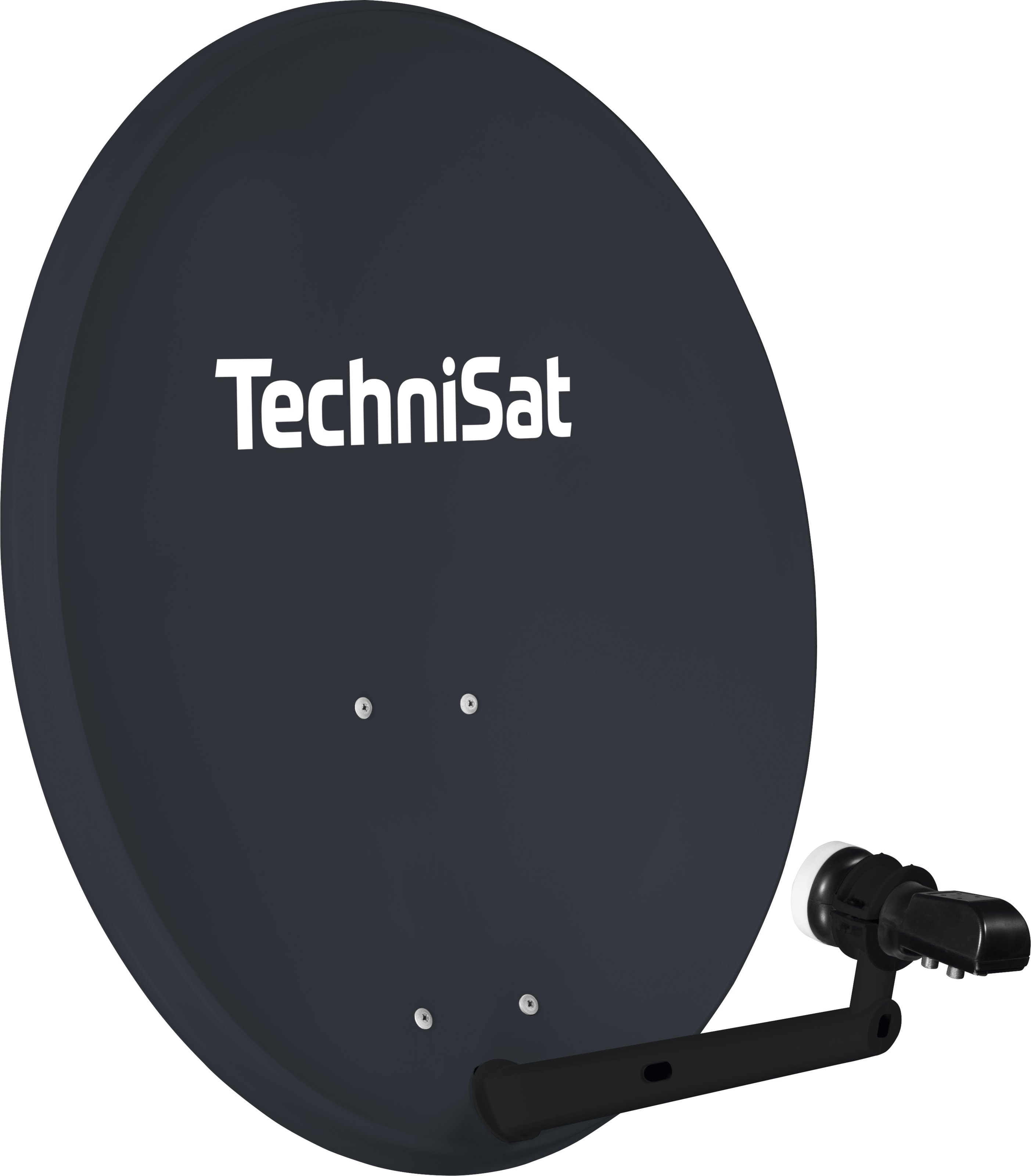

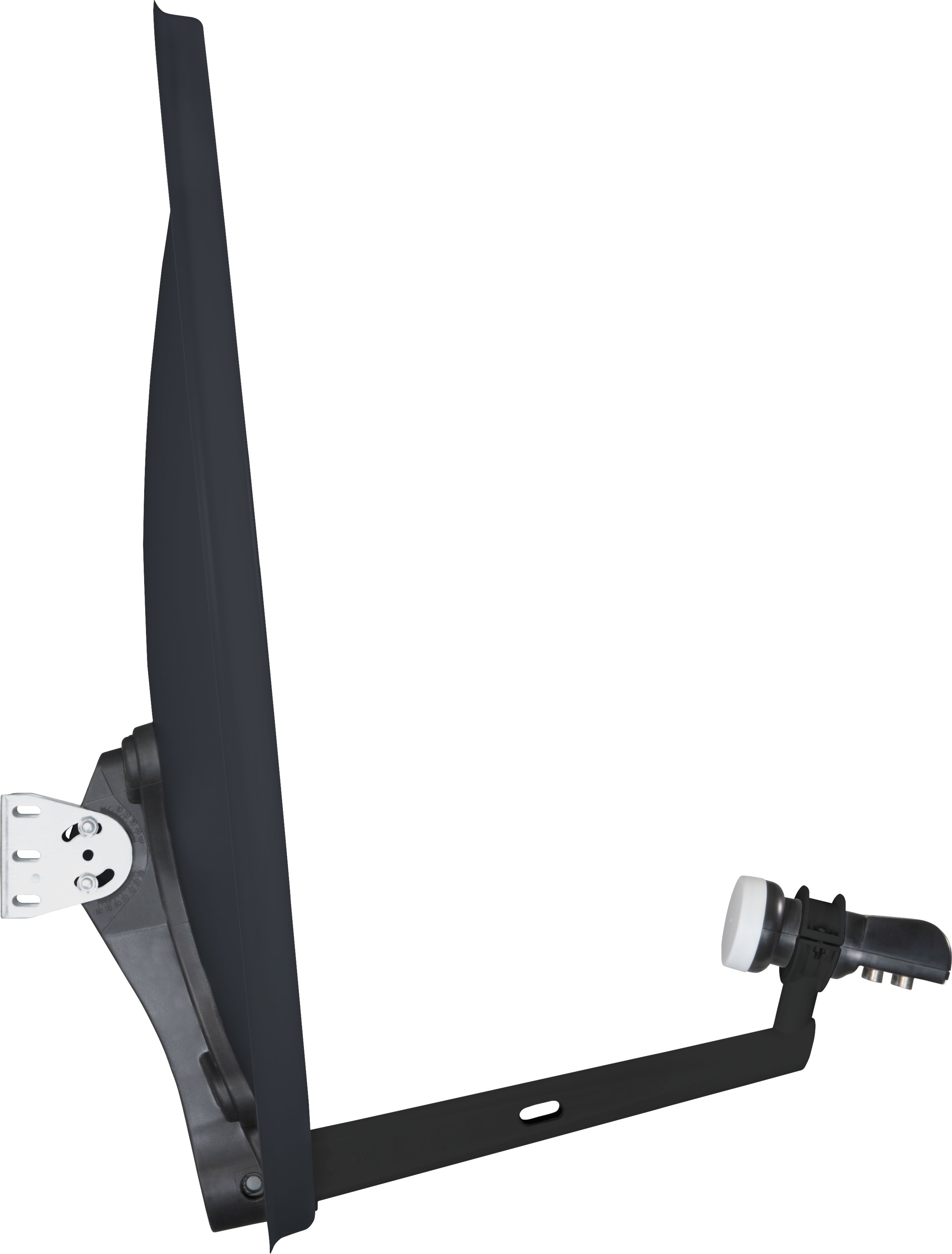

TECHNITENNE 70, Quattro-Switch-LNB anthracite
€65.00*
TECHNITENNE 70, Quattro-Switch-LNB
70 cm DigitalSat steel antenna
€65.00*
incl. VAT.
- Powerful: Digital 70 cm satellite dish with 40 mm Quattro switch LNB for easy connection of up to four receivers or TVs for optimal satellite reception with a wide variety of programs
TECHNITENNE 70, Universal Quattro Switch LNB, installation instructions
Quick Overview

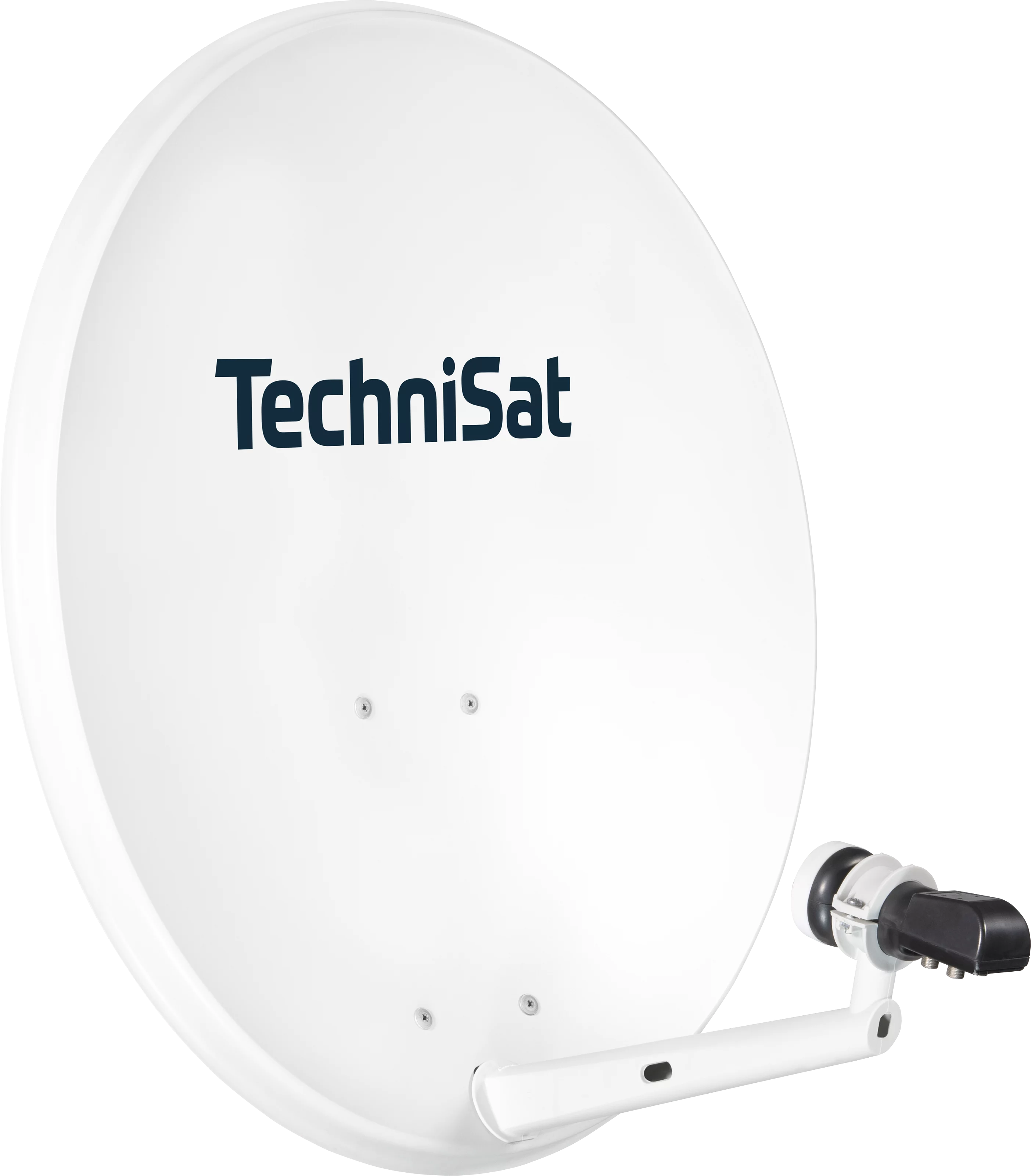

The 70 cm antenna dish is available in two different colors, allowing the outdoor unit to be selected to match the surroundings of the installation site. The LNB has four outputs, each of which can be directly connected to a receiver. All receivers are independent in their choice of channels, as the signals from the entire reception area are available at each of the four LNB outputs. However, two twin receivers can also be easily connected to the Quattro-Switch LNB instead of four individual units.
| Product Information | |
|---|---|
| Colour | anthracite |
| EAN | 4019588378988 |
| Item no. | 1370/8980 |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,6 GHz |
| Accuracy | ± 1 MHz |
| Temperature drift | ± 1 MHz |
| Phase noise | -80 @10kHz |
| Filter-Navigation | |
|---|---|
| Number participants | 4 |
| Diameter | 70 cm |
| Features | with LNB |
| Number satellites | 1 |
| LNB control | |
|---|---|
| Vertical | 10,5 ... 14 V |
| Horizontal | 16 ... 19,5 V |
| Band switch | 22 kHz |
| General characteristics | |
|---|---|
| Material | steel |
| Material strength | 0,5 mm |
| Coating | painted |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Number of clients | 4 |
| Technical data | |
|---|---|
| Rated measurement | 0,63 m |
| F/D | 0,49 |
| G/T | 14,7 |
| Gain | 36,5 dBi @11,3GHz |
| Offset angle | 27,77 ° |
| Mast Ø | 32 ... 50 mm |
| Feed reception | 40 mm |
| Outputs | 4 |
| Connector type | F female |
| Impedance | 75 Ω |
| Amplification | 55 ... 67 dB (LNB) |
