Inline Block Amplifier 2150 silver
€19.00*
Inline Block Amplifier 2150
20 dB amplifier for Sat signals
€19.00*
incl. VAT.
- Easy installation
- 20 dB gain
- Power supply via coaxial cable.
Inline-Blockverstärker 2150

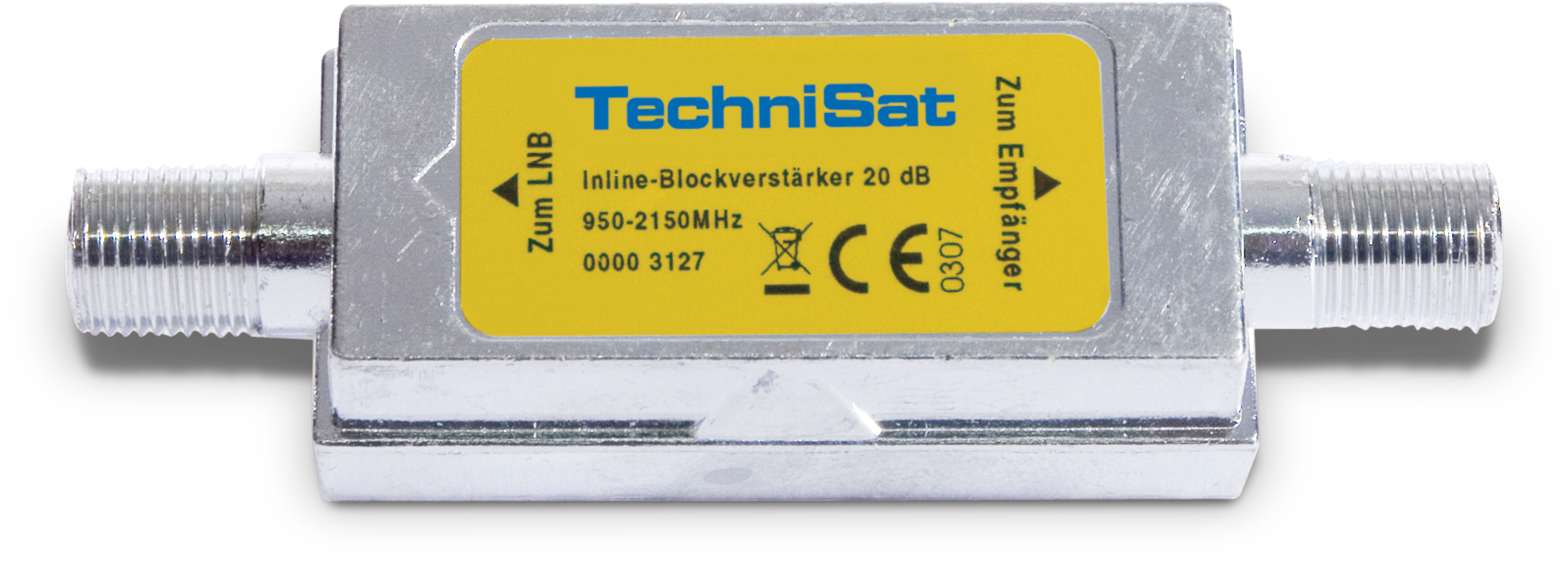

TechniSat Inline Block Amplifier are used to amplify the 1. Intermediate Frequency (950 - 2150 MHz). The level of amplification is 20 dB. Operating current is supplied to theInline Block Amplifier via the coaxial cable.
| Product Information | |
|---|---|
| EAN | 4019588131279 |
| Item no. | 0001/3127 |
| Colour | silver |
| Weight (Box) | 22 g |
| Weight | 22 g |
| DC outlet | |
|---|---|
| SAT | Ja |
| Technical data | |
|---|---|
| Frequency range | 950 ... 2.150 MHz |
| Amplification | 20 dB |
| Shielding factor | ≥ 75 dB EN 50083-2 (Class A) |
| Noise factor | 6 dB |
| Impedance | 75 Ω |
| Input level | max. 86 |
| Output level | max. 106 |
| Current consumption | 40 ... 60 mA @18VDC |
| Voltage supply | 11 ... 20 VDC |
| Connector type | F female/F female |
| Return loss | 8 dB |
