DIGITENNE TT2 black
€25.00*
DIGITENNE TT2
Indoor antenna with built-in amplifier for the reception of DVB-T, DAB+ and FM
€25.00*
incl. VAT.
- Adjustable 36 dB full-band amplifier antenna with LTE4 filter for receiving TV via DVB-T/DVB-T2, DAB+ digital radio, and FM signals
- The active indoor dipole antenna DIGITENNE TT2, with power supply and adjustable amplifier performance, receives digital TV programs via DVB-T even with weak signal at the location
- The antenna receives DAB+ radio in the best digital quality and is also suitable for FM reception. Power is supplied via the integrated power supply
- An additional LTE4 filter prevents interference from mobile signals, providing the DIGITENNE with optimal reception quality and signal amplification
- Scope of delivery: TechniSat DIGITENNE TT2, black, user manual, product dimensions (WxHxD): 29.5 x 33.2 x 11.3 cm
DIGITENNE TT2, user manual

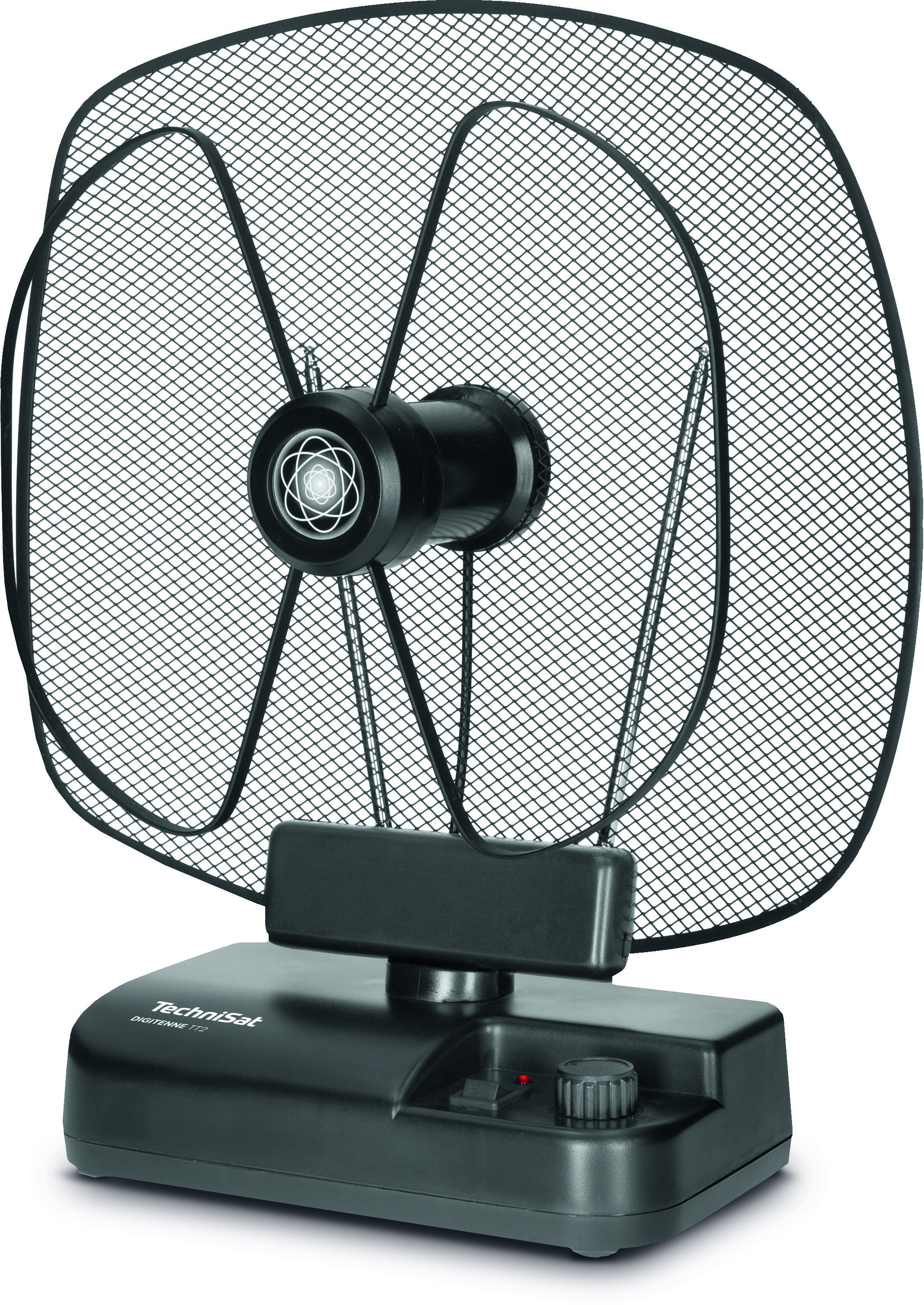

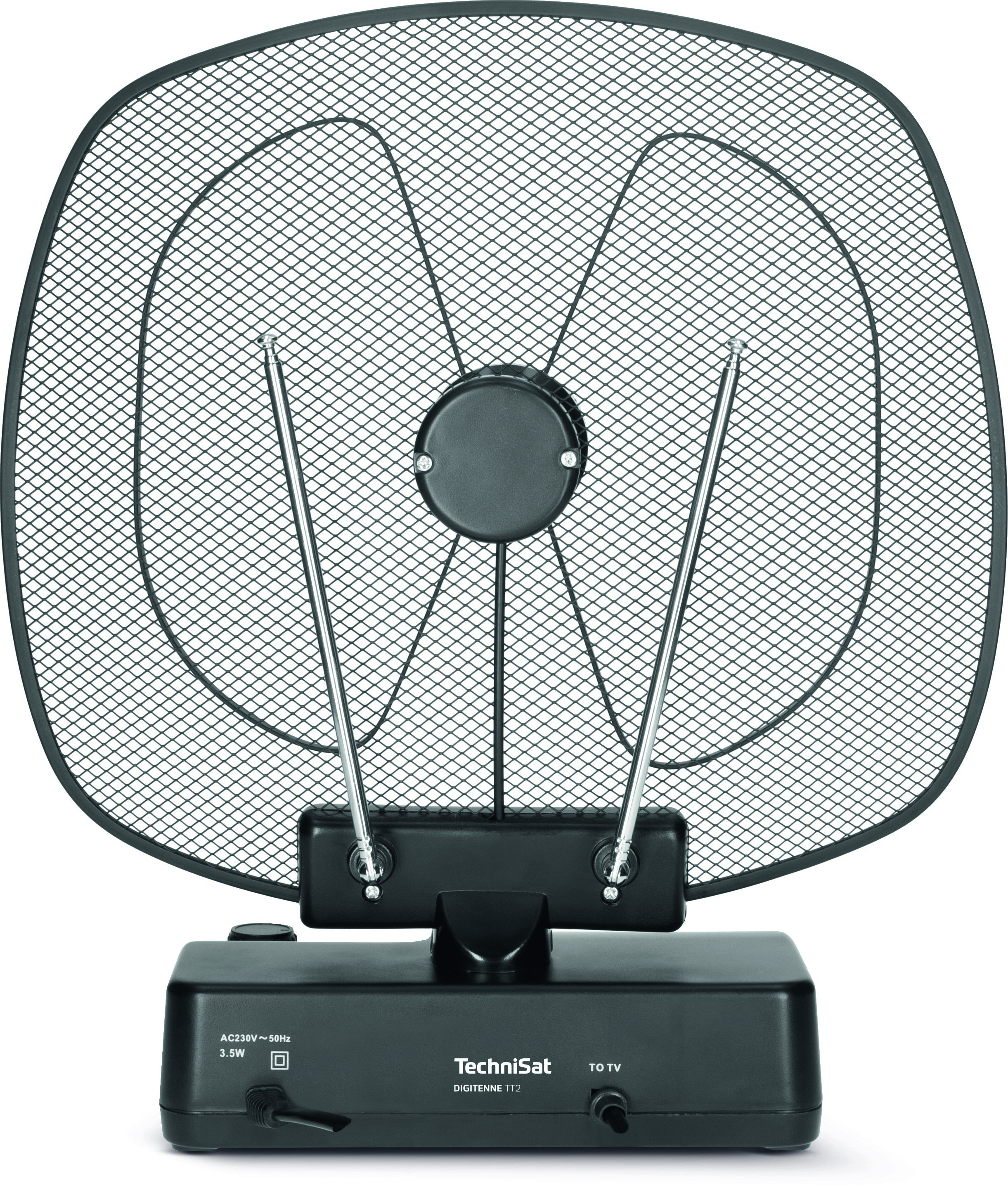

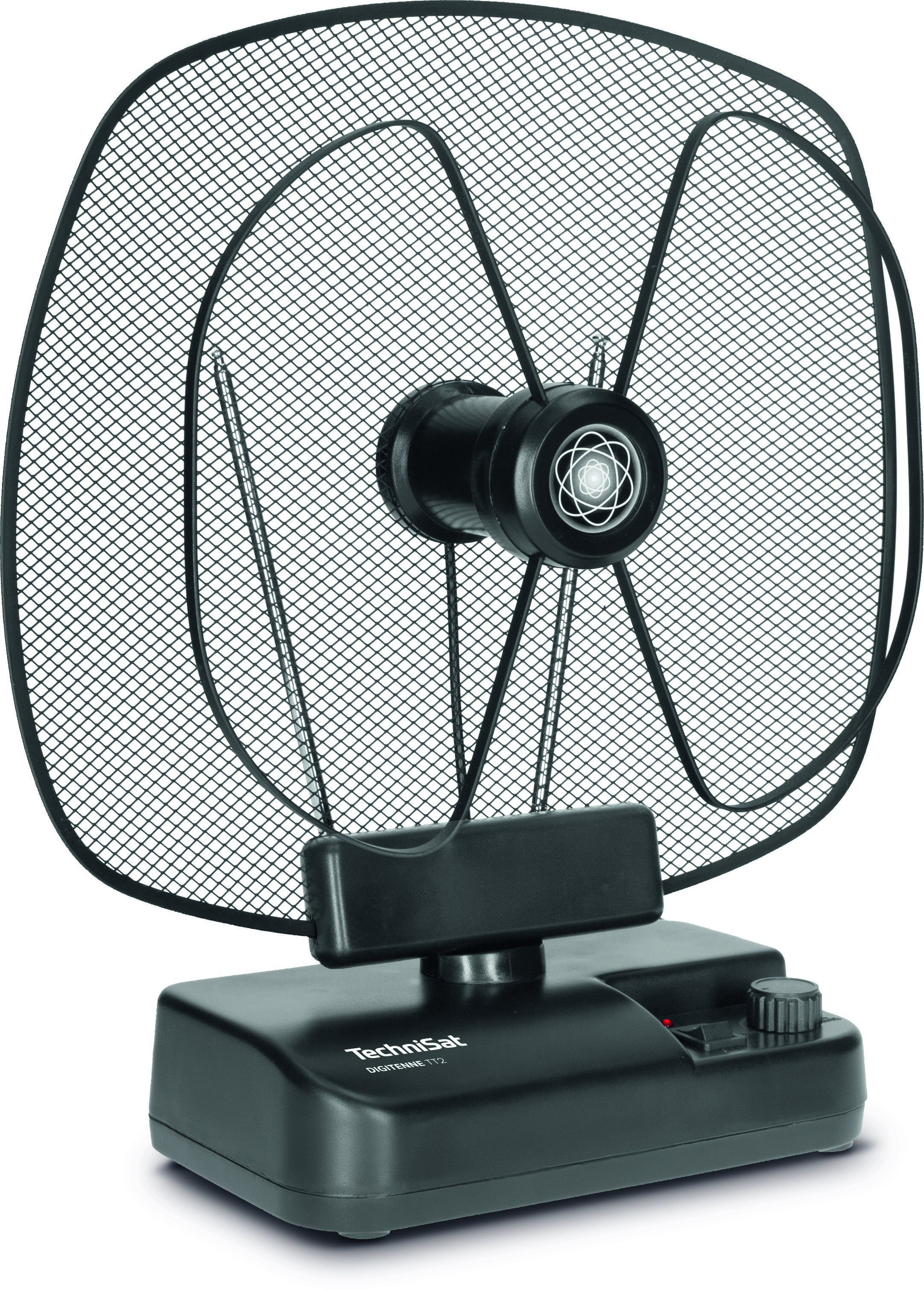

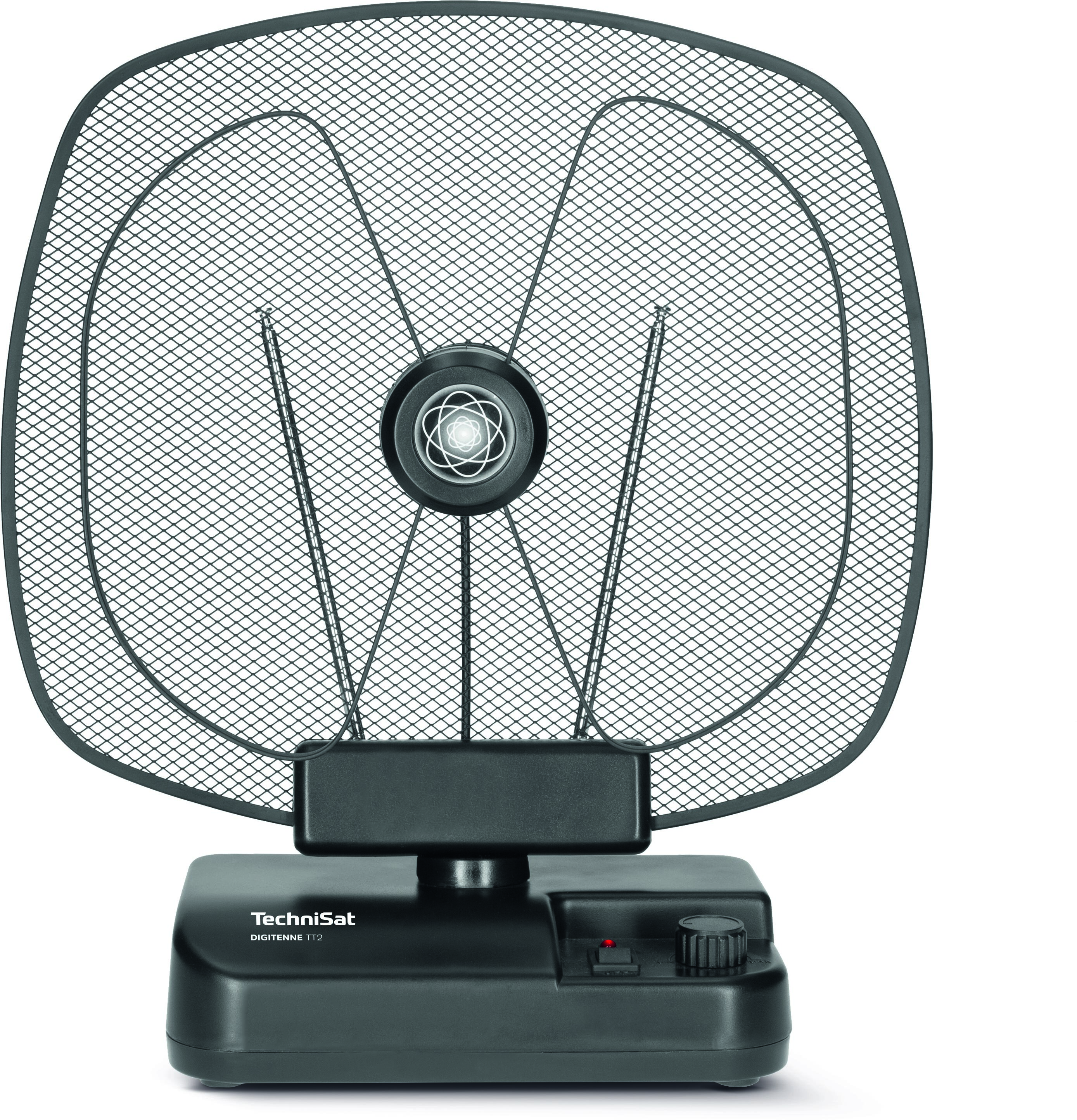

The adjustable indoor antenna DIGITENNE TT2 receives digital TV programs via DVB-T even when reception is weaker at the location. The active dipole antenna with up to 36 dB adjustable amplifier power only needs to be aligned in the direction of the strongest DVB-T signal and connected to the antenna socket of your DVB-T receiver or TechniSat digital television. In addition, the antenna receives DAB + radio in the best digital quality. and is also suitable for FM reception. An additional built-in LTE4 filter also prevents interference from cell phone signals. The DIGITENNE TT2 thus offers the best possible reception quality and signal amplification.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588432000 |
| Colour | black |
| Item no. | 0004/3200 |
| Weight (Box) | 882 g |
| Weight | 636 g |
| Device (W x H x D) | 29,5 x 33,2 x 11,3 cm |
| Box | 28,5 x 35 x 12,75 cm |
| Amplification | |
|---|---|
| UKW | 30 dB (adjustable) |
| VHF | 30 dB (adjustable) |
| UHF | 36 dB (adjustable) |
| Power supply | |
|---|---|
| Mains adapter | intern |
| Nominal voltage | 230 V |
| Frequency | 50 ... 60 Hz |
| Effective output | 3,5 W |
| Reception range | |
|---|---|
| UKW | 87,5 ... 108 MHz |
| VHF | 108 ... 230 MHz |
| UHF | 470 ... 790 MHz |
| Technical data | |
|---|---|
| Noise factor | < 5 dB |
| Protection class | IP20 |
| Connector type | IEC |
| Impedance | 75 Ω |
