DIGIFLEX TT5 black
€16.00*

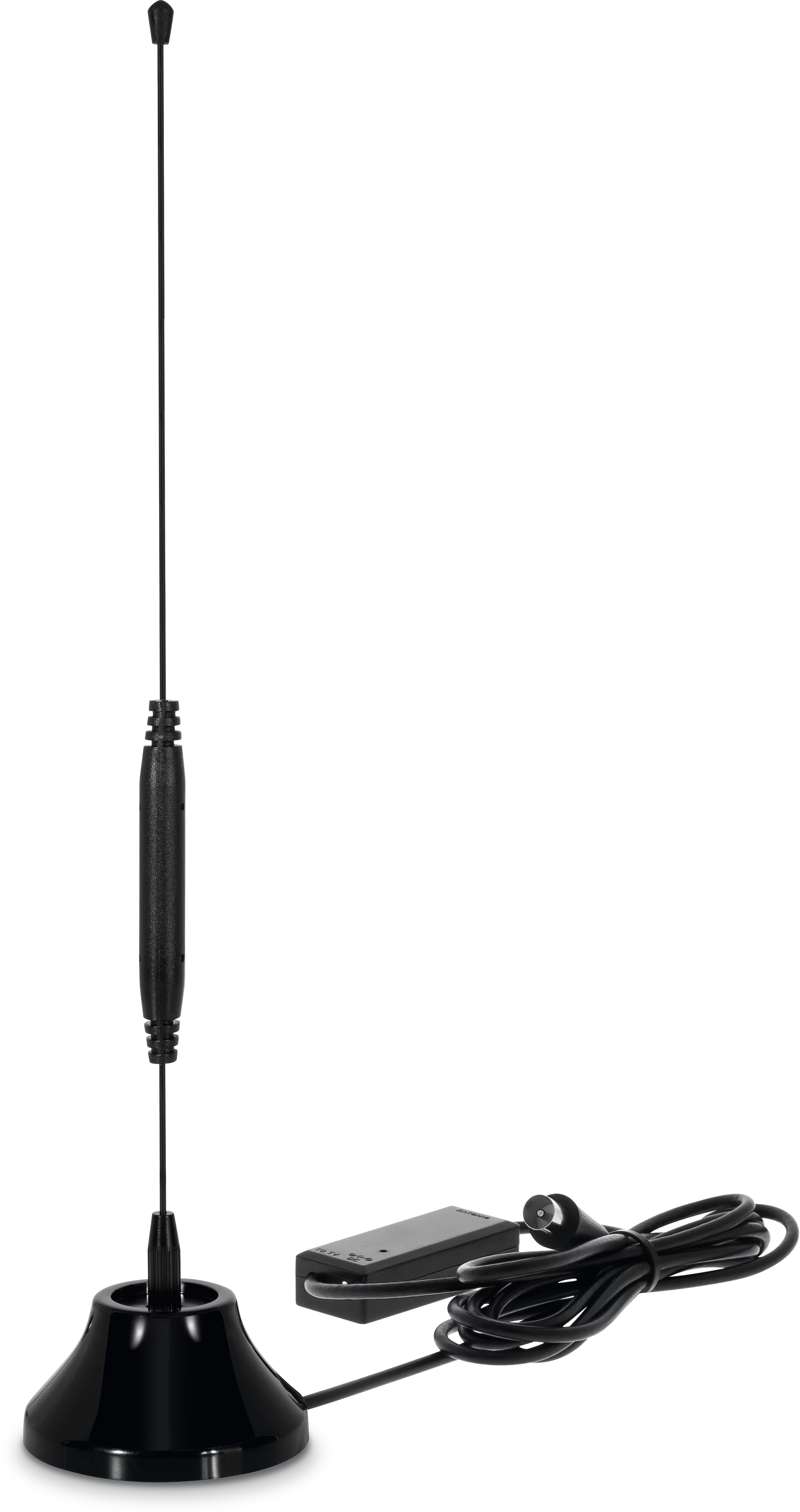

DIGIFLEX TT5
Active rod antenna with built-in amplifier for the reception of DVB-T and DAB+
€16.00*
incl. VAT.
- Compact active indoor antenna for receiving digital television via DVB-T2 and digital radio via DAB+/FM without an outdoor antenna
- Easy installation via the antenna socket of the receiver and stable placement thanks to the built-in magnet in the antenna base
- Strong reception: The LTE filter eliminates interference from mobile signals and, together with the signal amplifier, ensures strong and stable reception
- The antenna is powered by the connected receiving device – 5 volts (40 mA); Reception range: VHF: 87.5 … 230 MHz, UHF: 470 … 790 MHz
- Note: When using with DAB+ receivers, the antenna input of the DAB+ radio must supply 5 V power to the antenna; otherwise, it will not work
Rod antenna, base with antenna cable and amplifier, Quick Start Guide
The compact, indoor antenna DIGIFLEX TT5 receives digital TV programs, that can be received via DVB-T2, in many places, even without an external antenna. In addition, the antenna is ideal for receiving DAB + radio in the best digital quality.
The active amplifier antenna is easy to install and only needs to be connected to the antenna socket of your DVB-T2 receiver, TechniSat digital television or DAB + receiver. An additional built-in LTE filter also filters out interference from cell phone signals.
The integrated signal amplifier with 26 dB power is supplied directly from the connected receiver with the required supply voltage of 5 volts (40 mA). The DIGIFLEX TT5 thus guarantees strong and stable reception.
When using with DAB + receivers, note that the antenna connection of the DAB + receiver must provide the 5 V supply voltage for the antenna! Otherwise it won't work.
The DIGIFLEX TT5 has a magnet built into the base.
The active amplifier antenna is easy to install and only needs to be connected to the antenna socket of your DVB-T2 receiver, TechniSat digital television or DAB + receiver. An additional built-in LTE filter also filters out interference from cell phone signals.
The integrated signal amplifier with 26 dB power is supplied directly from the connected receiver with the required supply voltage of 5 volts (40 mA). The DIGIFLEX TT5 thus guarantees strong and stable reception.
When using with DAB + receivers, note that the antenna connection of the DAB + receiver must provide the 5 V supply voltage for the antenna! Otherwise it won't work.
The DIGIFLEX TT5 has a magnet built into the base.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588060258 |
| Colour | black |
| Item no. | 0000/6025 |
| Weight (Box) | 230 g |
| Weight | 152 g |
| Device (W x H x D) | 7 x 34,5 x 7 cm |
| Box | 7,5 x 32,5 x 5,5 cm |
| Amplification | |
|---|---|
| VHF | 24 dB |
| UHF | 26 dB |
| General characteristics | |
|---|---|
| Cable length | 2 m |
| Power supply | |
|---|---|
| Antenna feed | 5V by the receiver |
| Reception range | |
|---|---|
| VHF | 87,5 ... 230 MHz |
| UHF | 470 ... 790 MHz |
| Technical data | |
|---|---|
| Noise factor | 3,5 dB |
| Protection class | IP20 |
| Connector type | IEC |
| Impedance | 75 Ω |
