LTE blocking filter LPF694
€18.00*
€19.00
LTE blocking filter LPF694
Blocking filter for LTE mobile frequencies
%
€18.00*
€19.00
(5.26% saved)
incl. VAT.
- For protection against LTE interference during DVB-T2 reception
- For all DVB-T2 receivers and TVs with F-connector
- DC pass-through, easy installation
- Waterproof according to IP67 thanks to O-ring – also suitable for outdoor use

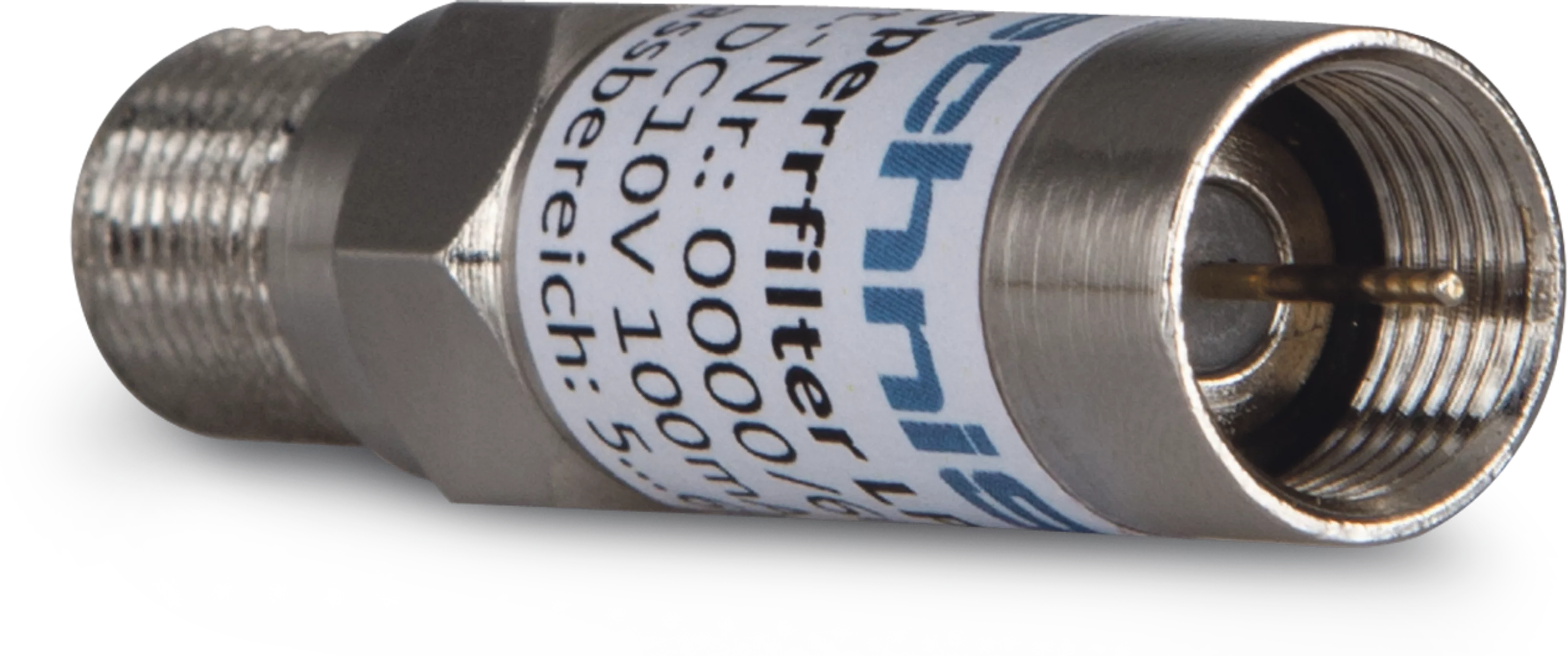

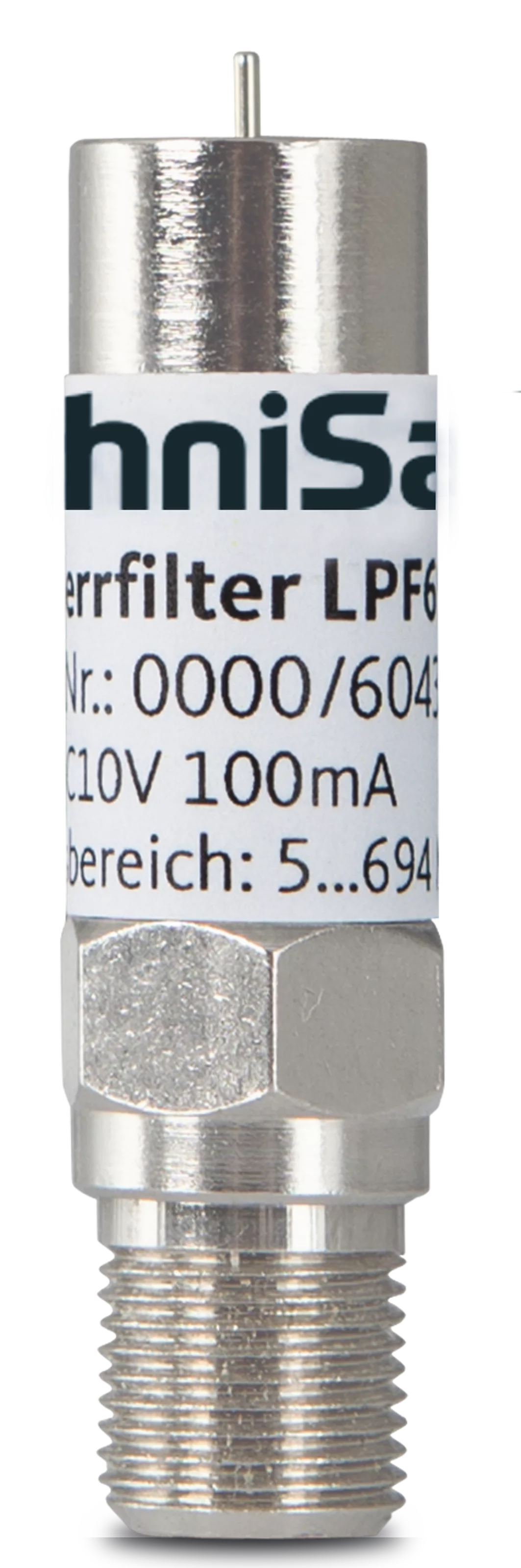

LTE blocking filter LPF694
LTE is the transmission standard for mobile internet and its transmission range borders directly on the frequency range used for DVB-T2. LTE transmission signals have a very high signal strength and can interfere with DVB-T2 reception. With an LTE filter, you reduce the LTE signal level at your receiving device to such an extent that interference-free DVB-T2 reception is possible.
| Product Information | |
|---|---|
| EAN | 4019588060432 |
| Colour | silver |
| Item no. | 0000/6043 |
| Weight (Box) | 32 g |
| Weight | 14 g |
| Device (W x H x D) | 4,5 x 1 x 1 cm |
| Box | 8 x 5 x 6 cm |
| DC outlet | |
|---|---|
| Terrestrial | 10V/100mA |
| Technical data | |
|---|---|
| Frequency range | 5 ... 694 MHz |
| Transmission loss | < 2 dB |
| Shielding factor | > 100 dB |
| Protection class | IP67 |
| Connector type | F female/F male |
| Impedance | 75 Ω |
