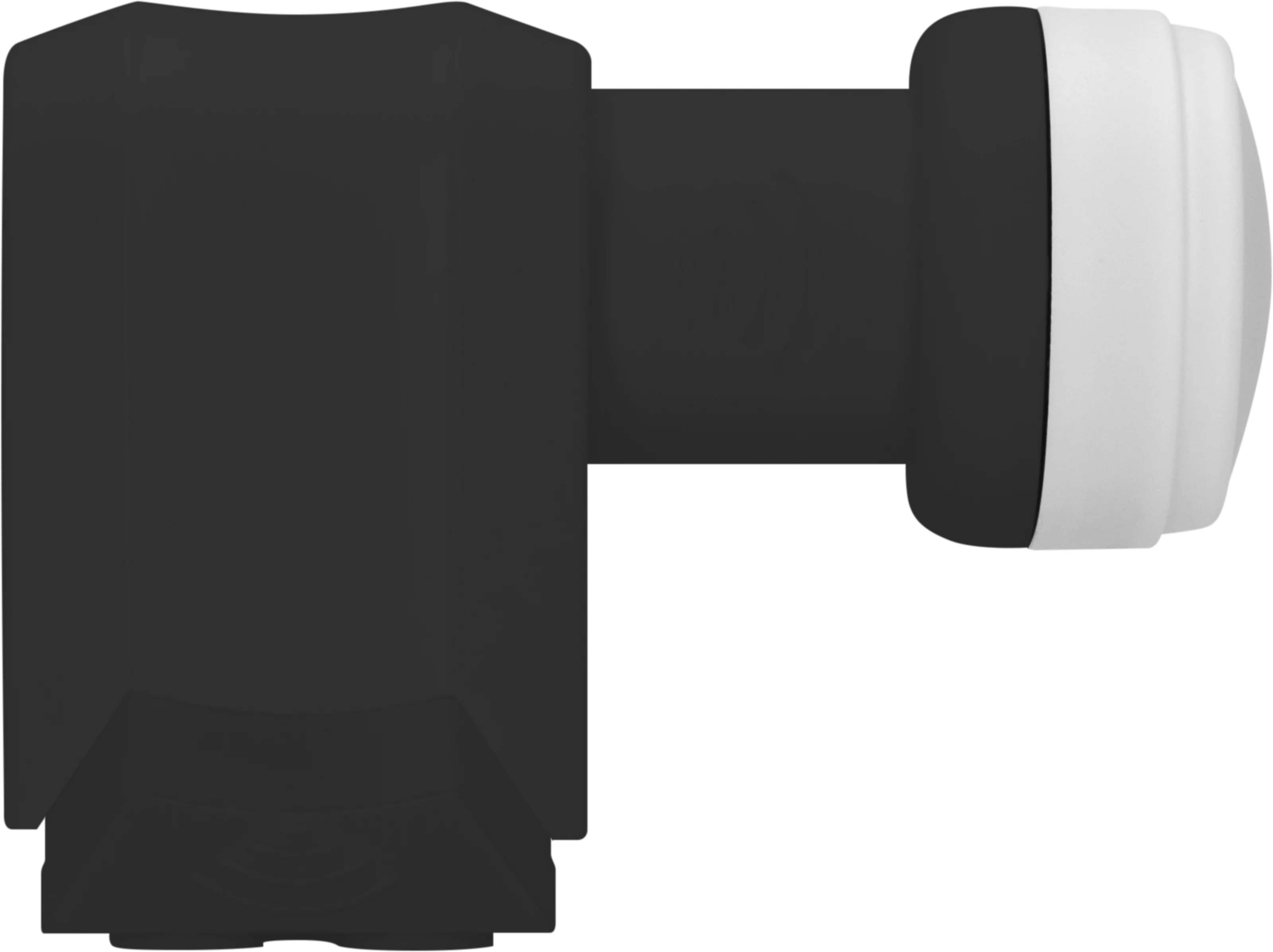

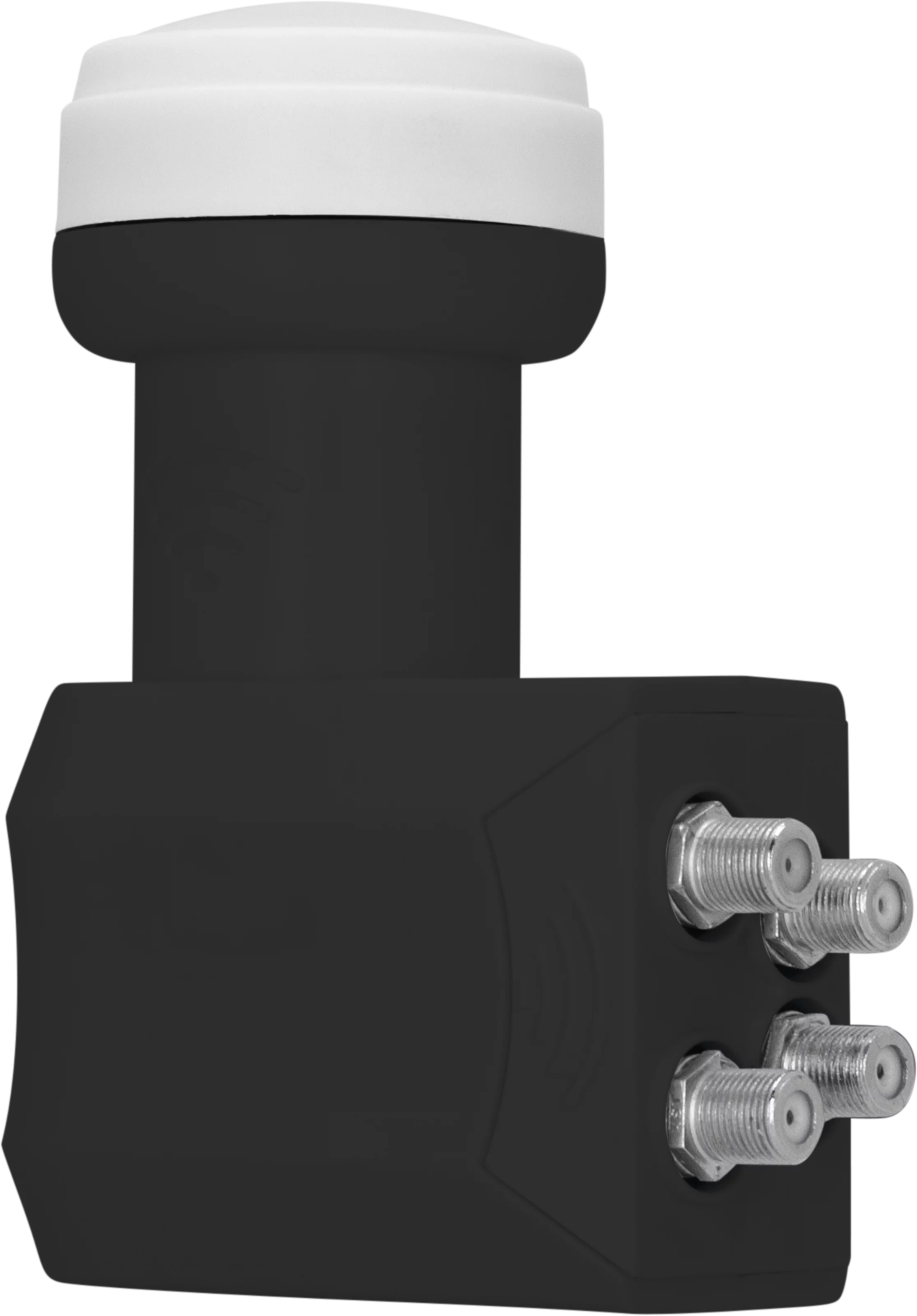

Universal-Quattro-Switch-LNB black
€39.00*
Universal-Quattro-Switch-LNB
Digital LNB with 4 legacy outputs
€39.00*
incl. VAT.
- Reception for up to four participants: The Quattro Switch LNB can supply up to four devices (receivers/TVs) with satellite signals independently. Expansion via multiswitch not possible
- One orbital position: The LNB receives signals from one orbital position, which in Germany is usually Astra 19.2° East
- Universally applicable: The LNB fits all satellite dishes with a 40 mm feed and can be easily installed or replaced.
- Interference-free reception: Due to its design, the LNB is protected from interference caused by LTE mobile networks
Universal-Quattro-Switch-LNB
The LNB is suitable for all satellite dishes with a 40 mm feedhorn and is used to receive TV, radio, and multimedia services broadcast via satellite. The LNB has four outputs, each of which can be directly connected to a receiving device (satellite receiver or smart TV). All receiving devices are independent in their choice of channels, as the signals from the entire reception range are available at each of the four LNB outputs. Two twin receivers can also be connected to the Universal Quattro-Switch LNB instead of four individual devices. However, the Universal Quattro-Switch LNB only supports a maximum of four users. Expanding the reception system with a multiswitch is not possible. If more than four users are to be connected, a Quattro LNB in conjunction with a multiswitch is required. Due to its design, the Universal Quattro Switch LNB is protected against interference from LTE mobile communications.
| Product Information | |
|---|---|
| EAN | 4019588083905 |
| Colour | black |
| Item no. | 0000/8390 |
| Weight (Box) | 234 g |
| Weight | 200 g |
| Device (W x H x D) | 5,7 x 10,1 x 12,8 cm |
| Box | 10,2 x 13,8 x 6,1 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,6 GHz |
| Accuracy | ± 1 MHz |
| Temperature drift | ± 2,5 MHz |
| Phase noise | -85 @10kHz |
| Filter-Navigation | |
|---|---|
| Number satellites | 1 |
| Number participants | 4 |
| LNB control | |
|---|---|
| Vertical | 10,5 ... 14,5 V |
| Horizontal | 16 ... 22 V |
| Band switch | 22 kHz |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 95 % |
| Ambient temperature | -40 ... 70 °C |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Noise figure | typ. 0,75 dB |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| Power consumption | typ. 150 mA |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Number of clients | 4 |
| Technical data | |
|---|---|
| Impedance | 75 Ω |
| Feed reception | 40 mm |
| Connector type | F female |
| Outputs | 4 |
| Amplification | 60 ... 65 dB |
