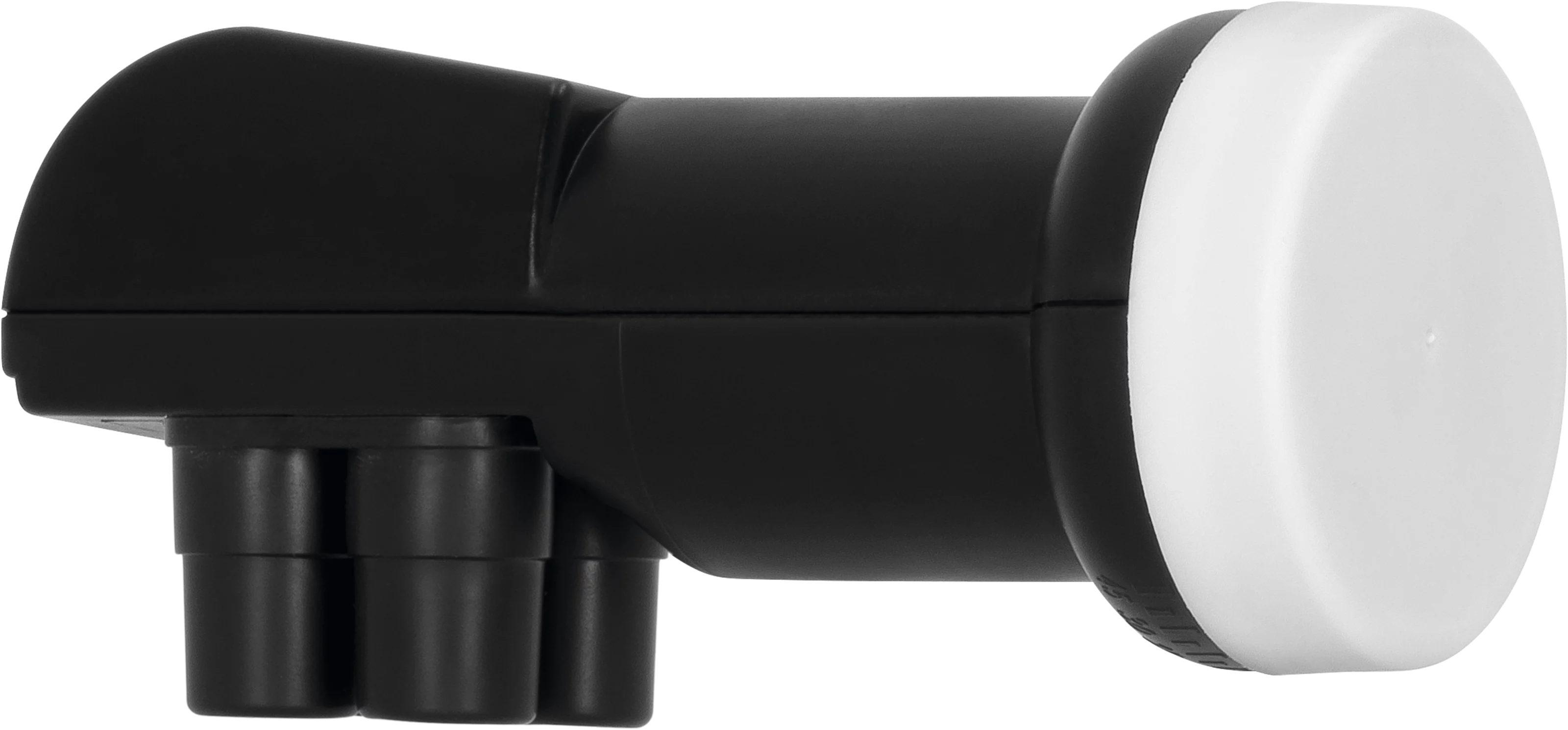

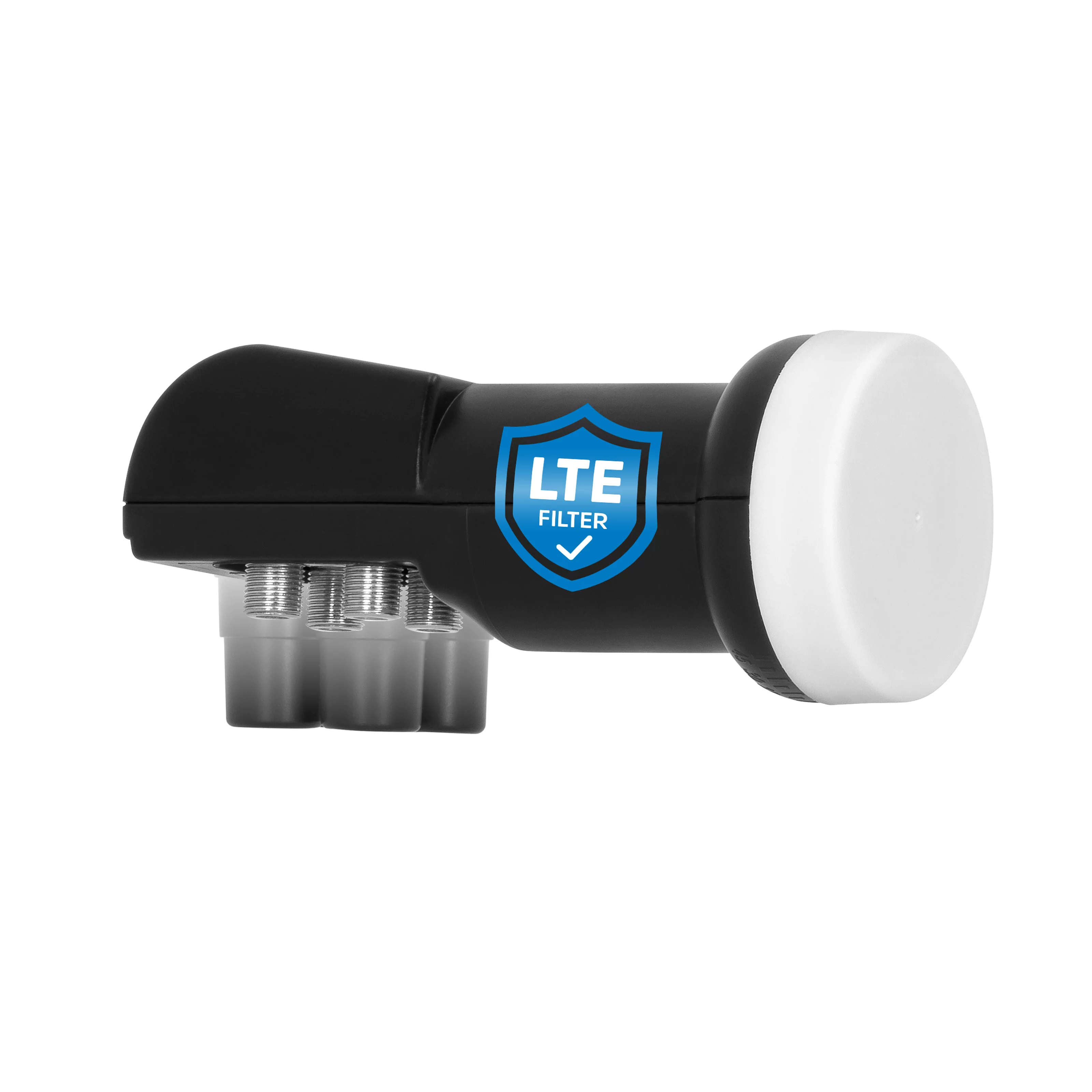

Universal-Quattro-Switch-LNB
Digital LNB for 4-subscriber reception
%
€19.00*
€29.00
(34.48% saved)
incl. VAT.

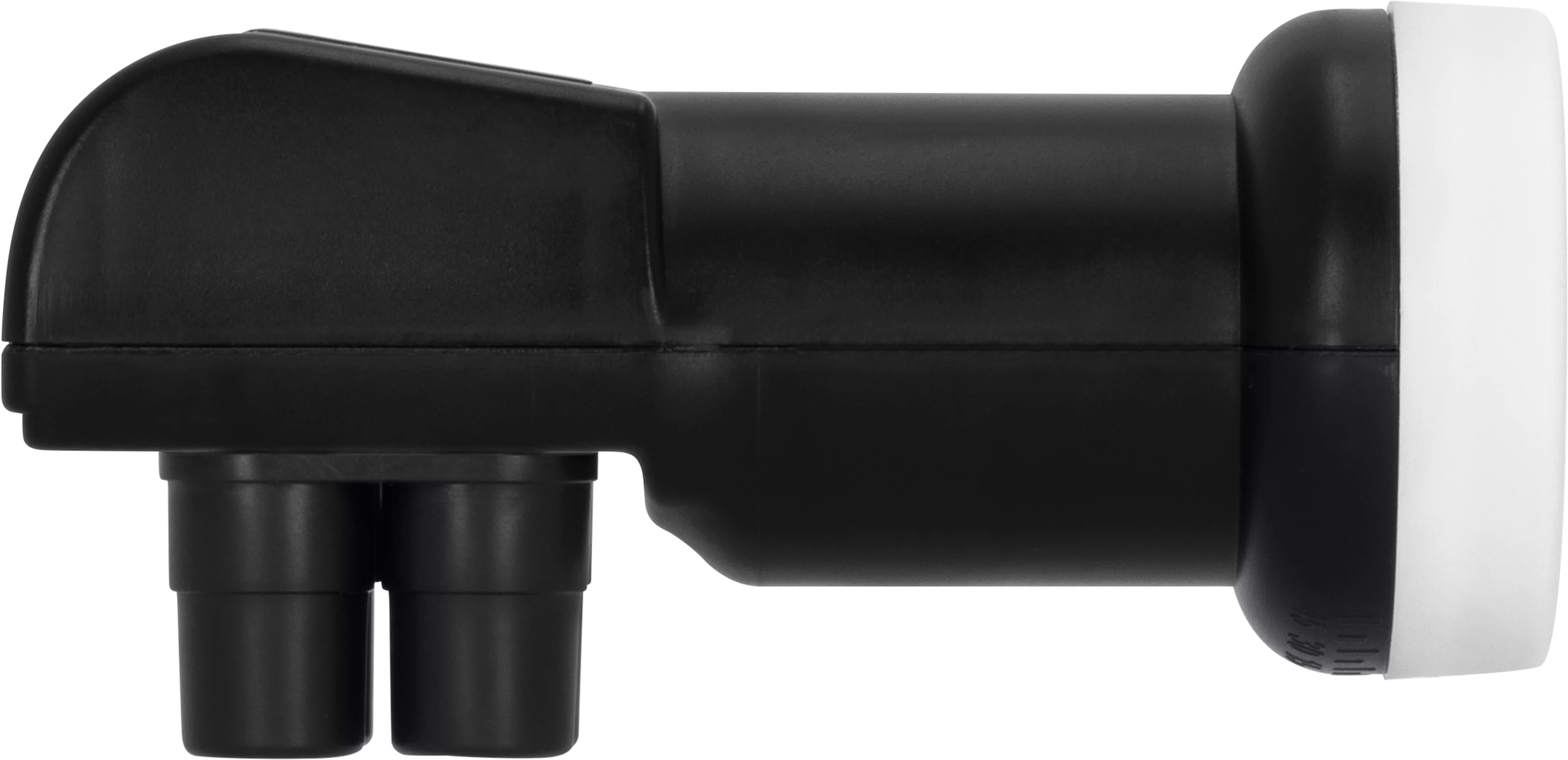

- 4-user LNB (for connecting up to 4 receivers/TVs) – TechniSat quality product with weather protection cap and built-in switch/multiswitch
- High-quality and sophisticated technology for good picture and sound quality in HD, Full HD, UHD, 3D, 4K, and 8K
- For use with satellite dishes with a 40 mm feed clamp (e.g., Technitenne 60) and direct connection to TVs or satellite receivers
- A multiswitch is not required for operation with the TechniSat universal LNB, as the switch is already integrated / Reception of all analog and digital satellite-broadcasted TV, radio, and multimedia services possible

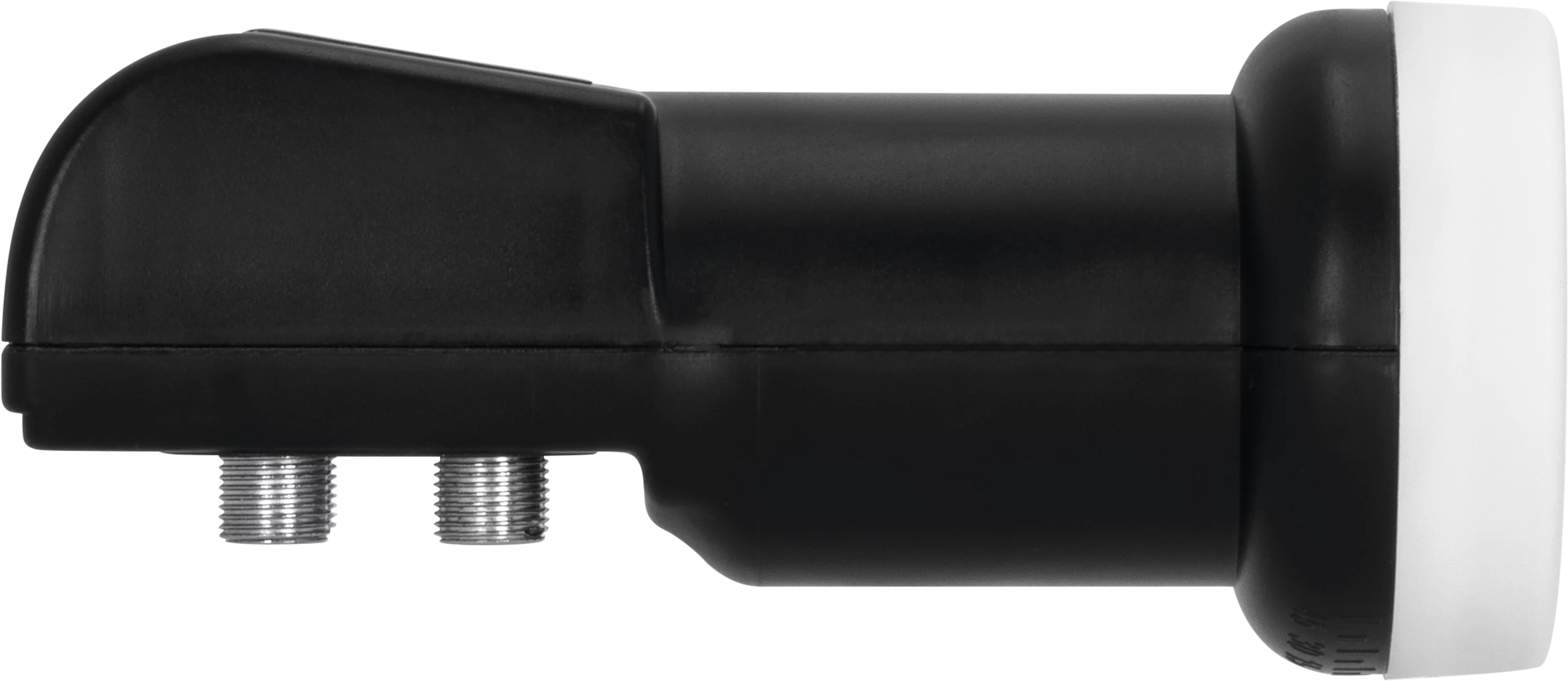

Universal-Quattro-Switch-LNB
Quick Overview
Signal converter for four-user reception (Quattro-Switch-LNB)
This LNB is suitable for all satellite dishes with a 40 mm feed and is used to convert TV, radio, and multimedia services broadcast via satellite.

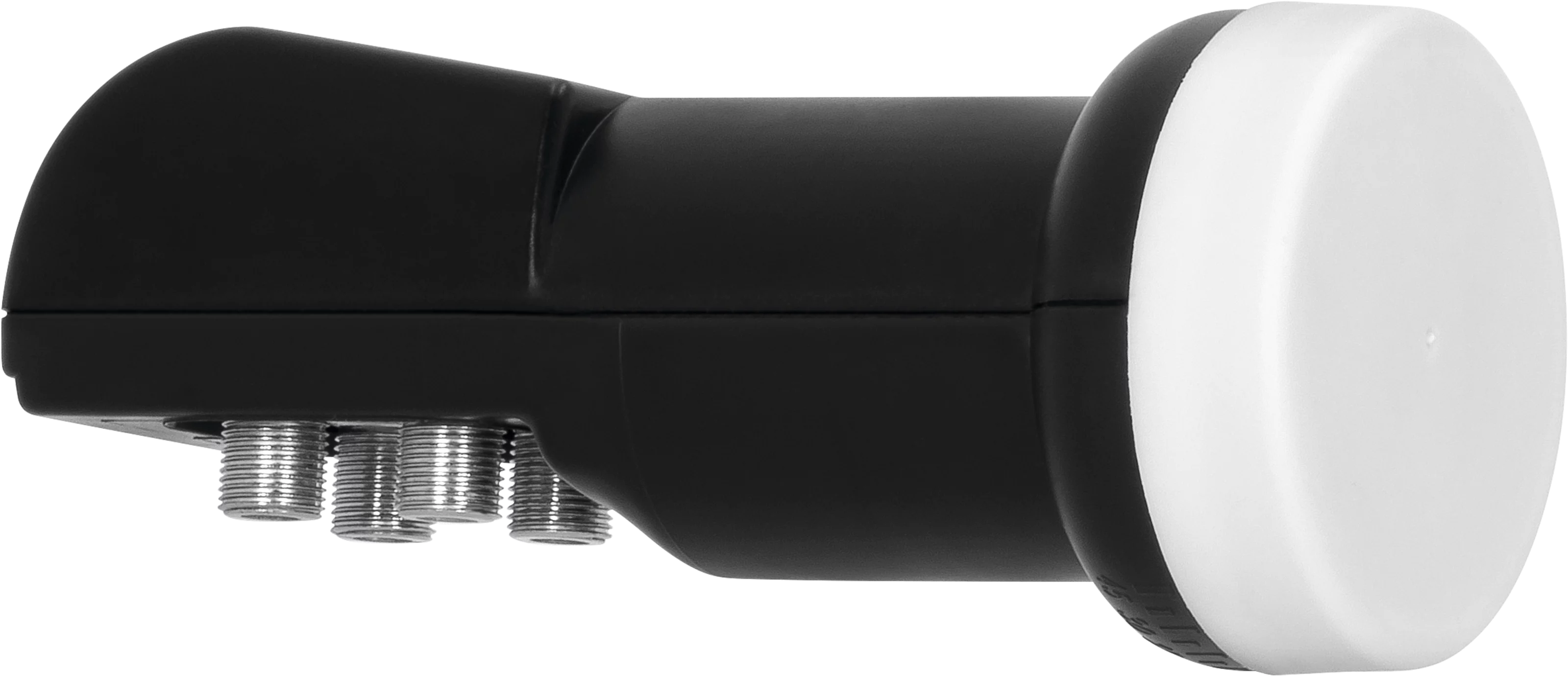

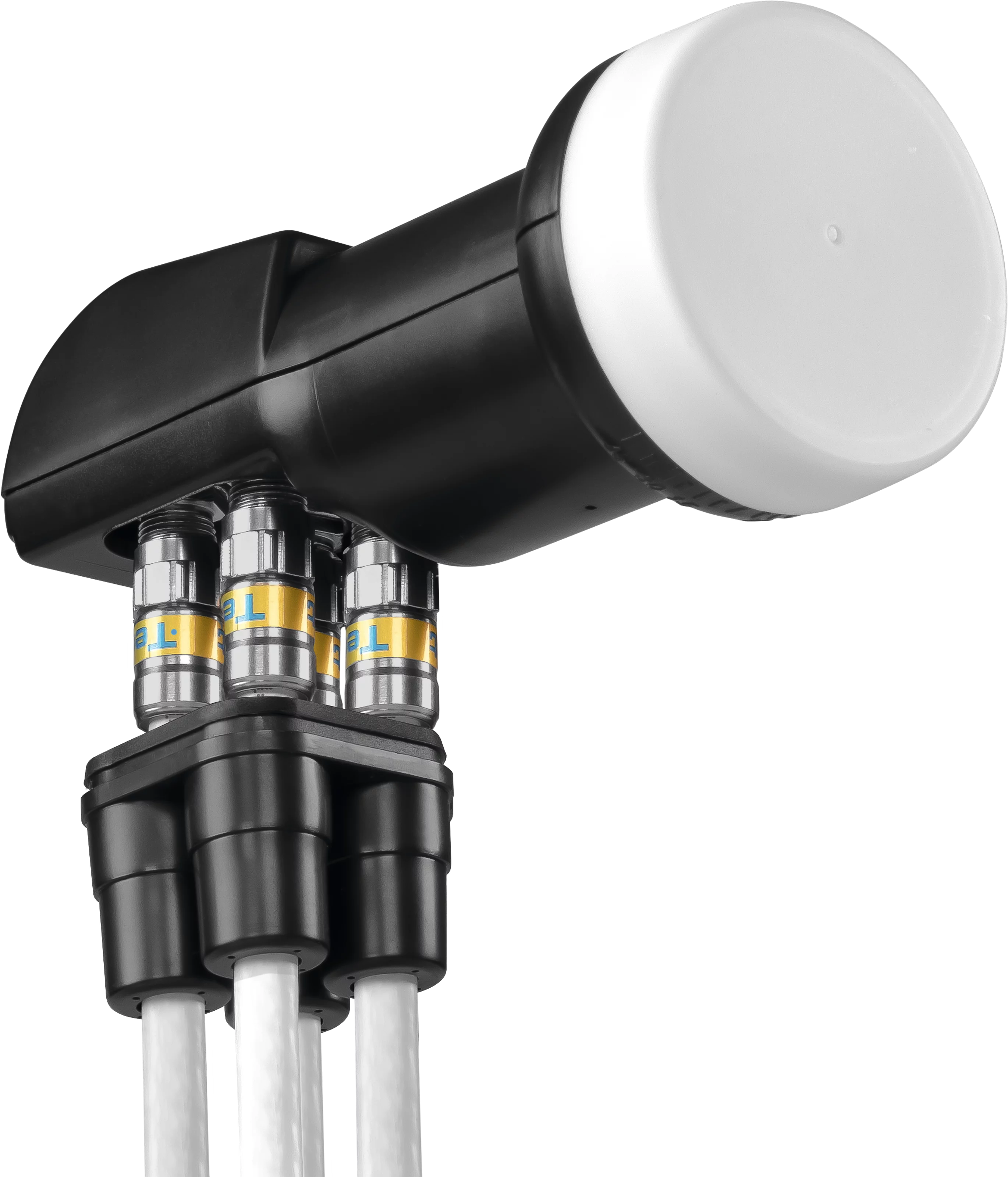

The LNB has four outputs, each of which can be directly connected to a receiver. All receivers are independent in their choice of channels, as the signals from the entire reception range are available at each of the four LNB outputs.
However, two twin receivers can also be connected to the Quattro-Switch-LNB instead of four individual devices.
The universal Quattro-Switch-LNB only allows a maximum of four-user reception. Expanding the reception system with a multiswitch is not possible. If more than four users are to be connected, the use of a Quattro LNB is recommended.
Installation example: Four-user reception

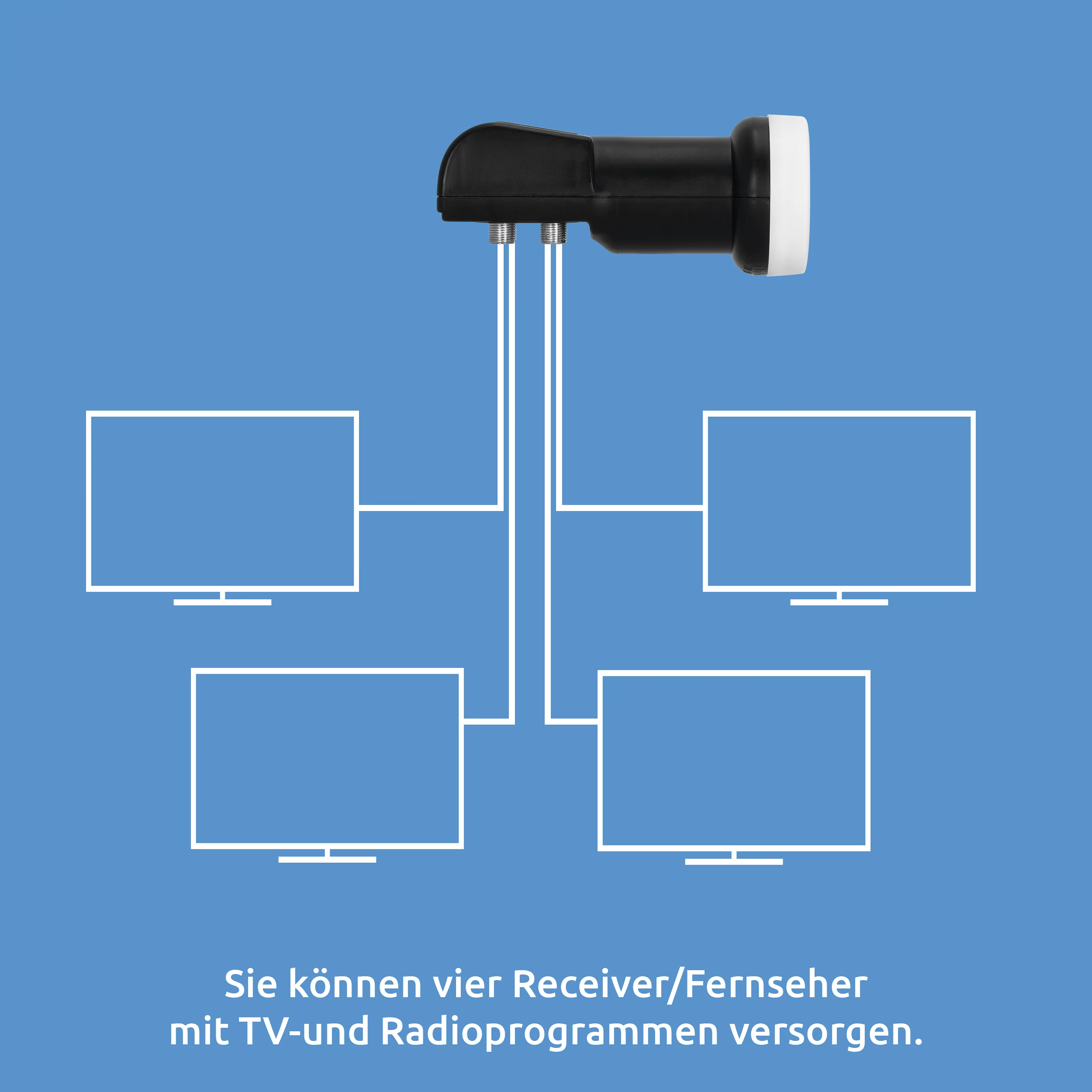

Four receivers are to be supplied with the TV and radio signals from one satellite position.
The following materials are essentially required: A satellite dish with a 40mm mount and the universal Quattro Switch LNB, as well as four satellite receivers, four antenna sockets, and the corresponding cable splitters with the associated F-connectors.
This LNB is suitable for all satellite dishes with a 40 mm feed and is used to convert TV, radio, and multimedia services broadcast via satellite.
The LNB has four outputs, each of which can be directly connected to a receiver. All receivers are independent in their choice of channels, as the signals from the entire reception range are available at each of the four LNB outputs.
However, two twin receivers can also be connected to the Quattro-Switch-LNB instead of four individual devices.
The universal Quattro-Switch-LNB only allows a maximum of four-user reception. Expanding the reception system with a multiswitch is not possible. If more than four users are to be connected, the use of a Quattro LNB is recommended.
Installation example: Four-user reception
Four receivers are to be supplied with the TV and radio signals from one satellite position.
The following materials are essentially required: A satellite dish with a 40mm mount and the universal Quattro Switch LNB, as well as four satellite receivers, four antenna sockets, and the corresponding cable splitters with the associated F-connectors.
| Product Information | |
|---|---|
| EAN | 4019588208988 |
| Colour | black |
| Item no. | 0020/8980 |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,6 GHz |
| Accuracy | ± 1 MHz |
| Temperature drift | ± 1 MHz |
| Phase noise | -80 @10kHz |
| Filter-Navigation | |
|---|---|
| Number satellites | 1 |
| Number participants | 4 |
| LNB control | |
|---|---|
| Band switch | 22 kHz |
| Vertical | 10,5 ... 14 V |
| Horizontal | 16 ... 19,5 V |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -40 ... 70 °C |
| Humidity | 10 ... 95 % |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,7 dB max. |
| Upper frequency range | 0,7 dB max. |
| Noise figure | typ. 0,9 dB |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| LNB voltage supply | 10,5 ... 19,5 V |
| Power consumption | max. 150 mA |
| Prepared for | |
|---|---|
| Number of clients | 4 |
| Number of orbit positions | 1 |
| Technical data | |
|---|---|
| Outputs | 4 |
| Impedance | 75 Ω |
| Amplification | 55 ... 67 dB |
| Connector type | F female |

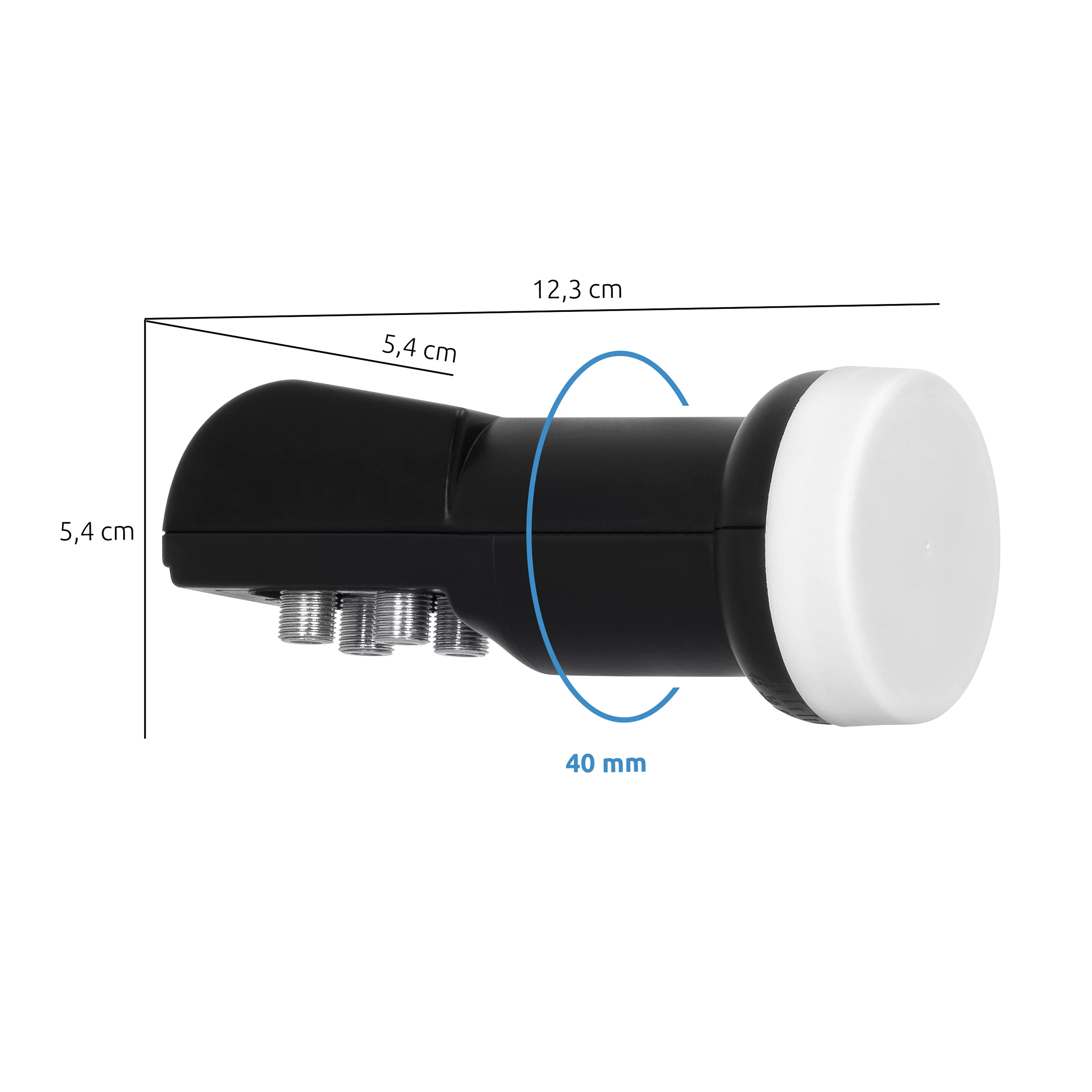

| Feed reception | 40 mm |
