Universal-Octo-LNB black
€89.00*
Universal-Octo-LNB
Digital LNB with 8 legacy outputs
€89.00*
incl. VAT.

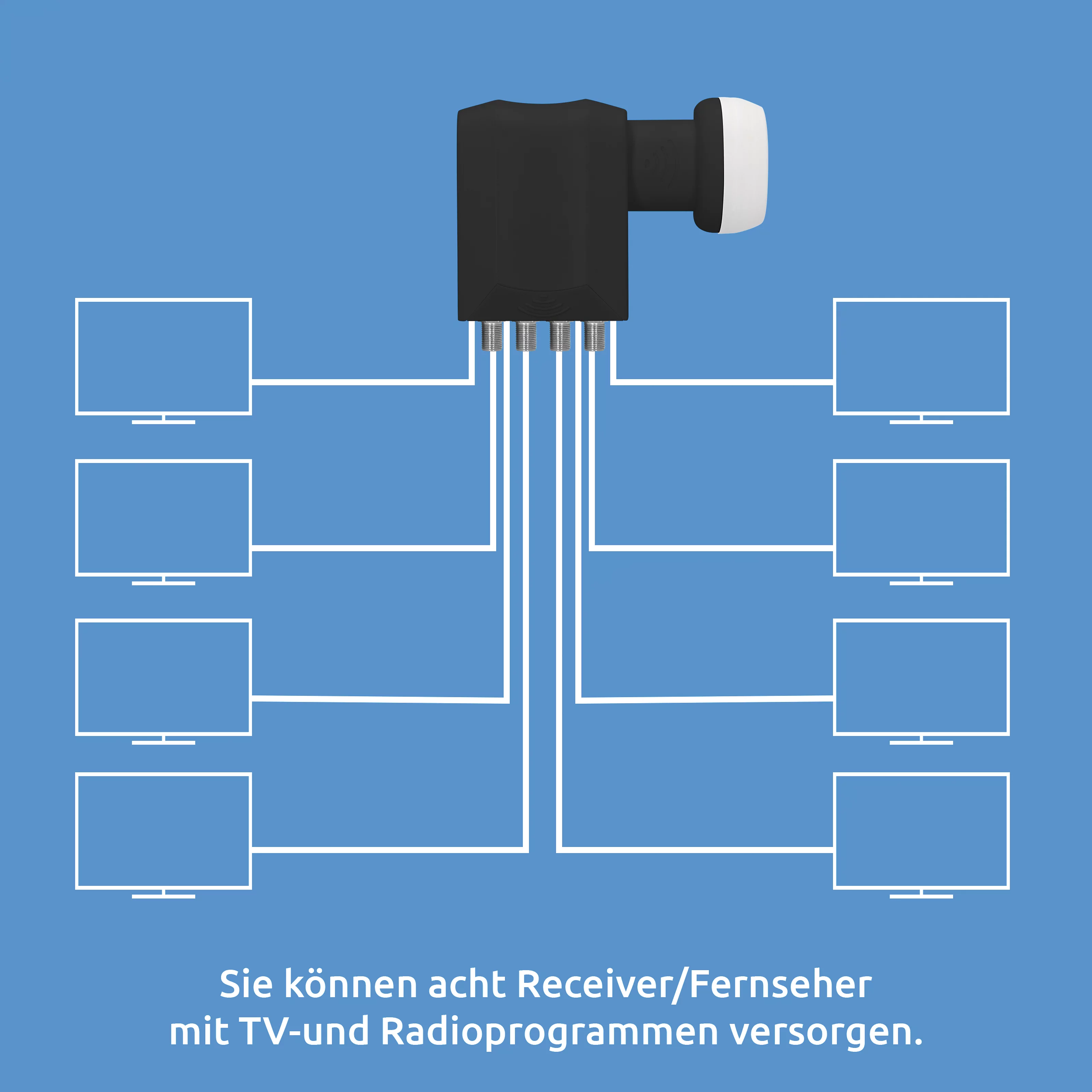

- Reception for up to eight users: the Octo LNB can supply up to eight users (receivers/TVs) with satellite signal, who can independently select their programs
- One orbital position: The LNB receives signals from one orbital position, which is usually Astra 19.2° East in Germany

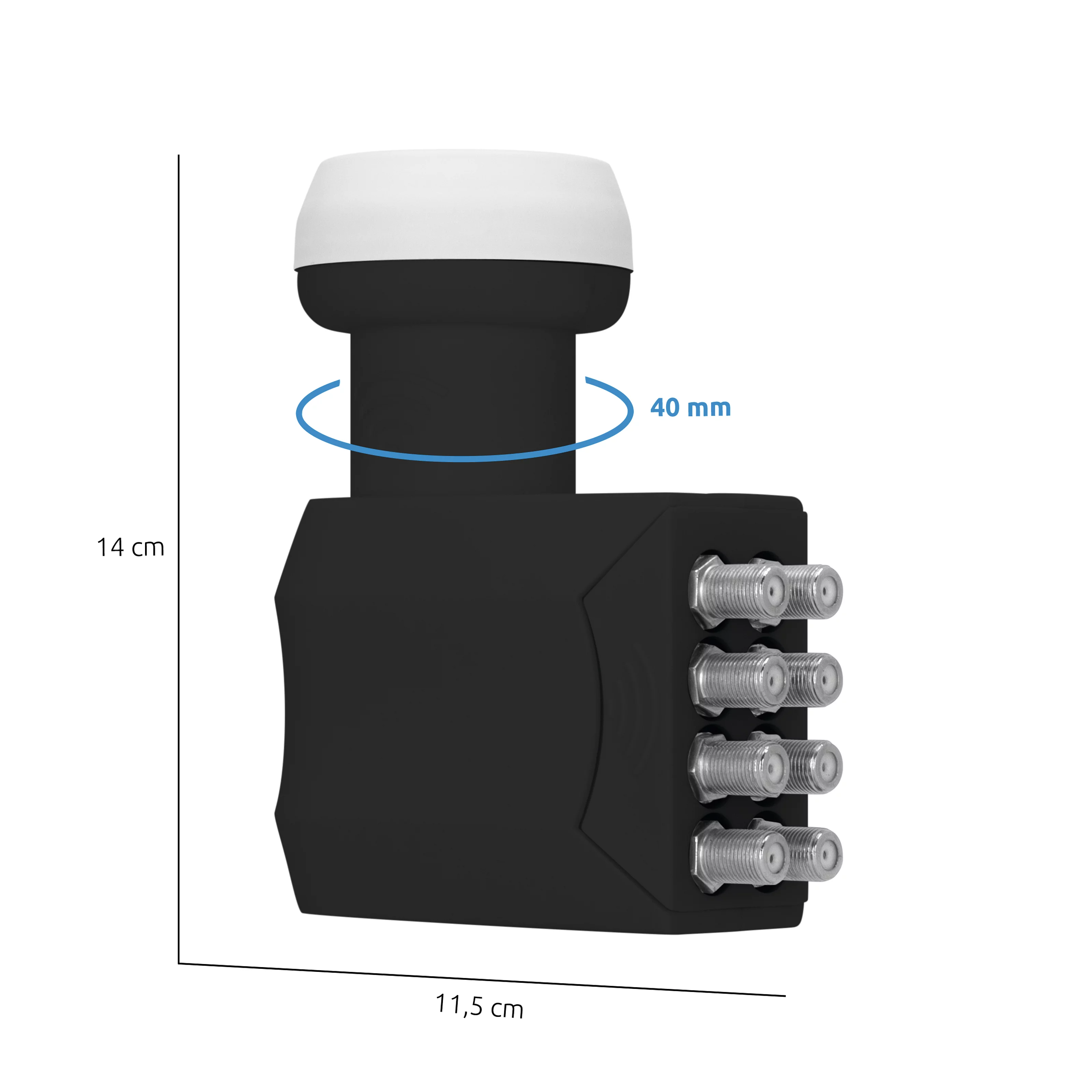

- Universally applicable: The LNB is suitable for all satellite dishes with a 40 mm feed clamp and can be easily installed or replaced

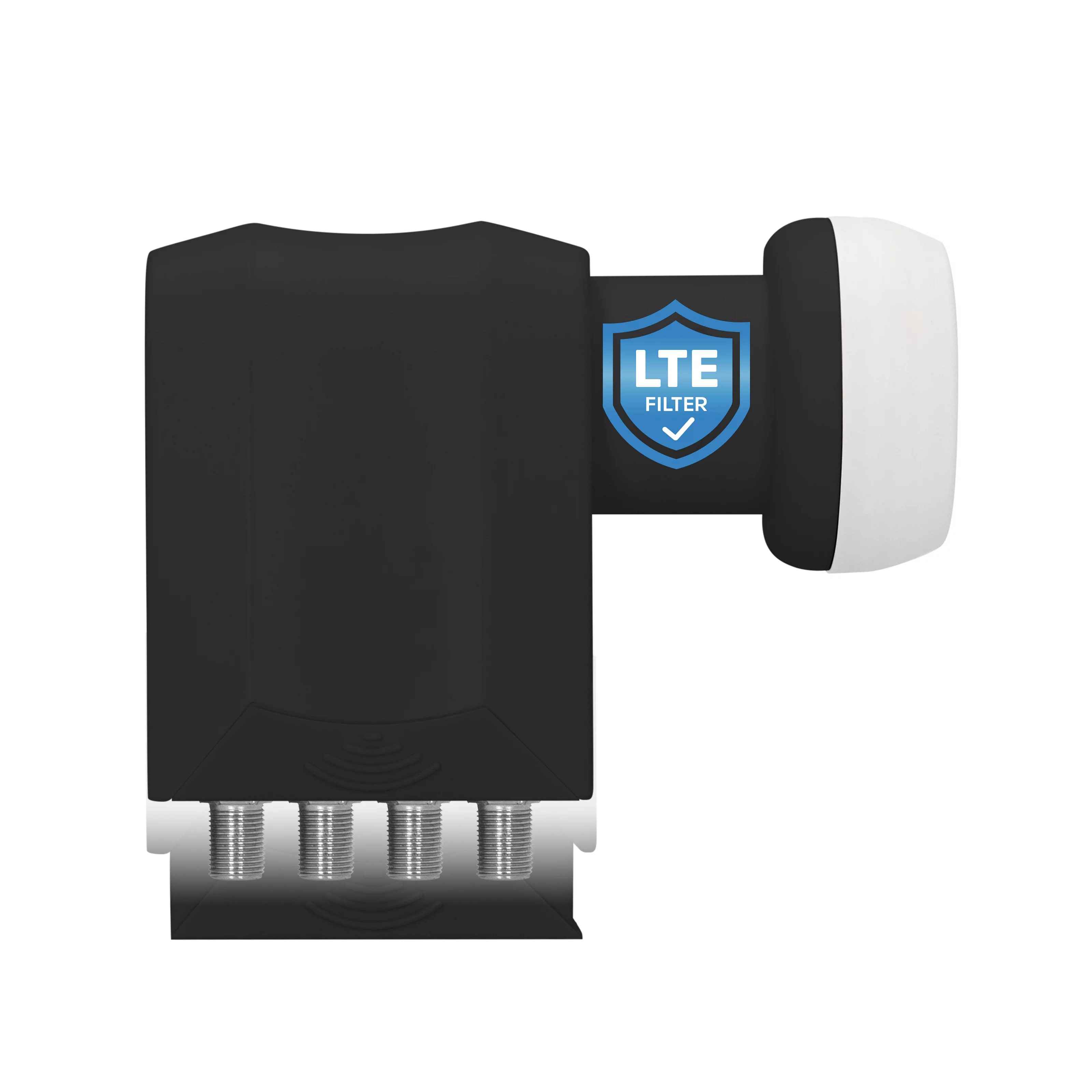

- Interference-free reception: The LNB’s design provides protection against LTE mobile interference
Universal-Octo-LNB
The LNB is suitable for all satellite dishes with a 40 mm feedhorn and is used to receive TV, radio, and multimedia services broadcast via satellite. The LNB has eight outputs, each of which can be directly connected to a receiving device (satellite receiver or smart TV). All receiving devices are independent in their choice of channels, as the signals from the entire reception range are available at each of the eight LNB outputs. Four twin receivers can also be connected to the universal octo LNB instead of eight individual devices. Due to its design, the universal octo LNB is protected against interference from LTE mobile networks.
| Product Information | |
|---|---|
| Colour | black |
| EAN | 4019588083981 |
| Item no. | 0000/8398 |
| Weight (Box) | 302 g |
| Weight | 266 g |
| Device (W x H x D) | 5,7 x 10,9 x 13,4 cm |
| Box | 11,5 x 14 x 6,4 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz |
| High band | 10,6 GHz |
| Accuracy | ± 1 MHz |
| Temperature drift | ± 2,5 MHz |
| Phase noise | -83 @10kHz |
| Filter-Navigation | |
|---|---|
| Number participants | 8 |
| Number satellites | 1 |
| LNB control | |
|---|---|
| Vertical | 11,5 ... 14,5 V |
| Horizontal | 16 ... 19 V |
| Band switch | 22 kHz |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 95 % |
| Ambient temperature | -40 ... 70 °C |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Noise figure | typ. 1 dB |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| Power consumption | 210 mA |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Number of clients | 8 |
| Technical data | |
|---|---|
| Impedance | 75 Ω |
| Feed reception | 40 mm |
| Connector type | F female |
| Outputs | 8 |
| Amplification | 58 ... 65 dB |
