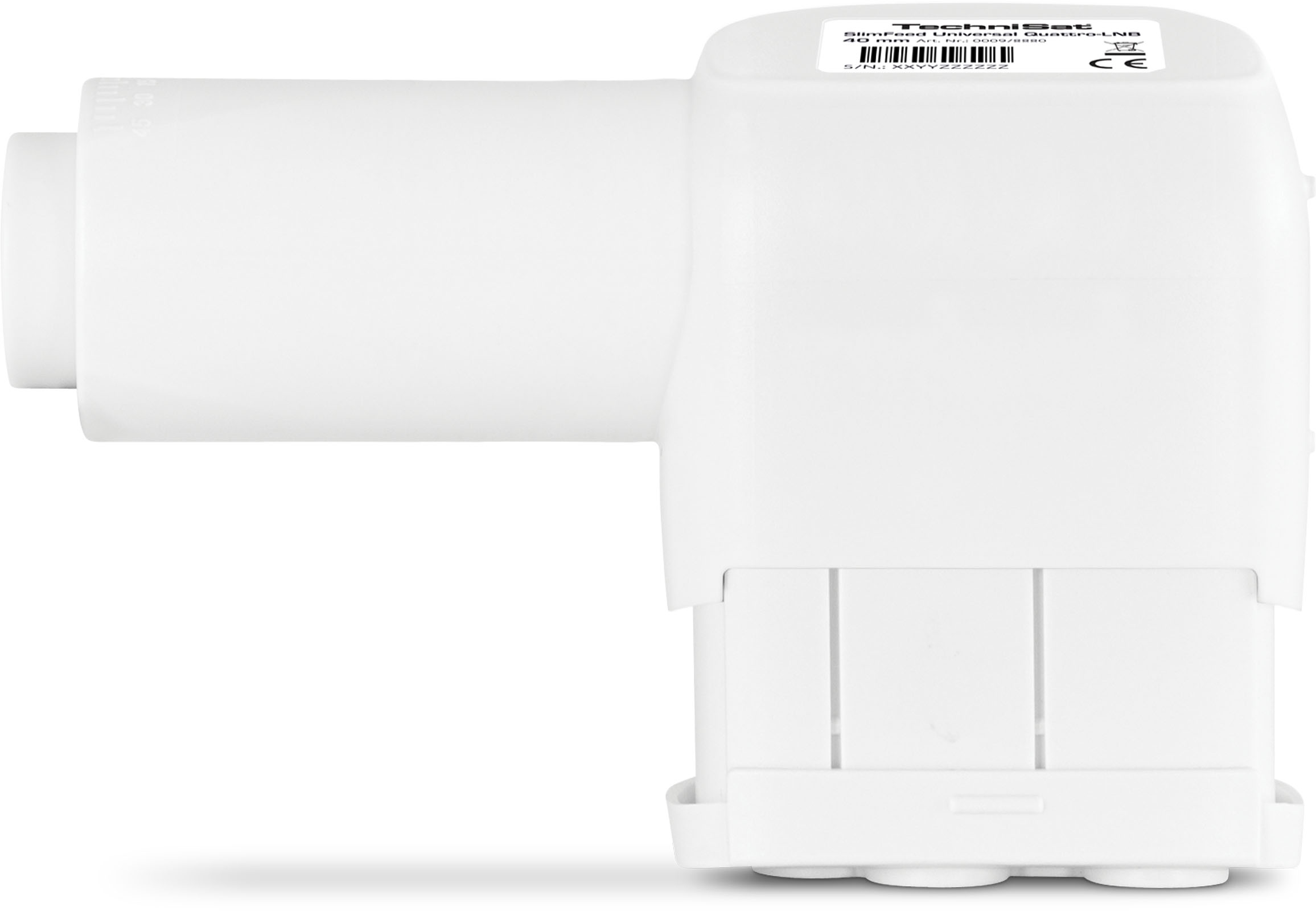

SlimFeed Universal-Quattro-LNB white
€34.00*
€35.00
SlimFeed Universal-Quattro-LNB
Digital-LNB for various participants, can be used with the TechniSat-Vario System and a Switch is needed.
%
€34.00*
€35.00
(2.86% saved)
incl. VAT.
- Ultra low noise – low-interference
- F-connectors
- Feed-ø 40 mm
- Weatherproof housing
SlimFeed Universal-Quattro-LNB
Universal Quattro LNB with extra slim feed horn.
This LNB is designed for multi participants receipton and can be used perfectly to build up a multifeed system.
This LNB is designed for multi participants receipton and can be used perfectly to build up a multifeed system.
| Product Information | |
|---|---|
| EAN | 4019588988804 |
| Colour | white |
| Item no. | 0009/8880 |
| Weight (Box) | 240 g |
| Weight | 200 g |
| Device (W x H x D) | 4,5 x 8,5 x 14 cm |
| Box | 5,2 x 8 x 15 cm |
| Local oscillator | |
|---|---|
| Low band | 9,75 GHz ± 3 MHz |
| High band | 10,6 GHz ± 3 MHz |
| Phase noise | -85 @10kHz |
| Filter-Navigation | |
|---|---|
| Number satellites | 1 |
| LNB control | |
|---|---|
| Vertical | 11,5 - 14 V |
| Horizontal | 16 - 19 V |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -40 ... 65 °C |
| Humidity | 5 ... 100 % |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Lower frequency range | 0,7 dB max. |
| Upper frequency range | 0,7 dB max. |
| Noise figure | 0,1 dB typ. |
| Output frequency range | |
|---|---|
| Low band | 950 ... 1.950 MHz |
| High band | 1.100 ... 2.150 MHz |
| Power supply | |
|---|---|
| LNB voltage supply | 11 ... 20 V |
| Power consumption | 170 mA (Typ.) |
| Prepared for | |
|---|---|
| Number of orbit positions | 1 |
| Technical data | |
|---|---|
| Outputs | 4 |
| Connector type | F socket |
| Amplification | 60 ... 64 dB |
| Impedance | 75 Ω |
| Feed reception | ø 40 mm |
