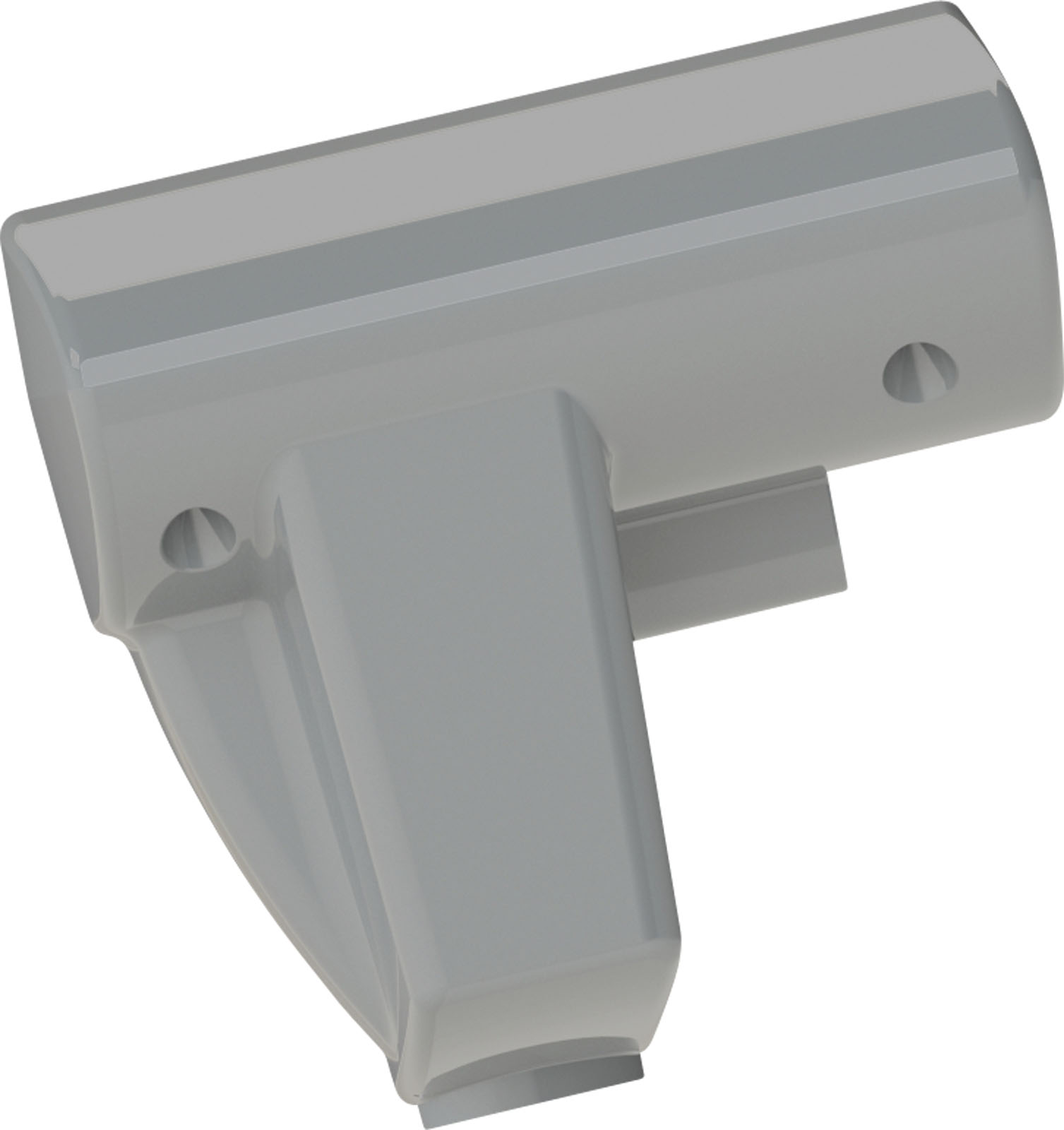

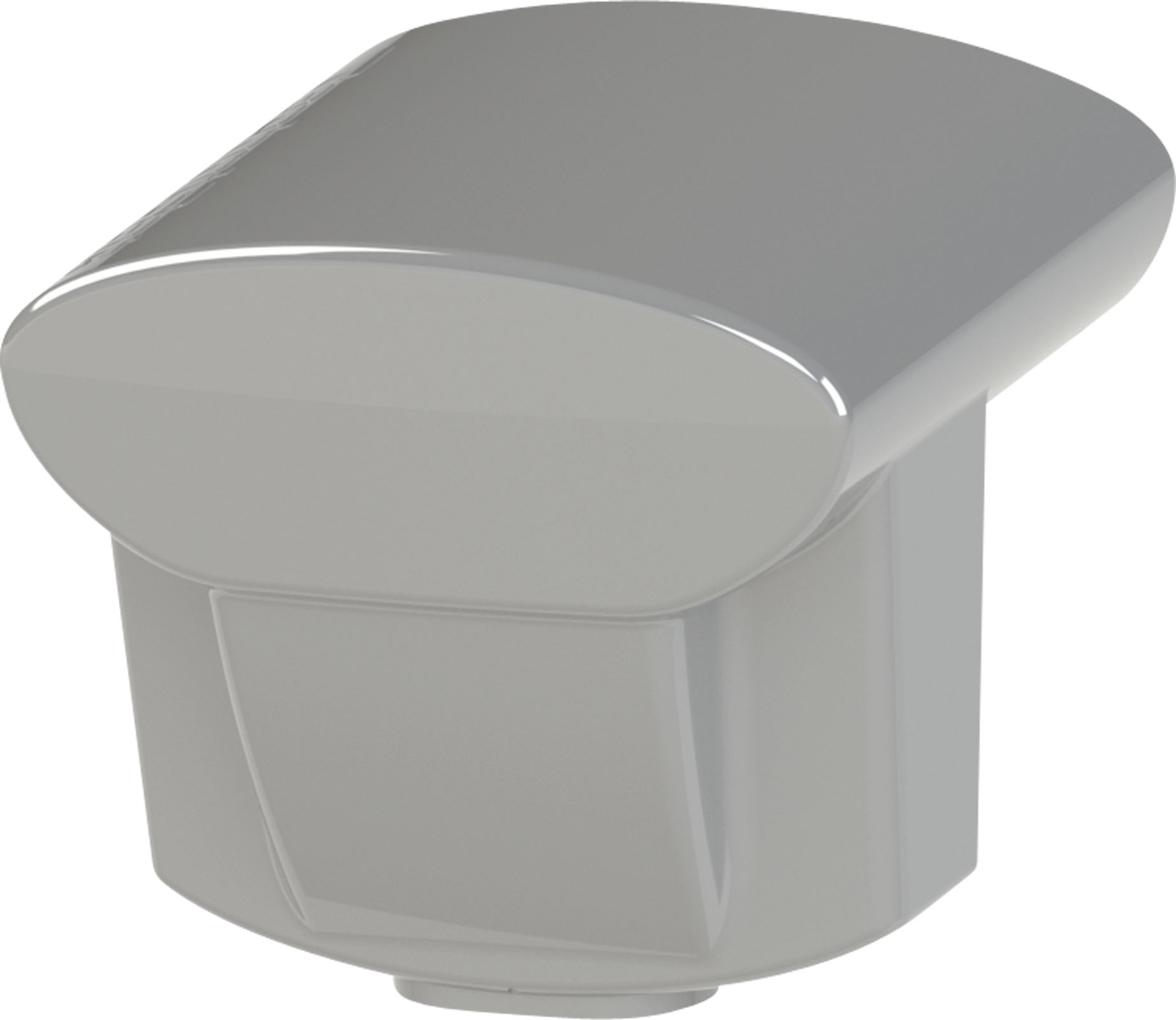

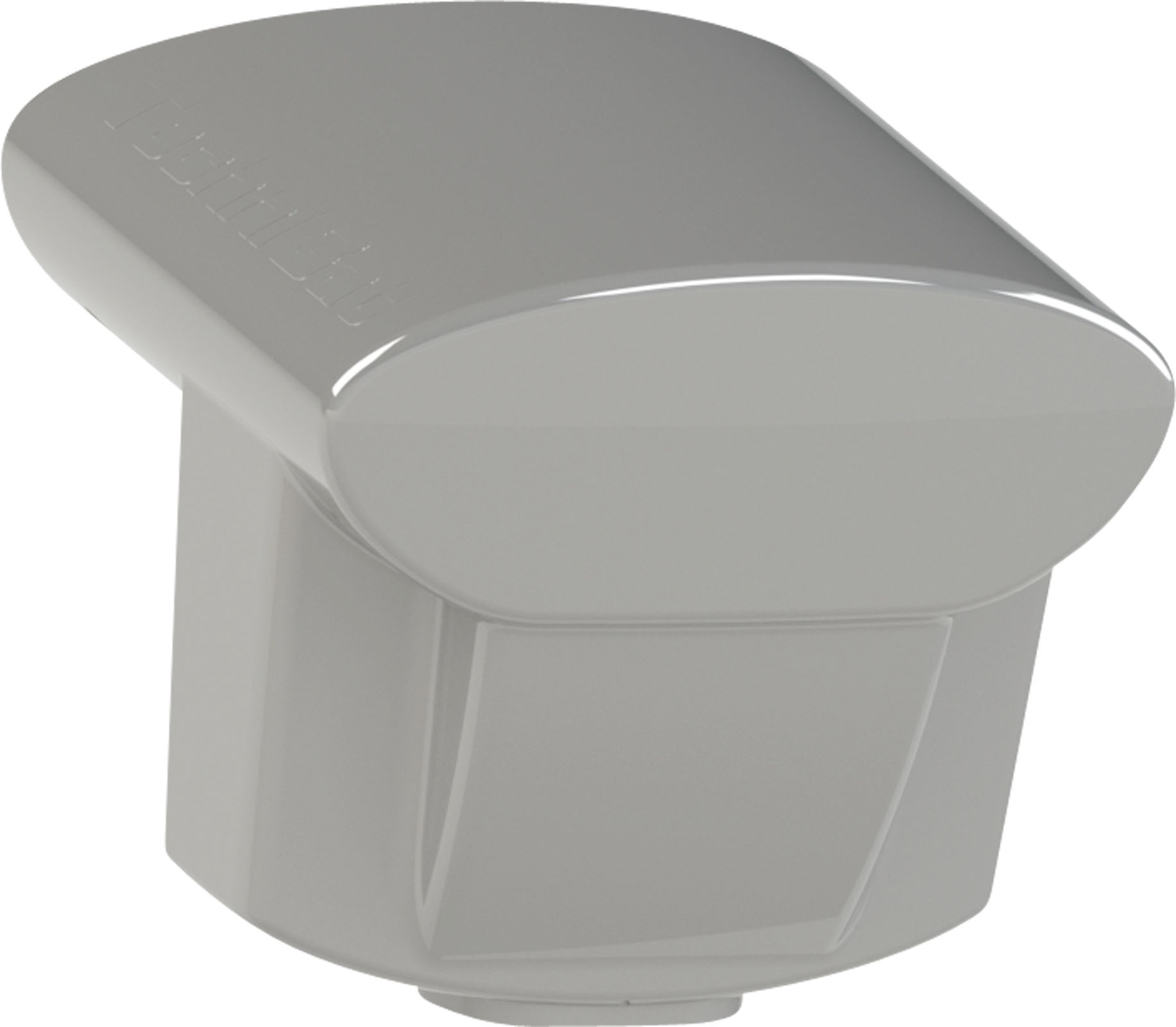

UNYSAT 24TN-LNB
SCR-LNB for 24 participants
€99.00*
incl. VAT.
- 24 users on one cable
- SCR protocol according to EN50494 & EN50607
- Participants 1–8 work with EN50494 or EN50607.
- From participant 9 onward, only EN50607 is used.

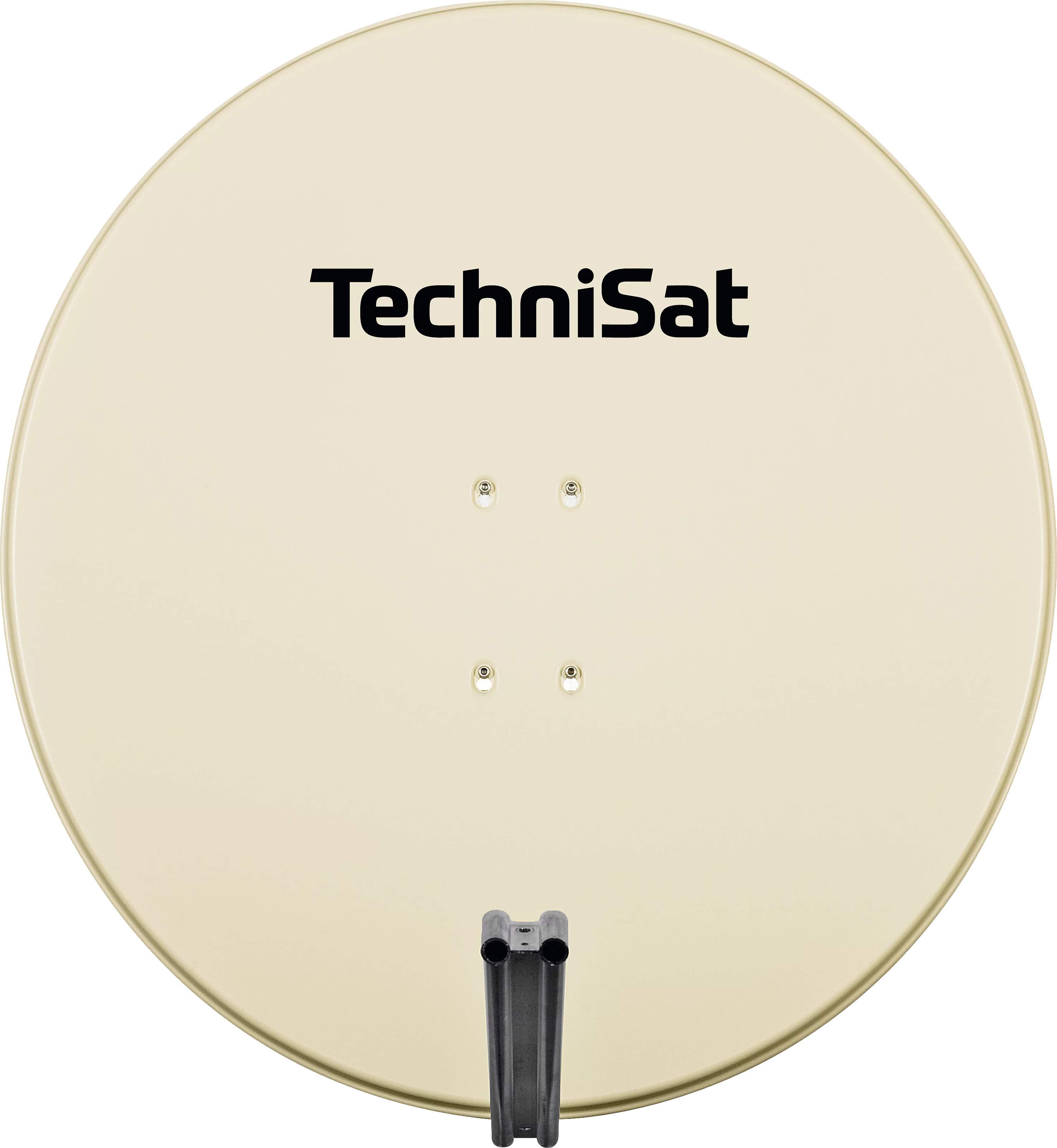

- Passend für alle TechniSat SATMAN Spiegel
- Antenna alignment mode for easy positioning
UNYSAT-24TN-LNB
The UNYSAT-24TN-LNB can provide up to 24 participants via one coaxial cable with the complete programs of a satellite.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588088245 |
| Colour | grey |
| Item no. | 0000/8824 |
| Weight (Box) | 500 g |
| Weight | 440 g |
| Device (W x H x D) | 20 x 18,5 x 18,5 cm |
| Box | 21 x 21 x 19 cm |
| Local oscillator | |
|---|---|
| Low band | 10,4 GHz |
| High band | 10,4 GHz |
| Accuracy | ± 1 MHz |
| Temperature drift | ± 2 MHz |
| Phase noise | -80 @10kHz |
| LNB control | |
|---|---|
| DiSEqC | EN50494 & EN50607 |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 90 % |
| Ambient temperature | -30 ... 60 °C |
| Input frequency range | |
|---|---|
| Low band | 10,7 ... 11,7 GHz |
| High band | 11,7 ... 12,75 GHz |
| Noise factor | |
|---|---|
| Noise figure | 1 dB |
| Power supply | |
|---|---|
| Power consumption | max. 350 mA @13,5 V |
| Single-cable output | |
|---|---|
| Output frequency | 950 ... 2.150 MHz |
| Number of output channels | 24 |
| Frequency of the output channels | 975, 1025, 1075, 1125, 1175, 1225, 1275, 1325, 1375, 1425, 1475, 1525, 1575, 1625, 1675, 1725, 1775, 1825, 1875, 1925, 1975, 2025, 2075, 2125 MHz |
| Technical data | |
|---|---|
| Outputs | 1 |
| Amplification | 55 dB |
| Feed reception | For SATMAN |
| Impedance | 75 Ω |
| Connector type | F socket |
