TECHNISMART motion detector Weiß
€29.00*
TECHNISMART motion detector
Motion detector for TECHNISMART 1
€29.00*
incl. VAT.
- Expansion for the TECHNISMART alarm system: To use the motion detector, the central unit from the TECHNISMART starter package and the free TECHNISMART app (iOS) are required
- The infrared motion detector has a 100° field of view and detects movement up to 9 meters. When motion is detected, it triggers an alarm together with the central unit

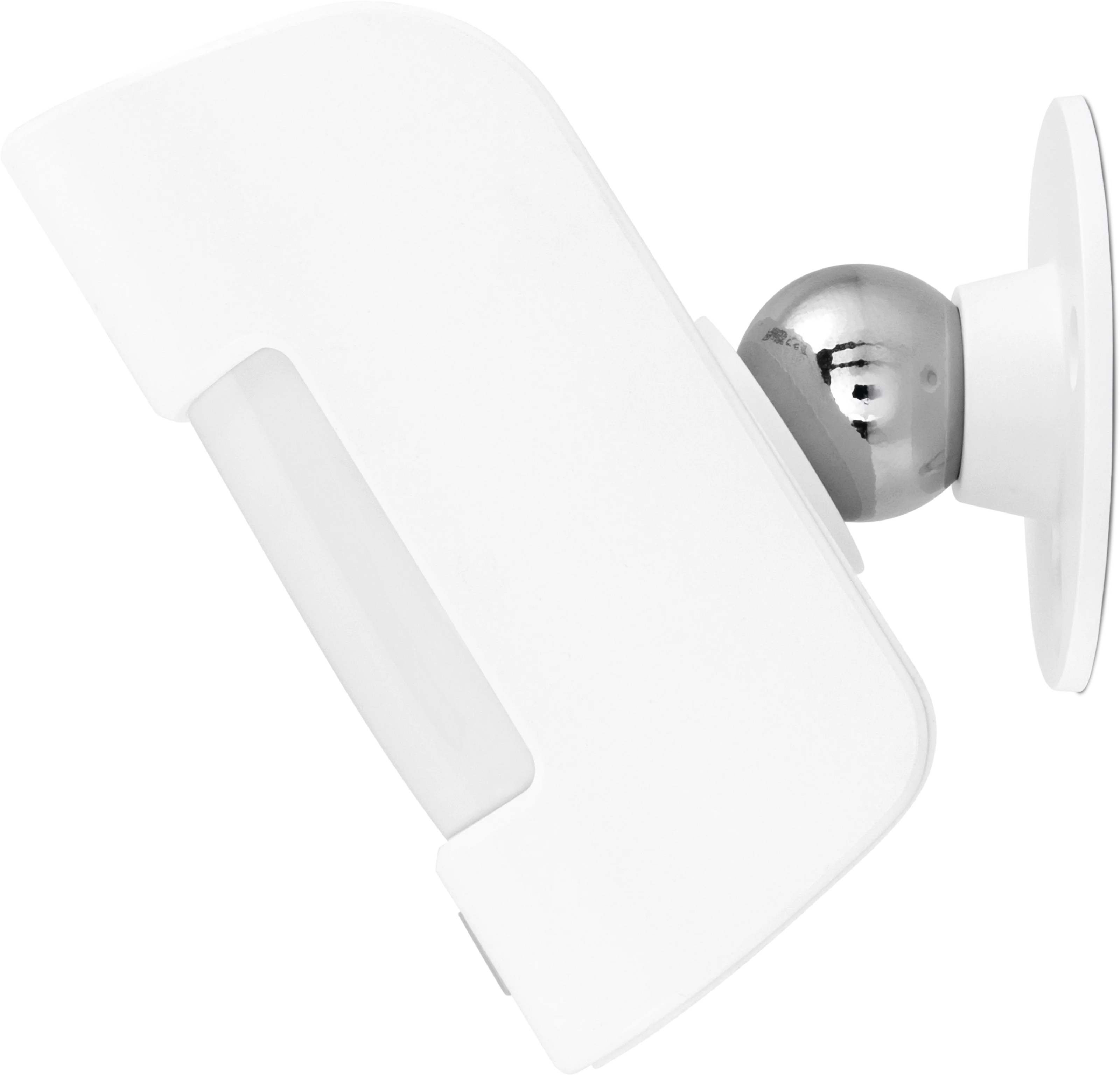

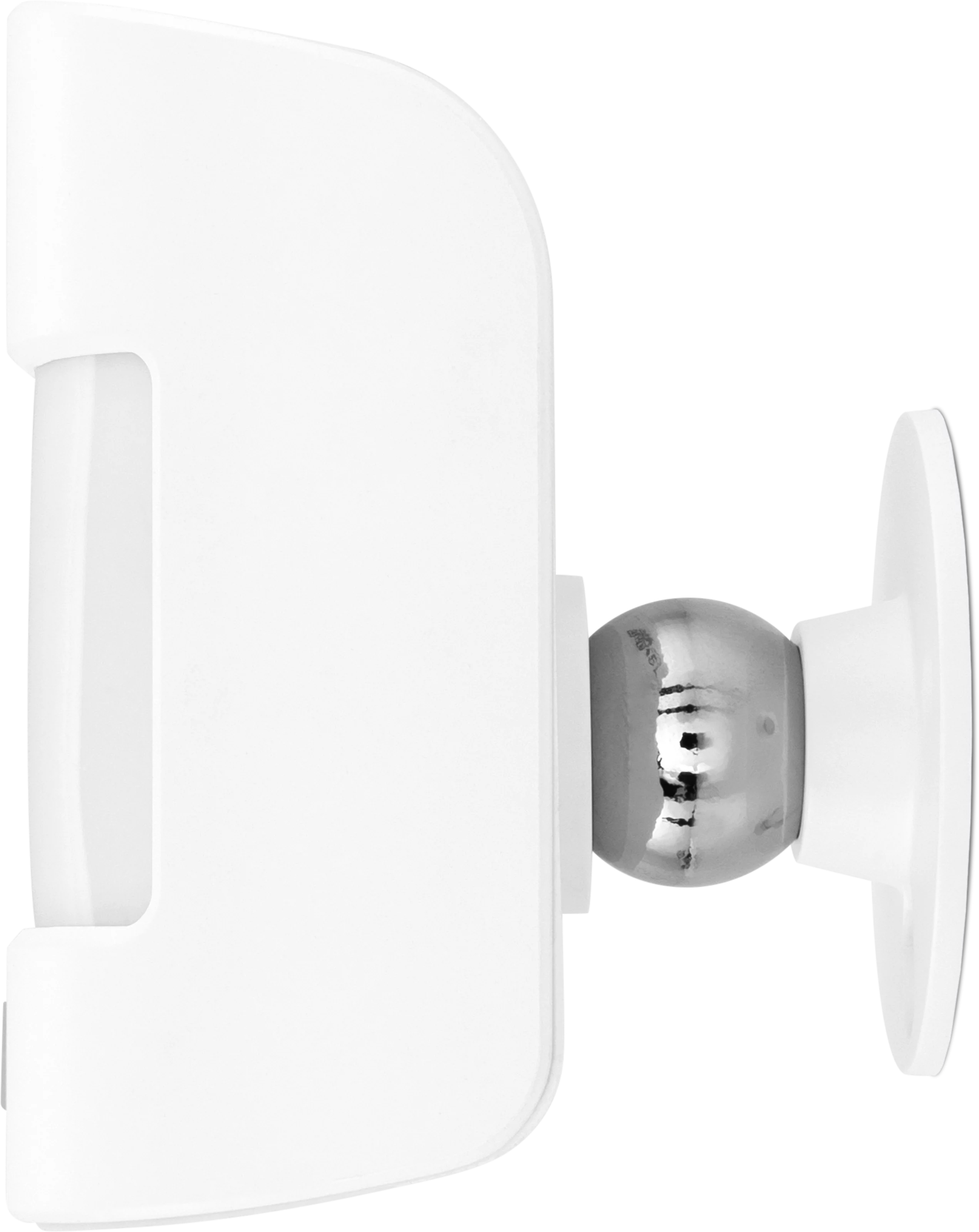

- Custom alignment: Mounting to the house wall via a plate with a movable ball joint. The motion detector is added to the TECHNISMART alarm system with a simple QR code scan
- Wireless battery operation: The indoor sensor comes with pre-installed batteries. Requires 2 LR6 AA 1.5 V batteries for operation
Motion detector, installation material
Quick Overview
The infrared motion sensor is wirelesslY powered bY batteries. It has a viewing angle of 100 degrees and a range of up to 9 meters. In combination with the TECHNISMART central unit, the motion sensor triggers an alarm as soon as it registers movement. It is mounted on the wall of the house using the supplied mounting plate with a movable ball joint, on which the motion sensor can be attached and individuallY set at an optimal mounting height of 180 to 240 cm.
The CPU from the TECHNISMART Starter Pack (item no. 0100/9560) and the free TECHNISMART app (iOS/Android) are required to use this device.

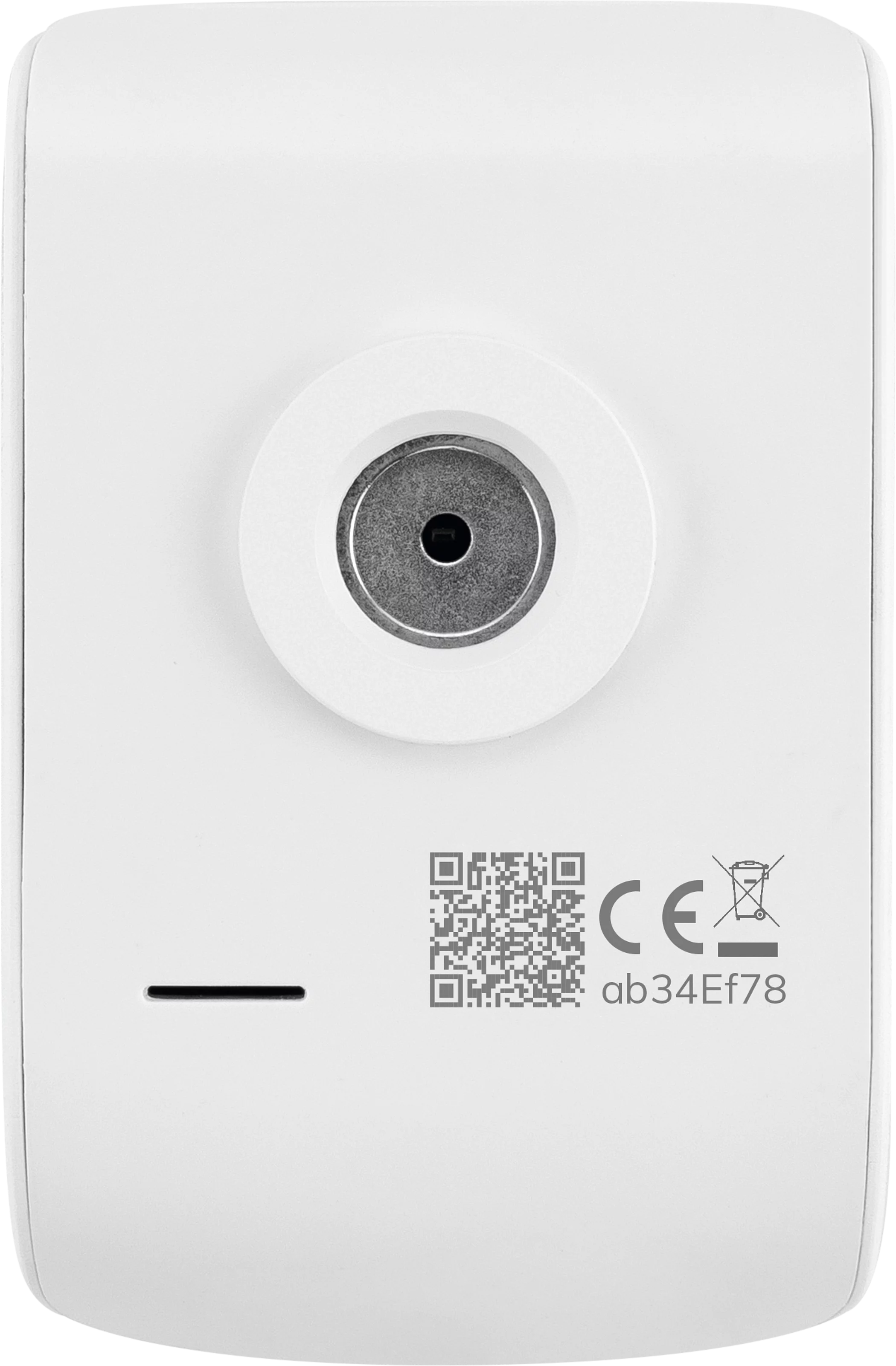

The integration of the motion sensor with the TECHNISMART alarm sYstem is done bY simplY scanning the QR code in the free TECHNISMART application.
The CPU from the TECHNISMART Starter Pack (item no. 0100/9560) and the free TECHNISMART app (iOS/Android) are required to use this device.
The integration of the motion sensor with the TECHNISMART alarm sYstem is done bY simplY scanning the QR code in the free TECHNISMART application.
| Product Information | |
|---|---|
| Colour | Weiß |
| EAN | 4019588095632 |
| Item no. | 0000/9563 |
| Weight (Box) | 224 g |
| Weight | 196 g |
| Device (W x H x D) | 6 x 10 x 5 cm |
| Box | 6,3 x 13,5 x 5,3 cm |
| WLAN | |
|---|---|
| WLAN | Ja (802.11ac) |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | -10 ... 45 °C |
| Humidity | 10 ... 75 % |
| Bluetooth Version & Profile | |
|---|---|
| Bluetooth version | 5 |
| Connections | |
|---|---|
| Ethernet 10/100 (RJ-45) | Yes |
| DC IN | 1 |
| USB | 2 |
| funk communication | |
|---|---|
| Telecommunication | RF (ISM-Band) |
| Range inside | max. 30 m |
| Range outside | max. 100 m |
| operating frequency | 433,92 MHz |
| Network & communication | |
|---|---|
| Bluetooth | Yes 4.1 LE |
| Operation possibilities | |
|---|---|
| Tablet PC | Ja |
| Smartphone | Ja |
| Other features | |
|---|---|
| OSD languages | English, German |
| Power supply | |
|---|---|
| Battery life | up to 120 min pro Akkuladung auf niedrigster Stufe |
| Nominal voltage | 3 V |
| Frequency | 50 Hz |
| Mains adapter | DC 18 V / 3.300 mA |
| Rechargeable battery | Lithium ions with 14,4 V, 2.600 mAh und 37,44 Wh |
| Effective output | 3 W |
| Non rechargeable battery | 2 x AA |
| Type of power supply | External |
| Sensor | |
|---|---|
| Movement sensor | Yes |
