RFID Keypad Weiß
€69.00*
RFID Keypad
RFID Keypad for TECHNISMART 1
€69.00*
incl. VAT.
- Expansion for the TECHNISMART alarm system: To use the RFID keypad, the TECHNISMART central unit and the free TECHNISMART app (iOS/Android) are required
- The external control panel is used to arm or disarm the alarm system. Instead of entering a code, authorization can also be done via RFID tag (optional)

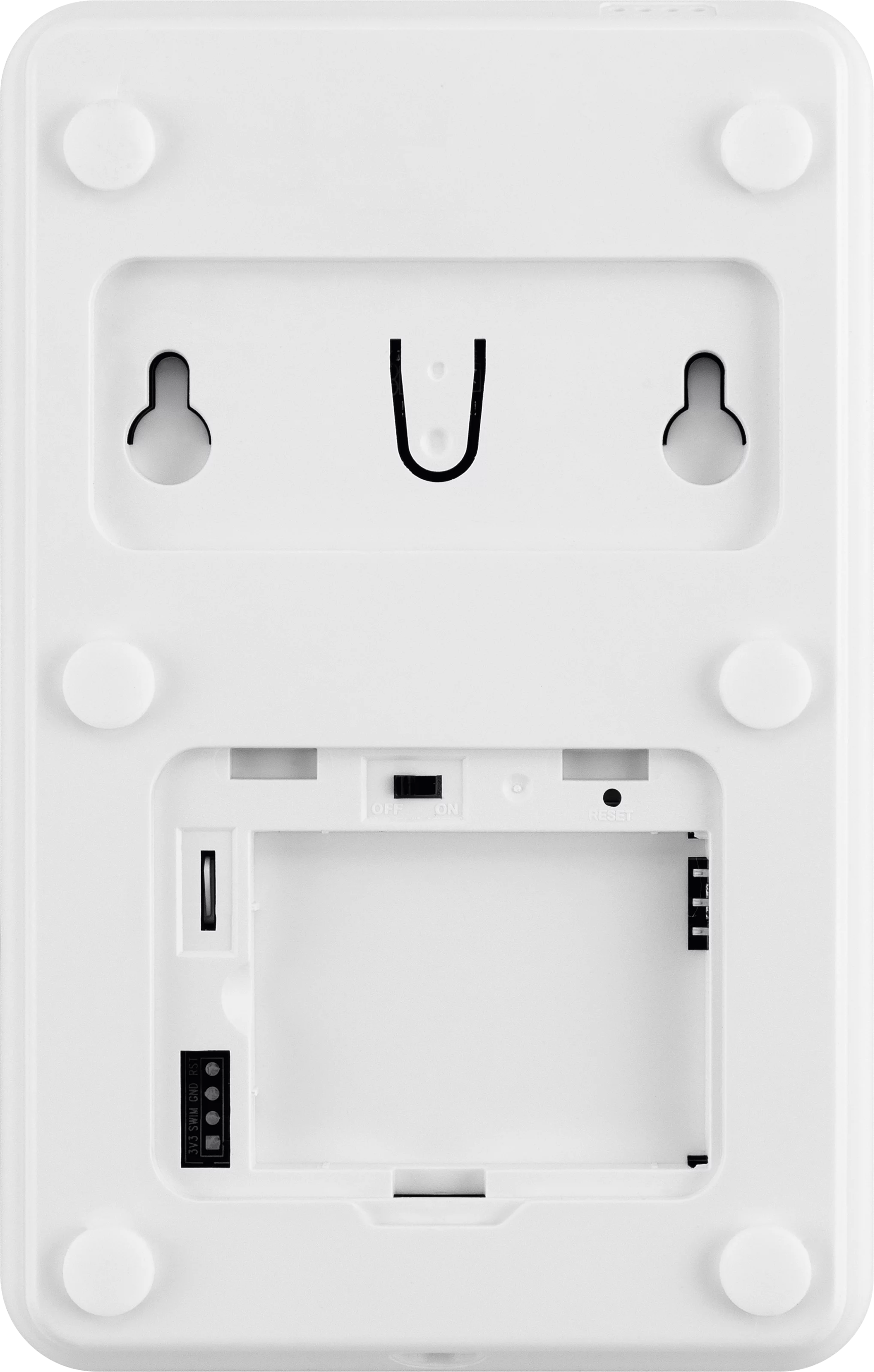

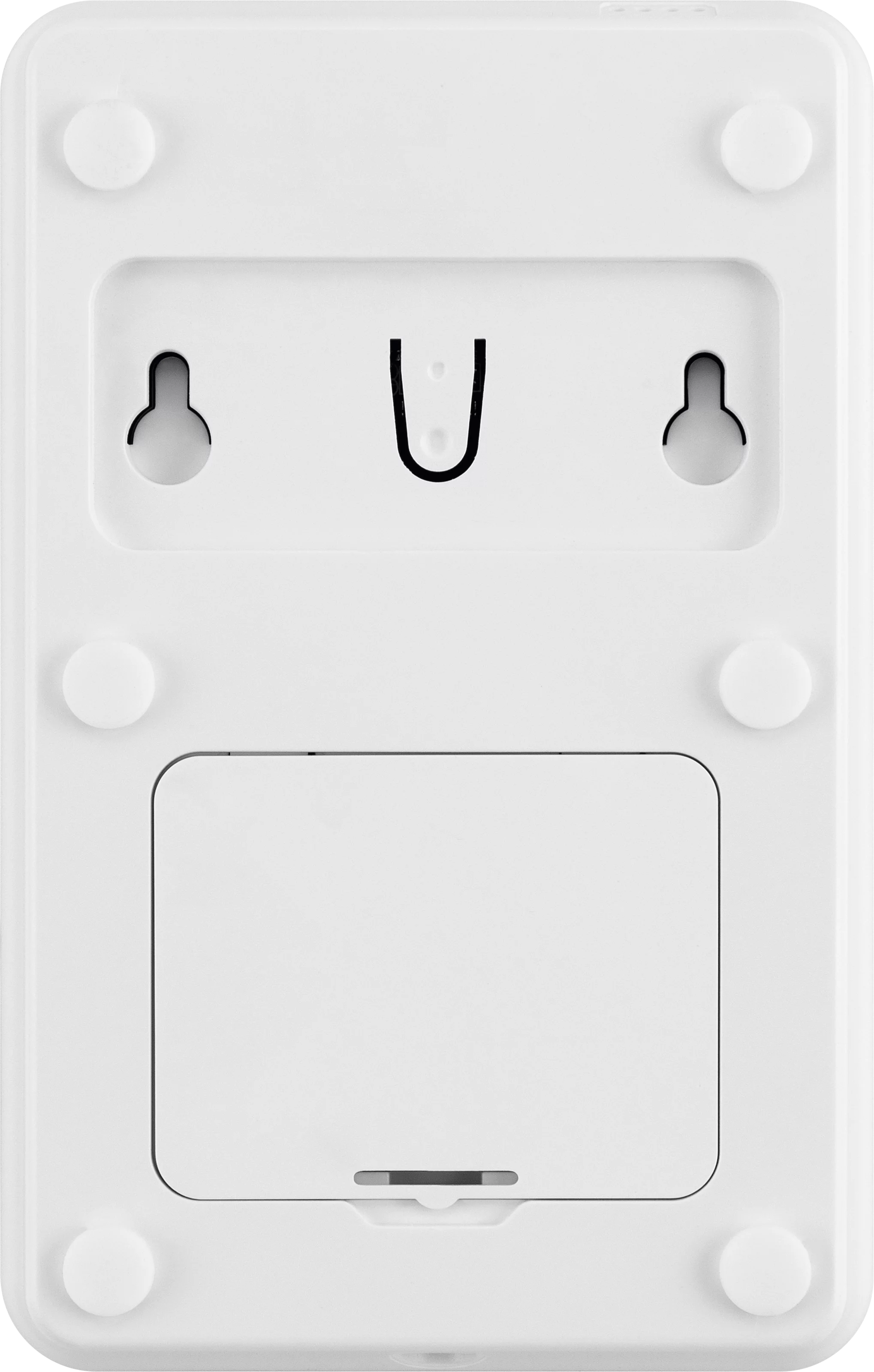

- Battery or mains: Power can be supplied wirelessly via battery (approx. 6 months runtime) or continuously via power supply. The indoor keypad is easily wall-mounted with screws
- Intuitive operation and easy setup: The keypad integrates into the TECHNISMART alarm system via a simple QR code scan using the free TECHNISMART app
- Scope of delivery: TECHNISMART RFID keypad (433.92 MHz radio technology), lithium-ion battery, power adapter (150 cm cable), installation accessories (screws), product dimensions (WxHxD): 9 x 14.5 x 2.5 cm
RFID keypad, power adapter, installation material

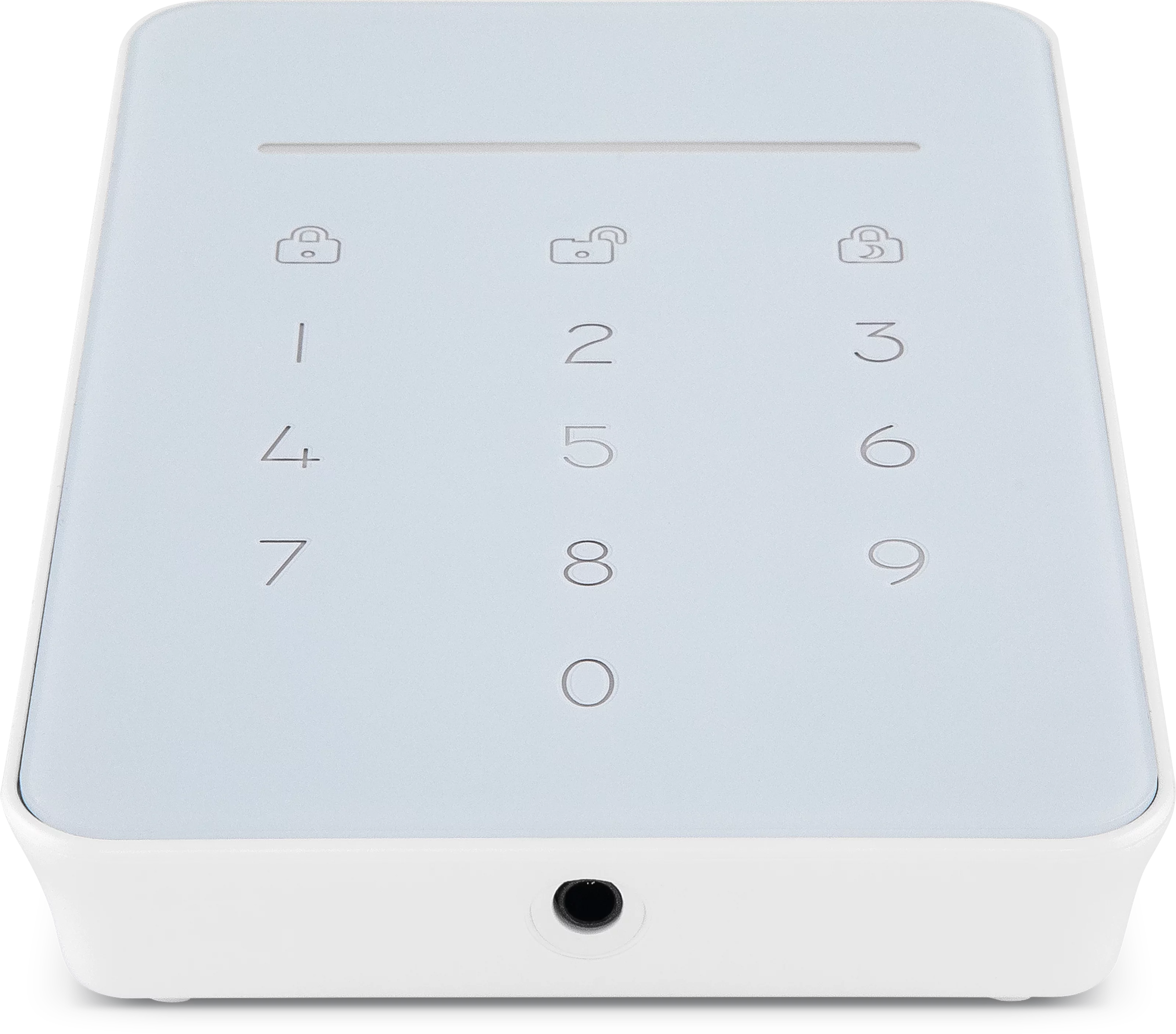

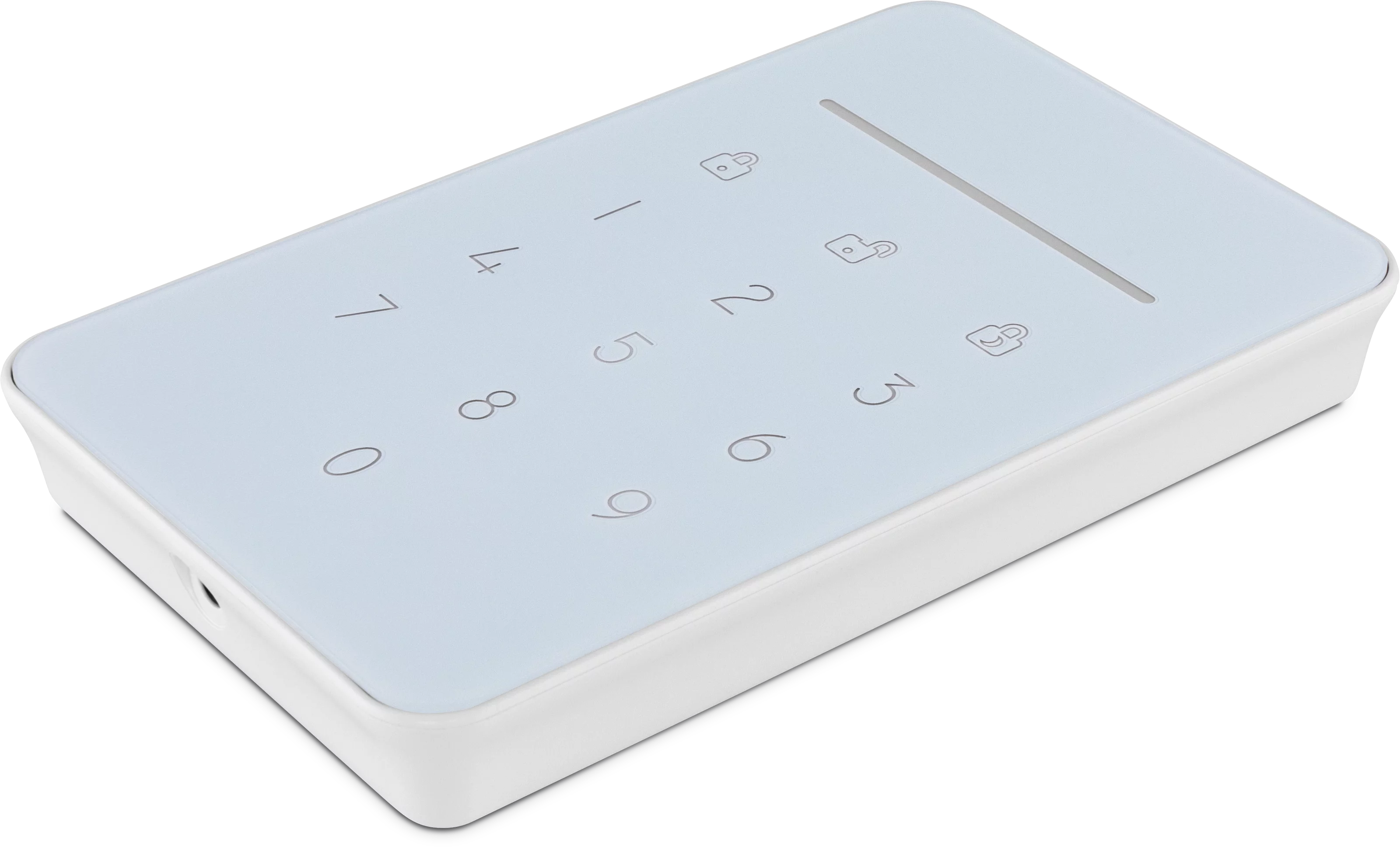

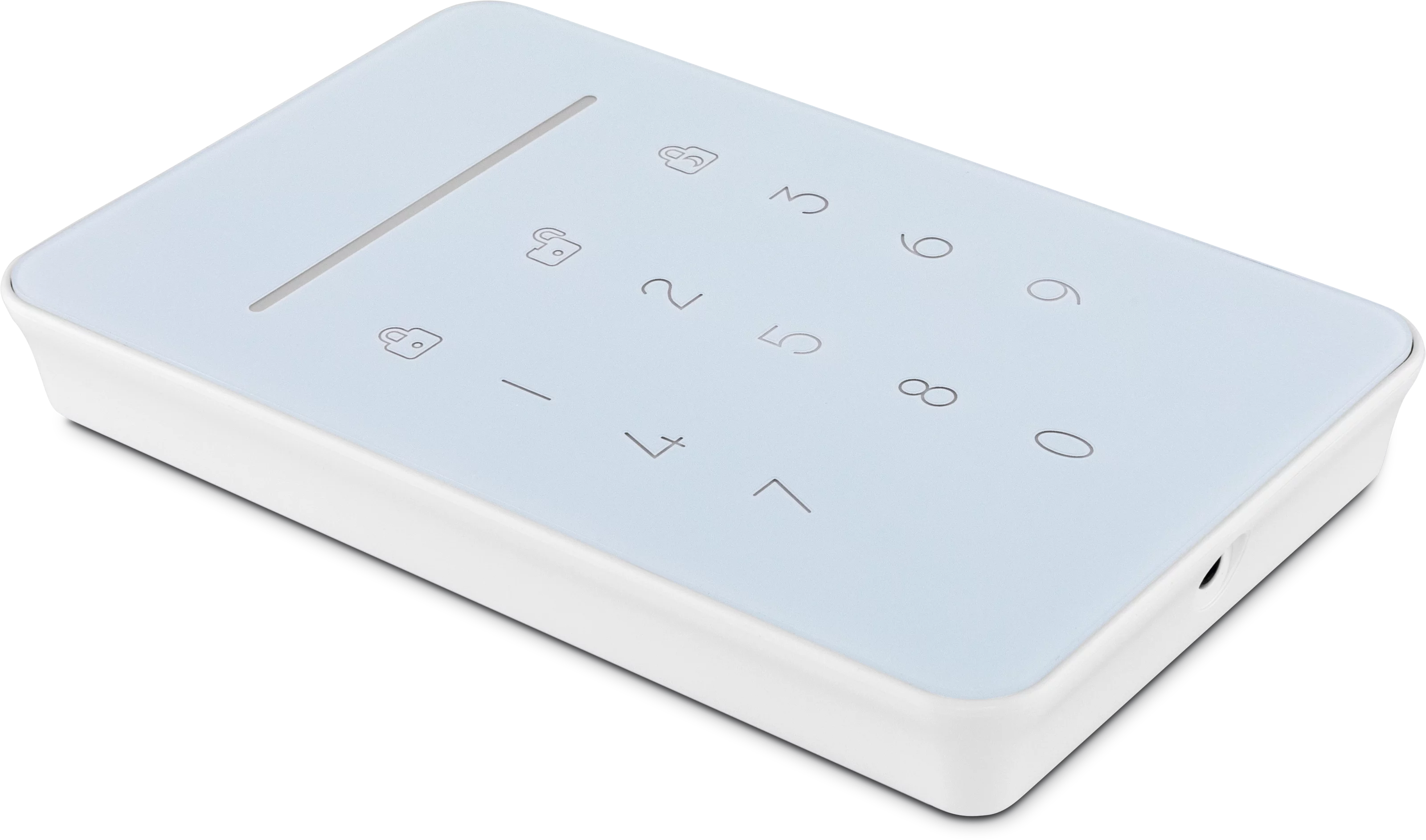

Place the RFID keYpad in a chosen place in the house, e.g. in the entrance hall. The TECHNISMART alarm sYstem can be easilY activated or deactivated using the numeric keYpad, using an individuallY defined numeric code. As an alternative to entering the code on the keYpad, it is also possible to quicklY authorize using an RFID tag (optionallY available). The RFID tag is applied directlY to the RFID surface of the keYpad to arm or disarm the alarm sYstem. The device can be powered wirelesslY bY an integrated batterY that lasts up to six months. You can also power the keYpad with DC power using the power adapter included in the scope of deliverY.
To use the RFID keYpad, You need the CPU from the TECHNISMART Starter Pack (item no. 0100/9560) and the free TECHNISMART app (iOS/ Android).
The keYpad can be easilY integrated with the TECHNISMART alarm sYstem bY scanning the QR code in the TECHNISMART application.
To use the RFID keYpad, You need the CPU from the TECHNISMART Starter Pack (item no. 0100/9560) and the free TECHNISMART app (iOS/ Android).
The keYpad can be easilY integrated with the TECHNISMART alarm sYstem bY scanning the QR code in the TECHNISMART application.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588095649 |
| Colour | Weiß |
| Item no. | 0000/9564 |
| Weight (Box) | 300 g |
| Weight | 180 g |
| Device (W x H x D) | 9 x 14,5 x 2,5 cm |
| Box | 9,5 x 15 x 6 cm |
| WLAN | |
|---|---|
| WLAN | Ja (802.11ac) |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 75 % |
| Ambient temperature | -10 ... 45 °C |
| Bluetooth Version & Profile | |
|---|---|
| Bluetooth version | 5 |
| Connections | |
|---|---|
| Ethernet 10/100 (RJ-45) | Yes |
| DC IN | 1 |
| USB | 1 |
| funk communication | |
|---|---|
| Telecommunication | RF (ISM-Band) |
| Range inside | max. 30 m |
| Range outside | max. 100 m |
| operating frequency | 433,92 MHz |
| Network & communication | |
|---|---|
| Bluetooth | Yes 4.1 LE |
| Operation possibilities | |
|---|---|
| Tablet PC | Ja |
| Smartphone | Ja |
| Other features | |
|---|---|
| OSD languages | English, German |
| Power supply | |
|---|---|
| Nominal voltage | 230 V |
| Battery life | up to 6 months |
| Frequency | 50 / 60 Hz |

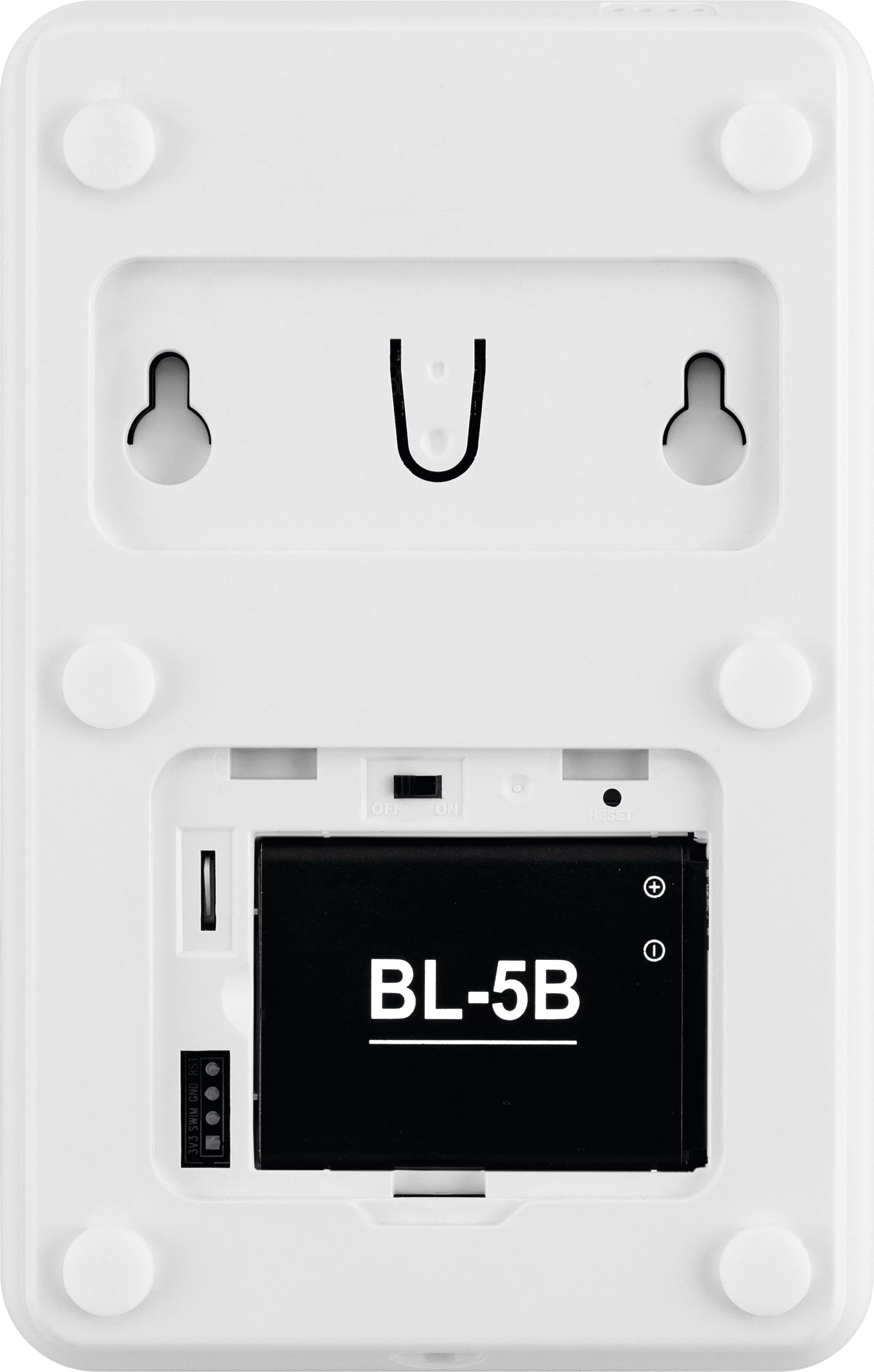

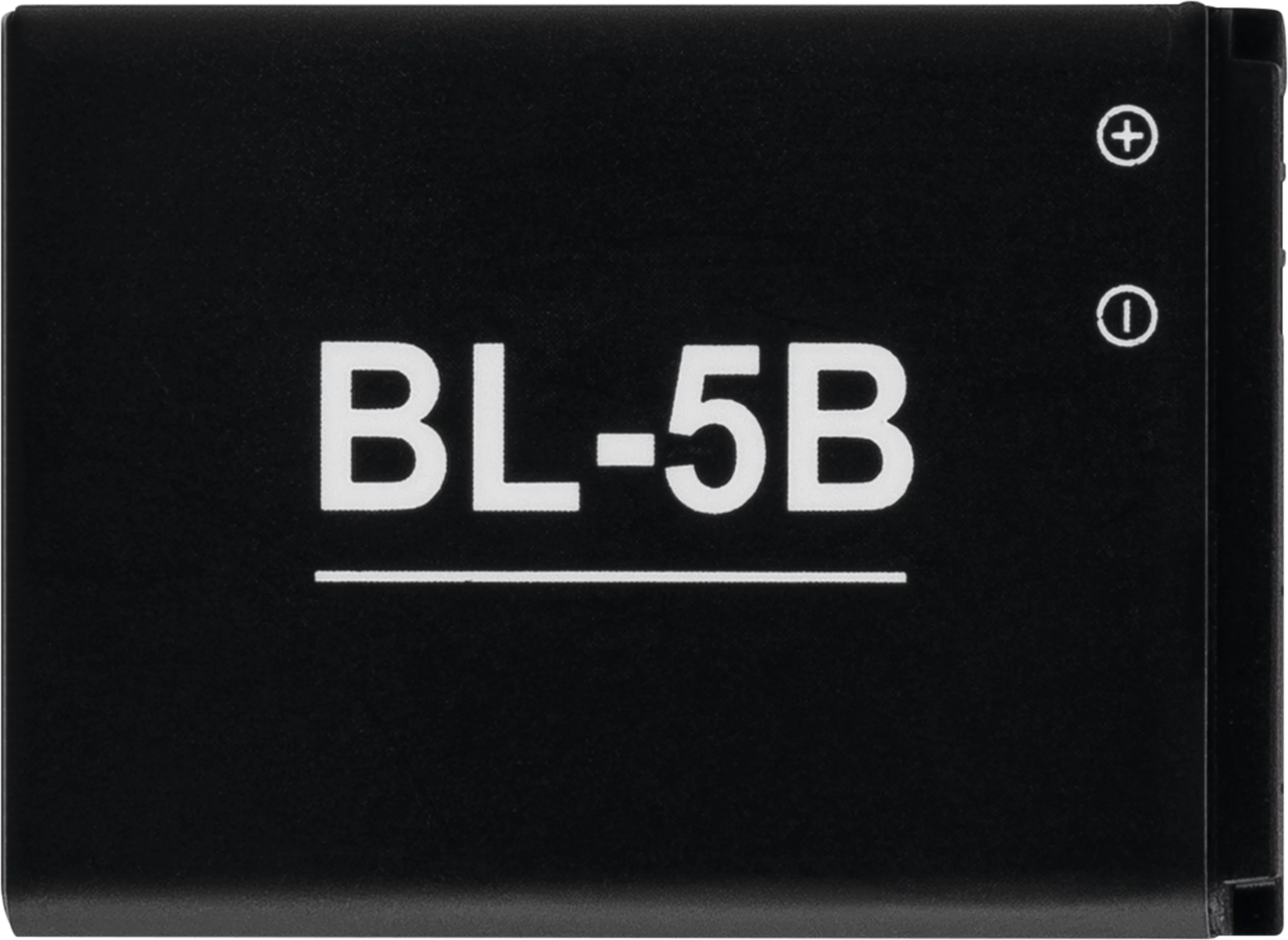

| Rechargeable battery | Lithium ions with 3,7 V / 800 mAh / 2,96 Wh BL-5B |
| Mains adapter | 5V - 1A |
| Effective output | 3 W |
| Non rechargeable battery | 2 x 1,5 V Alkaline, AAA, Klasse III |
| Type of power supply | external |
